Section 6 Data Fusion
We’ll now test and approach that uses both aerial point cloud data (for structural information) and RGB imagery (for spectral information) which is a data fusion approach. First, we’ll identify initial candidate slash piles based on their structural form using our raster-based watershed segmentation approach. Then, we’ll use the RGB imagery to filter these candidates spectrally: relevant RGB vegetation indices such as Green Red Vegetation Index (GRVI), Red Green Ratio Index (RGRI), Visible Band-Difference Vegetation Index (VDVI), Red Green Ratio Index (RGRI), Red Green Blue Vegetation Index (RGBVI), and Excess Green (ExG) are calculated for each candidate segment, and thresholds are applied to remove those exhibiting high greenness. Index thresholds tested include those found to perform well in distinguising green vegetation in previous research (Motohka et al. 2010; Wang et al. 2025; Riehle et al. 2020). Filtering candidate segments using spectral data will enhance our method’s ability to distinguish non-photosynthetic slash piles from living vegetation (e.g., small trees or shrubs) that might share similar structural profiles.
While RGB vegetation indices are good for separating green biomass, differentiating between various shades of brown, black, and white of non-vegetated surfaces like slash piles, rocks, and bare soil can be more challenging. Many common rock-forming minerals are “spectrally featureless” in the visible range, often appearing pale grey to white (Harris et al. 2010). As such, we will attempt to filter out very dark (black) or very light (white) boulders from the reddish-brown tones common of wood in slash piles using RGB indices that focus on overall brightness and color purity (Kior et al. 2024). The Brightness Index (BI) can help us exclude extremely dark (black; low BI) or bright (white; high BI) objects. Setting a minimum threshold for saturation (i.e. color purity) can remove achromatic features (like grey, black, or white objects that have very low saturation values close to 0) to help us isolate more chromatic (brown) slash piles.
This data fusion methodology leverages the complementary strengths of both data types, using 3D geometry for initial object segmentation and 2D spectral data to refine detections by excluding green biomass and potential rock and soil features that appear very dark or very light, leading to more accurate slash pile identification.
6.1 RGB Indices
For these formulas, \(R\), \(G\), and \(B\) represent the raw pixel values for the Red, Green, and Blue bands, respectively. For indices that use normalized values, \(r\), \(g\), and \(b\) are defined as:
\(r = \frac{R}{R+G+B}\) \(g = \frac{G}{R+G+B}\) \(b = \frac{B}{R+G+B}\)
Green Red Vegetation Index (GRVI)
\[GRVI = \frac{G - R}{G + R}\]
Red Green Ratio Index (RGRI)
\[RGRI = \frac{R}{G}\]
Visible Band-Difference Vegetation Index (VDVI)
\[VDVI = \frac{2G - R - B}{2G + R + B}\]
Red Green Blue Vegetation Index (RGBVI)
\[RGBVI = \frac{G^2 - (B \cdot R)}{G^2 + (B \cdot R)}\]
Excess Green (ExG)
\[ExG = 2g - r - b = \frac{2G - R - B}{R+G+B}\]
Excessive Red (ExR) \[ExR = 1.4r - g = \frac{1.4R - G}{R+G+B}\]
Excess Green-Excess Red (ExGR)
\[ExGR = 3g - 2.4r - b = \frac{3G - 2.4R - B}{R+G+B}\]
Brightness Index (BI)
\[BI = \sqrt{\frac{R^2+G^2+B^2}{3}}\]
Saturation
\[Saturation = \frac{\max(R,G,B) - \min(R,G,B)}{\max(R,G,B)}\]
6.1.1 Spectral Index Functions
Although there are dedicated R packages to calculate various spectral indicies (e.g. RStoolbox [Muller et al. 2025]), we’ll make our own to ensure data quality checks and to limit the spectral indices to those highlighted above.
# check raster bands and extract rgb layers
check_raster_bands <- function(rast, red_band_idx, green_band_idx, blue_band_idx) {
# convert to SpatRaster if input is from 'raster' package
if(
inherits(rast, "RasterStack")
|| inherits(rast, "RasterBrick")
){
rast <- terra::rast(rast)
}else if(!inherits(rast, "SpatRaster")){
stop("Input 'rast' must be a SpatRaster from the `terra` package")
}
# check if band indices are valid
num_bands <- terra::nlyr(rast)
# let 999999 be a cheat code
cheat_code <- 999999
if(
( red_band_idx!=cheat_code && red_band_idx > num_bands )
|| ( green_band_idx!=cheat_code && green_band_idx > num_bands )
|| ( blue_band_idx!=cheat_code && blue_band_idx > num_bands )
|| ( red_band_idx!=cheat_code && red_band_idx < 1 )
|| ( green_band_idx!=cheat_code && green_band_idx < 1 )
|| ( blue_band_idx!=cheat_code && blue_band_idx < 1 )
|| length(unique(c(red_band_idx,green_band_idx,blue_band_idx)))!=3
){
stop("Invalid band index provided. Band indices must correspond to existing, unique layers in the raster object.")
}
# extract bands
if(red_band_idx!=cheat_code){ R <- rast[[red_band_idx]] }else{ R <- rast[[1]] }
if(green_band_idx!=cheat_code){ G <- rast[[green_band_idx]] }else{ G <- rast[[1]] }
if(blue_band_idx!=cheat_code){ B <- rast[[blue_band_idx]] }else{ B <- rast[[1]] }
return(list(R = R, G = G, B = B))
}
# check_raster_bands(ortho_rast, red_band_idx=1, green_band_idx=3, blue_band_idx = 999999)
# calculate green red vegetation index (GRVI)
# (G - R) / (G + R)
spectral_index_grvi <- function(rast, red_band_idx, green_band_idx) {
bands <- check_raster_bands(rast, red_band_idx, green_band_idx, blue_band_idx = 999999) # blue_band_idx is dummy here
R <- bands$R
G <- bands$G
grvi <- (G - R) / (G + R)
names(grvi) <- "grvi"
return(grvi)
}
# spectral_index_grvi(ortho_rast,red_band_idx = 1, green_band_idx = 2) %>% terra::plot()
# red green ratio index (RGRI)
# R/G
spectral_index_rgri <- function(rast, red_band_idx, green_band_idx) {
bands <- check_raster_bands(rast, red_band_idx, green_band_idx, blue_band_idx = 999999) # blue_band_idx is dummy here
R <- bands$R
G <- bands$G
rgri <- R/G
names(rgri) <- "rgri"
return(rgri)
}
# spectral_index_grvi(ortho_rast,red_band_idx = 1, green_band_idx = 2) %>% terra::plot()
# calculate visible band-difference vegetation index (VDVI)
# (2G - R - B) / (2G + R + B)
spectral_index_vdvi <- function(rast, red_band_idx, green_band_idx, blue_band_idx) {
bands <- check_raster_bands(rast, red_band_idx, green_band_idx, blue_band_idx)
R <- bands$R
G <- bands$G
B <- bands$B
vdvi <- (2 * G - R - B) / (2 * G + R + B)
names(vdvi) <- "vdvi"
return(vdvi)
}
# spectral_index_vdvi(ortho_rast,red_band_idx = 1, green_band_idx = 2, blue_band_idx = 3) %>% terra::plot()
# calculate red green blue vegetation index (RGBVI)
# (G^2 - (B * R)) / (G^2 + (B * R))
spectral_index_rgbvi <- function(rast, red_band_idx, green_band_idx, blue_band_idx) {
bands <- check_raster_bands(rast, red_band_idx, green_band_idx, blue_band_idx)
R <- bands$R
G <- bands$G
B <- bands$B
rgbvi <- (G^2 - (B * R)) / (G^2 + (B * R))
names(rgbvi) <- "rgbvi"
return(rgbvi)
}
# spectral_index_rgbvi(ortho_rast,red_band_idx = 1, green_band_idx = 2, blue_band_idx = 3) %>% terra::plot()
# calculate excess green (ExG)
# (2G - R - B) / (R + G + B) (using normalized RGB values)
# 2G - R - B (using raw values, then normalized by sum of R+G+B)
spectral_index_exg <- function(rast, red_band_idx, green_band_idx, blue_band_idx) {
bands <- check_raster_bands(rast, red_band_idx, green_band_idx, blue_band_idx)
R <- bands$R
G <- bands$G
B <- bands$B
# Calculate normalized RGB values
sum_rgb <- R + G + B
r_norm <- R / sum_rgb
g_norm <- G / sum_rgb
b_norm <- B / sum_rgb
exg <- (2 * g_norm - r_norm - b_norm)
names(exg) <- "exg"
return(exg)
}
# spectral_index_exg(ortho_rast,red_band_idx = 1, green_band_idx = 2, blue_band_idx = 3) %>% terra::plot()
# calculate brightness index (BI)
# sqrt((R^2 + G^2 + B^2) / 3)
spectral_index_bi <- function(rast, red_band_idx, green_band_idx, blue_band_idx) {
bands <- check_raster_bands(rast, red_band_idx, green_band_idx, blue_band_idx)
R <- bands$R
G <- bands$G
B <- bands$B
bi <- sqrt((R^2 + G^2 + B^2) / 3)
# normalize to 0-1 range
max_brightness = max(
terra::minmax(R)[2]
, terra::minmax(G)[2]
, terra::minmax(B)[2]
, na.rm = T
)
bi <- bi/max_brightness
names(bi) <- "bi"
return(bi)
}
# spectral_index_bi(ortho_rast,red_band_idx = 1, green_band_idx = 2, blue_band_idx = 3) %>% terra::plot()
# calculate excessive red (ExR)
# 1.4r - g, where r and g are normalized RGB values.
spectral_index_exr <- function(rast, red_band_idx, green_band_idx, blue_band_idx){
bands <- check_raster_bands(rast, red_band_idx, green_band_idx, blue_band_idx)
R <- bands$R
G <- bands$G
B <- bands$B
# Calculate normalized RGB values
sum_rgb <- R + G + B
r_norm <- R / sum_rgb
g_norm <- G / sum_rgb
exr <- (1.4 * r_norm - g_norm)
names(exr) <- "exr"
return(exr)
}
#' calculate excess green-excess red (ExGR)
#' 3g - 2.4r - b, where r, g, b are normalized RGB values.
#' equivalent to ExG - ExR.
spectral_index_exgr <- function(rast, red_band_idx, green_band_idx, blue_band_idx) {
bands <- check_raster_bands(rast, red_band_idx, green_band_idx, blue_band_idx)
R <- bands$R
G <- bands$G
B <- bands$B
# Calculate normalized RGB values
sum_rgb <- R + G + B
r_norm <- R / sum_rgb
g_norm <- G / sum_rgb
b_norm <- B / sum_rgb
exgr <- (3 * g_norm - 2.4 * r_norm - b_norm)
names(exgr) <- "exgr"
return(exgr)
}
# calculate saturation (SAT)
# (max(R,G,B) - min(R,G,B)) / max(R,G,B)
spectral_index_saturation <- function(rast, red_band_idx, green_band_idx, blue_band_idx) {
bands <- check_raster_bands(rast, red_band_idx, green_band_idx, blue_band_idx)
R <- bands$R
G <- bands$G
B <- bands$B
max_rgb <- max(R, G, B)
min_rgb <- min(R, G, B)
sat <- (max_rgb - min_rgb) / max_rgb
names(sat) <- "sat"
return(sat)
}
# spectral_index_saturation(ortho_rast,red_band_idx = 1, green_band_idx = 2, blue_band_idx = 3) %>% terra::plot()
# calculate all indices
calculate_all_rgb_indices <- function(raster_obj, red_band_idx, green_band_idx, blue_band_idx) {
# call individual index functions
grvi_layer <- spectral_index_grvi(raster_obj, red_band_idx, green_band_idx)
rgri_layer <- spectral_index_rgri(raster_obj, red_band_idx, green_band_idx)
vdvi_layer <- spectral_index_vdvi(raster_obj, red_band_idx, green_band_idx, blue_band_idx)
rgbvi_layer <- spectral_index_rgbvi(raster_obj, red_band_idx, green_band_idx, blue_band_idx)
exg_layer <- spectral_index_exg(raster_obj, red_band_idx, green_band_idx, blue_band_idx)
exr_layer <- spectral_index_exr(raster_obj, red_band_idx, green_band_idx, blue_band_idx)
exgr_layer <- spectral_index_exgr(raster_obj, red_band_idx, green_band_idx, blue_band_idx)
bi_layer <- spectral_index_bi(raster_obj, red_band_idx, green_band_idx, blue_band_idx)
sat_layer <- spectral_index_saturation(raster_obj, red_band_idx, green_band_idx, blue_band_idx)
# stack all calculated indices into a single spatraster
all_indices <- c(
grvi_layer
, rgri_layer
, vdvi_layer
, rgbvi_layer
, exg_layer
, exr_layer
, exgr_layer
, bi_layer
, sat_layer
)
return(all_indices)

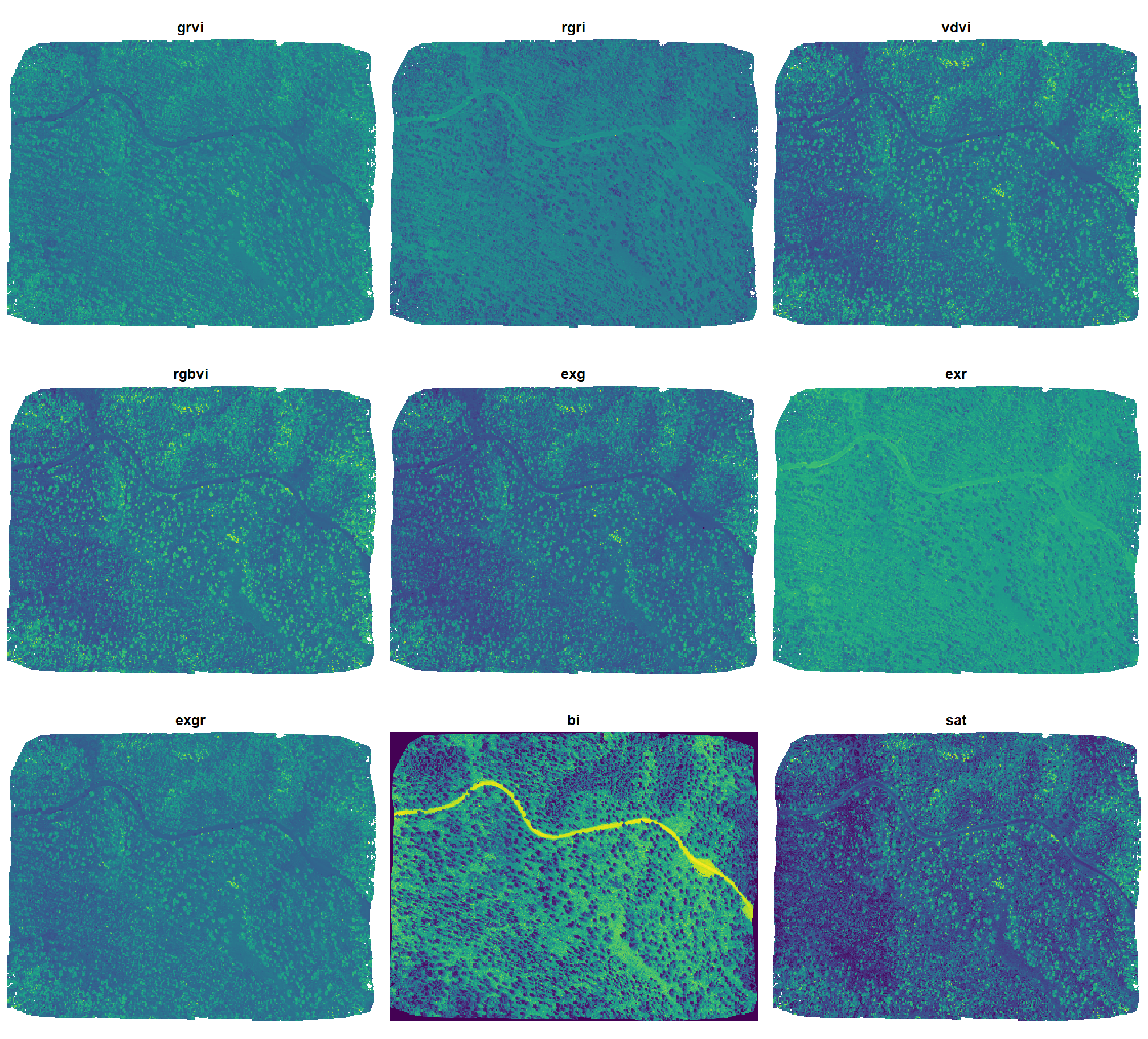

}let’s test this calculate_all_rgb_indices() function with our orthomosaic
# calculate_all_rgb_indices
all_rgb_indices_rast <- calculate_all_rgb_indices(ortho_rast,red_band_idx = 1, green_band_idx = 2, blue_band_idx = 3)
# huh?
all_rgb_indices_rast %>% names()## [1] "grvi" "rgri" "vdvi" "rgbvi" "exg" "exr" "exgr" "bi" "sat"let’s plot all of those indices for the entire extent of our orthomoasic

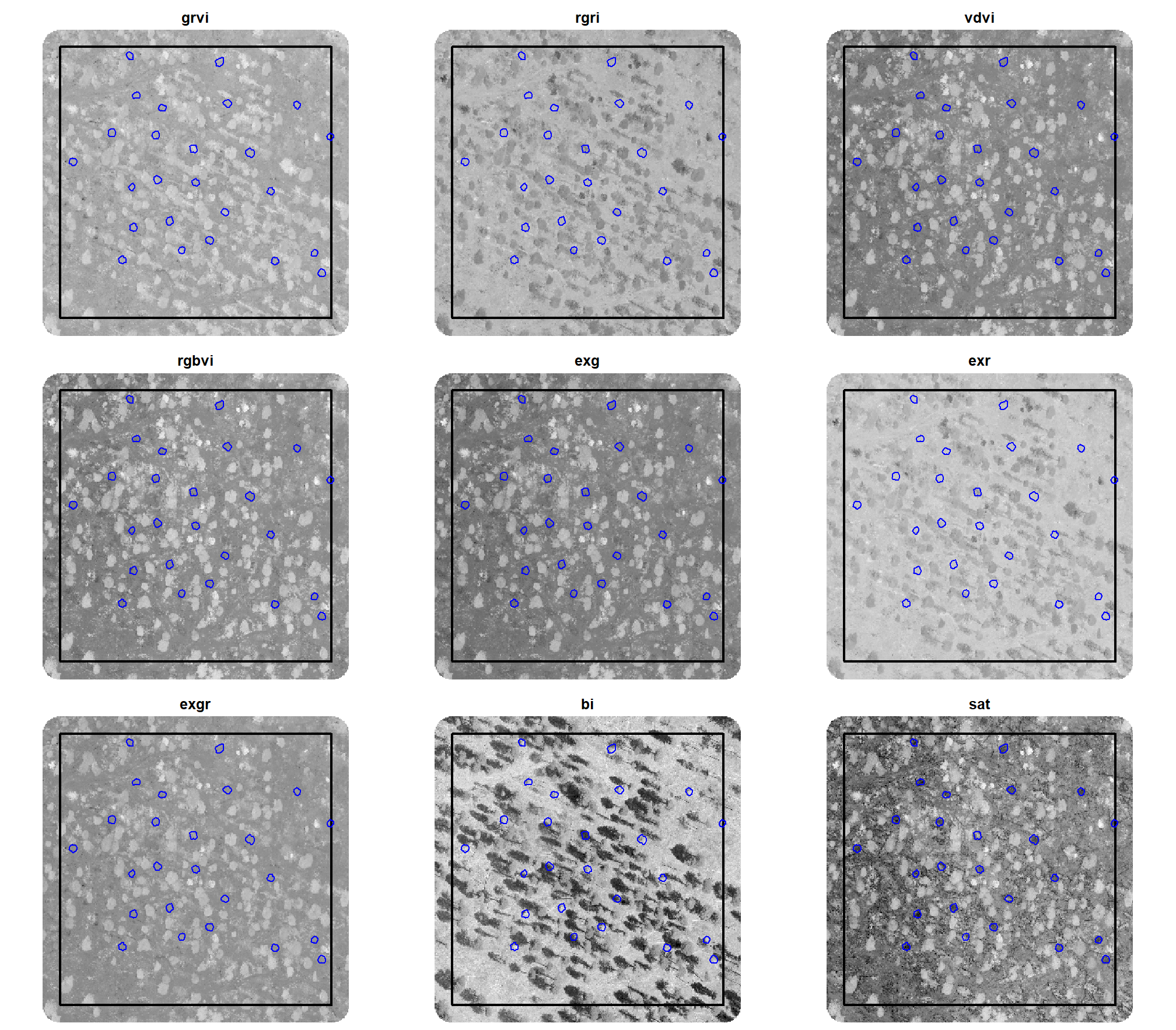

# plot
terra::plot(
all_rgb_indices_rast
, nc = 3
# , nr = 3
, mar = c(0.5,0.5,2,0.5)
, axes = FALSE
, legend = F
)

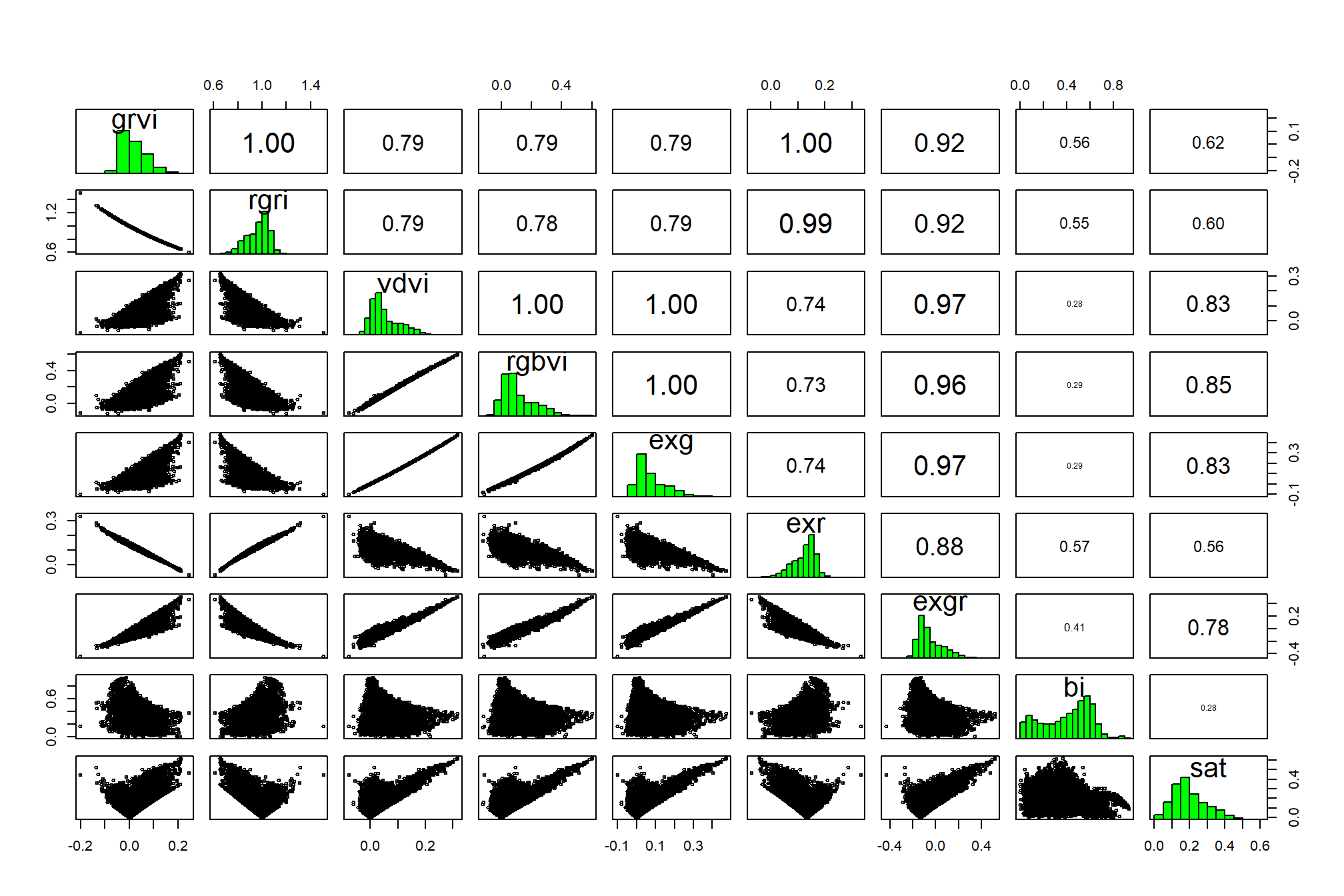

we can also look at the correlation between the different indices
# investigate correlation among covariates
all_rgb_indices_rast %>%
terra::pairs(
maxcells = min(11111, terra::ncell(all_rgb_indices_rast)*.01)
)
many of these spectral indices are highly (even perfectly) correlated, meaning they provide redundant information. to streamline our method and ensure we utilize unique spectral insights for distinguishing slash piles from the surrounding terrain and other objects, we will select only one index from each correlated group. GRVI, RGRI, and ExR are highly correlated, as are VDVI, RGBVI, and ExG. we’ll choose one from each of these sets.
6.1.2 Spectral Index of Polygons
we now need a function to crop the raster with all spectral indices given a polygon input data and return the spectral index values as columns attached to the polygon
extract_rast_values <- function(sf_data, rast, fun_agg = mean) {
# checks
if(!inherits(rast, "SpatRaster")){
stop("Input `rast` must be a SpatRaster object.")
}
if(!inherits(sf_data, "sf")){
stop("Input `sf_data` must be an sf data frame.")
}
if(!all(sf::st_geometry_type(sf_data) %in% c("POLYGON", "MULTIPOLYGON"))) {
stop("Input `sf_data` must contain polygon geometries.")
}
if(!is.function(fun_agg)) {
stop("Argument `fun_agg` must be a function (e.g., mean, median, sum).")
}
# crs
sf_data <- sf_data %>% sf::st_transform(terra::crs(rast))
# extract values for each layer within each polygon
extracted_values <- terra::extract(
x = rast
, y = sf_data
, fun = fun_agg
, na.rm = TRUE
)
# clean data
fun_name <- deparse(substitute(fun_agg))
extracted_values <- extracted_values %>%
dplyr::select(-ID) %>%
dplyr::rename_with(
~ paste0(
"rast_"
# , fun_name ### if we want to have custom output depending on the fun_agg
, "agg"
, "_"
, .x
, recycle0 = TRUE
)
)
# Merge the extracted values back to the original sf data frame
# The row order is preserved by terra::extract, so a direct cbind is safe
# if no rows were dropped due to spatial mismatch.
# For robustness, we can explicitly join by row ID if needed, but for simple cases, cbind works.
# Assuming sf_data has a unique ID column or row order is stable:
sf_data_with_indices <- sf_data %>% dplyr::bind_cols(extracted_values)
return(sf_data_with_indices)
}
# extract_rast_values(slash_piles_polys, rast = ortho_rast) %>% dplyr::glimpse()6.2 Ground Truth Pile Spectral Summary

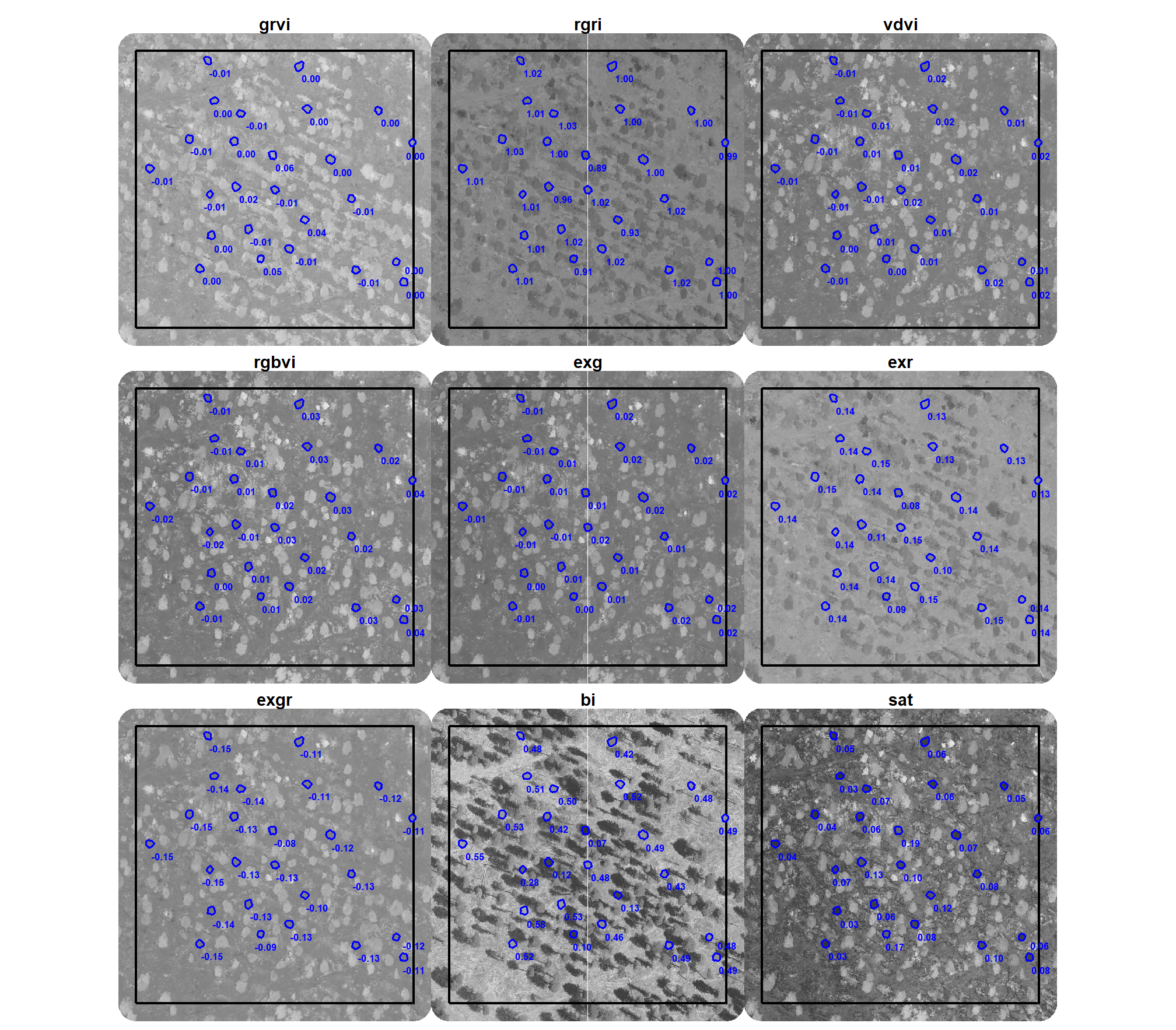

let’s calculate the various spectral indices on our ground truth slash pile polygons by getting the median value within the bounds of the pile
# extract_rast_values
rgb_indices_df <- extract_rast_values(slash_piles_polys, rast = all_rgb_indices_rast, fun_agg = median)
# quick summary
rgb_indices_df %>%
sf::st_drop_geometry() %>%
dplyr::select(tidyselect::starts_with("rast_agg_")) %>%
summary()## rast_agg_grvi rast_agg_rgri rast_agg_vdvi rast_agg_rgbvi
## Min. :-0.044498 Min. :0.7723 Min. :-0.03340 Min. :-0.057555
## 1st Qu.:-0.018684 1st Qu.:0.9955 1st Qu.:-0.01230 1st Qu.:-0.023593
## Median :-0.006677 Median :1.0134 Median : 0.00838 Median : 0.019351
## Mean :-0.002969 Mean :1.0073 Mean : 0.00156 Mean : 0.005411
## 3rd Qu.: 0.002257 3rd Qu.:1.0381 3rd Qu.: 0.01486 3rd Qu.: 0.031555
## Max. : 0.128458 Max. :1.0931 Max. : 0.02562 Max. : 0.053403
## rast_agg_exg rast_agg_exr rast_agg_exgr rast_agg_bi
## Min. :-0.044049 Min. :0.02682 Min. :-0.20026 Min. :0.05338
## 1st Qu.:-0.016327 1st Qu.:0.13408 1st Qu.:-0.15482 1st Qu.:0.32600
## Median : 0.011205 Median :0.14114 Median :-0.13148 Median :0.48446
## Mean : 0.002176 Mean :0.13711 Mean :-0.13468 Mean :0.41320
## 3rd Qu.: 0.019909 3rd Qu.:0.15109 3rd Qu.:-0.11505 3rd Qu.:0.51972
## Max. : 0.034451 Max. :0.17660 Max. :-0.03147 Max. :0.59641
## rast_agg_sat
## Min. :0.03437
## 1st Qu.:0.06765
## Median :0.08387
## Mean :0.09973
## 3rd Qu.:0.11523

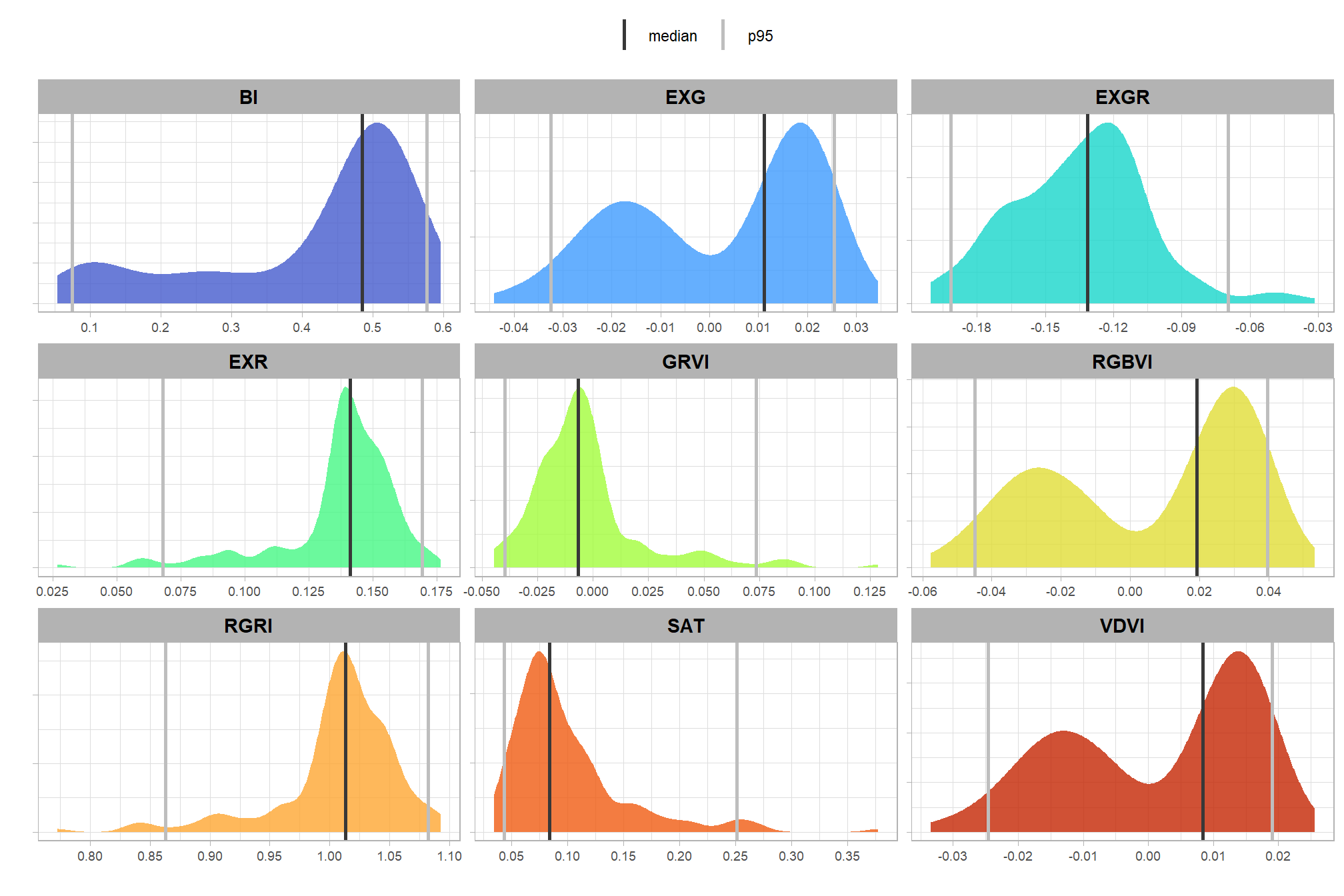

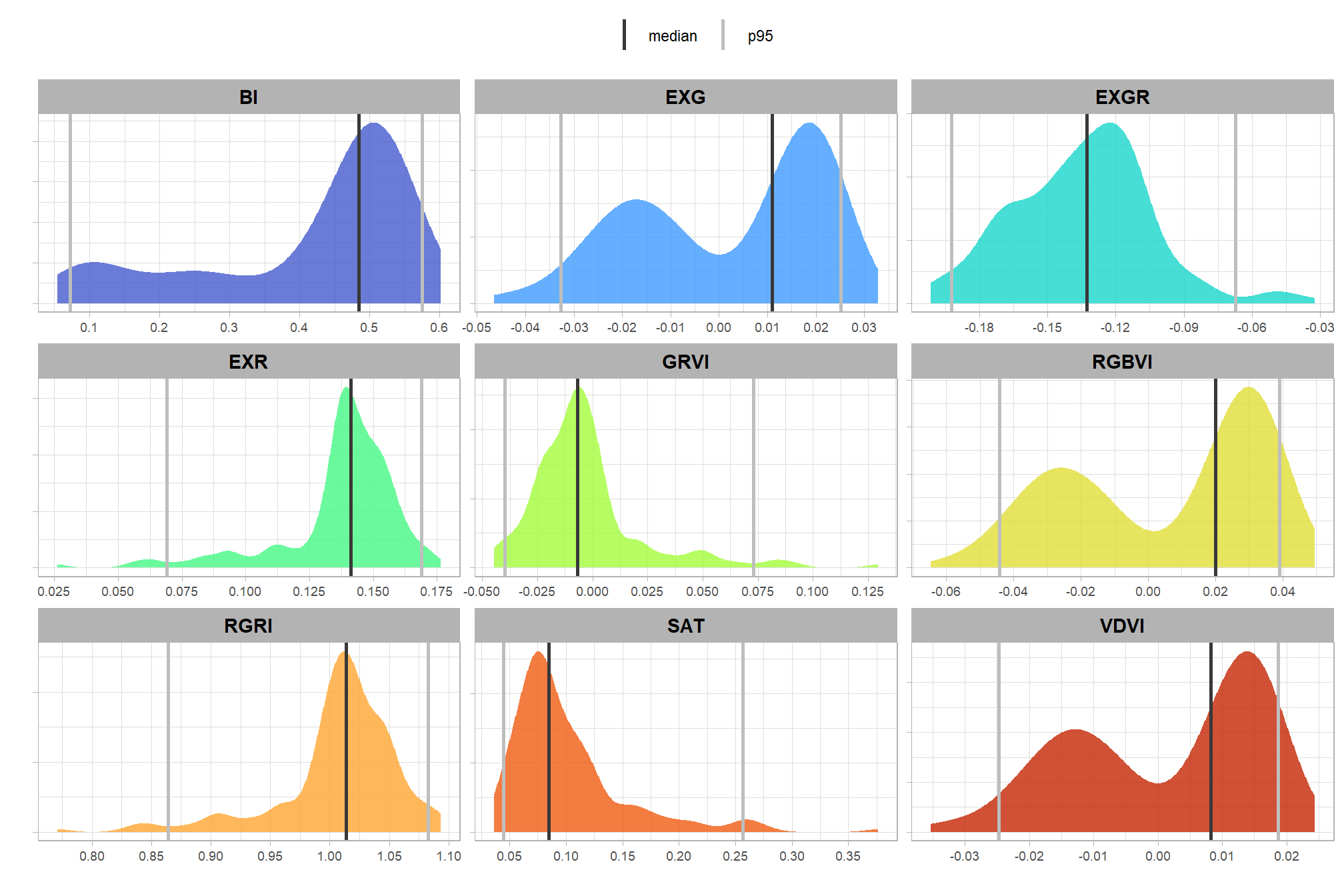

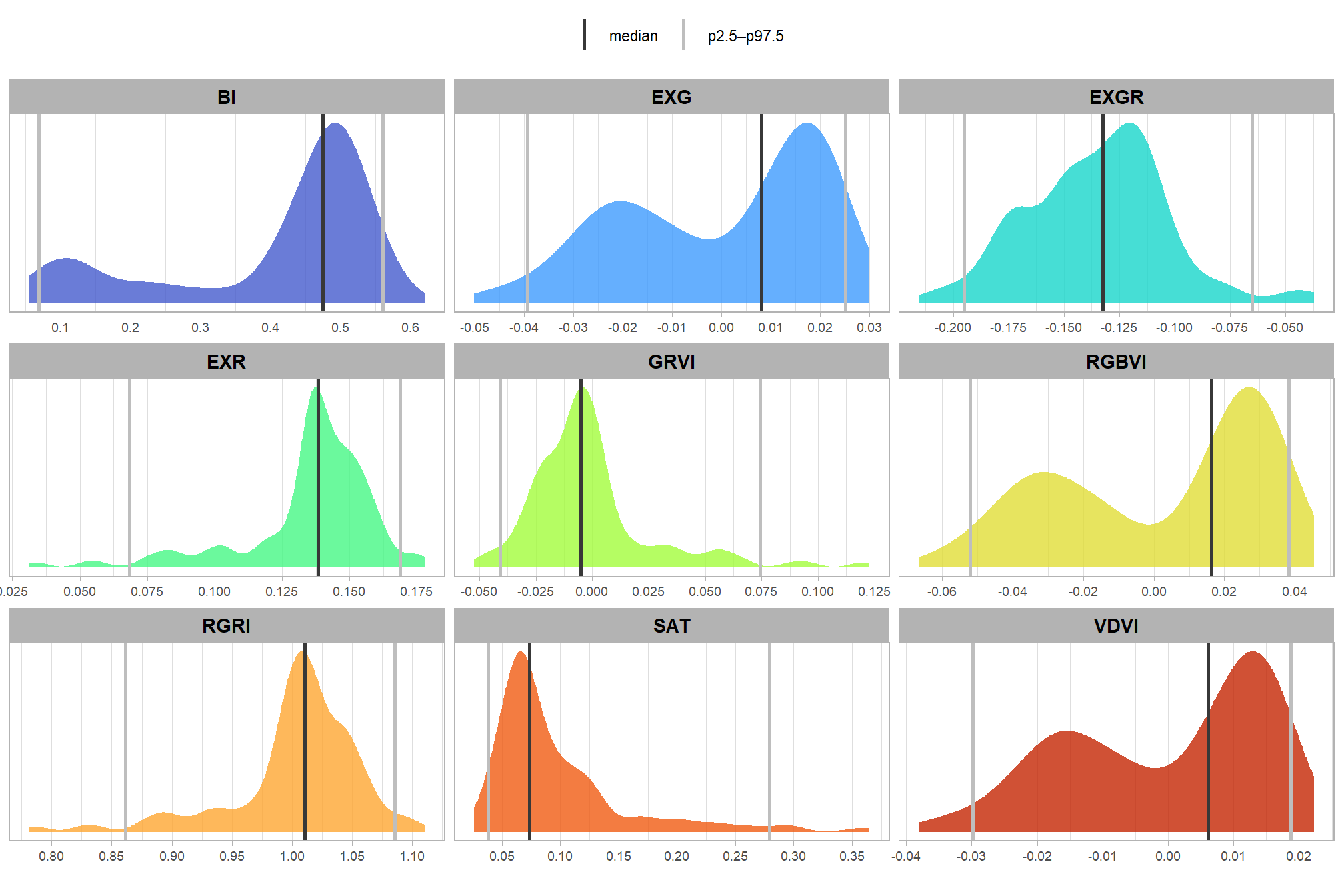

## Max. :0.37712let’s plot it
# pivot
agg_df_temp <- rgb_indices_df %>%
sf::st_drop_geometry() %>%
dplyr::select(tidyselect::starts_with("rast_agg_")) %>%
tidyr::pivot_longer(cols = dplyr::everything()) %>%
dplyr::mutate(name = stringr::str_remove_all(name,"rast_agg_") %>% stringr::str_to_upper())
# plot
ggplot2::ggplot() +
ggplot2::geom_density(
data = agg_df_temp
, mapping = ggplot2::aes(x = value, fill = name)
, color = NA, alpha = 0.8
) +
ggplot2::geom_vline(
data = agg_df_temp %>% dplyr::group_by(name) %>% dplyr::mutate(value=median(value,na.rm=T))
, mapping = ggplot2::aes(xintercept = value, color = "median")
, linetype = "solid", lwd = 1
) +
ggplot2::geom_vline(
data = agg_df_temp %>% dplyr::group_by(name) %>% dplyr::mutate(value=quantile(value,na.rm=T,probs=0.025))
, mapping = ggplot2::aes(xintercept = value, color = "p95")
, linetype = "solid", lwd = 1
) +
ggplot2::geom_vline(
data = agg_df_temp %>% dplyr::group_by(name) %>% dplyr::mutate(value=quantile(value,na.rm=T,probs=(1-0.025)))
, mapping = ggplot2::aes(xintercept = value, color = "p95")
, linetype = "solid", lwd = 1
) +
ggplot2::scale_fill_viridis_d(option = "turbo", begin = 0.1, end = 0.9, alpha = 0.7) +
# ggplot2::scale_fill_brewer(palette = "Set2") +
ggplot2::scale_color_manual(values = c("gray22","gray","gray")) +
ggplot2::scale_x_continuous(breaks = scales::breaks_extended(8)) +
ggplot2::facet_wrap(
facets = dplyr::vars(name)
, ncol = 3
, scales = "free"
) +
ggplot2::labs(
x = "", y = "", color = "", fill = ""
) +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "top"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
, axis.text.x = ggplot2::element_text(size = 7)
, axis.text.y = ggplot2::element_blank()
) +
ggplot2::guides(fill = "none")
that’s interesting. let’s see how those values compare with the thresholds identified in the research to identify green crops, trees, and shrubs using RGB spectral indicies
| Index | Likely Crop | Likely Tree | Likely Shrub | Source |
|---|---|---|---|---|
| VDVI | x > 0.06 | x > 0.04 | x > 0.03 | Wang et al. 2025 |
| RGRI | x < 0.63 | x < 0.70 | x < 0.52 | Wang et al. 2025 |
| RGBVI | x > -20.0 | x > -22.0 | x > -18.0 | Wang et al. 2025 |
| ExG | x > 58.0 | x > 59.5 | x > 59.0 | Wang et al. 2025 |
| GRVI | x > 0.0 | x > 0.0 | Motohka et al. 2010 | |
| ExGR | x > 0.0 | x > 0.0 | x > 0.0 | Riehle et al. 2020 |
- VDVI: setting a threshold to remove candidate slash piles with VDVI>0.03 should work well
- RGRI: setting a threshold to remove candidate slash piles with RGRI<0.70 should work well
- RGBVI: setting a threshold to remove candidate slash piles with RGBVI>-18.0 should not work well
- There appears to be a mis-match between the range of values we calculated ([-0.72, 1.00]) and their range ([-50, 78])
- ExG: setting a threshold to remove candidate slash piles with ExG>59.5 should not work well
- There appears to be a mis-match between the range of values we calculated ([-1.00, 2.00]) and their range ([0, 150])
- GRVI: setting a threshold to remove candidate slash piles with GRVI>0.0 should work moderately well
- We may need to raise this threshold to remove candidate slash piles with GRVI>0.05, for example
- ExGR: setting a threshold to remove candidate slash piles with ExGR>0.0 should work well
- BI: setting a threshold to remove candidate slash piles that are extremely dark (BI<0.10) or bright (BI>0.90) should work well
- Saturation: setting a threshold to remove candidate slash piles that have low saturation values (SAT<0.05) should work well
Based on these thresholds identified in the literature and our objective to remove very highly correlated indices, we’ll proceed with the following five indices to refine the structurally detected candidate slash piles:
- RGRI
- VDVI
- ExGR
- BI
- Saturation (SAT)
6.2.1 Voting System
let’s consider a voting system approach for filtering candidate slash piles using the multiple spectral indices. a voting system could allow for a more robust and nuanced decision than relying on a single index.
let’s make a highly specialized function using the data returned by out extract_rast_values() function
rgb_indices_threshold_voting <- function(
rgb_indices_df
# define ranges to *keep* piles
, th_rgri = c((0.7+0.01),Inf) # increase each by 0.01 since we'll be checking lower<=x<=upper
, th_vdvi = c(-Inf,(0.03+0.01)) # increase each by 0.01 since we'll be checking lower<=x<=upper
, th_exgr = c(-Inf,0)
, th_bi = c(0.1,0.9)
, th_sat = c(0.05,Inf)
){
# checks
if(!inherits(rgb_indices_df, "data.frame")){
stop("Input `rgb_indices_df` must be an data.frame.")
}
# names
agg_cols <- c("rast_agg_exgr","rast_agg_rgri","rast_agg_vdvi","rast_agg_bi","rast_agg_sat") # "rast_agg_rgbvi",
nm_diff <- base::setdiff(
agg_cols
, names(rgb_indices_df)
)
if(length(nm_diff)>0){
stop(paste0("required variables missing:\n", "... ", paste(nm_diff, collapse = ", ") ))
}
# thresholds
if(length(th_exgr)!=2 || th_exgr[1]>th_exgr[2]){
stop("Input `th_exgr` must be of length 2 as: c(lower,upper) defining the range of values to keep where lower<=upper")
}
if(length(th_rgri)!=2 || th_rgri[1]>th_rgri[2]){
stop("Input `th_rgri` must be of length 2 as: c(lower,upper) defining the range of values to keep where lower<=upper")
}
if(length(th_vdvi)!=2 || th_vdvi[1]>th_vdvi[2]){
stop("Input `th_vdvi` must be of length 2 as: c(lower,upper) defining the range of values to keep where lower<=upper")
}
if(length(th_bi)!=2 || th_bi[1]>th_bi[2]){
stop("Input `th_bi` must be of length 2 as: c(lower,upper) defining the range of values to keep where lower<=upper")
}
if(length(th_sat)!=2 || th_sat[1]>th_sat[2]){
stop("Input `th_sat` must be of length 2 as: c(lower,upper) defining the range of values to keep where lower<=upper")
}
# get rid of columns we'll create
rgb_indices_df <- rgb_indices_df %>%
# throw in hey_xxxxxxxxxx to test it works if we include non-existant columns
dplyr::select( -dplyr::any_of(c(
"hey_xxxxxxxxxx"
, "inrange_th_exgr"
, "inrange_th_rgri"
, "inrange_th_vdvi"
, "inrange_th_bi"
, "inrange_th_sat"
)))
# check threshold
ret_df <- rgb_indices_df %>%
# dplyr::select(dplyr::all_of(agg_cols)) %>%
dplyr::mutate(
inrange_th_exgr = ifelse(
!is.na(rast_agg_exgr)
& rast_agg_exgr >= th_exgr[1]
& rast_agg_exgr <= th_exgr[2]
, 1, 0
)
, inrange_th_rgri = ifelse(
!is.na(rast_agg_rgri)
& rast_agg_rgri >= th_rgri[1]
& rast_agg_rgri <= th_rgri[2]
, 1, 0
)
, inrange_th_vdvi = ifelse(
!is.na(rast_agg_vdvi)
& rast_agg_vdvi >= th_vdvi[1]
& rast_agg_vdvi <= th_vdvi[2]
, 1, 0
)
, inrange_th_bi = ifelse(
!is.na(rast_agg_bi)
& rast_agg_bi >= th_bi[1]
& rast_agg_bi <= th_bi[2]
, 1, 0
)
, inrange_th_sat = ifelse(
!is.na(rast_agg_sat)
& rast_agg_sat >= th_sat[1]
& rast_agg_sat <= th_sat[2]
, 1, 0
)
) %>%
dplyr::rowwise() %>%
dplyr::mutate(
inrange_th_votes = sum(
dplyr::c_across(tidyselect::starts_with("inrange_th_"))
, na.rm = T
) %>%
dplyr::coalesce(0)
) %>%
ungroup()
#return
return(ret_df)
}let’s look at the columns we get from our rgb_indices_threshold_voting() function
rgb_indices_df <- rgb_indices_threshold_voting(rgb_indices_df=rgb_indices_df)
# huh?
rgb_indices_df %>%
sf::st_drop_geometry() %>%
dplyr::select(tidyselect::starts_with("inrange_th_")) %>%
summary()## inrange_th_exgr inrange_th_rgri inrange_th_vdvi inrange_th_bi
## Min. :1 Min. :1 Min. :1 Min. :0.000
## 1st Qu.:1 1st Qu.:1 1st Qu.:1 1st Qu.:1.000
## Median :1 Median :1 Median :1 Median :1.000
## Mean :1 Mean :1 Mean :1 Mean :0.929
## 3rd Qu.:1 3rd Qu.:1 3rd Qu.:1 3rd Qu.:1.000
## Max. :1 Max. :1 Max. :1 Max. :1.000
## inrange_th_sat inrange_th_votes
## Min. :0.0000 Min. :4.000
## 1st Qu.:1.0000 1st Qu.:5.000
## Median :1.0000 Median :5.000
## Mean :0.9126 Mean :4.842
## 3rd Qu.:1.0000 3rd Qu.:5.000
## Max. :1.0000 Max. :5.000notice the “Mean” value in the summary above is the proportion of ground truth piles that successfully met the spectral index threshold criteria (i.e. piles to be “kept”). it looks like the SAT threshold was most unaligned with these ground truth piles, something we anticipated by looking at the distributions above compared the threshold value recommended in the literature for detecting green vegetation.

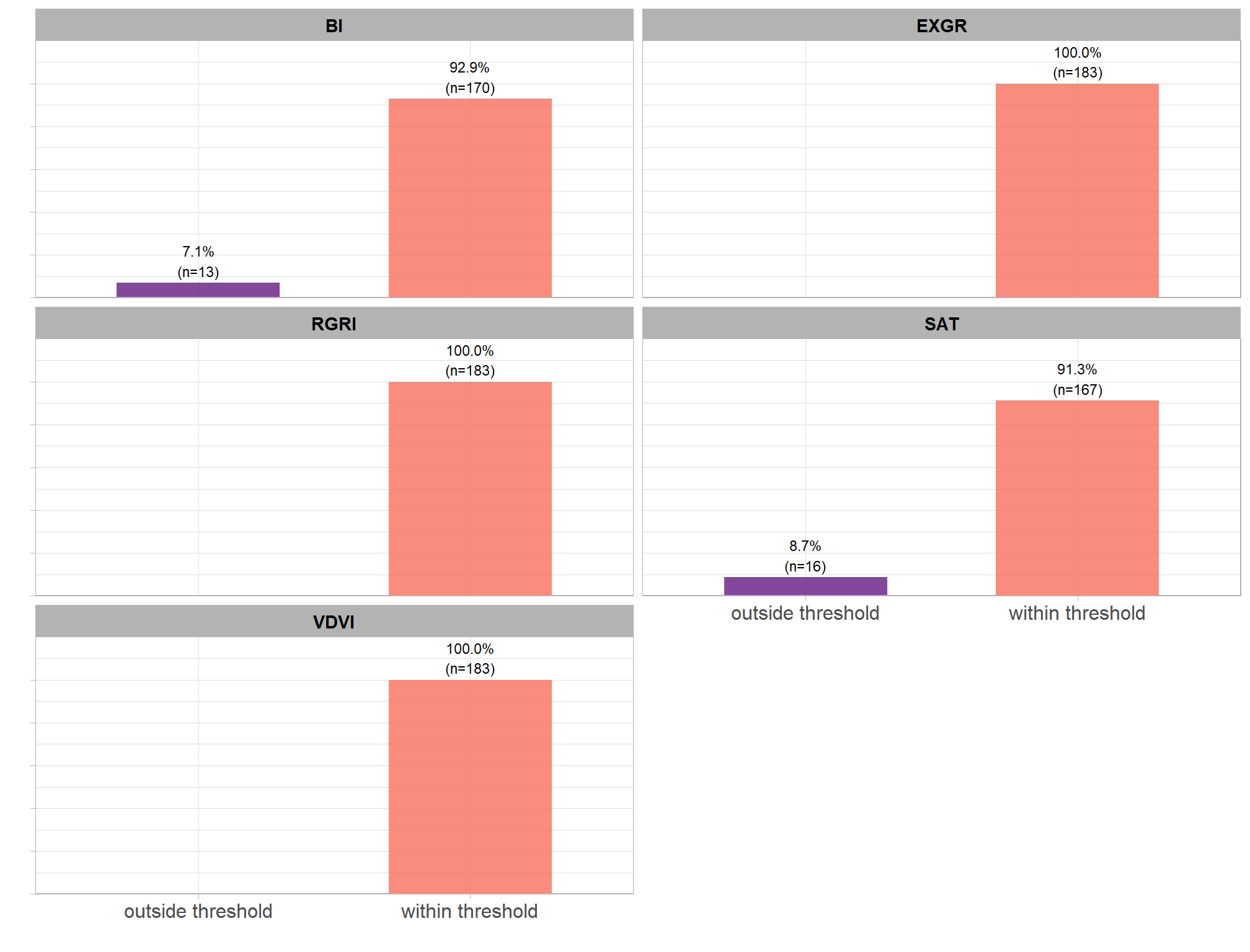

let’s look at the proportional distribution of ground truth piles meeting the threshold by individual spectral index
rgb_indices_df %>%
sf::st_drop_geometry() %>%
dplyr::select(tidyselect::starts_with("inrange_th_")) %>%
tidyr::pivot_longer(cols = dplyr::everything()) %>%
dplyr::mutate(name = stringr::str_remove_all(name,"inrange_th_") %>% stringr::str_to_upper()) %>%
dplyr::filter(name!="VOTES") %>%
dplyr::count(name,value) %>%
dplyr::group_by(name) %>%
dplyr::mutate(
pct = n/sum(n)
, value = factor(value, levels = 0:1, labels = c("outside threshold","within threshold"), ordered = T)
, lab = paste0(scales::percent(pct,accuracy=0.1), "\n(n=", scales::comma(n,accuracy=1), ")")
) %>%
ggplot2::ggplot(
mapping = ggplot2::aes(x = value, y = pct, label = lab, fill = value)
) +
ggplot2::geom_col(
width = 0.6
, color = NA, alpha = 0.8
) +
ggplot2::geom_text(color = "black", size = 3, vjust = -0.2) +
ggplot2::scale_fill_viridis_d(option = "magma", begin = 0.3, end = 0.7) +
ggplot2::scale_y_continuous(
breaks = seq(0,1,by=0.2)
, labels = scales::percent
, expand = ggplot2::expansion(mult = c(0,0.2))
) +
ggplot2::facet_wrap(
facets = dplyr::vars(name)
, ncol = 2
) +
ggplot2::labs(
x = "", y = "", color = "", fill = ""
) +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "none"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
, axis.text.x = ggplot2::element_text(size = 12)
, axis.text.y = ggplot2::element_blank()
)

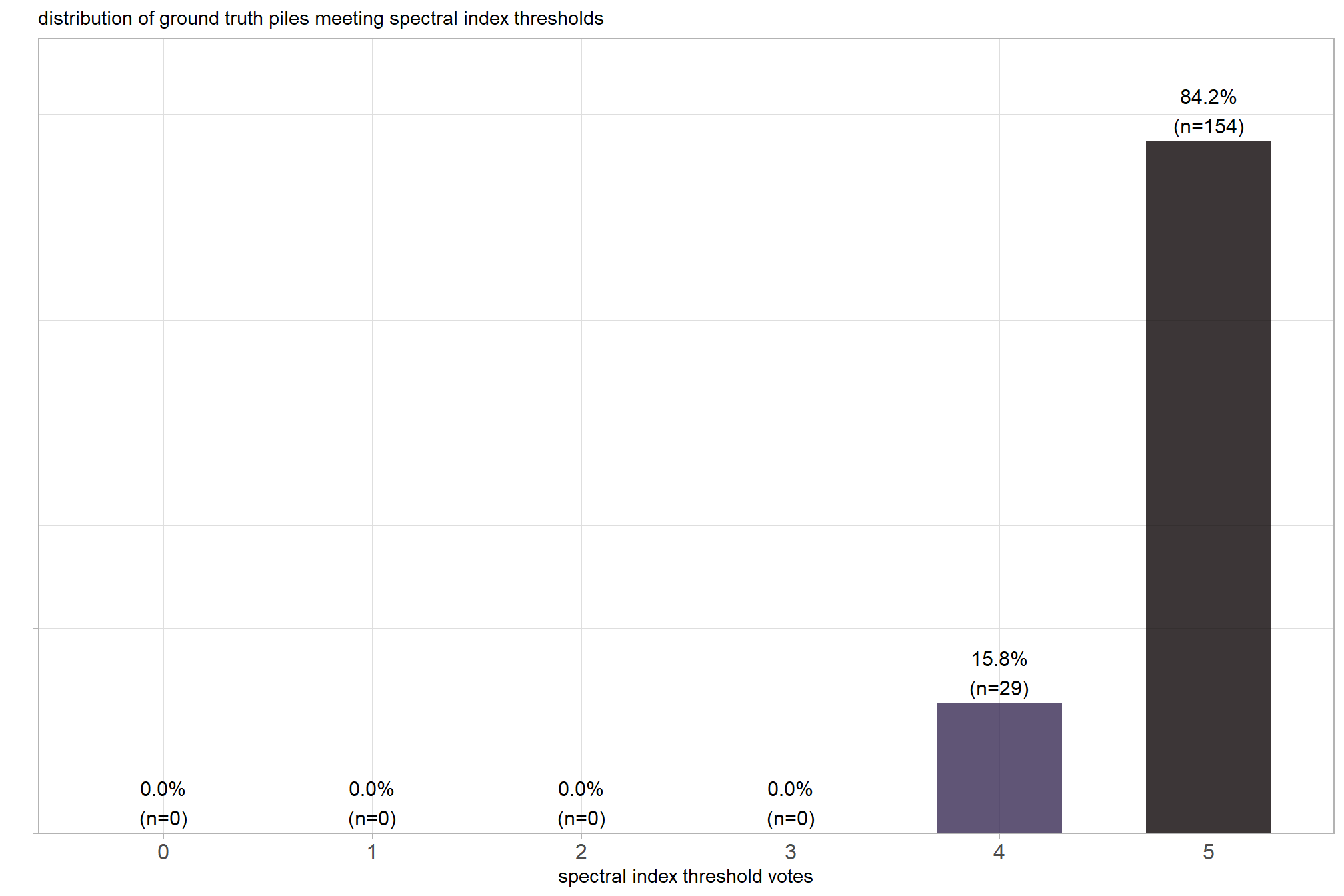

and let’s look at the distribution of ground truth piles based on the number of individual spectral index thresholds met. we’ll use this count as our voting system.
dplyr::tibble(value=0:5) %>%
dplyr::left_join(
rgb_indices_df %>%
sf::st_drop_geometry() %>%
dplyr::select(tidyselect::starts_with("inrange_th_votes")) %>%
tidyr::pivot_longer(cols = dplyr::everything()) %>%
dplyr::mutate(name = stringr::str_remove_all(name,"inrange_th_") %>% stringr::str_to_upper()) %>%
dplyr::count(name,value)
, by = dplyr::join_by(value)
) %>%
dplyr::mutate(
n = dplyr::coalesce(n,0)
, pct = n/sum(n)
, lab = paste0(scales::percent(pct,accuracy=0.1), "\n(n=", scales::comma(n,accuracy=1), ")")
, value = factor(value)
) %>%
ggplot2::ggplot(
mapping = ggplot2::aes(x = value, y = pct, label = lab, fill = value)
) +
ggplot2::geom_col(
width = 0.6
, color = NA, alpha = 0.8
) +
ggplot2::geom_text(color = "black", size = 4, vjust = -0.2) +
ggplot2::scale_fill_viridis_d(option = "mako", direction=-1) +
ggplot2::scale_y_continuous(
labels = scales::percent
, expand = ggplot2::expansion(mult = c(0,0.15))
) +
ggplot2::labs(
y = "", x = "spectral index threshold votes", color = "", fill = ""
, subtitle = "distribution of ground truth piles meeting spectral index thresholds"
) +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "none"
, axis.text.x = ggplot2::element_text(size = 12)
, axis.text.y = ggplot2::element_blank()
)
we can use this spectral index voting system to filter candidate slash piles with a user-defined parameter which defines the sensitivity of filtering based on the spectral information. For example, a value of “5” would heavily weight the spectral information in determining which piles to keep while a value of “1” would put less weight on the spectral data.

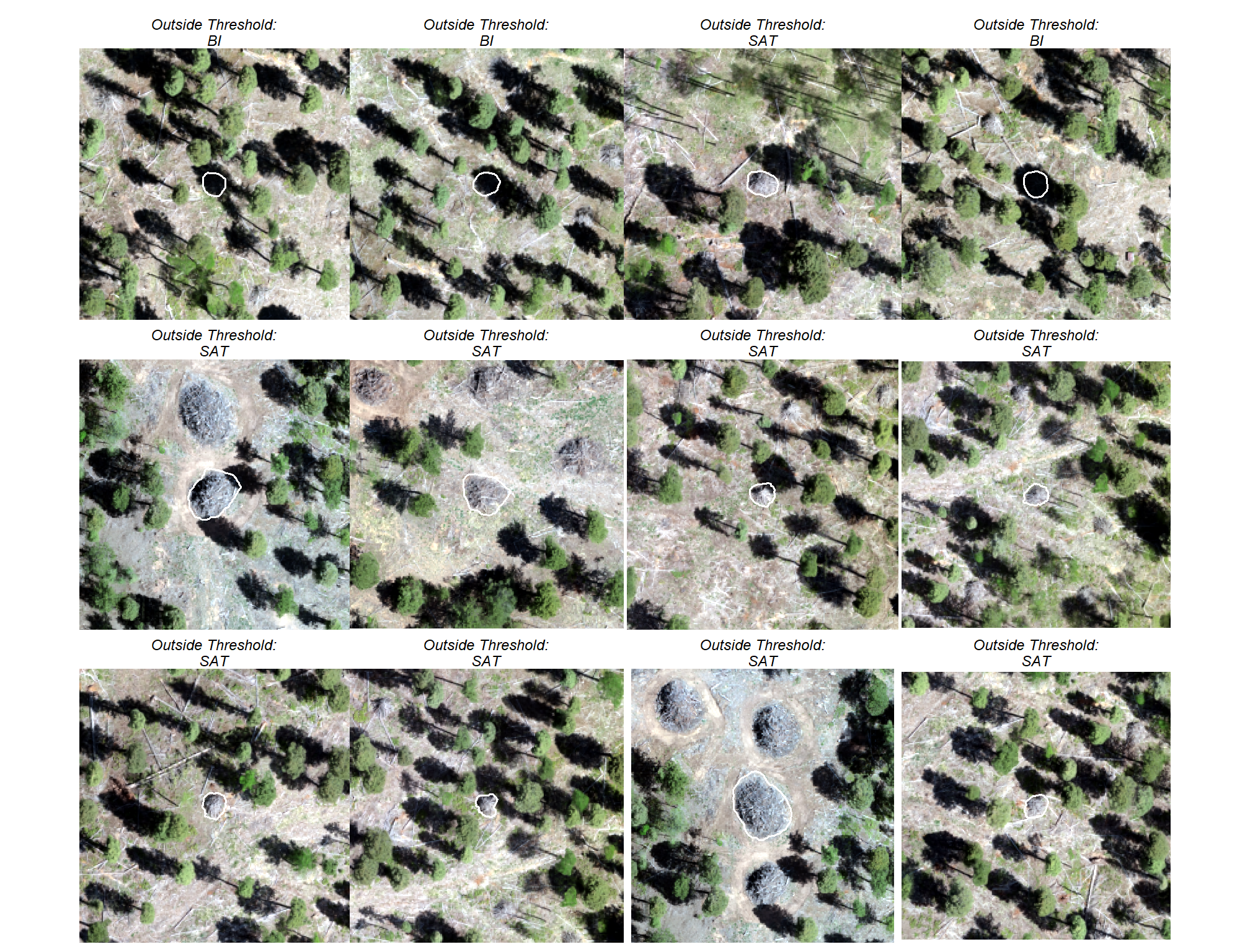

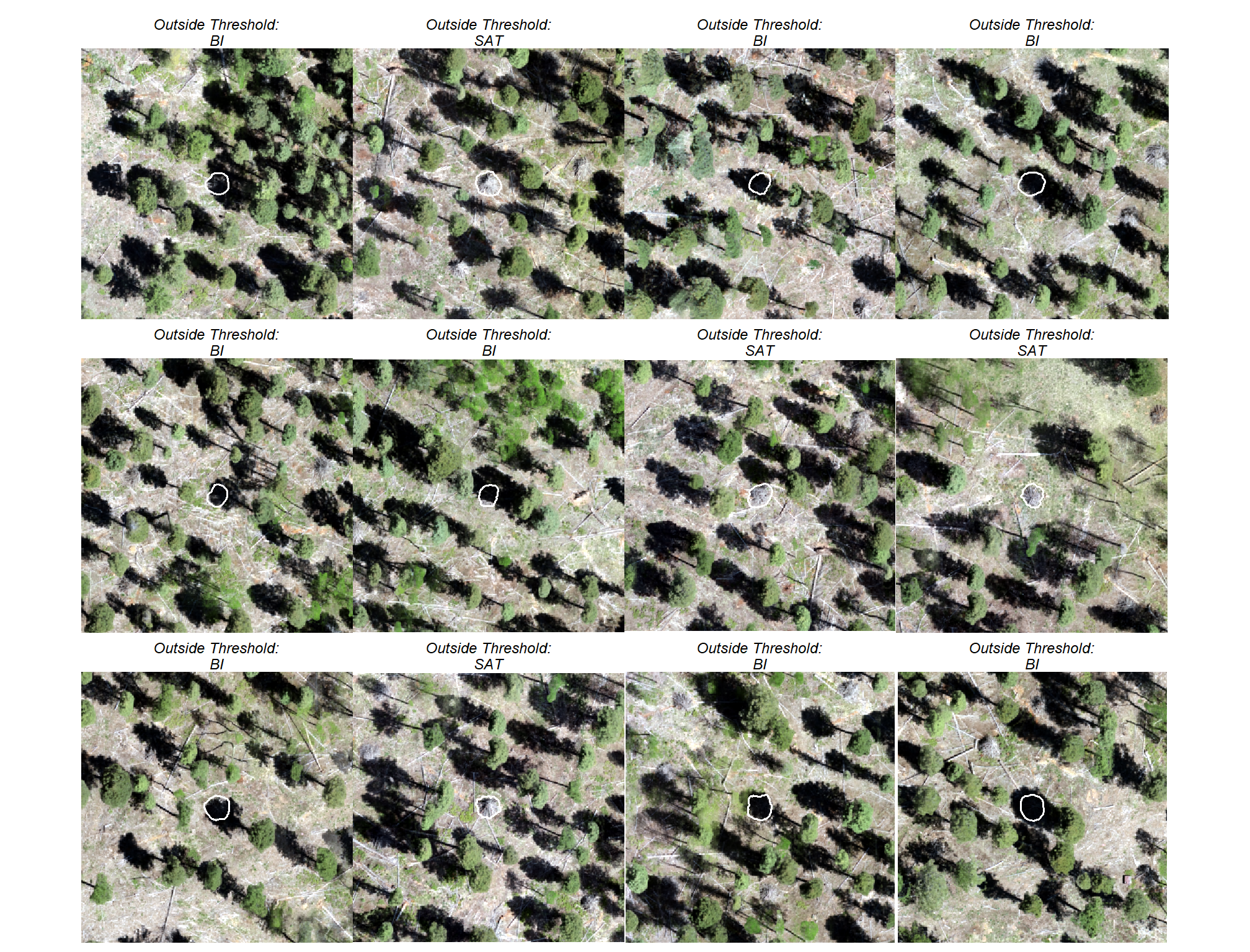

let’s see what some of those piles with the fewest votes look like on the imagery
# filter for the plots with the fewest votes
dta_temp <- rgb_indices_df %>%
dplyr::filter(inrange_th_votes<=4) %>%
dplyr::slice_sample(n=12) %>%
sf::st_transform(terra::crs(ortho_rast))
# dta_temp %>% sf::st_drop_geometry() %>% dplyr::select(tidyselect::starts_with("rast_agg")) %>% summary()
# plot on ortho
plts_temp <-
1:nrow(dta_temp) %>%
purrr::map(function(x){
dta <- dta_temp %>% dplyr::slice(x)
dta <- dta %>%
dplyr::bind_cols(
dta %>%
sf::st_drop_geometry() %>%
dplyr::select(tidyselect::starts_with("inrange_th_")) %>%
tidyr::pivot_longer(cols = dplyr::everything()) %>%
dplyr::mutate(name = stringr::str_remove_all(name,"inrange_th_") %>% stringr::str_to_upper()) %>%
dplyr::filter(name!="VOTES" & value == 0) %>%
dplyr::select(-value) %>%
tidyr::pivot_wider(values_from = name) %>%
dplyr::rowwise() %>%
dplyr::mutate(
lab = paste(
dplyr::c_across(dplyr::everything())
, collapse = ", "
)
) %>%
dplyr::select(lab)
)
ortho_plt_fn(dta) +
ggplot2::geom_sf(data = dta, fill = NA, color = "white", lwd = 0.6) +
ggplot2::labs(subtitle = paste0("Outside Threshold:\n",dta$lab)) +
ggplot2::theme(plot.subtitle = ggplot2::element_text(size = 9))
})
# combine
patchwork::wrap_plots(
plts_temp
, ncol = 4
)
all of those piles would have been voted out based on SAT or BI since they are either in shadows or the dead wood appears very bright/white (perhaps we need to adjust those thresholds?). let’s see a summary of those spectral index values for these piles with the fewest votes
## rast_agg_bi rast_agg_sat
## Min. :0.05338 Min. :0.03437
## 1st Qu.:0.36397 1st Qu.:0.04338
## Median :0.50831 Median :0.04702
## Mean :0.40218 Mean :0.10587
## 3rd Qu.:0.52536 3rd Qu.:0.09826
## Max. :0.57442 Max. :0.377126.3 Candidate Polygon Spectral Filtering Function
let’s put all of this together to define a function that takes as input: 1) a spatial data frame of candidate polygons; 2) a raster with RGB spectral data; 3) user-defined spectral weighting (voting system)
polygon_spectral_filtering <- function(
sf_data
, rgb_rast
# define the band index
, red_band_idx
, green_band_idx
, blue_band_idx
# spectral weighting
, spectral_weight = 3
) {
### could make these parameters
th_rgri <- c((0.7+0.01),Inf) # increase each by 0.01 since we'll be checking lower<=x<=upper
th_vdvi <- c(-Inf,(0.03+0.01)) # increase each by 0.01 since we'll be checking lower<=x<=upper
th_exgr = c(-Inf,0)
th_bi <- c(0.1,0.9)
th_sat <- c(0.05,Inf)
# checks
if(!inherits(rgb_rast, "SpatRaster")){
stop("Input `rast` must be a SpatRaster object.")
}
if(!inherits(sf_data, "sf")){
stop("Input `sf_data` must be an sf data frame.")
}
if(!all(sf::st_geometry_type(sf_data) %in% c("POLYGON", "MULTIPOLYGON"))) {
stop("Input `sf_data` must contain polygon geometries.")
}
spectral_weight <- as.numeric(spectral_weight)
if( !(spectral_weight %in% c(0:5)) ){
stop("Input `spectral_weight` must be a number between 0 (no filtering based on spectral) and 5 (highest weighting of spectral data)")
}
# if you don't want to do it, then why do it?
if(spectral_weight==0){
return(sf_data)
}
##################################################
# calculate_all_rgb_indices
##################################################
all_rgb_indices_rast <- calculate_all_rgb_indices(
raster_obj = rgb_rast
, red_band_idx = red_band_idx
, green_band_idx = green_band_idx
, blue_band_idx = blue_band_idx
)
##################################################
# extract_rast_values
##################################################
rgb_indices_df <- extract_rast_values(
sf_data = sf_data %>% dplyr::ungroup()
, rast = all_rgb_indices_rast
, fun_agg = median
)
##################################################
# rgb_indices_threshold_voting
##################################################
rgb_indices_df <- rgb_indices_threshold_voting(
rgb_indices_df=rgb_indices_df
, th_rgri = th_rgri
, th_vdvi = th_vdvi
, th_exgr = th_exgr
, th_bi = th_bi
, th_sat = th_sat
)
##################################################
# filtering
##################################################
rgb_indices_df <- rgb_indices_df %>% dplyr::filter(inrange_th_votes>=spectral_weight)
# return
return(rgb_indices_df)
}
# polygon_spectral_filtering(
# sf_data = slash_piles_polys
# , rgb_rast = ortho_rast
# , red_band_idx = 1
# , green_band_idx = 2
# , blue_band_idx = 3
# , spectral_weight = 4
# ) %>%
# nrow()
# # dplyr::glimpse()
# nrow(slash_piles_polys)6.4 Sensitivity Testing - Structure+Spectral
We already tested the sensitivity of the parameter settings for our structural, raster-based slash pile detection methodology (see here). Now, we’ll use the set of predicted piles based on the combinations of the different parameter settings in the raster-based method to test the sensitivity of our spectral based method. In short, we’re going to use the RGB imagery to filter these candidates spectrally using different weighting (voting system) settings for the spectral data. We’ll test the spectral_weight parameter from the lowest weighting of the spectral data of “1” (only one spectral index threshold must be met) to the highest weighting of spectral data “5” (all spectral index thresholds must be met).
For evaluating our structural and spectral data fusion approach, the RGB imagery will simply serve to spectrally filter candidate slash piles initially identified by our structural, raster-based watershed segmentation approach. This means we don’t need to re-evaluate these initial candidates against ground truth to calculate performance metrics (recall, precision, F-score). Instead, we will determine which candidates to retain or remove from the structural list based on their spectral properties. If a structurally detected true positive is filtered out by spectral data, it will be reclassified as an omission. Additionally, any commission (false positive) from the structural detection that is filtered out spectrally will be removed from consideration since the data fusion approach successfully eliminated these incorrect predictions. No other shifts within the confusion matrix are possible, since incorporating the spectral data under this approach does not introduce any new candidate piles for evaluation against the ground truth data.
if( length(ls()[grep("param_combos_piles",ls())])!=1 ){
param_combos_piles <- sf::st_read("../data/param_combos_piles.gpkg", quiet = T)
# let's attach a flag to only work with piles that intersect with the stand boundary
# add in/out to piles data
param_combos_piles <- param_combos_piles %>%
dplyr::left_join(
param_combos_piles %>%
sf::st_intersection(
stand_boundary %>%
sf::st_transform(sf::st_crs(param_combos_piles))
) %>%
sf::st_drop_geometry() %>%
dplyr::select(rn,pred_id) %>%
dplyr::mutate(is_in_stand = T)
, by = dplyr::join_by(rn,pred_id)
) %>%
dplyr::mutate(
is_in_stand = dplyr::coalesce(is_in_stand,F)
)
}
if( length(ls()[grep("param_combos_gt",ls())])!=1 ){
param_combos_gt <- readr::read_csv("../data/param_combos_gt.csv", progress = F, show_col_types = F)
}
# param_combos_piles %>% dplyr::glimpse()
# param_combos_gt %>% dplyr::glimpse()
# map over our polygon_spectral_filtering and save the result
f_temp <- "../data/param_combos_spectral_gt.csv"
if(!file.exists(f_temp)){
param_combos_spectral_gt <-
c(1:5) %>%
purrr::map(function(sw){
# polygon_spectral_filtering
param_combos_piles_filtered <- polygon_spectral_filtering(
sf_data = param_combos_piles
, rgb_rast = ortho_rast
, red_band_idx = 1
, green_band_idx = 2
, blue_band_idx = 3
, spectral_weight = sw
) %>%
dplyr::mutate(spectral_weight=sw)
# dplyr::glimpse(param_combos_piles_filtered)
# param_combos_piles_filtered %>% sf::st_drop_geometry() %>% dplyr::count(rn) %>%
# dplyr::inner_join(
# param_combos_piles %>% sf::st_drop_geometry() %>% dplyr::count(rn) %>% dplyr::rename(orig_n=n)
# ) %>%
# dplyr::arrange(desc(orig_n-n))
# now we need to reclassify the combinations against the ground truth data
gt_reclassify <-
param_combos_gt %>%
# add info from predictions
dplyr::left_join(
param_combos_piles_filtered %>%
sf::st_drop_geometry() %>%
dplyr::select(
rn,pred_id,spectral_weight
)
, by = dplyr::join_by(rn,pred_id)
) %>%
# dplyr::count(match_grp)
# reclassify
dplyr::mutate(
# reclassify match_grp
match_grp = dplyr::case_when(
match_grp == "true positive" & is.na(spectral_weight) ~ "omission" # is.na(spectral_weight) => removed by spectral filtering
, match_grp == "commission" & is.na(spectral_weight) ~ "remove" # is.na(spectral_weight) => removed by spectral filtering
, T ~ match_grp
)
# update pred_id
, pred_id = dplyr::case_when(
match_grp == "omission" ~ NA
, T ~ pred_id
)
# update spectral_weight (just adds it to this iteration's omissions)
, spectral_weight = sw
) %>%
# remove old commissions
# dplyr::count(match_grp)
dplyr::filter(match_grp!="remove")
# return
return(gt_reclassify)
}) %>%
dplyr::bind_rows()
# save
param_combos_spectral_gt %>% readr::write_csv(f_temp, append = F, progress = F)
}else{
param_combos_spectral_gt <- readr::read_csv(f_temp, progress = F, show_col_types = F)
}
# what?
param_combos_spectral_gt %>% dplyr::glimpse()## Rows: 1,302,012
## Columns: 8
## $ pile_id <dbl> 142, 140, 88, 137, 50, 52, 145, 53, 141, 101, 80, 102,…
## $ i_area <dbl> 40.700000, 41.700000, 39.400000, 33.000000, 16.700000,…
## $ u_area <dbl> 113.916297, 100.318477, 70.470793, 79.777859, 43.19390…
## $ iou <dbl> 0.3572799, 0.4156762, 0.5590969, 0.4136486, 0.3866287,…
## $ pred_id <dbl> 5588, 4135, 5160, 5688, 7886, 5921, 5283, 6538, 6852, …
## $ match_grp <chr> "true positive", "true positive", "true positive", "tr…
## $ rn <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, …
## $ spectral_weight <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, …# # a row in `param_combos_spectral_gt` is unique by:
# # spectral_weight, rn, pile_id, pred_id
# # where rn is a link to the `param_combos_df` table defining the
# # unique combination of parameters tested in our raster-based watershed pile detection method
# identical(
# param_combos_spectral_gt %>% dplyr::distinct(spectral_weight, rn, pile_id, pred_id) %>% nrow()
# , nrow(param_combos_spectral_gt)
# )let’s attach a flag to only work with piles that intersect with the stand boundary and add the area of the ground truth and predicted piles
# add it to validation
param_combos_spectral_gt <-
param_combos_spectral_gt %>%
# add original candidate piles from the structural watershed method with spectral_weight=0
dplyr::bind_rows(
param_combos_gt %>%
dplyr::mutate(spectral_weight=0) %>%
dplyr::select(names(param_combos_spectral_gt))
) %>%
# make a description of spectral_weight
dplyr::mutate(
spectral_weight_desc = factor(
spectral_weight
, ordered = T
, levels = 0:5
, labels = c(
"no spectral criteria"
, "1 spectral criteria req."
, "2 spectral criteria req."
, "3 spectral criteria req."
, "4 spectral criteria req."
, "5 spectral criteria req."
)
)
) %>%
# add area of gt
dplyr::left_join(
slash_piles_polys %>%
sf::st_drop_geometry() %>%
dplyr::select(pile_id,image_gt_area_m2,field_gt_area_m2,image_gt_volume_m3,field_gt_volume_m3,height_m) %>%
dplyr::rename(gt_height_m = height_m) %>%
dplyr::mutate(pile_id=as.numeric(pile_id))
, by = "pile_id"
) %>%
# add info from predictions
dplyr::left_join(
param_combos_piles %>%
sf::st_drop_geometry() %>%
dplyr::select(
rn,pred_id
, is_in_stand
, area_m2, volume_m3, max_height_m
) %>%
dplyr::rename(
pred_area_m2 = area_m2, pred_volume_m3 = volume_m3, pred_height_m = max_height_m
) %>%
# add volume assuming cone or conical shape
dplyr::mutate(
pred_cone_volume_m3 = (1/3)*pi*(sqrt(pred_area_m2/pi)^2)*pred_height_m # sqrt(pred_area_m2/pi) = radius assuming of circle covering same area
)
, by = dplyr::join_by(rn,pred_id)
) %>%
dplyr::mutate(
is_in_stand = dplyr::case_when(
is_in_stand == T ~ T
, is_in_stand == F ~ F
, match_grp == "omission" ~ T
, T ~ F
)
### calculate these based on the formulas below...agg_ground_truth_match() depends on those formulas
# area diffs
, height_diff = pred_height_m-gt_height_m
, pct_diff_height = (gt_height_m-pred_height_m)/gt_height_m
# area diffs
, area_diff_image = pred_area_m2-image_gt_area_m2
, pct_diff_area_image = (image_gt_area_m2-pred_area_m2)/image_gt_area_m2
, area_diff_field = pred_area_m2-field_gt_area_m2
, pct_diff_area_field = (field_gt_area_m2-pred_area_m2)/field_gt_area_m2
# volume diffs
, volume_diff_image = pred_volume_m3-image_gt_volume_m3
, pct_diff_volume_image = (image_gt_volume_m3-pred_volume_m3)/image_gt_volume_m3
, volume_diff_field = pred_volume_m3-field_gt_volume_m3
, pct_diff_volume_field = (field_gt_volume_m3-pred_volume_m3)/field_gt_volume_m3
# volume diffs cone
, cone_volume_diff_image = pred_cone_volume_m3-image_gt_volume_m3
, cone_volume_diff_field = pred_cone_volume_m3-field_gt_volume_m3
)
# what?
# param_combos_spectral_gt %>% dplyr::glimpse()6.4.1 Example comparison by spectral weighting

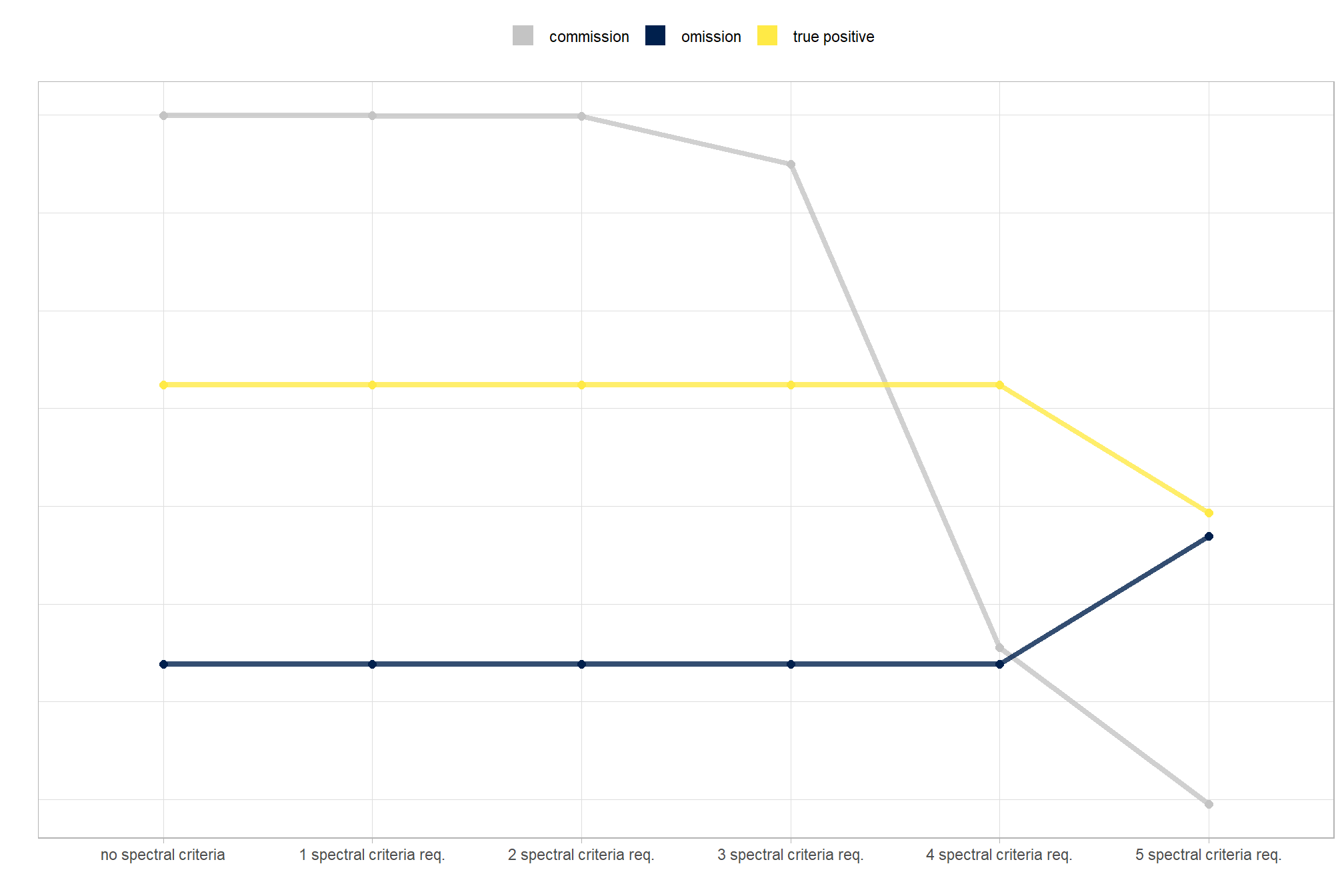

let’s check out a quick plot of the slash pile prediction classification by spectral_weight which controls the strictness of our spectral filtering. as the spectral_weight parameter increases from its lowest setting (“1”, requiring only one spectral index threshold to be met) to its highest (“5”, requiring all spectral index thresholds be met), we expect a clear trade-off: commissions (false positives) should decrease while true positive matches should decrease and omissions should increase. remember, the objective of this sensitivity testing is to find the parameter combination for our rules-based slash pile detection method that best balances correctly identifying ground truth piles while minimizing incorrect positive predictions as measured by F-score to quantify overall accuracy
param_combos_spectral_gt %>%
dplyr::count(spectral_weight,spectral_weight_desc,match_grp) %>%
dplyr::group_by(spectral_weight,spectral_weight_desc) %>%
dplyr::mutate(pct = n/sum(n)) %>%
ggplot2::ggplot(
mapping = ggplot2::aes(y = n, x = spectral_weight_desc, color = match_grp, group = match_grp)
) +
ggplot2::geom_line(lwd = 1.5, alpha = 0.8) +
ggplot2::geom_point(size = 2) +
ggplot2::scale_color_manual(values = pal_match_grp, name = "", na.value = "red") +
ggplot2::labs(x = "", y = "", color = "", fill = "") +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "top"
, axis.text.y = ggplot2::element_blank()
, axis.ticks.y = ggplot2::element_blank()
) +
ggplot2::guides(
color = ggplot2::guide_legend(override.aes = list(shape = 15, linetype = 0, size = 5, alpha = 1))
, shape = "none"
)
the trends here are as expected. however, for this data it appears that two criteria are highly correlated since we don’t see a change in the prediction classification until we require that at least three spectral index threshold criteria are met.

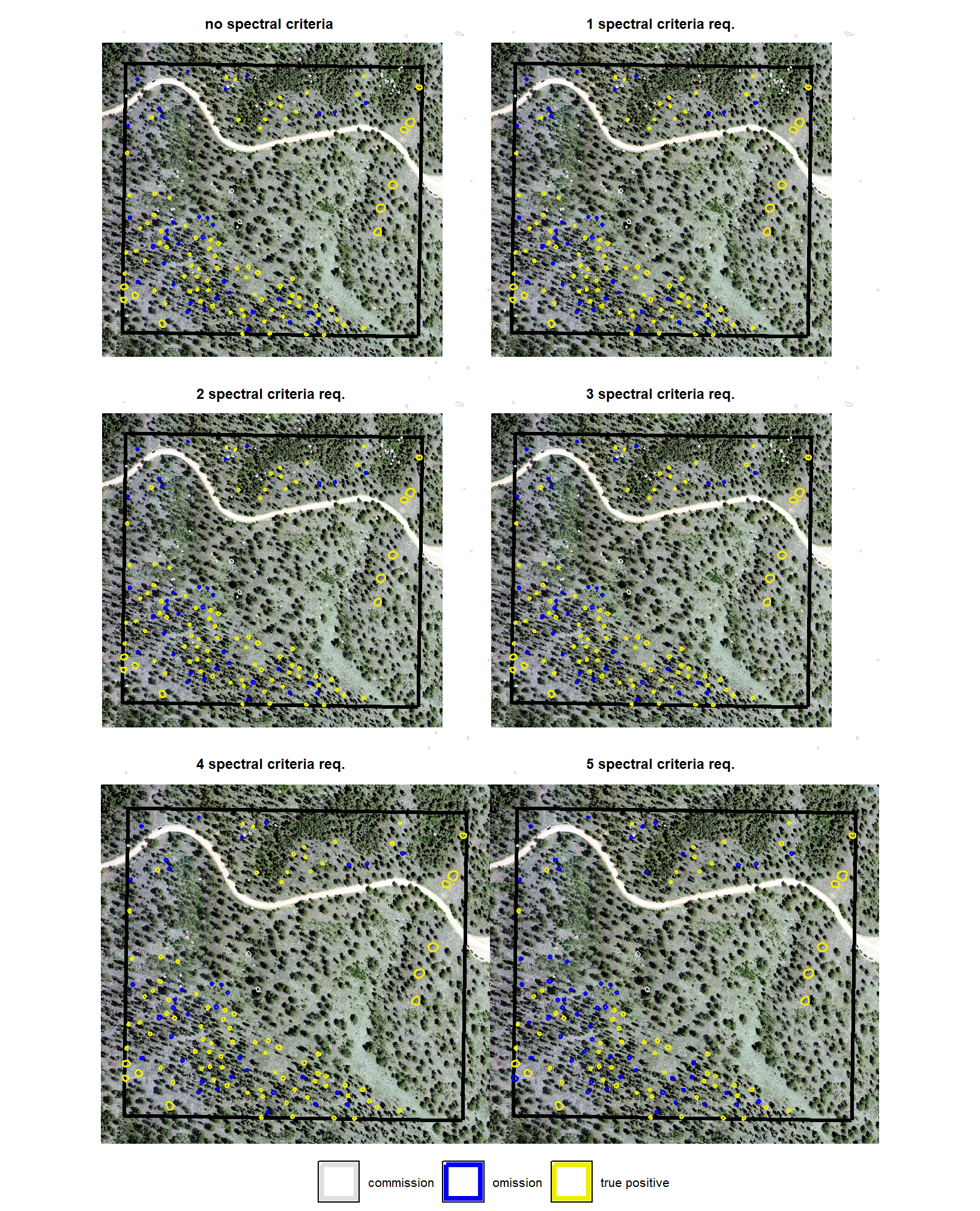

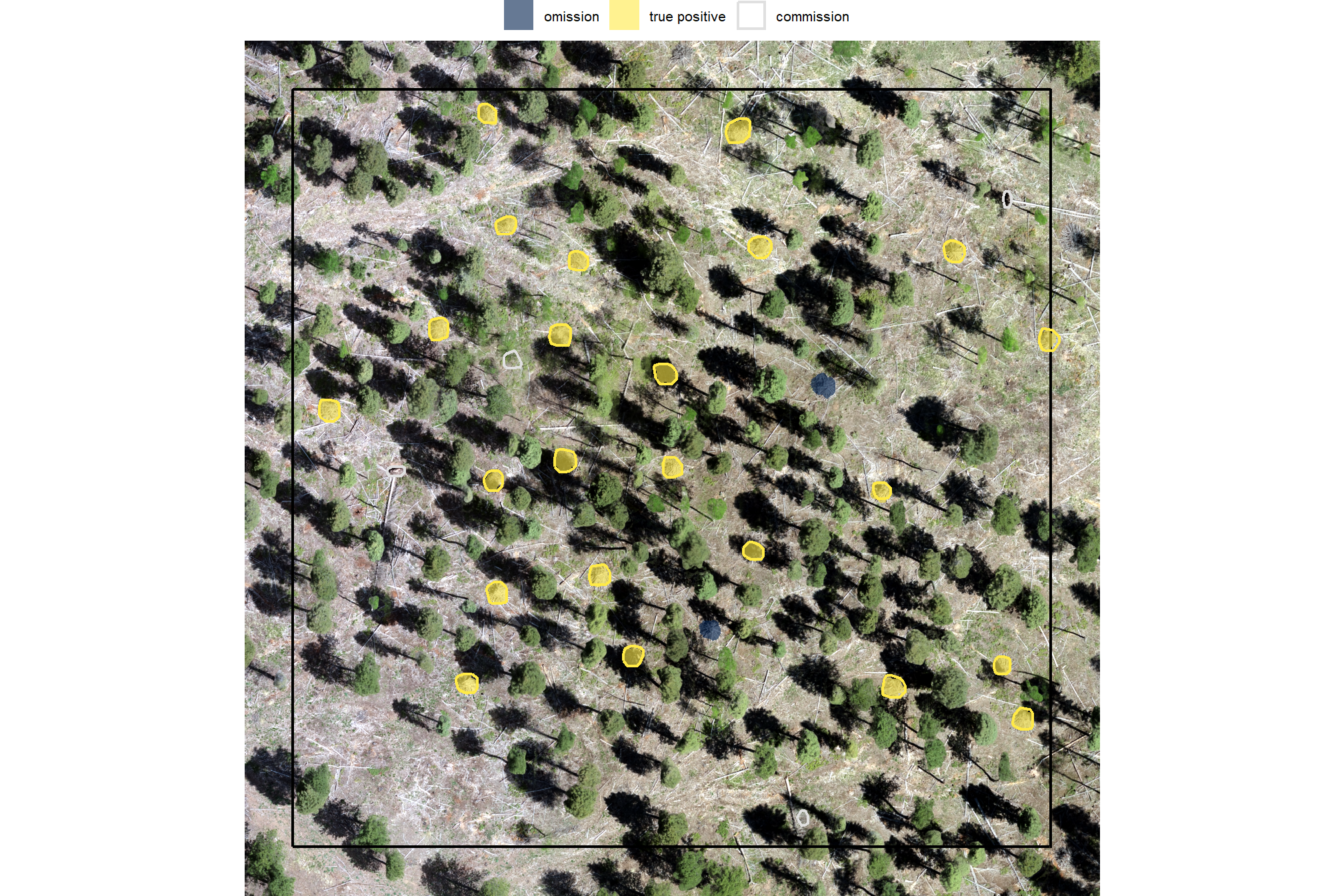

let’s look at a single parameter combination and the difference between different levels of spectral filtering
# plot it
ortho_plt_temp <- ortho_plt_fn(
stand = stand_boundary %>%
sf::st_transform(terra::crs(ortho_rast))
, buffer = 30
) +
ggplot2::geom_sf(
data = stand_boundary %>%
sf::st_transform(terra::crs(ortho_rast))
, color = "black", fill = NA, lwd = 1.1
)
# ortho_plt_temp
# filter for one combination
df_temp <- param_combos_spectral_gt %>%
# dplyr::filter(rn == unique(param_combos_spectral_gt$rn) %>% sample(1))
dplyr::filter(rn == 172)
# add piles
plt_list_temp <- c(0:5) %>%
purrr::map(\(x)
ortho_plt_temp +
ggplot2::geom_sf(
data =
slash_piles_polys %>%
dplyr::filter(is_in_stand) %>%
sf::st_transform(terra::crs(ortho_rast)) %>%
dplyr::left_join(
df_temp %>%
dplyr::filter(spectral_weight==x) %>%
dplyr::select(pile_id,match_grp,spectral_weight_desc) %>%
dplyr::mutate(pile_id=as.character(pile_id))
, by = "pile_id"
)
, mapping = ggplot2::aes(color = match_grp)
, inherit.aes = F
, fill = NA , lwd = 0.7
)+
ggplot2::geom_sf(
data =
param_combos_piles %>%
dplyr::inner_join(
df_temp %>%
dplyr::filter(is_in_stand & match_grp == "commission") %>%
dplyr::filter(spectral_weight==x) %>%
dplyr::select(pred_id,match_grp,spectral_weight_desc)
, by = "pred_id"
)
, mapping = ggplot2::aes(color = match_grp)
, inherit.aes = F
, fill = NA , lwd = 0.4
) +
ggplot2::scale_color_manual(
values = c(
"omission"= "blue2" # viridis::cividis(3)[1]
, "commission"= "gray88" #viridis::cividis(3)[2]
, "true positive"= "yellow2" #viridis::cividis(3)[3]
)
, name = ""
) +
ggplot2::labs(
subtitle = levels(param_combos_spectral_gt$spectral_weight_desc)[x+1]
) +
ggplot2::theme(
legend.position = "bottom"
, plot.subtitle = ggplot2::element_text(size = 9, hjust = 0.4, face = "bold")
) +
ggplot2::guides(
color = ggplot2::guide_legend(override.aes = list(lwd = 9))
, fill = "none"
)
)patchwork::wrap_plots(
plt_list_temp
, ncol = 2
, guides = "collect"
) &
ggplot2::theme(legend.position = "bottom")
the spectral filtering performed as intended, successfully removing candidate piles that visually appear as green vegetation on the imagery and it also eliminated some candidates that appeared to be rocks or rock outcroppings, though with less success visually than for vegetation

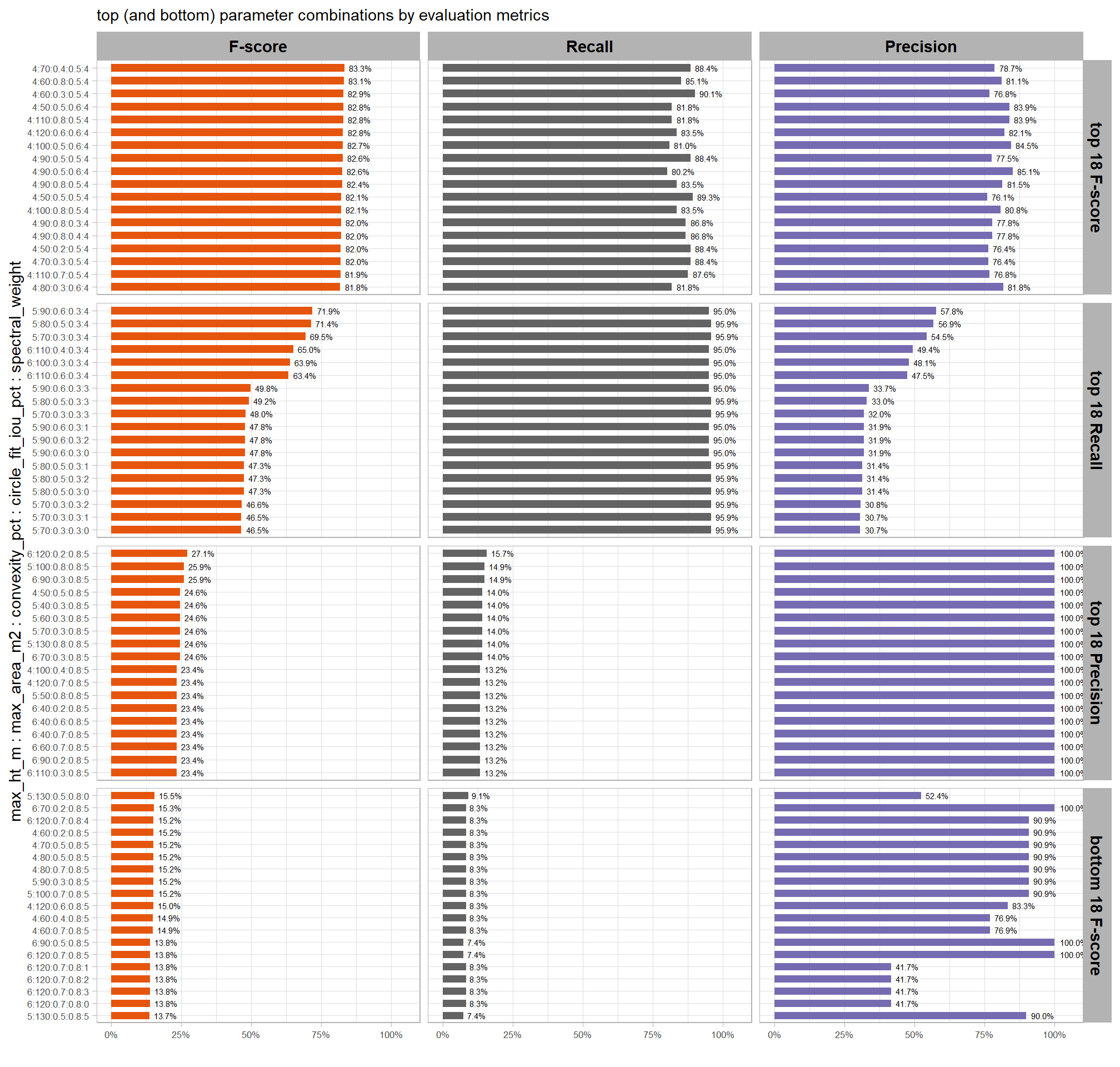

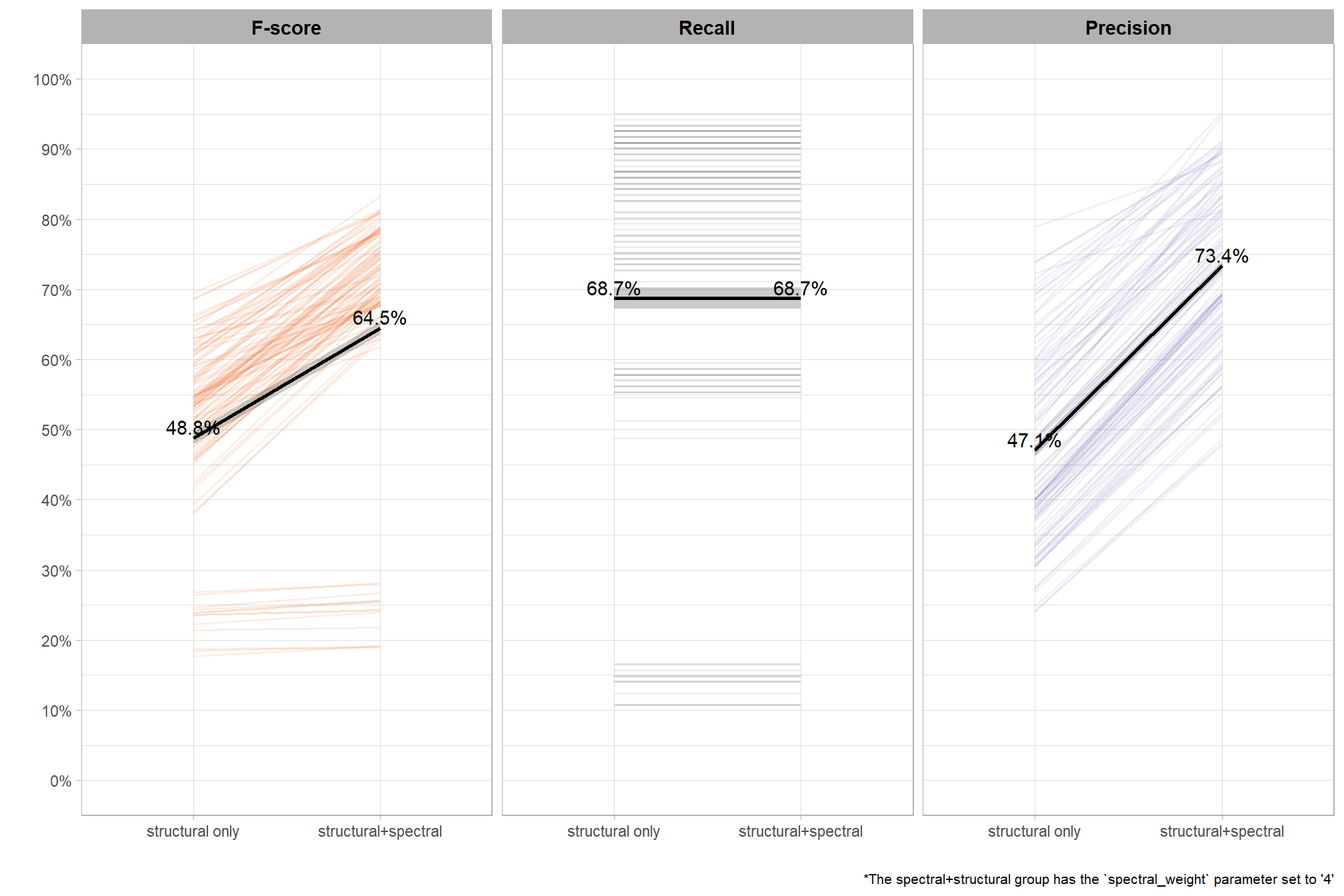

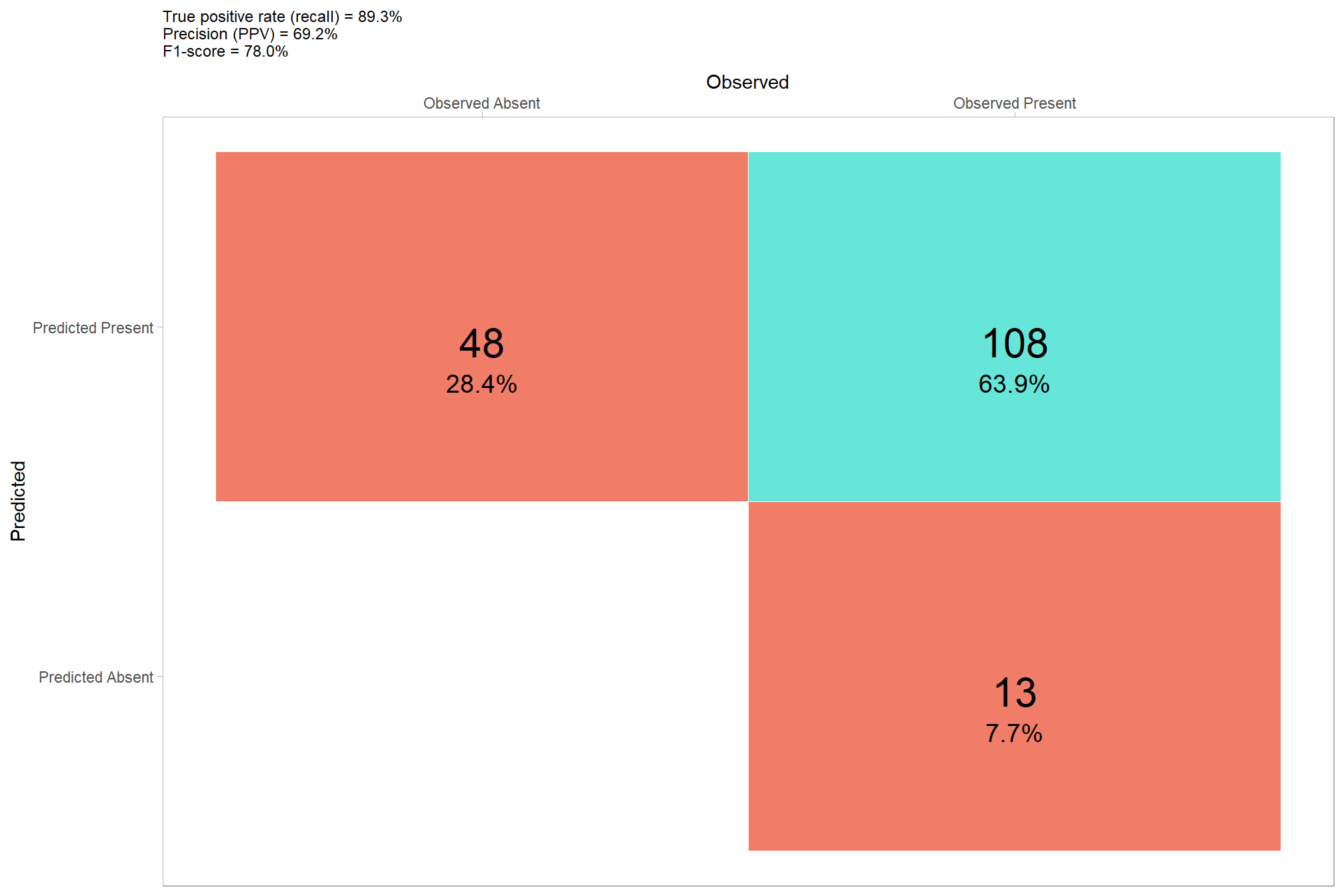

6.4.2 Aggregate assessment metrics
now we need to aggregate these single tree level results to a single line for each parameter combination in this analysis with the confusion matrix performance metrics (e.g. precision, recall, F-score)
now let’s apply it at the parameter combination level
# unique combinations
combo_temp <- param_combos_spectral_gt %>% dplyr::distinct(rn,spectral_weight)
# aggregate over combinations
param_combos_spectral_gt_agg <-
1:nrow(combo_temp) %>%
purrr::map(
\(x)
agg_ground_truth_match(
param_combos_spectral_gt %>%
dplyr::filter(
is_in_stand
& rn == combo_temp$rn[x]
& spectral_weight == combo_temp$spectral_weight[x]
)
) %>%
dplyr::mutate(
rn = combo_temp$rn[x]
, spectral_weight = combo_temp$spectral_weight[x]
)
) %>%
dplyr::bind_rows() %>%
# add in info on all parameter combinations
dplyr::inner_join(
param_combos_df
, by = "rn"
, relationship = "many-to-one"
)
# we can also add the relative rmse (rrmse) by comparing the rmse to the mean value of the ground truth data
param_combos_spectral_gt_agg <- param_combos_spectral_gt_agg %>%
dplyr::bind_cols(
# add means of gt
slash_piles_polys %>%
sf::st_drop_geometry() %>%
dplyr::select(image_gt_area_m2,field_gt_area_m2,image_gt_volume_m3,field_gt_volume_m3,height_m) %>%
dplyr::ungroup() %>%
dplyr::summarise(dplyr::across(dplyr::everything(), ~mean(.x,na.rm=T))) %>%
dplyr::rename_with(~ paste0("gt_", .x, recycle0 = TRUE))
) %>%
dplyr::mutate(
area_diff_field_rrmse = area_diff_field_rmse/gt_field_gt_area_m2
, area_diff_image_rrmse = area_diff_image_rmse/gt_image_gt_area_m2
, volume_diff_field_rrmse = volume_diff_field_rmse/gt_field_gt_volume_m3
, volume_diff_image_rrmse = volume_diff_image_rmse/gt_image_gt_volume_m3
, cone_volume_diff_field_rrmse = cone_volume_diff_field_rmse/gt_field_gt_volume_m3
, cone_volume_diff_image_rrmse = cone_volume_diff_image_rmse/gt_image_gt_volume_m3
, height_diff_rrmse = height_diff_rmse/gt_height_m
) %>%
dplyr::select(!tidyselect::starts_with("gt_"))
# what is this?
param_combos_spectral_gt_agg %>% dplyr::glimpse()## Rows: 7,560
## Columns: 41
## $ tp_n <dbl> 109, 108, 106, 95, 71, 19, 112, 111, 105,…
## $ fp_n <dbl> 179, 148, 113, 62, 32, 7, 168, 142, 112, …
## $ fn_n <dbl> 12, 13, 15, 26, 50, 102, 9, 10, 16, 28, 5…
## $ omission_rate <dbl> 0.09917355, 0.10743802, 0.12396694, 0.214…
## $ commission_rate <dbl> 0.6215278, 0.5781250, 0.5159817, 0.394904…
## $ precision <dbl> 0.3784722, 0.4218750, 0.4840183, 0.605095…
## $ recall <dbl> 0.9008264, 0.8925620, 0.8760331, 0.785124…
## $ f_score <dbl> 0.5330073, 0.5729443, 0.6235294, 0.683453…
## $ area_diff_field_rmse <dbl> 5.738122, 5.765817, 5.809439, 6.033033, 6…
## $ area_diff_image_rmse <dbl> 15.18938, 15.25870, 15.38346, 16.09463, 1…
## $ cone_volume_diff_field_rmse <dbl> 12.393136, 12.452527, 12.573711, 13.21744…
## $ cone_volume_diff_image_rmse <dbl> 26.90997, 27.04027, 27.30445, 28.72903, 3…
## $ height_diff_rmse <dbl> 0.6570244, 0.6571267, 0.6537457, 0.660446…
## $ volume_diff_field_rmse <dbl> 9.631694, 9.664515, 9.757351, 10.245587, …
## $ volume_diff_image_rmse <dbl> 23.66330, 23.77412, 24.00697, 25.26748, 2…
## $ area_diff_field_mean <dbl> -3.205005, -3.232908, -3.243510, -3.33351…
## $ area_diff_image_mean <dbl> -9.207075, -9.276893, -9.351781, -9.75963…
## $ cone_volume_diff_field_mean <dbl> -4.005182, -4.056353, -4.126757, -4.42177…
## $ cone_volume_diff_image_mean <dbl> -10.099390, -10.200505, -10.364435, -11.1…
## $ height_diff_mean <dbl> -0.065212636, -0.072121496, -0.084214989,…
## $ volume_diff_field_mean <dbl> -1.16513141, -1.22739111, -1.26469155, -1…
## $ volume_diff_image_mean <dbl> -7.259339, -7.371543, -7.502369, -8.13330…
## $ pct_diff_area_field_mape <dbl> 0.2883263, 0.2906851, 0.2886247, 0.285357…
## $ pct_diff_area_image_mape <dbl> 0.5143481, 0.5173229, 0.5166946, 0.515038…
## $ pct_diff_height_mape <dbl> 0.1929837, 0.1919159, 0.1890983, 0.189716…
## $ pct_diff_volume_field_mape <dbl> 0.3734381, 0.3672460, 0.3678187, 0.364309…
## $ pct_diff_volume_image_mape <dbl> 0.3525434, 0.3491698, 0.3497211, 0.343597…
## $ rn <dbl> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13…
## $ spectral_weight <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
## $ max_ht_m <dbl> 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4,…
## $ min_area_m2 <dbl> 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,…
## $ max_area_m2 <dbl> 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 4…
## $ convexity_pct <dbl> 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.3, 0.3, 0…
## $ circle_fit_iou_pct <dbl> 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.3, 0.4, 0…
## $ area_diff_field_rrmse <dbl> 0.5409350, 0.5435458, 0.5476580, 0.568736…
## $ area_diff_image_rrmse <dbl> 0.7958969, 0.7995289, 0.8060665, 0.843330…
## $ volume_diff_field_rrmse <dbl> 0.9452834, 0.9485046, 0.9576158, 1.005532…
## $ volume_diff_image_rrmse <dbl> 1.4047235, 1.4113022, 1.4251248, 1.499952…
## $ cone_volume_diff_field_rrmse <dbl> 1.2162997, 1.2221285, 1.2340219, 1.297199…
## $ cone_volume_diff_image_rrmse <dbl> 1.597455, 1.605190, 1.620873, 1.705440, 1…
## $ height_diff_rrmse <dbl> 0.3010821, 0.3011289, 0.2995796, 0.302650…6.5 Parameter Sensitivity Test Results
let’s get a quick summary of the evaluation metrics across all parameter combinations
# pal
pal_eval_metric <- c(
RColorBrewer::brewer.pal(3,"Oranges")[3]
, RColorBrewer::brewer.pal(3,"Greys")[3]
, RColorBrewer::brewer.pal(3,"Purples")[3]
)
# summary
param_combos_spectral_gt_agg %>%
dplyr::select(f_score,recall,precision,tidyselect::ends_with("_mape")) %>%
summary()## f_score recall precision pct_diff_area_field_mape
## Min. :0.1374 Min. :0.07438 Min. :0.2304 Min. :0.1693
## 1st Qu.:0.4626 1st Qu.:0.55372 1st Qu.:0.4052 1st Qu.:0.2716
## Median :0.5683 Median :0.75207 Median :0.5669 Median :0.2826
## Mean :0.5349 Mean :0.65858 Mean :0.5783 Mean :0.2760
## 3rd Qu.:0.6667 3rd Qu.:0.88430 3rd Qu.:0.7368 3rd Qu.:0.2921
## Max. :0.8327 Max. :0.95868 Max. :1.0000 Max. :0.3202
## pct_diff_area_image_mape pct_diff_height_mape pct_diff_volume_field_mape
## Min. :0.4076 Min. :0.1182 Min. :0.2185
## 1st Qu.:0.4984 1st Qu.:0.1895 1st Qu.:0.3751
## Median :0.5072 Median :0.1968 Median :0.3894
## Mean :0.5004 Mean :0.1954 Mean :0.3909
## 3rd Qu.:0.5126 3rd Qu.:0.2024 3rd Qu.:0.4015
## Max. :0.5350 Max. :0.2748 Max. :0.6351
## pct_diff_volume_image_mape
## Min. :0.1968
## 1st Qu.:0.3329
## Median :0.3460
## Mean :0.3378
## 3rd Qu.:0.3543

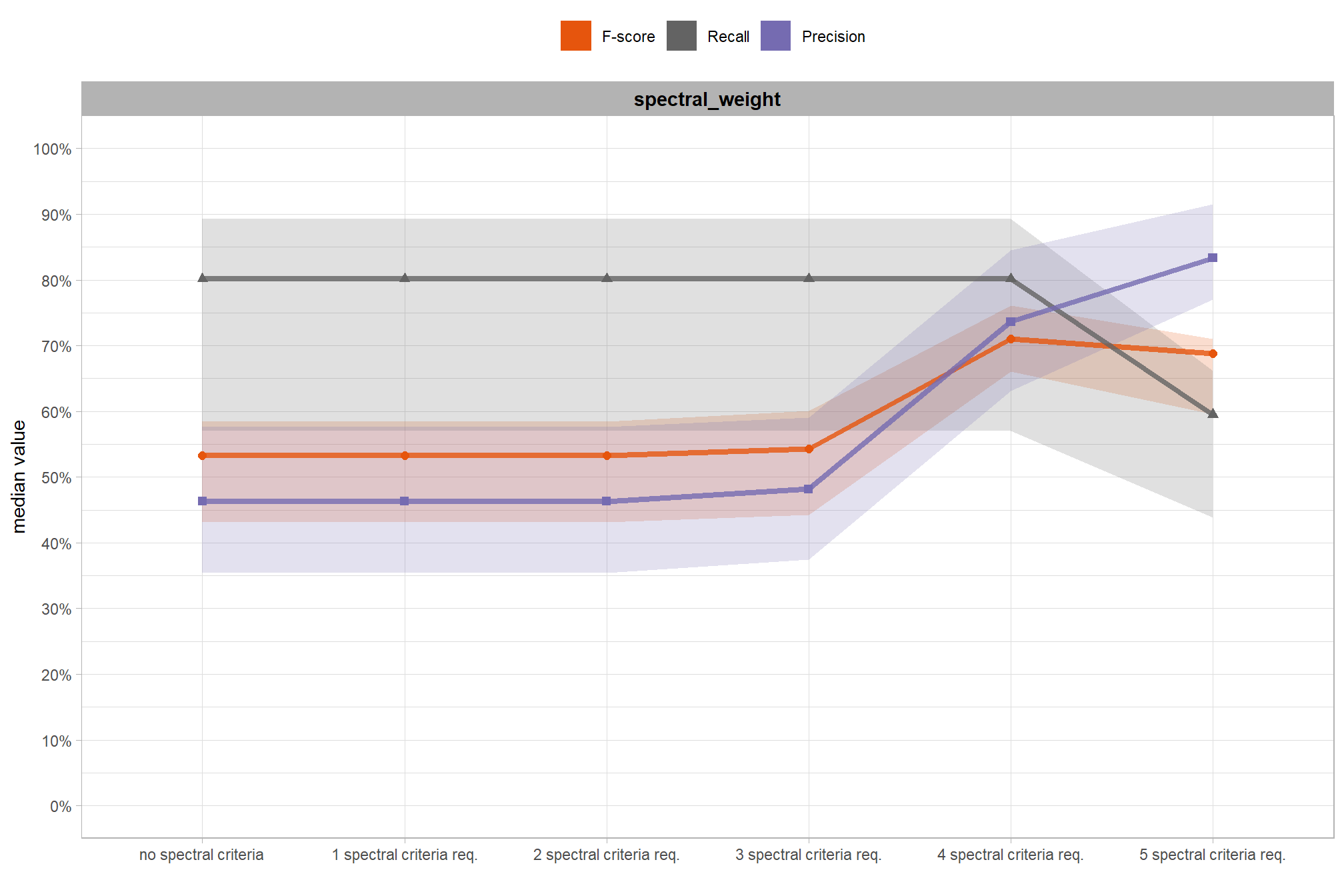

## Max. :0.38586.5.1 Main effect of spectral parameter on performance
let’s average across all other factors to look at the main effect of spectral_weight which controls the strictness of our spectral filtering. as the spectral_weight parameter increases from its lowest setting (“1”, requiring only one spectral index threshold to be met) to its highest (“5”, requiring all spectral index thresholds be met)
param_combos_spectral_gt_agg %>%
dplyr::select(c(spectral_weight,precision,recall,f_score)) %>%
tidyr::pivot_longer(
cols = c(precision,recall,f_score)
, names_to = "metric"
, values_to = "value"
) %>%
tidyr::pivot_longer(
cols = c(spectral_weight)
, names_to = "param"
, values_to = "param_value"
) %>%
dplyr::group_by(param, param_value, metric) %>%
dplyr::summarise(
median = median(value,na.rm=T)
, q25 = stats::quantile(value,na.rm=T,probs = 0.25)
, q75 = stats::quantile(value,na.rm=T,probs = 0.75)
) %>%
dplyr::ungroup() %>%
dplyr::mutate(
metric = dplyr::case_when(
metric == "f_score" ~ 1
, metric == "recall" ~ 2
, metric == "precision" ~ 3
) %>%
factor(
ordered = T
, levels = 1:3
, labels = c(
"F-score"
, "Recall"
, "Precision"
)
)
, param_value = factor(x = param_value, labels = levels(param_combos_spectral_gt$spectral_weight_desc))
) %>%
ggplot2::ggplot(
mapping = ggplot2::aes(y = median, x = param_value, color = metric, fill = metric, group = metric, shape = metric)
) +
ggplot2::geom_ribbon(
mapping = ggplot2::aes(ymin = q25, ymax = q75)
, alpha = 0.2, color = NA
) +
ggplot2::geom_line(lwd = 1.5, alpha = 0.8) +
ggplot2::geom_point(size = 2) +
ggplot2::facet_wrap(facets = dplyr::vars(param), scales = "free_x") +
# ggplot2::scale_color_viridis_d(begin = 0.2, end = 0.8) +
ggplot2::scale_fill_manual(values = pal_eval_metric) +
ggplot2::scale_color_manual(values = pal_eval_metric) +
ggplot2::scale_y_continuous(limits = c(0,1), labels = scales::percent, breaks = scales::breaks_extended(10)) +
ggplot2::labs(x = "", y = "median value", color = "", fill = "") +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "top"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
) +
ggplot2::guides(
color = ggplot2::guide_legend(override.aes = list(shape = 15, linetype = 0, size = 5, alpha = 1))
, shape = "none"
)
based on these main effect aggregated results:
- increasing the
spectral_weight(where “5” requires all spectral index thresholds to be met) had minimal impact on metrics until a value of “3”, at which point F-score and precision both saw slight improvements. at aspectral_weightof “4”, the F-score significantly improved due to a substantial increase in precision. settingspectral_weightto “5” resulted in a significant drop in recall (detection rate) and a proportionally inverse increase in precision, leading to only a minor overall change in F-score.

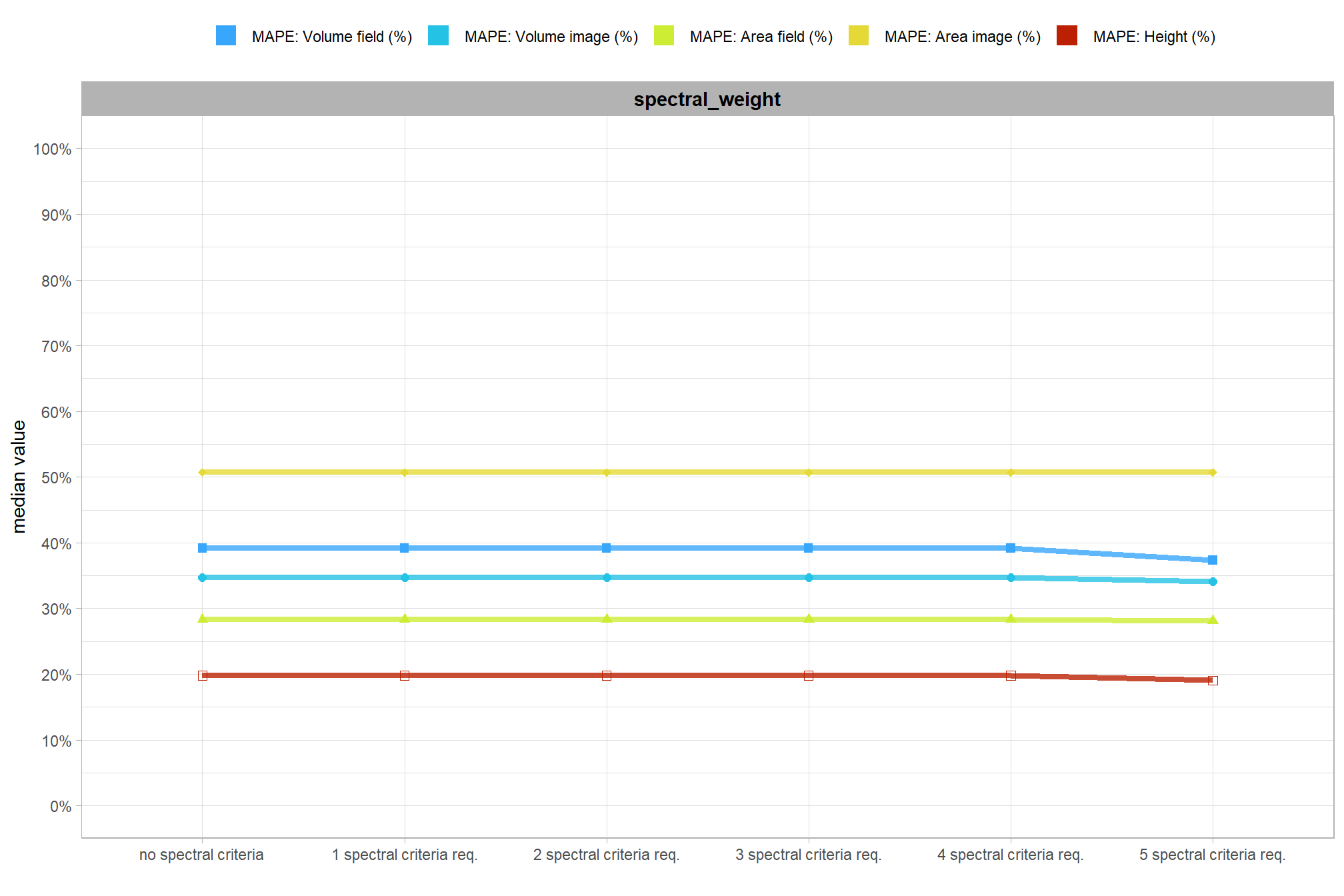

6.5.2 Main effect of spectral parameter on form quantification
let’s average across all other factors to look at the main effect by parameter for the MAPE metrics quantifying the pile form accuracy
param_combos_spectral_gt_agg %>%
dplyr::select(
spectral_weight
, pct_diff_volume_field_mape
, pct_diff_volume_image_mape
, pct_diff_area_field_mape
, pct_diff_area_image_mape
, pct_diff_height_mape
) %>%
tidyr::pivot_longer(
cols = c(tidyselect::ends_with("_mape"))
, names_to = "metric"
, values_to = "value"
) %>%
tidyr::pivot_longer(
cols = c(spectral_weight)
, names_to = "param"
, values_to = "param_value"
) %>%
dplyr::group_by(param, param_value, metric) %>%
dplyr::summarise(
median = median(value,na.rm=T)
, q25 = stats::quantile(value,na.rm=T,probs = 0.25)
, q75 = stats::quantile(value,na.rm=T,probs = 0.75)
) %>%
dplyr::ungroup() %>%
dplyr::mutate(
metric = dplyr::case_when(
metric == "f_score" ~ 1
, metric == "recall" ~ 2
, metric == "precision" ~ 3
# rmse
, metric == "pct_diff_volume_field_mape" ~ 4
, metric == "pct_diff_volume_image_mape" ~ 5
, metric == "pct_diff_area_field_mape" ~ 6
, metric == "pct_diff_area_image_mape" ~ 7
, metric == "pct_diff_height_mape" ~ 8
) %>%
factor(
ordered = T
, levels = 1:8
, labels = c(
"F-score"
, "Recall"
, "Precision"
, "MAPE: Volume field (%)"
, "MAPE: Volume image (%)"
, "MAPE: Area field (%)"
, "MAPE: Area image (%)"
, "MAPE: Height (%)"
)
)
, param_value = factor(x = param_value, labels = levels(param_combos_spectral_gt$spectral_weight_desc))
) %>%
ggplot2::ggplot(
mapping = ggplot2::aes(y = median, x = param_value, color = metric, fill = metric, group = metric, shape = metric)
) +
# ggplot2::geom_ribbon(
# mapping = ggplot2::aes(ymin = q25, ymax = q75)
# , alpha = 0.2, color = NA
# ) +
ggplot2::geom_line(lwd = 1.5, alpha = 0.8) +
ggplot2::geom_point(size = 2) +
ggplot2::facet_wrap(facets = dplyr::vars(param), scales = "free_x") +
ggplot2::scale_fill_manual(values = pal_get_pairs_fn(6)[1:5]) +
ggplot2::scale_color_manual(values = pal_get_pairs_fn(6)[1:5]) +
ggplot2::scale_shape_manual(values = c(15,16,17,18,0)) +
ggplot2::scale_y_continuous(limits = c(0,1), labels = scales::percent, breaks = scales::breaks_extended(10)) +
ggplot2::labs(x = "", y = "median value", color = "", fill = "") +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "top"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
) +
ggplot2::guides(
color = ggplot2::guide_legend(override.aes = list(shape = 15, linetype = 0, size = 5, alpha = 1))
, shape = "none"
)
these results indicate that the method’s accuracy in outlining slash pile form is robust to parameter changes, as the relevant shape accuracy metrics remain consistent across various settings of the spectral_weight parameter

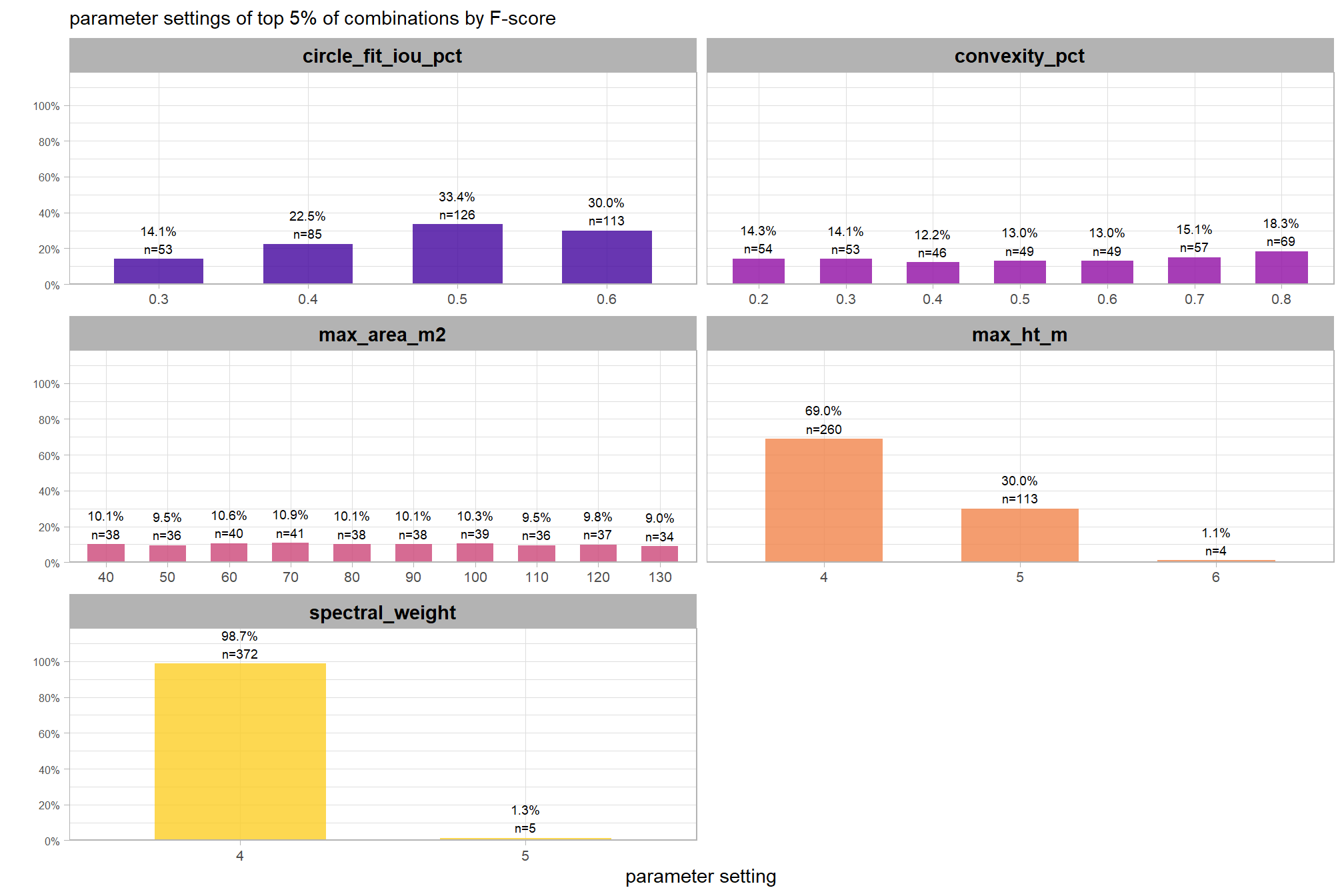

6.5.3 Best results
we can cut to the chase and just look at the parameter combinations that achieved the best results based on the evaluation metrics
rank_th_temp <- 18
df_temp <-
param_combos_spectral_gt_agg %>%
dplyr::ungroup() %>%
dplyr::arrange(desc(f_score)) %>%
dplyr::mutate(
rank_f_score = dplyr::row_number()
) %>%
dplyr::arrange(desc(precision)) %>%
dplyr::mutate(
rank_precision = dplyr::row_number()
) %>%
dplyr::arrange(desc(recall)) %>%
dplyr::mutate(
rank_recall = dplyr::row_number()
) %>%
dplyr::arrange(desc(f_score), desc(recall), desc(precision)) %>%
# now get the max of these pct ranks by row
dplyr::rowwise() %>%
dplyr::mutate(
rank_min = min(
dplyr::c_across(
tidyselect::starts_with("rank")
)
, na.rm = T
)
) %>%
dplyr::ungroup() %>%
dplyr::mutate(
rank_lab = dplyr::case_when(
rank_f_score<=rank_th_temp ~ 1
, rank_recall<=rank_th_temp ~ 2
, rank_precision<=rank_th_temp ~ 3
, (rank_f_score>=(nrow(param_combos_spectral_gt_agg)-rank_th_temp) & dplyr::coalesce(f_score,0)>0) ~ 4
) %>%
factor(
ordered = T
, levels = 1:4
, labels = c(
paste0("top ", scales::comma(rank_th_temp, accuracy = 1), " F-score")
, paste0("top ", scales::comma(rank_th_temp, accuracy = 1), " Recall")
, paste0("top ", scales::comma(rank_th_temp, accuracy = 1), " Precision")
, paste0("bottom ", scales::comma(rank_th_temp, accuracy = 1), " F-score")
)
)
) %>%
dplyr::filter(
!is.na(rank_lab) # rank_min>=0.99
) %>%
dplyr::mutate(
lab = stringr::str_c(max_ht_m,max_area_m2,convexity_pct,circle_fit_iou_pct,spectral_weight, sep = ":")
)
# plot
df_temp %>%
tidyr::pivot_longer(
cols = c(precision,recall,f_score)
, names_to = "metric"
, values_to = "value"
) %>%
dplyr::mutate(
metric = dplyr::case_when(
metric == "f_score" ~ 1
, metric == "recall" ~ 2
, metric == "precision" ~ 3
) %>%
factor(
ordered = T
, levels = 1:3
, labels = c(
"F-score"
, "Recall"
, "Precision"
)
)
, lab = forcats::fct_reorder(lab, desc(rank_f_score))
, val_lab = scales::percent(value, accuracy = 0.1)
) %>%
ggplot2::ggplot(
mapping = ggplot2::aes(x = value, y = lab, fill = metric, label = val_lab)
) +
ggplot2::geom_col(width = 0.6) +
ggplot2::geom_text(color = "black", size = 2, hjust = -0.2) +
ggplot2::scale_fill_manual(values = pal_eval_metric) +
ggplot2::scale_x_continuous(
labels = scales::percent_format(accuracy = 1)
, limits = c(0,1.05)
# , expand = expansion(mult = c(0, .08))
) +
ggplot2::facet_grid(cols = dplyr::vars(metric), rows = dplyr::vars(rank_lab), scales = "free_y") +
ggplot2::labs(
x = "", y = "max_ht_m : max_area_m2 : convexity_pct : circle_fit_iou_pct : spectral_weight"
, fill = ""
, subtitle = "top (and bottom) parameter combinations by evaluation metrics"
) +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "none"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
, axis.text = ggplot2::element_text(size = 6.2)
)
let’s make a table of these results
df_temp %>%
dplyr::filter(rank_min<=rank_th_temp) %>%
dplyr::select(
rank_lab
, max_ht_m,max_area_m2,convexity_pct,circle_fit_iou_pct,spectral_weight
, f_score, recall, precision
) %>%
dplyr::ungroup() %>%
dplyr::arrange(rank_lab,desc(f_score), desc(recall), desc(precision)) %>%
dplyr::mutate(dplyr::across(
.cols = c(f_score, recall, precision)
, .fn = ~ scales::percent(.x, accuracy = 1)
)) %>%
dplyr::mutate(blank= " " ) %>%
dplyr::relocate(blank, .before = f_score) %>%
kableExtra::kbl(
caption = "parameter combinations that achieved the best slash pile detection results"
, col.names = c(
"."
,"max_ht_m","max_area_m2","convexity_pct","circle_fit_iou_pct","spectral_weight"
, " "
, "F-score", "Recall", "Precision"
)
, escape = F
) %>%
kableExtra::kable_styling(font_size = 10.5) %>%
kableExtra::collapse_rows(columns = 1, valign = "top") %>%
kableExtra::add_header_above(c(" "=7, "Evaluation Metric" = 3))| . | max_ht_m | max_area_m2 | convexity_pct | circle_fit_iou_pct | spectral_weight | F-score | Recall | Precision | |
|---|---|---|---|---|---|---|---|---|---|
| top 18 F-score | 4 | 70 | 0.4 | 0.5 | 4 | 83% | 88% | 79% | |
| 4 | 60 | 0.8 | 0.5 | 4 | 83% | 85% | 81% | ||
| 4 | 60 | 0.3 | 0.5 | 4 | 83% | 90% | 77% | ||
| 4 | 50 | 0.5 | 0.6 | 4 | 83% | 82% | 84% | ||
| 4 | 110 | 0.8 | 0.5 | 4 | 83% | 82% | 84% | ||
| 4 | 120 | 0.6 | 0.6 | 4 | 83% | 83% | 82% | ||
| 4 | 100 | 0.5 | 0.6 | 4 | 83% | 81% | 84% | ||
| 4 | 90 | 0.5 | 0.5 | 4 | 83% | 88% | 78% | ||
| 4 | 90 | 0.5 | 0.6 | 4 | 83% | 80% | 85% | ||
| 4 | 90 | 0.8 | 0.5 | 4 | 82% | 83% | 81% | ||
| 4 | 50 | 0.5 | 0.5 | 4 | 82% | 89% | 76% | ||
| 4 | 100 | 0.8 | 0.5 | 4 | 82% | 83% | 81% | ||
| 4 | 90 | 0.8 | 0.3 | 4 | 82% | 87% | 78% | ||
| 4 | 90 | 0.8 | 0.4 | 4 | 82% | 87% | 78% | ||
| 4 | 50 | 0.2 | 0.5 | 4 | 82% | 88% | 76% | ||
| 4 | 70 | 0.3 | 0.5 | 4 | 82% | 88% | 76% | ||
| 4 | 110 | 0.7 | 0.5 | 4 | 82% | 88% | 77% | ||
| 4 | 80 | 0.3 | 0.6 | 4 | 82% | 82% | 82% | ||
| top 18 Recall | 5 | 90 | 0.6 | 0.3 | 4 | 72% | 95% | 58% | |
| 5 | 80 | 0.5 | 0.3 | 4 | 71% | 96% | 57% | ||
| 5 | 70 | 0.3 | 0.3 | 4 | 69% | 96% | 54% | ||
| 6 | 110 | 0.4 | 0.3 | 4 | 65% | 95% | 49% | ||
| 6 | 100 | 0.3 | 0.3 | 4 | 64% | 95% | 48% | ||
| 6 | 110 | 0.6 | 0.3 | 4 | 63% | 95% | 48% | ||
| 5 | 90 | 0.6 | 0.3 | 3 | 50% | 95% | 34% | ||
| 5 | 80 | 0.5 | 0.3 | 3 | 49% | 96% | 33% | ||
| 5 | 70 | 0.3 | 0.3 | 3 | 48% | 96% | 32% | ||
| 5 | 90 | 0.6 | 0.3 | 1 | 48% | 95% | 32% | ||
| 5 | 90 | 0.6 | 0.3 | 2 | 48% | 95% | 32% | ||
| 5 | 90 | 0.6 | 0.3 | 0 | 48% | 95% | 32% | ||
| 5 | 80 | 0.5 | 0.3 | 1 | 47% | 96% | 31% | ||
| 5 | 80 | 0.5 | 0.3 | 2 | 47% | 96% | 31% | ||
| 5 | 80 | 0.5 | 0.3 | 0 | 47% | 96% | 31% | ||
| 5 | 70 | 0.3 | 0.3 | 2 | 47% | 96% | 31% | ||
| 5 | 70 | 0.3 | 0.3 | 1 | 46% | 96% | 31% | ||
| 5 | 70 | 0.3 | 0.3 | 0 | 46% | 96% | 31% | ||
| top 18 Precision | 6 | 120 | 0.2 | 0.8 | 5 | 27% | 16% | 100% | |
| 5 | 100 | 0.8 | 0.8 | 5 | 26% | 15% | 100% | ||
| 6 | 90 | 0.3 | 0.8 | 5 | 26% | 15% | 100% | ||
| 4 | 50 | 0.5 | 0.8 | 5 | 25% | 14% | 100% | ||
| 5 | 40 | 0.3 | 0.8 | 5 | 25% | 14% | 100% | ||
| 5 | 60 | 0.3 | 0.8 | 5 | 25% | 14% | 100% | ||
| 5 | 70 | 0.3 | 0.8 | 5 | 25% | 14% | 100% | ||
| 5 | 130 | 0.8 | 0.8 | 5 | 25% | 14% | 100% | ||
| 6 | 70 | 0.3 | 0.8 | 5 | 25% | 14% | 100% | ||
| 4 | 100 | 0.4 | 0.8 | 5 | 23% | 13% | 100% | ||
| 4 | 120 | 0.7 | 0.8 | 5 | 23% | 13% | 100% | ||
| 5 | 50 | 0.8 | 0.8 | 5 | 23% | 13% | 100% | ||
| 6 | 40 | 0.2 | 0.8 | 5 | 23% | 13% | 100% | ||
| 6 | 40 | 0.6 | 0.8 | 5 | 23% | 13% | 100% | ||
| 6 | 40 | 0.7 | 0.8 | 5 | 23% | 13% | 100% | ||
| 6 | 60 | 0.7 | 0.8 | 5 | 23% | 13% | 100% | ||
| 6 | 90 | 0.2 | 0.8 | 5 | 23% | 13% | 100% | ||
| 6 | 110 | 0.3 | 0.8 | 5 | 23% | 13% | 100% |
if we look at only the top 5% of parameter combinations by F-score, what is the distribution of individual parameter settings?
pal_param <- viridis::plasma(n=5, begin = 0.1, end = 0.9, alpha = 0.8)
df_temp <- param_combos_spectral_gt_agg %>%
dplyr::ungroup() %>%
dplyr::arrange(desc(f_score)) %>%
dplyr::mutate(
pct_rank_f_score = dplyr::percent_rank(f_score)
) %>%
dplyr::filter(pct_rank_f_score>=pct_rank_th_temp) %>%
dplyr::select(tidyselect::contains("f_score"), max_ht_m,max_area_m2,convexity_pct,circle_fit_iou_pct,spectral_weight) %>%
tidyr::pivot_longer(
cols = c(max_ht_m,max_area_m2,convexity_pct,circle_fit_iou_pct,spectral_weight)
, names_to = "metric"
, values_to = "value"
) %>%
dplyr::count(metric, value) %>%
dplyr::group_by(metric) %>%
dplyr::mutate(
pct=n/sum(n)
, lab = paste0(scales::percent(pct,accuracy=0.1), "\nn=", scales::comma(n,accuracy=1))
)
# save best for later
best_spectral_weight <- df_temp %>%
dplyr::filter(metric=="spectral_weight") %>%
dplyr::arrange(desc(n)) %>%
dplyr::slice(1) %>%
dplyr::pull(value)
# plot
df_temp %>%
ggplot2::ggplot(
mapping = ggplot2::aes(x = factor(value), y=pct, label=lab, fill = metric)
) +
ggplot2::geom_col(width = 0.6) +
ggplot2::geom_text(color = "black", size = 2.5, vjust = -0.2) +
ggplot2::facet_wrap(facets = dplyr::vars(metric), ncol=2, scales = "free_x") +
ggplot2::scale_y_continuous(
breaks = seq(0,1,by=0.2)
, labels = scales::percent
, expand = ggplot2::expansion(mult = c(0,0.2))
) +
ggplot2::scale_fill_manual(values = pal_param) +
ggplot2::labs(
x = "parameter setting", y = ""
, fill = ""
, subtitle = paste0("parameter settings of top ", scales::percent(1-pct_rank_th_temp,accuracy=1), " of combinations by F-score")
) +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "none"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
, axis.text.y = ggplot2::element_text(size = 6)
, axis.text.x = ggplot2::element_text(size = 8)
)
let’s use the value of spectral_weight that most frequently results in the best pile detection based on F-score (spectral_weight of “4”) to compare results to not using any spectral data (i.e. just using structural data as outlined in our method here). We’ll then average across all other factors to look at the main effect of spectral_weight after creating a dichotomous factor of structural only versus structural+spectral
# filter data
combos_df_temp <-
param_combos_spectral_gt_agg %>%
dplyr::mutate(
combo = forcats::fct_cross(
factor(max_ht_m)
, factor(max_area_m2)
, factor(convexity_pct)
, factor(circle_fit_iou_pct)
)
) %>%
dplyr::select(c(
combo,spectral_weight
,precision,recall,f_score
, pct_diff_volume_field_mape, pct_diff_area_field_mape, pct_diff_height_mape
)) %>%
dplyr::filter(
spectral_weight == 0
| spectral_weight == best_spectral_weight
) %>%
dplyr::mutate(
spectral_weight_fact = ifelse(spectral_weight==0,"structural only","structural+spectral") %>%
factor()
)
# quick mod
dep_vars_temp <- c("f_score","recall","precision")
# list of formulas
formulas_temp <- dep_vars_temp %>%
purrr::map(~stats::reformulate(c("spectral_weight_fact","-1"), response = .x))
names(formulas_temp) <- dep_vars_temp
# formulas_temp
models_temp <- formulas_temp %>%
purrr::map(\(x) lm(formula = x, data = combos_df_temp))
names(models_temp) <- dep_vars_temp
# models_temp
# combine into df
pred_df_temp <- purrr::map_df(models_temp, broom::tidy, .id = "metric") %>%
dplyr::select(-c(statistic)) %>%
dplyr::mutate(
dep_var = dplyr::case_when(
metric == "f_score" ~ 1
, metric == "recall" ~ 2
, metric == "precision" ~ 3
) %>%
factor(
ordered = T
, levels = 1:3
, labels = c(
"F-score"
, "Recall"
, "Precision"
)
)
, term = stringr::str_remove_all(term, "spectral_weight_fact") %>% factor()
# to obtain the 95% confidence interval...
# ...1.96 times the standard error is added and subtracted from the sample mean
, ul = estimate+std.error*1.96
, ll = estimate-std.error*1.96
) %>%
dplyr::rename(spectral_weight_fact=term) %>%
dplyr::relocate(dep_var) %>%
dplyr::arrange(dep_var,spectral_weight_fact)
# pred_df_temp
# table it
pred_df_temp %>%
dplyr::select(-c(metric,ul,ll)) %>%
dplyr::mutate(
estimate = scales::percent(estimate, accuracy = 0.1)
, std.error = scales::percent(std.error, accuracy = 0.01)
, p.value = ifelse(
p.value < 0.001
, "< 0.001"
, scales::comma(p.value, accuracy = 0.0001)
)
) %>%
kableExtra::kbl(
caption = "Predictions for performance metrics by detection method<br>averaging across all other structural detection parameters"
, col.names = c(".","method","predicted mean", "SE", "p-value")
) %>%
kableExtra::kable_styling() %>%
kableExtra::collapse_rows(columns = 1, valign = "top")| . | method | predicted mean | SE | p-value |
|---|---|---|---|---|
| F-score | structural only | 48.8% | 0.47% | < 0.001 |
| structural+spectral | 64.5% | 0.47% | < 0.001 | |
| Recall | structural only | 68.7% | 0.77% | < 0.001 |
| structural+spectral | 68.7% | 0.77% | < 0.001 | |
| Precision | structural only | 47.1% | 0.38% | < 0.001 |
| structural+spectral | 73.4% | 0.38% | < 0.001 |
plot the change from including spectral data to the pile detection methodology
# scales::show_col(pal_eval_metric)
# plot
ggplot2::ggplot(
data = pred_df_temp
, mapping = ggplot2::aes(x = spectral_weight_fact)
) +
ggplot2::geom_line(
data = combos_df_temp %>%
dplyr::slice_sample(prop = 0.3) %>%
tidyr::pivot_longer(
cols = c(precision,recall,f_score)
, names_to = "metric"
, values_to = "value"
) %>%
dplyr::mutate(
dep_var = dplyr::case_when(
metric == "f_score" ~ 1
, metric == "recall" ~ 2
, metric == "precision" ~ 3
) %>%
factor(
ordered = T
, levels = 1:3
, labels = c(
"F-score"
, "Recall"
, "Precision"
)
)
)
, mapping = ggplot2::aes(y = value, group = combo, color = metric)
, lwd = 0.6, alpha = 0.1
# , color = pal_eval_metric[1]
) +
geom_ribbon(
mapping = ggplot2::aes(ymin = ll, ymax = ul, group = 1)
, fill = "black", alpha = 0.2
) +
ggplot2::geom_line(
mapping = ggplot2::aes(y = estimate, group = 1)
, lwd = 1, color = "black" # pal_eval_metric[1]
) +
ggplot2::geom_text(
mapping = ggplot2::aes(y=estimate, label = scales::percent(estimate,accuracy=0.1), group = 1)
, vjust = -0.25
) +
ggplot2::facet_wrap(facets = dplyr::vars(dep_var)) +
ggplot2::scale_color_manual(values = c(pal_eval_metric[1],pal_eval_metric[3],pal_eval_metric[2]) ) + # pal_eval_metric
ggplot2::scale_y_continuous(limits = c(0,1), labels = scales::percent, breaks = scales::breaks_extended(10)) +
ggplot2::labs(
x = "", y = "", color = "", fill = ""
, caption = paste0(
"*The spectral+structural group has the `spectral_weight` parameter set to '"
, best_spectral_weight, "'"
)
) +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "none"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
, plot.caption = ggplot2::element_text(size = 8)
)
remember, these values appear low but the value is not the important takeaway here because we averaged across all other parameter settings, including those that resulted in poor pile detection structurally, instead the focus is on the change from including the spectral data. based on the data used here, these results indicate that including the spectral data resulted in a 15.7 percentage point increase in the F-score compared to just using the structural data irrespective of the parameter settings used in the structural detection method.
if we look at only the best pile detection methodology based on F-score using the structural data and the best using both structural and spectral data, what is the change in our performance metrics from including the spectral data?
combos_df_temp <- combos_df_temp %>%
# get the top by spectral_weight
dplyr::group_by(spectral_weight) %>%
dplyr::mutate(
is_top = f_score == max(f_score)
, top_what = ifelse(is_top, spectral_weight, NA)
) %>%
dplyr::group_by(combo) %>%
dplyr::filter(any(is_top)) %>%
dplyr::mutate(
top_what = dplyr::first(top_what, na_rm = T)
) %>%
dplyr::ungroup() %>%
dplyr::mutate(
top_what = ifelse(top_what==0,"Top structural only","Top structural+spectral") %>%
factor()
, desc = paste0(
top_what
, " : max_ht_m=", stringr::word(combo,1,sep = ":")
, ", max_area_m2=", stringr::word(combo,2,sep = ":")
, ", convexity_pct=", stringr::word(combo,3,sep = ":")
, ", circle_fit_iou_pct=", stringr::word(combo,4,sep = ":")
)
)
# plot
combos_df_temp %>%
tidyr::pivot_longer(
cols = c(precision,recall,f_score)
, names_to = "metric"
, values_to = "value"
) %>%
dplyr::mutate(
dep_var = dplyr::case_when(
metric == "f_score" ~ 1
, metric == "recall" ~ 2
, metric == "precision" ~ 3
) %>%
factor(
ordered = T
, levels = 1:3
, labels = c(
"F-score"
, "Recall"
, "Precision"
)
)
) %>%
# plot
ggplot2::ggplot(
mapping = ggplot2::aes(x = spectral_weight_fact,y = value,label = scales::percent(value,accuracy=0.1), group = combo, color = desc)
) +
ggplot2::geom_line(key_glyph = "point") +
ggplot2::geom_text(
vjust = -0.25
, show.legend = FALSE
) +
ggplot2::facet_wrap(facets = dplyr::vars(dep_var)) +
ggplot2::scale_color_viridis_d(begin = 0.2,end=0.8) +
ggplot2::scale_y_continuous(limits = c(0,1), labels = scales::percent, breaks = scales::breaks_extended(10)) +
ggplot2::labs(
x = "", y = "", color = "", fill = ""
, caption = paste0(
"*The spectral+structural group has the `spectral_weight` parameter set to '"
, best_spectral_weight, "'"
)
) +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "top"
, legend.direction = "vertical"
, legend.justification = "left"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
, plot.caption = ggplot2::element_text(size = 8)
) +
ggplot2::guides(
color = ggplot2::guide_legend(override.aes = list(shape = 15, size = 10, alpha = 1))
)

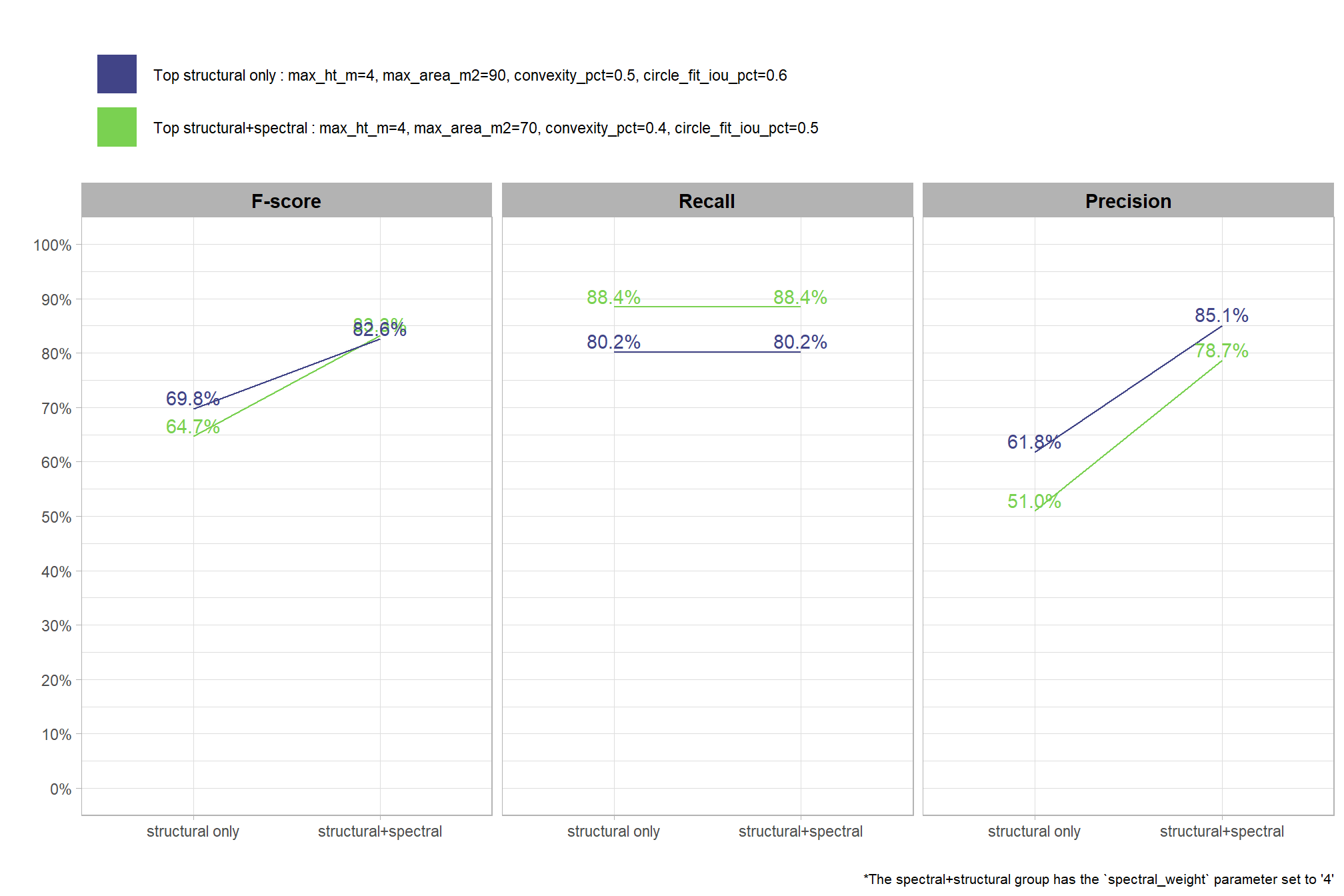

table it
# table it
combos_df_temp %>%
dplyr::ungroup() %>%
dplyr::select(c(
desc,spectral_weight_fact
,f_score, recall, precision
)) %>%
dplyr::mutate(dplyr::across(
.cols = c(f_score, recall, precision)
, .fn = ~ scales::percent(.x, accuracy = 1)
)) %>%
dplyr::arrange(desc,spectral_weight_fact) %>%
kableExtra::kbl(
caption = paste0(
"parameter combinations that achieved the best slash pile detection results"
)
, col.names = c(
"."
, "method"
, "F-score", "Recall", "Precision"
)
, escape = F
) %>%
kableExtra::kable_styling(font_size = 12) %>%
kableExtra::collapse_rows(columns = 1, valign = "top") %>%
kableExtra::add_header_above(c(" "=2, "Evaluation Metric" = 3)) %>%
kableExtra::footnote(
symbol = paste0(
"the spectral+structural group has the `spectral_weight` parameter set to '"
, best_spectral_weight, "'"
)
)| . | method | F-score | Recall | Precision |
|---|---|---|---|---|
| Top structural only : max_ht_m=4, max_area_m2=90, convexity_pct=0.5, circle_fit_iou_pct=0.6 | structural only | 70% | 80% | 62% |
| structural+spectral | 83% | 80% | 85% | |
| Top structural+spectral : max_ht_m=4, max_area_m2=70, convexity_pct=0.4, circle_fit_iou_pct=0.5 | structural only | 65% | 88% | 51% |
| structural+spectral | 83% | 88% | 79% | |
* the spectral+structural group has the spectral_weight parameter set to ‘4’
|
looking at the best-performing methods:
- the top structural-only method achieved an F-score of 70%
- when spectral data was included with
spectral_weightof “4”, the F-score for this same structural setting increased to 83% - the absolute best-performing method using both structural and spectral data with
spectral_weightof “4” achieved an F-score of 83%
this clearly demonstrates the value of integrating spectral information for more accurate slash pile identification.
6.5.4 Best results: form quantification
we can cut to the chase and just look at the parameter combinations that achieved the best results based on the form quantification
pct_rank_th_temp <- 0.998
df_temp <-
param_combos_spectral_gt_agg %>%
dplyr::arrange(pct_diff_volume_field_mape, pct_diff_area_field_mape, pct_diff_height_mape) %>%
dplyr::mutate(dplyr::across(
.cols = c(pct_diff_volume_field_mape, pct_diff_area_field_mape, pct_diff_height_mape)
, .fn = dplyr::percent_rank
, .names = "pct_rank_{.col}"
)) %>%
# now get the max of these pct ranks by row
dplyr::rowwise() %>%
dplyr::mutate(
pct_rank_max = max(
dplyr::c_across(
tidyselect::starts_with("pct_rank")
)
, na.rm = T
)
) %>%
dplyr::ungroup() %>%
dplyr::mutate(
rank_lab = dplyr::case_when(
pct_rank_pct_diff_volume_field_mape<=(1-pct_rank_th_temp) ~ 1
, pct_rank_pct_diff_area_field_mape<=(1-pct_rank_th_temp) ~ 2
, pct_rank_pct_diff_height_mape<=(1-pct_rank_th_temp) ~ 3
) %>%
factor(
ordered = T
, levels = 1:3
, labels = c(
paste0("top ", scales::percent(ceiling((1-pct_rank_th_temp)*100)/100, accuracy = 1), " MAPE Volume field")
, paste0("top ", scales::percent(ceiling((1-pct_rank_th_temp)*100)/100, accuracy = 1), " MAPE Area field")
, paste0("top ", scales::percent(ceiling((1-pct_rank_th_temp)*100)/100, accuracy = 1), " MAPE Height")
)
)
) %>%
dplyr::filter(
!is.na(rank_lab) # pct_rank_max>=0.99
) %>%
dplyr::mutate(
lab = stringr::str_c(max_ht_m,max_area_m2,convexity_pct,circle_fit_iou_pct,spectral_weight, sep = ":")
)
df_temp %>%
tidyr::pivot_longer(
cols = c(pct_diff_volume_field_mape, pct_diff_area_field_mape, pct_diff_height_mape)
, names_to = "metric"
, values_to = "value"
) %>%
dplyr::mutate(
metric = dplyr::case_when(
metric == "pct_diff_volume_field_mape" ~ 1
, metric == "pct_diff_area_field_mape" ~ 2
, metric == "pct_diff_height_mape" ~ 3
) %>%
factor(
ordered = T
, levels = 1:3
, labels = c(
"MAPE Volume field"
, "MAPE Area field"
, "MAPE Height"
)
)
, lab = forcats::fct_reorder(lab, pct_rank_pct_diff_volume_field_mape) %>% forcats::fct_rev()
, val_lab = scales::percent(value, accuracy = 0.1)
) %>%
ggplot2::ggplot(
mapping = ggplot2::aes(x = value, y = lab, fill = metric, label = val_lab)
) +
ggplot2::geom_col(width = 0.6) +
ggplot2::geom_text(color = "black", size = 2, hjust = -0.2) +
ggplot2::scale_fill_manual(values = pal_get_pairs_fn(6)[1:5][c(1,3,5)]) +
ggplot2::scale_x_continuous(
labels = scales::percent_format(accuracy = 1)
, limits = c(0,1.05)
# , expand = expansion(mult = c(0, .08))
) +
ggplot2::facet_grid(cols = dplyr::vars(metric), rows = dplyr::vars(rank_lab), scales = "free_y") +
ggplot2::labs(
x = "", y = "max_ht_m : max_area_m2 : convexity_pct : circle_fit_iou_pct : spectral_weight"
, fill = ""
, subtitle = "top (and bottom) parameter combinations by evaluation metrics"
) +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "none"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
, axis.text = ggplot2::element_text(size = 6)
)

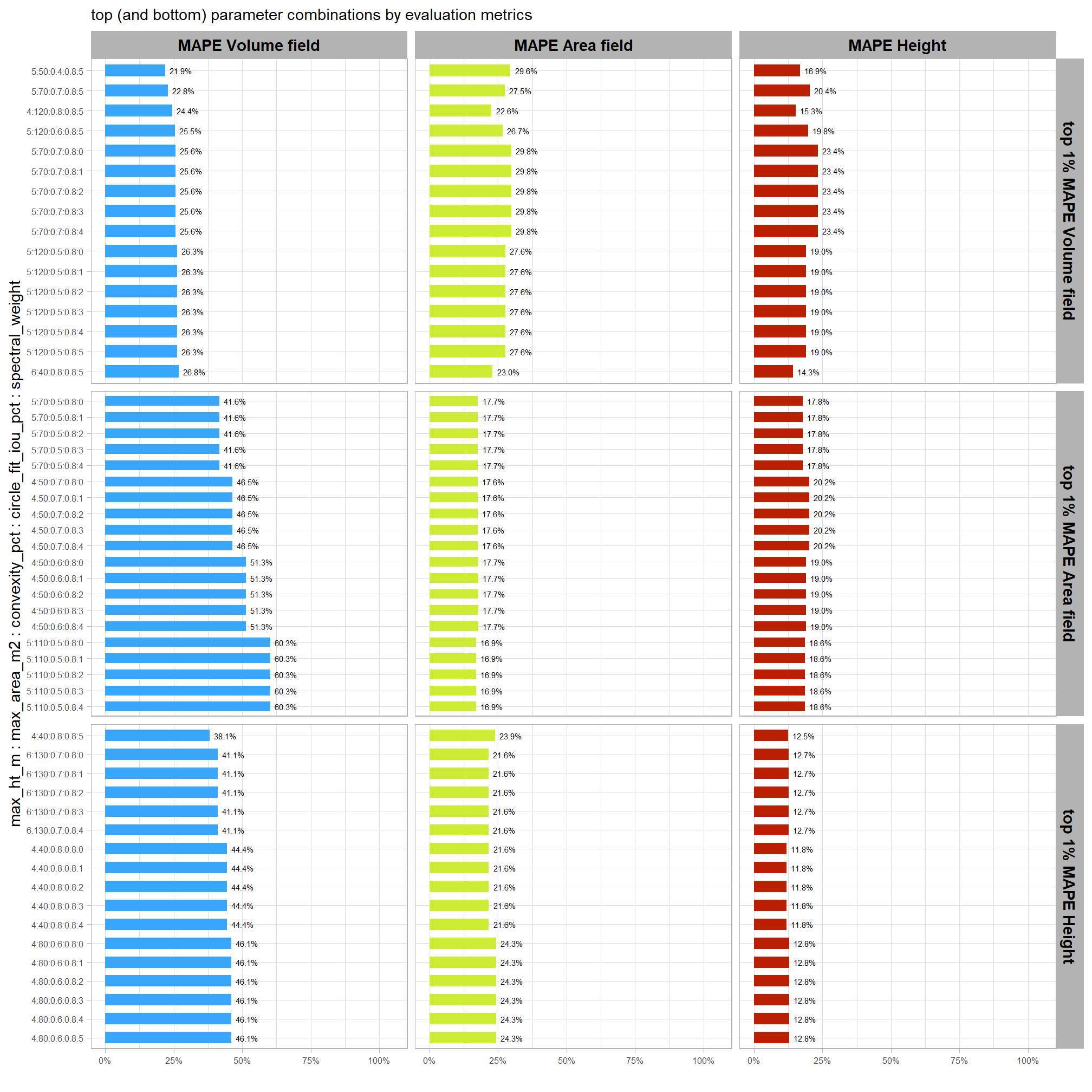

let’s make a table of these results
df_temp %>%
dplyr::select(
rank_lab
, max_ht_m,max_area_m2,convexity_pct,circle_fit_iou_pct,spectral_weight
, pct_diff_volume_field_mape, pct_diff_area_field_mape, pct_diff_height_mape
) %>%
dplyr::ungroup() %>%
dplyr::arrange(rank_lab,pct_diff_volume_field_mape, pct_diff_area_field_mape, pct_diff_height_mape) %>%
dplyr::mutate(dplyr::across(
.cols = c(pct_diff_volume_field_mape, pct_diff_area_field_mape, pct_diff_height_mape)
, .fn = ~ scales::percent(.x, accuracy = 1)
)) %>%
dplyr::mutate(blank= " " ) %>%
dplyr::relocate(blank, .before = pct_diff_volume_field_mape) %>%
kableExtra::kbl(
caption = "parameter combinations that achieved the best slash pile form quantification results"
, col.names = c(
"."
,"max_ht_m","max_area_m2","convexity_pct","circle_fit_iou_pct","spectral_weight"
, " "
, "MAPE Volume field"
, "MAPE Area field"
, "MAPE Height"
)
, escape = F
) %>%
kableExtra::kable_styling(font_size = 10.5) %>%
kableExtra::collapse_rows(columns = 1, valign = "top") %>%
kableExtra::add_header_above(c(" "=7, "Evaluation Metric" = 3))| . | max_ht_m | max_area_m2 | convexity_pct | circle_fit_iou_pct | spectral_weight | MAPE Volume field | MAPE Area field | MAPE Height | |
|---|---|---|---|---|---|---|---|---|---|
| top 1% MAPE Volume field | 5 | 50 | 0.4 | 0.8 | 5 | 22% | 30% | 17% | |
| 5 | 70 | 0.7 | 0.8 | 5 | 23% | 27% | 20% | ||
| 4 | 120 | 0.8 | 0.8 | 5 | 24% | 23% | 15% | ||
| 5 | 120 | 0.6 | 0.8 | 5 | 25% | 27% | 20% | ||
| 5 | 70 | 0.7 | 0.8 | 1 | 26% | 30% | 23% | ||
| 5 | 70 | 0.7 | 0.8 | 2 | 26% | 30% | 23% | ||
| 5 | 70 | 0.7 | 0.8 | 3 | 26% | 30% | 23% | ||
| 5 | 70 | 0.7 | 0.8 | 4 | 26% | 30% | 23% | ||
| 5 | 70 | 0.7 | 0.8 | 0 | 26% | 30% | 23% | ||
| 5 | 120 | 0.5 | 0.8 | 1 | 26% | 28% | 19% | ||
| 5 | 120 | 0.5 | 0.8 | 2 | 26% | 28% | 19% | ||
| 5 | 120 | 0.5 | 0.8 | 3 | 26% | 28% | 19% | ||
| 5 | 120 | 0.5 | 0.8 | 4 | 26% | 28% | 19% | ||
| 5 | 120 | 0.5 | 0.8 | 5 | 26% | 28% | 19% | ||
| 5 | 120 | 0.5 | 0.8 | 0 | 26% | 28% | 19% | ||
| 6 | 40 | 0.8 | 0.8 | 5 | 27% | 23% | 14% | ||
| top 1% MAPE Area field | 5 | 70 | 0.5 | 0.8 | 1 | 42% | 18% | 18% | |
| 5 | 70 | 0.5 | 0.8 | 2 | 42% | 18% | 18% | ||
| 5 | 70 | 0.5 | 0.8 | 3 | 42% | 18% | 18% | ||
| 5 | 70 | 0.5 | 0.8 | 4 | 42% | 18% | 18% | ||
| 5 | 70 | 0.5 | 0.8 | 0 | 42% | 18% | 18% | ||
| 4 | 50 | 0.7 | 0.8 | 1 | 46% | 18% | 20% | ||
| 4 | 50 | 0.7 | 0.8 | 2 | 46% | 18% | 20% | ||
| 4 | 50 | 0.7 | 0.8 | 3 | 46% | 18% | 20% | ||
| 4 | 50 | 0.7 | 0.8 | 4 | 46% | 18% | 20% | ||
| 4 | 50 | 0.7 | 0.8 | 0 | 46% | 18% | 20% | ||
| 4 | 50 | 0.6 | 0.8 | 1 | 51% | 18% | 19% | ||
| 4 | 50 | 0.6 | 0.8 | 2 | 51% | 18% | 19% | ||
| 4 | 50 | 0.6 | 0.8 | 3 | 51% | 18% | 19% | ||
| 4 | 50 | 0.6 | 0.8 | 4 | 51% | 18% | 19% | ||
| 4 | 50 | 0.6 | 0.8 | 0 | 51% | 18% | 19% | ||
| 5 | 110 | 0.5 | 0.8 | 1 | 60% | 17% | 19% | ||
| 5 | 110 | 0.5 | 0.8 | 2 | 60% | 17% | 19% | ||
| 5 | 110 | 0.5 | 0.8 | 3 | 60% | 17% | 19% | ||
| 5 | 110 | 0.5 | 0.8 | 4 | 60% | 17% | 19% | ||
| 5 | 110 | 0.5 | 0.8 | 0 | 60% | 17% | 19% | ||
| top 1% MAPE Height | 4 | 40 | 0.8 | 0.8 | 5 | 38% | 24% | 13% | |
| 6 | 130 | 0.7 | 0.8 | 1 | 41% | 22% | 13% | ||
| 6 | 130 | 0.7 | 0.8 | 2 | 41% | 22% | 13% | ||
| 6 | 130 | 0.7 | 0.8 | 3 | 41% | 22% | 13% | ||
| 6 | 130 | 0.7 | 0.8 | 4 | 41% | 22% | 13% | ||
| 6 | 130 | 0.7 | 0.8 | 0 | 41% | 22% | 13% | ||
| 4 | 40 | 0.8 | 0.8 | 1 | 44% | 22% | 12% | ||
| 4 | 40 | 0.8 | 0.8 | 2 | 44% | 22% | 12% | ||
| 4 | 40 | 0.8 | 0.8 | 3 | 44% | 22% | 12% | ||
| 4 | 40 | 0.8 | 0.8 | 4 | 44% | 22% | 12% | ||
| 4 | 40 | 0.8 | 0.8 | 0 | 44% | 22% | 12% | ||
| 4 | 80 | 0.6 | 0.8 | 1 | 46% | 24% | 13% | ||
| 4 | 80 | 0.6 | 0.8 | 2 | 46% | 24% | 13% | ||
| 4 | 80 | 0.6 | 0.8 | 3 | 46% | 24% | 13% | ||
| 4 | 80 | 0.6 | 0.8 | 4 | 46% | 24% | 13% | ||
| 4 | 80 | 0.6 | 0.8 | 5 | 46% | 24% | 13% | ||
| 4 | 80 | 0.6 | 0.8 | 0 | 46% | 24% | 13% |
let’s use the value of spectral_weight that most frequently results in the best pile detection based on F-score (“4”) to compare results to not using any spectral data (i.e. just using structural data as outlined in our method here). We’ll then average across all other factors to look at the main effect of spectral_weight after creating a dichotomous factor of structural only versus structural+spectral
# quick mod
dep_vars_temp <- c("pct_diff_volume_field_mape", "pct_diff_area_field_mape", "pct_diff_height_mape")
# list of formulas
formulas_temp <- dep_vars_temp %>%
purrr::map(~stats::reformulate(c("spectral_weight_fact","-1"), response = .x))
names(formulas_temp) <- dep_vars_temp
# formulas_temp
models_temp <- formulas_temp %>%
purrr::map(\(x) lm(formula = x, data = combos_df_temp))
names(models_temp) <- dep_vars_temp
# models_temp
# combine into df
pred_df_temp <- purrr::map_df(models_temp, broom::tidy, .id = "metric") %>%
dplyr::select(-c(statistic)) %>%
dplyr::mutate(
dep_var = dplyr::case_when(
metric == "pct_diff_volume_field_mape" ~ 1
, metric == "pct_diff_area_field_mape" ~ 2
, metric == "pct_diff_height_mape" ~ 3
) %>%
factor(
ordered = T
, levels = 1:3
, labels = c(
"MAPE Volume field"
, "MAPE Area field"
, "MAPE Height"
)
)
, term = stringr::str_remove_all(term, "spectral_weight_fact") %>% factor()
# to obtain the 95% confidence interval...
# ...1.96 times the standard error is added and subtracted from the sample mean
, ul = estimate+std.error*1.96
, ll = estimate-std.error*1.96
) %>%
dplyr::rename(spectral_weight_fact=term) %>%
dplyr::relocate(dep_var) %>%
dplyr::arrange(dep_var,spectral_weight_fact)
# pred_df_temp
# table it
pred_df_temp %>%
dplyr::select(-c(metric,ul,ll)) %>%
dplyr::mutate(
estimate = scales::percent(estimate, accuracy = 0.1)
, std.error = scales::percent(std.error, accuracy = 0.01)
, p.value = ifelse(
p.value < 0.001
, "< 0.001"
, scales::comma(p.value, accuracy = 0.0001)
)
) %>%
kableExtra::kbl(
caption = "Predictions for performance metrics by detection method<br>averaging across all other structural detection parameters"
, col.names = c(".","method","predicted mean", "SE", "p-value")
) %>%
kableExtra::kable_styling() %>%
kableExtra::collapse_rows(columns = 1, valign = "top")| . | method | predicted mean | SE | p-value |
|---|---|---|---|---|
| MAPE Volume field | structural only | 39.7% | 1.10% | < 0.001 |
| structural+spectral | 39.7% | 1.10% | < 0.001 | |
| MAPE Area field | structural only | 28.7% | 0.12% | < 0.001 |
| structural+spectral | 28.7% | 0.12% | < 0.001 | |
| MAPE Height | structural only | 20.2% | 0.44% | < 0.001 |
| structural+spectral | 20.2% | 0.44% | < 0.001 |
plot the change from including spectral data to the pile detection methodology
# plot
ggplot2::ggplot(
data = pred_df_temp
, mapping = ggplot2::aes(x = spectral_weight_fact)
) +
ggplot2::geom_line(
data = combos_df_temp %>%
dplyr::slice_sample(prop = 0.6) %>%
tidyr::pivot_longer(
cols = c(pct_diff_volume_field_mape, pct_diff_area_field_mape, pct_diff_height_mape)
, names_to = "metric"
, values_to = "value"
) %>%
dplyr::mutate(
dep_var = dplyr::case_when(
metric == "pct_diff_volume_field_mape" ~ 1
, metric == "pct_diff_area_field_mape" ~ 2
, metric == "pct_diff_height_mape" ~ 3
) %>%
factor(
ordered = T
, levels = 1:3
, labels = c(
"MAPE Volume field"
, "MAPE Area field"
, "MAPE Height"
)
)
)
, mapping = ggplot2::aes(y = value, group = combo, color = metric)
, lwd = 0.6, alpha = 0.1
# , color = pal_eval_metric[1]
) +
geom_ribbon(
mapping = ggplot2::aes(ymin = ll, ymax = ul, group = 1)
, fill = "black", alpha = 0.2
) +
ggplot2::geom_line(
mapping = ggplot2::aes(y = estimate, group = 1)
, lwd = 1, color = "black" # pal_eval_metric[1]
) +
ggplot2::geom_text(
mapping = ggplot2::aes(y=estimate, label = scales::percent(estimate,accuracy=0.1), group = 1)
, vjust = -0.25
) +
ggplot2::facet_wrap(facets = dplyr::vars(dep_var)) +
ggplot2::scale_color_manual(values = pal_get_pairs_fn(6)[1:5][c(1,3,5)]) +
ggplot2::scale_y_continuous(limits = c(0,1), labels = scales::percent, breaks = scales::breaks_extended(10)) +
ggplot2::labs(x = "", y = "", color = "", fill = "") +
ggplot2::theme_light() +
ggplot2::theme(
legend.position = "none"
, strip.text = ggplot2::element_text(size = 11, color = "black", face = "bold")
# , panel.grid.major.x = ggplot2::element_line(color = "gray33")
)

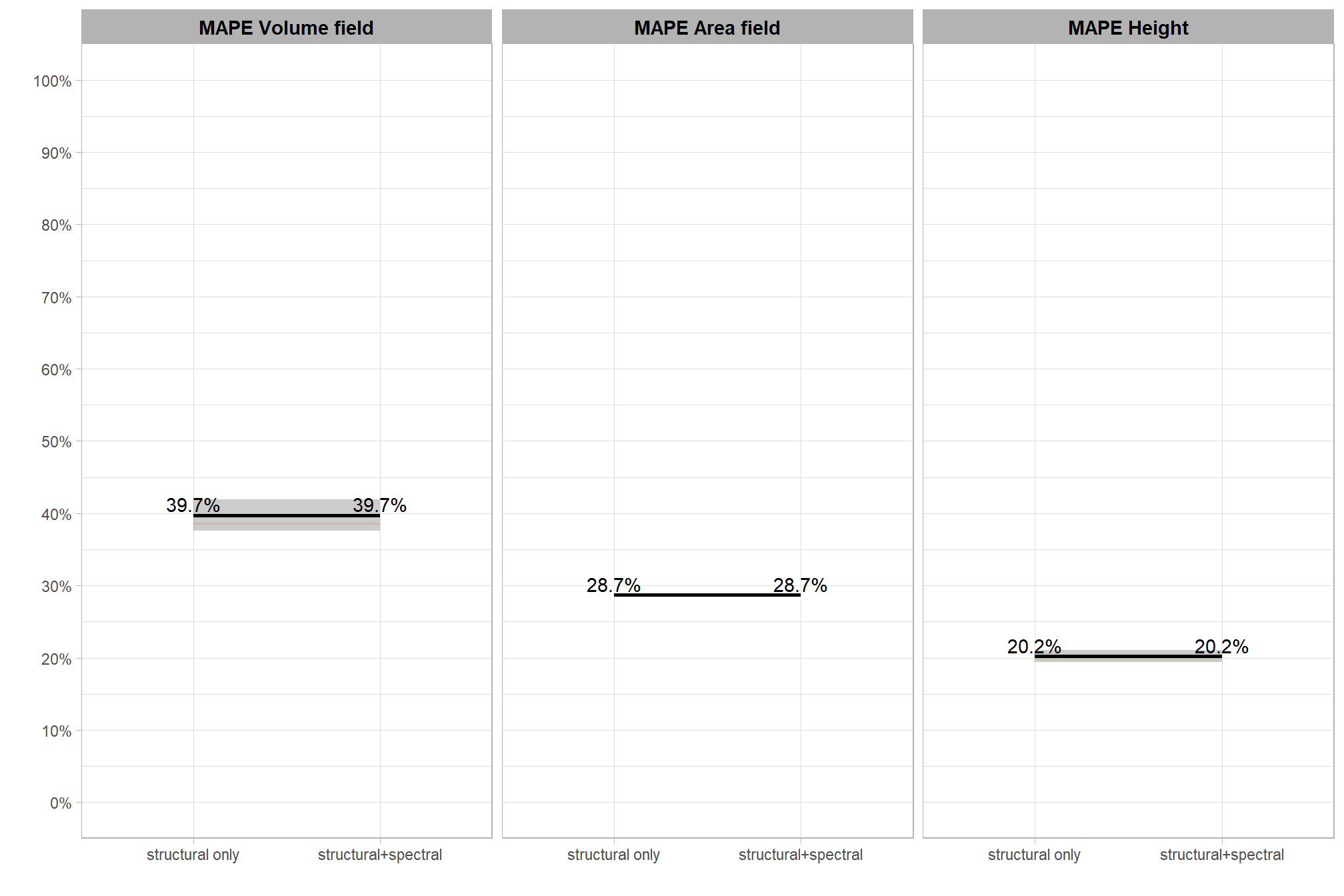

the spectral data does not alter the quantification of slash pile form. this is because spectral information is used solely to filter candidate piles, meaning it neither reshapes existing ones nor introduces new detections.
