Generating a tree list from a CHM

Source: vignettes/articles/raster2trees-tutorial.Rmd
raster2trees-tutorial.Rmd

Individual Tree Detection (ITD) from aerial point cloud data is traditionally achieved using two main approaches: segmenting trees directly from the point cloud by clustering points based on crown shape and spacing (e.g. Li et al. 2012), or using a Canopy Height Model (CHM) to delineate crowns after identifying tree tops (local maxima; e.g. Popescu and Wynne 2004). It is important to note that the cloud2trees package is built exclusively upon the CHM methodology for ITD. Users wishing to explore direct point cloud segmentation methods should consult the functionalities of the lidR package (e.g. lidR::li2012()).

This section introduces the raster2trees() function, which takes an already-generated CHM as input and performs the ITD. This all-in-one function operates in two key steps: first, it performs the initial tree detection using the lidR::locate_trees() function with the lidR::lmf() (Local Maximum Filter) algorithm. Second, the resulting tree-top points are used as “seeds” to perform Marker-Controlled Watershed Segmentation via the ForestTools::mcws() function. This segmentation method inverts the CHM to treat crowns as basins, and the marker points prevent over-segmentation when delineating crown boundaries at the conceptual boundary where water would overflow. It is superior to non-controlled watershed segmentation methods because the tree-top markers prevent over-segmentation. Upon successful completion, the raster2trees() function returns a spatial data frame containing the tree crown polygons with the detected tree top point X and Y coordinates to create spatial points if desired. This resulting tree list provides the inherent ITD outputs of tree location and height, along with crown area, but does not return any other biophysical tree estimates (e.g. DBH).

Before using the raster2trees function, we recommend using the itd_tuning() function to identify the most logical tree detection to use with the crown architecture for the trees at your site. See the xxxx tutorial to learn more on how to do this.

Let’s load the libraries we’ll use

We previously demonstrated how to use cloud2raster() to process raw point cloud data to generate a CHM.

We’ll continue with the small point cloud dataset that ships with the lidR package for processing. We also need to define where outputs should be written in the output_dir argument. For demonstration we’ll use a temporary directory but you’ll likely want to point to a permanent directory, for example: C:/Data/MixedConifer.

# the path to a single .las|.laz file
#  -or- the directory to a folder with many .las|.laz files
las_dir <- system.file(package = "lidR", "extdata", "MixedConifer.laz")
# output directroy
out_dir <- tempdir()

Generating a tree list from a CHM: Defaults

First, we’ll run cloud2raster() with some custom settings since we know how to setup the function to get what we want (review here)

cloud2raster_ans <- cloud2trees::cloud2raster(
  input_las_dir = las_dir
  , output_dir = out_dir
  , chm_res_m = 0.44
  , min_height = 0
  , max_height = 66
)

let’s look at the CHM really quick using terra::plot()

terra::plot(
  cloud2raster_ans$chm_rast
  , col = grDevices::heat.colors(55, alpha = 0.88)
  , colNA = "gray88"
  , main = "CHM (m)"
  , axes = F
)

we can also get a summary of the CHM cell values

terra::summary(cloud2raster_ans$chm_rast %>% setNames("CHM.meters"))
#>    CHM.meters
#>  Min.   : 0.05
#>  1st Qu.:11.50
#>  Median :15.55
#>  Mean   :15.00
#>  3rd Qu.:19.22
#>  Max.   :32.02
#>  NA's   :5242

Now, we’ll run the raster2trees() function to segment trees from the CHM that we just generated which is passed to the chm_rast argument. This argument expects a SpatRaster class object as loaded by the terra package.

raster2trees_ans <- cloud2trees::raster2trees(
  chm_rast = cloud2raster_ans$chm_rast
  , outfolder = out_dir
)

raster2trees() returns a spatial data frame with crowns segmented and delineated via polygon geometries

raster2trees_ans %>% dplyr::glimpse()
#> Rows: 477
#> Columns: 6
#> $ treeID        <chr> "1_481278.4_3813010.7", "2_481281.5_3813010.7", "3_48129…
#> $ tree_height_m <dbl> 24.430000, 22.230000, 15.850000, 13.440000, 22.070000, 2…
#> $ tree_x        <dbl> 481278.4, 481281.5, 481294.7, 481312.7, 481325.0, 481336…
#> $ tree_y        <dbl> 3813011, 3813011, 3813011, 3813011, 3813011, 3813011, 38…
#> $ crown_area_m2 <dbl> 9.4864, 12.1968, 15.4880, 4.4528, 7.7440, 25.5552, 24.00…
#> $ geometry      <GEOMETRY [m]> POLYGON ((481276.4 3813011,..., MULTIPOLYGON ((…

The CHM-based tree detection process yielded 477 unique trees (data rows) with 6 tree attributes (data columns). Let’s break down what these attributes are:

  1. treeID: A unique identifier for each detected tree
  2. tree_height_m: This is the tree top height based on the local maximum identified for each tree
  3. tree_x: The X coordinate of the tree top point
  4. tree_y: The Y coordinate of the tree top point
  5. crown_area_m2: The tree’s crown area in square meters
  6. geometry: The vertices for the tree crown polygon

Let’s take a look at the crown polygons colored by the tree heights:

raster2trees_ans %>%
  ggplot2::ggplot(mapping = ggplot2::aes(fill = tree_height_m)) +
  ggplot2::geom_sf() +
  ggplot2::scale_fill_distiller(palette = "Oranges", name = "tree ht. (m)", direction = 1) +
  ggplot2::theme_void() +
  ggplot2::theme(legend.position = "top", legend.direction = "horizontal")

Visually, it seems like there are a lot of small trees (lighter color) in the 2.0 m to 2.5 m height range while the dominant and co-dominant trees are between 18.4 m and 32.0 m in height

it is also easy to look at the tree crown polygons overlaid on the CHM. We’ll first demonstrate with terra::plot()

terra::plot(
  cloud2raster_ans$chm_rast
  , col = grDevices::heat.colors(55, alpha = 0.88)
  , colNA = "gray88"
  , main = "CHM (m) + segmented crown polygons (purple)"
  , axes = F
)
terra::plot(
  raster2trees_ans %>%
    terra::vect()
  , add = T
  , border = "slateblue3"
  , col = NA, lwd = 1
)

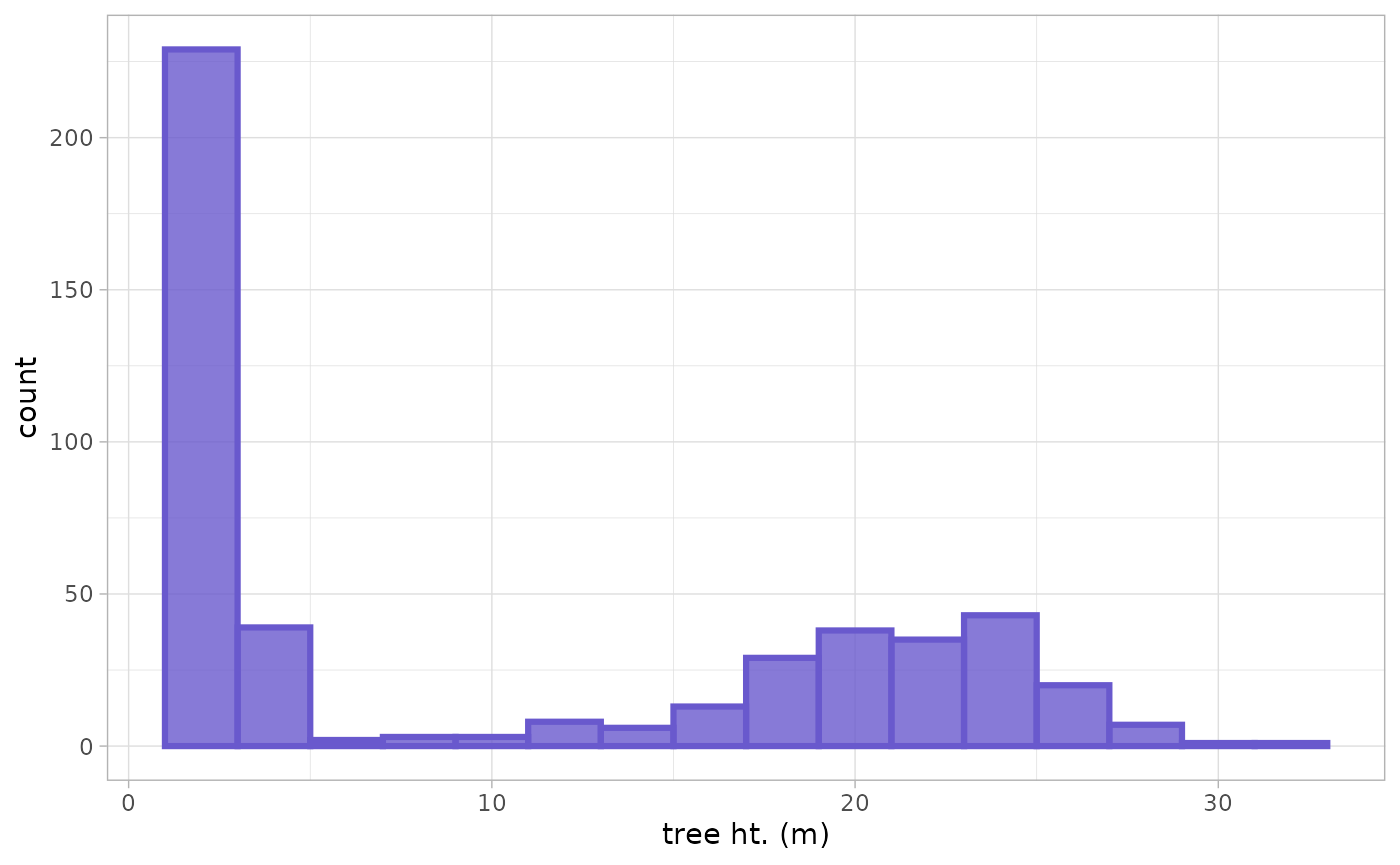

Let’s look at a histogram of the tree heights to get a better feel for what is going on

raster2trees_ans %>%
  ggplot2::ggplot() +
  ggplot2::geom_histogram(
    mapping = ggplot2::aes(x = tree_height_m)
    , color = "slateblue3"
    , fill = "slateblue3"
    , binwidth = 2
    , alpha = 0.8
    , lwd = 1.1
  ) +
  ggplot2::scale_x_continuous(labels = scales::comma) +
  ggplot2::scale_y_continuous(labels = scales::comma) +
  ggplot2::labs(x = "tree ht. (m)") +
  ggplot2::theme_light()

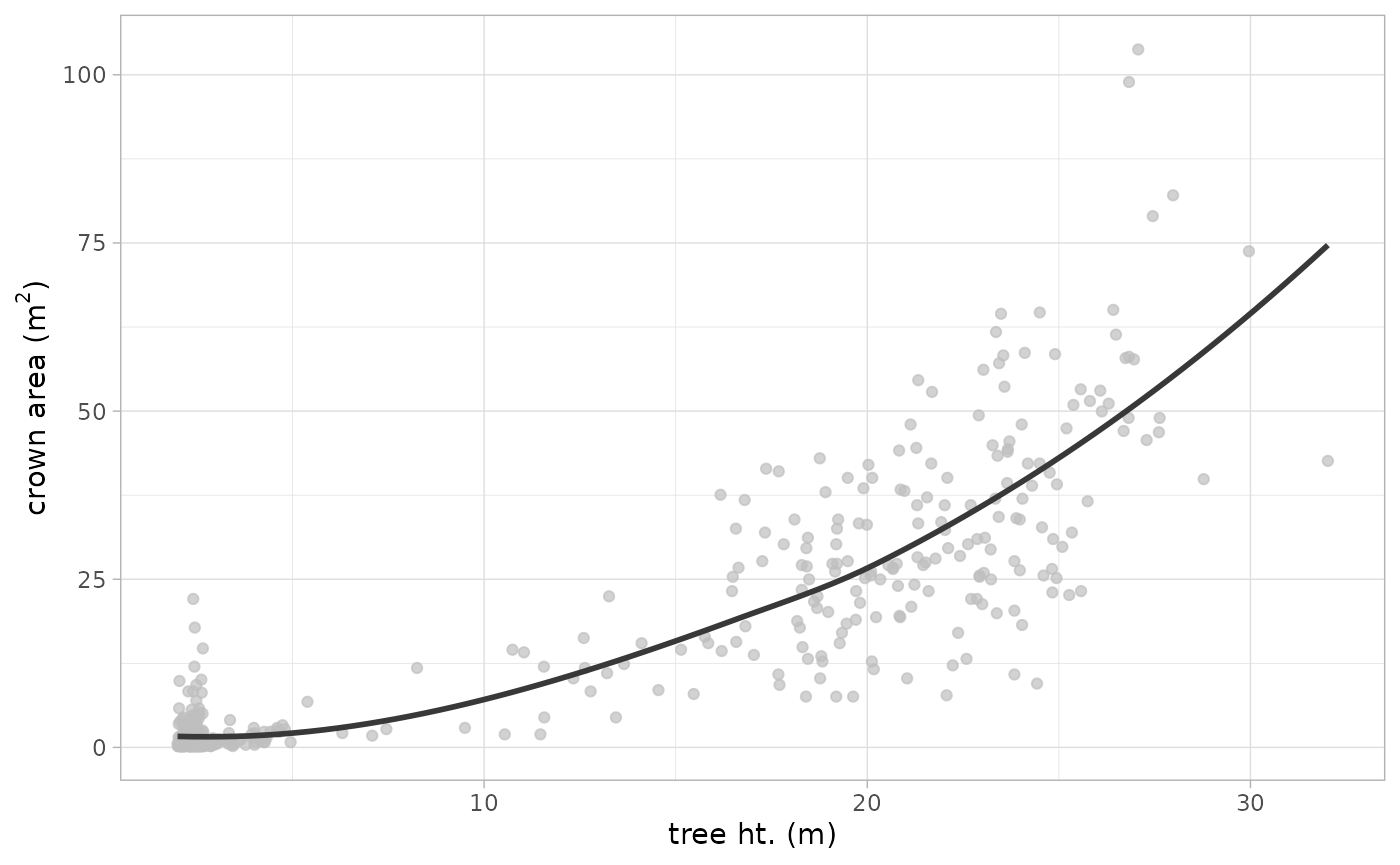

we can also inspect the detected trees by comparing the tree height against crown area with the expectation that shorter trees have smaller crowns while taller trees have larger crowns

raster2trees_ans %>%
  ggplot2::ggplot() +
  ggplot2::geom_point(
    mapping = ggplot2::aes(x = tree_height_m, y = crown_area_m2)
    , color = "grey"
    , alpha = 0.7
  ) +
  ggplot2::geom_smooth(
    mapping = ggplot2::aes(x = tree_height_m, y = crown_area_m2)
    , color = "grey22"
    , se = F
  ) +
  ggplot2::labs(
    x = "tree ht. (m)"
    , y = expression(paste("crown area (m"^2,")"))
  ) +
  ggplot2::theme_light()

Typically, we would not expect to see large crown areas associated with short trees, so we may need to adjust the window search size to adjust the search radius for shorter trees in this data set

If we look in the directory that we set the outfolder argument to in the raster2trees() call, we will see that the function wrote two files:

  1. final_detected_crowns.gpkg: This is a Geopackage file containing the individual tree crown polygons with the attributes we looked at
  2. final_detected_tree_tops.gpkg: This is a Geopackage file containing the individual tree top locations as points attributed with each variable we looked at

If you execute the raster2trees() process multiple times using the same outfolder location, then these two files will be overwritten. As such, if you intend to perform multiple iterations of the processing in the same outfolder location and wish to retain the results, it is recommended you rename the final_detected_*.gpkg files before running the next iteration.

list.files(out_dir, pattern = "*.gpkg$")
#> [1] "final_detected_crowns.gpkg"    "final_detected_tree_tops.gpkg"

Generating a tree list from a CHM: Custom

By default, the raster2trees() function implements the logarithmic variable window function that is built into cloud2trees for tree detection. Should you want to select a different function to apply, we can see a list of them

cloud2trees::itd_ws_functions() %>% names()
#> [1] "lin_fn" "exp_fn" "log_fn"

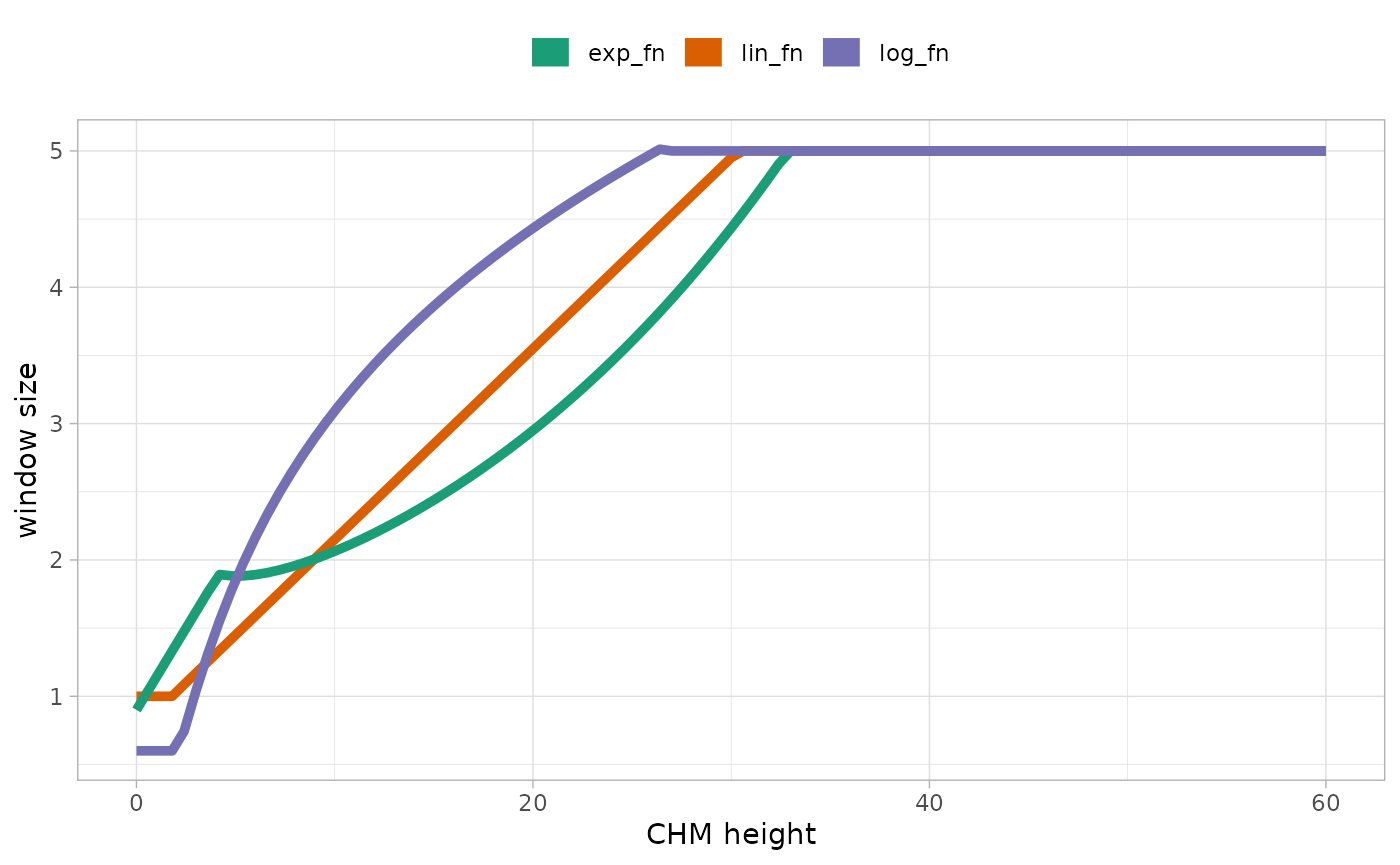

we can quickly plot what shapes these take over a range of x values which represent CHM cell heights in the ITD algorithm

ggplot2::ggplot() +
  ggplot2::geom_function(
    fun = cloud2trees::itd_ws_functions()$lin_fn
    , mapping = ggplot2::aes(color="lin_fn")
    , lwd = 1.7
  ) +
  ggplot2::geom_function(
    fun = cloud2trees::itd_ws_functions()$exp_fn
    , mapping = ggplot2::aes(color="exp_fn")
    , lwd = 1.7
  ) +
  ggplot2::geom_function(
    fun = cloud2trees::itd_ws_functions()$log_fn
    , mapping = ggplot2::aes(color="log_fn")
    , lwd = 1.7
  ) +
  ggplot2::scale_color_brewer(palette = "Dark2") +
  ggplot2::xlim(0,60) +
  ggplot2::labs(x = "CHM height", y = "window size", color = "") +
  ggplot2::theme_light() +
  ggplot2::theme(legend.position = "top") +
  ggplot2::guides(color = ggplot2::guide_legend(override.aes = list(lwd = 5)))

This shows us that there is a lin_fn (linear), exp_fn (exponential), and log_fn (logarithmic) function that relate CHM-based tree top height to crown size for detecting individual trees.

If we want to use the exp_fn we can execute raster2trees() and directly specify the exp_fn using the itd_ws_functions function list

raster2trees_ans_exp <- cloud2trees::raster2trees(
  chm_rast = cloud2raster_ans$chm_rast
  , outfolder = out_dir
  , ws = itd_ws_functions()[["exp_fn"]]
)

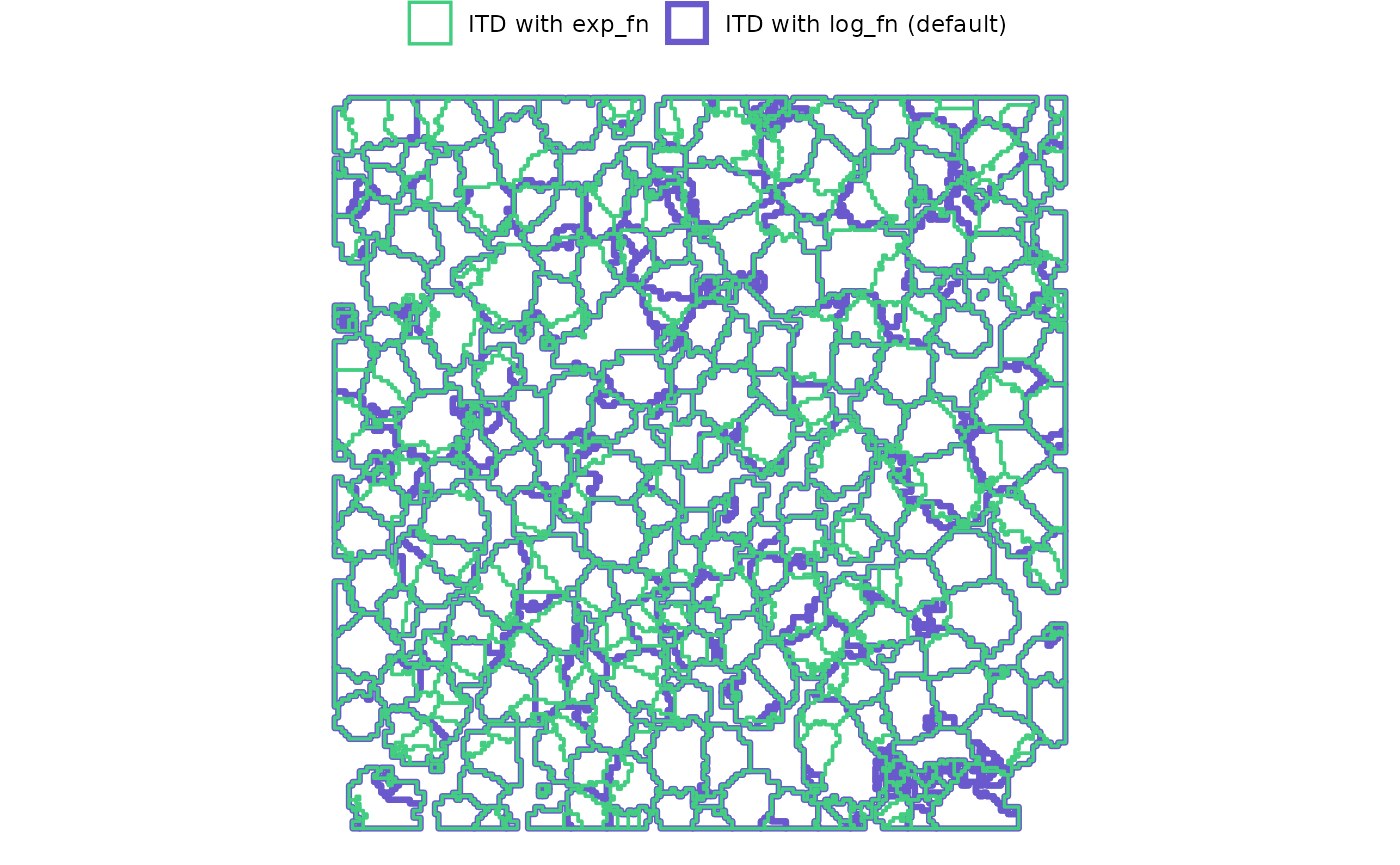

Let’s spatially compare the detected crowns

# make a custom color palette to mimic
  # ...the RColorBrewer palette without needing to load that package
cust_cols = c("seagreen3", "slateblue3")
# plot
ggplot2::ggplot() +
  ggplot2::geom_sf(
    data = raster2trees_ans
    , mapping = ggplot2::aes(color = "ITD with log_fn (default)")
    , fill = NA
    , lwd = 1.1
  ) +
  ggplot2::geom_sf(
    data = raster2trees_ans_exp
    , mapping = ggplot2::aes(color = "ITD with exp_fn")
    , fill = NA
    , lwd = 0.6
  ) +
  ggplot2::scale_color_manual(values = cust_cols) +
  ggplot2::labs(color = "") +
  ggplot2::theme_void() +
  ggplot2::theme(legend.position = "top", legend.direction = "horizontal")

A few areas of difference are apparent. Using the exp_fn for the window search function resulted in 422 detected trees whereas the default, log_fn yielded 477 trees (change of -11.5%)

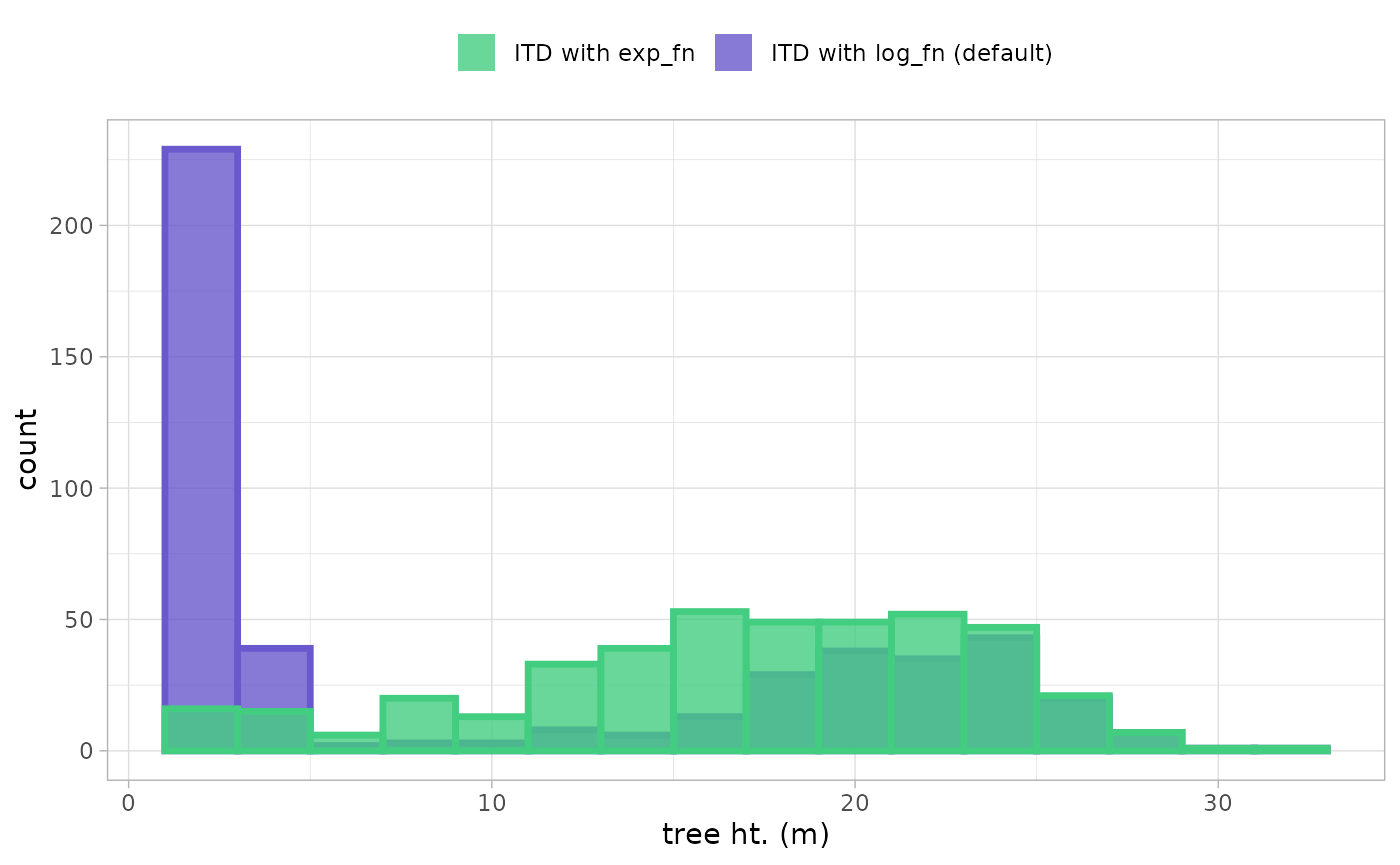

to really see what is going on, let’s look at the height distribution of the detected trees

ggplot2::ggplot() +
  ggplot2::geom_histogram(
    data = raster2trees_ans
    , mapping = ggplot2::aes(
      x = tree_height_m
      , fill = "ITD with log_fn (default)"
      , color = "ITD with log_fn (default)"
    )
    , alpha = 0.8
    , lwd = 1.2
    , binwidth = 2
  ) +
  ggplot2::geom_histogram(
    data = raster2trees_ans_exp
    , mapping = ggplot2::aes(
      x = tree_height_m
      , fill = "ITD with exp_fn"
      , color = "ITD with exp_fn"
    )
    , alpha = 0.8
    , lwd = 1.2
    , binwidth = 2
  ) +
  ggplot2::scale_fill_manual(values = cust_cols) +
  ggplot2::scale_color_manual(values = cust_cols) +
  ggplot2::scale_x_continuous(labels = scales::comma) +
  ggplot2::scale_y_continuous(labels = scales::comma) +
  ggplot2::labs(x = "tree ht. (m)", fill = "") +
  ggplot2::theme_light() +
  ggplot2::theme(legend.position = "top", legend.direction = "horizontal") +
  ggplot2::guides(color = "none")
