Section 6 Statistical Analysis: Tree Detection (F-Score)

In this section, we’ll evaluate the influence of the processing parameters on UAS-derived tree detection and monitoring.

The UAS and Field validation data was built and described in this section.

The objective of this study is to determine the influence of different structure from motion (SfM) software (e.g. Agisoft Metashap, OpenDroneMap, Pix4D) and processing parameters on F-score which is a measure of overall tree detection performance.

All of the predictor variables of interest in this study are categorical (a.k.a. factor or nominal) while the predicted variables are metric and include F-score (ranges from 0-1) and error (e.g. MAPE, RMSE). This type of statistical analysis is described in the second edition of Kruschke’s Doing Bayesian data analysis (2015) and here we will build a Bayesian approach based on Kruschke (2015). This analysis was greatly enhanced by A. Solomon Kurz’s ebook supplement to Kruschke (2015). This type of statistical analysis is described in the second edition of Kruschke’s Doing Bayesian data analysis (2015):

This chapter considers data structures that consist of a metric predicted variable and two (or more) nominal predictors….Data structures of the type considered in this chapter are often encountered in real research. For example, we might want to predict monetary income from political party affiliation and religious affiliation, or we might want to predict galvanic skin response to different combinations of categories of visual stimulus and categories of auditory stimulus. As mentioned in the previous chapter, this type of data structure can arise from experiments or from observational studies. In experiments, the researcher assigns the categories (at random) to the experimental subjects. In observational studies, both the nominal predictor values and the metric predicted value are generated by processes outside the direct control of the researcher.

The traditional treatment of this sort of data structure is called multifactor analysis of variance (ANOVA). Our Bayesian approach will be a hierarchical generalization of the traditional ANOVA model. The chapter also considers generalizations of the traditional models, because it is straight forward in Bayesian software to implement heavy-tailed distributions to accommodate outliers, along with hierarchical structure to accommodate heterogeneous variances in the different groups. Kruschke (2015, pp.583–584)

6.1 Setup

first we’re going to define a function to ingest a formula as text and separate it into multiple rows based on the number of characters for plotting

# function to pull the formula for labeling below
get_frmla_text = function(frmla_chr, split_chrs = 100){

  cumsum_group = function(x, threshold) {
    cumsum = 0
    group = 1
    result = numeric()
    for (i in 1:length(x)) {
      cumsum = cumsum + x[i]
      if (cumsum > threshold) {
        group = group + 1
        cumsum = x[i]
      }
      result = c(result, group)
    }
    return (result)
  }

  r = stringr::str_sub(
    frmla_chr
    , # get the two column matrix of start end
      frmla_chr %>%
        stringr::str_locate_all("\\+") %>%
        .[[1]] %>%
        dplyr::as_tibble() %>%
        dplyr::select(start) %>%
        dplyr::mutate(
          len = dplyr::coalesce(start-dplyr::lag(start),0)
          , ld = dplyr::coalesce(dplyr::lead(start)-1, stringr::str_length(frmla_chr))
          , cum = cumsum_group(len, split_chrs)
          , start = ifelse(dplyr::row_number()==1,1,start)
        ) %>%
        dplyr::group_by(cum) %>%
        dplyr::summarise(start = min(start), end = max(ld)) %>%
        dplyr::ungroup() %>%
        dplyr::select(-cum) %>%
        as.matrix()
    ) %>%
    stringr::str_squish() %>%
    paste0(collapse = "\n")

  return(r)
}

6.2 Summary Statistics

What is this data?

# load data if needed
if(ls()[ls() %in% "ptcld_validation_data"] %>% length()==0){
 ptcld_validation_data = readr::read_csv("../data/ptcld_full_analysis_data.csv") %>%
   dplyr::mutate(
      depth_maps_generation_quality = factor(
          depth_maps_generation_quality %>%
            tolower() %>%
            stringr::str_replace_all("ultrahigh", "ultra high")
          , ordered = TRUE
          , levels = c(
            "lowest"
            , "low"
            , "medium"
            , "high"
            , "ultra high"
          )
        ) %>% forcats::fct_rev()
      , depth_maps_generation_filtering_mode = factor(
          depth_maps_generation_filtering_mode %>% tolower()
          , ordered = TRUE
          , levels = c(
            "disabled"
            , "mild"
            , "moderate"
            , "aggressive"
          )
        ) %>% forcats::fct_rev()
    )
}
# replace 0 F-score with very small positive to run models
ptcld_validation_data = ptcld_validation_data %>%
  dplyr::mutate(dplyr::across(
    .cols = tidyselect::ends_with("f_score")
    , .fns = ~ ifelse(.x==0,1e-4,.x)
  ))

reminder of the data structure

# what is this data?
ptcld_validation_data %>% dplyr::glimpse()
## Rows: 260
## Columns: 114
## $ tracking_file_full_path               <chr> "E:\\SfM_Software_Comparison\\Me…
## $ software                              <chr> "METASHAPE", "METASHAPE", "METAS…
## $ study_site                            <chr> "KAIBAB_HIGH", "KAIBAB_HIGH", "K…
## $ processing_attribute1                 <chr> "HIGH", "HIGH", "HIGH", "HIGH", …
## $ processing_attribute2                 <chr> "AGGRESSIVE", "DISABLED", "MILD"…
## $ processing_attribute3                 <chr> NA, NA, NA, NA, NA, NA, NA, NA, …
## $ file_name                             <chr> "HIGH_AGGRESSIVE", "HIGH_DISABLE…
## $ number_of_points                      <int> 52974294, 72549206, 69858217, 69…
## $ las_area_m2                           <dbl> 86661.27, 87175.42, 86404.78, 86…
## $ timer_tile_time_mins                  <dbl> 0.63600698, 2.49318542, 0.841338…
## $ timer_class_dtm_norm_chm_time_mins    <dbl> 3.6559556, 5.3289152, 5.1638296,…
## $ timer_treels_time_mins                <dbl> 8.9065272, 19.2119663, 12.339179…
## $ timer_itd_time_mins                   <dbl> 0.02202115, 0.02449968, 0.037984…
## $ timer_competition_time_mins           <dbl> 0.10590740, 0.17865245, 0.121248…
## $ timer_estdbh_time_mins                <dbl> 0.02290262, 0.02382533, 0.021991…
## $ timer_silv_time_mins                  <dbl> 0.012565533, 0.015940932, 0.0150…
## $ timer_total_time_mins                 <dbl> 13.361886, 27.276985, 18.540606,…
## $ sttng_input_las_dir                   <chr> "D:/Metashape_Testing_2024", "D:…
## $ sttng_use_parallel_processing         <lgl> FALSE, FALSE, FALSE, FALSE, FALS…
## $ sttng_desired_chm_res                 <dbl> 0.25, 0.25, 0.25, 0.25, 0.25, 0.…
## $ sttng_max_height_threshold_m          <int> 60, 60, 60, 60, 60, 60, 60, 60, …
## $ sttng_minimum_tree_height_m           <int> 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,…
## $ sttng_dbh_max_size_m                  <int> 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,…
## $ sttng_local_dbh_model                 <chr> "rf", "rf", "rf", "rf", "rf", "r…
## $ sttng_user_supplied_epsg              <lgl> NA, NA, NA, NA, NA, NA, NA, NA, …
## $ sttng_accuracy_level                  <int> 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,…
## $ sttng_pts_m2_for_triangulation        <int> 20, 20, 20, 20, 20, 20, 20, 20, …
## $ sttng_normalization_with              <chr> "triangulation", "triangulation"…
## $ sttng_competition_buffer_m            <int> 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5,…
## $ depth_maps_generation_quality         <ord> high, high, high, high, low, low…
## $ depth_maps_generation_filtering_mode  <ord> aggressive, disabled, mild, mode…
## $ total_sfm_time_min                    <dbl> 54.800000, 60.316667, 55.933333,…
## $ number_of_points_sfm                  <dbl> 52974294, 72549206, 69858217, 69…
## $ total_sfm_time_norm                   <dbl> 0.1117823680, 0.1237564664, 0.11…
## $ processed_data_dir                    <chr> "E:/SfM_Software_Comparison/Meta…
## $ processing_id                         <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 1…
## $ true_positive_n_trees                 <dbl> 229, 261, 260, 234, 220, 175, 23…
## $ commission_n_trees                    <dbl> 173, 222, 213, 193, 148, 223, 16…
## $ omission_n_trees                      <dbl> 772, 740, 741, 767, 781, 826, 77…
## $ f_score                               <dbl> 0.3264433, 0.3517520, 0.3527815,…
## $ tree_height_m_me                      <dbl> 0.270336679, 0.283568790, 0.3122…
## $ tree_height_m_mpe                     <dbl> 0.002357383, 0.013286785, 0.0142…
## $ tree_height_m_mae                     <dbl> 0.7873610, 0.6886235, 0.6914983,…
## $ tree_height_m_mape                    <dbl> 0.06624939, 0.06903969, 0.060550…
## $ tree_height_m_smape                   <dbl> 0.06776453, 0.06838733, 0.060410…
## $ tree_height_m_mse                     <dbl> 0.9842433, 0.8507862, 0.8259923,…
## $ tree_height_m_rmse                    <dbl> 0.9920904, 0.9223807, 0.9088412,…
## $ dbh_cm_me                             <dbl> 2.0551269, 1.2718827, 1.7505679,…
## $ dbh_cm_mpe                            <dbl> 0.077076168, 0.056392083, 0.0755…
## $ dbh_cm_mae                            <dbl> 5.091373, 4.375871, 4.674437, 4.…
## $ dbh_cm_mape                           <dbl> 0.2076874, 0.2185989, 0.2110014,…
## $ dbh_cm_smape                          <dbl> 0.1966263, 0.2081000, 0.1986588,…
## $ dbh_cm_mse                            <dbl> 44.38957, 35.29251, 38.33622, 38…
## $ dbh_cm_rmse                           <dbl> 6.662549, 5.940750, 6.191625, 6.…
## $ uas_basal_area_m2                     <dbl> 55.75278, 60.26123, 58.67391, 57…
## $ field_basal_area_m2                   <dbl> 69.04409, 69.04409, 69.04409, 69…
## $ uas_basal_area_m2_per_ha              <dbl> 31.97437, 34.55997, 33.64964, 33…
## $ field_basal_area_m2_per_ha            <dbl> 39.59697, 39.59697, 39.59697, 39…
## $ basal_area_m2_error                   <dbl> -13.291309, -8.782866, -10.37018…
## $ basal_area_m2_per_ha_error            <dbl> -7.622601, -5.036997, -5.947326,…
## $ basal_area_pct_error                  <dbl> -0.19250466, -0.12720663, -0.150…
## $ basal_area_abs_pct_error              <dbl> 0.19250466, 0.12720663, 0.150196…
## $ overstory_commission_n_trees          <dbl> 141, 178, 178, 160, 95, 173, 120…
## $ understory_commission_n_trees         <dbl> 32, 44, 35, 33, 53, 50, 43, 39, …
## $ overstory_omission_n_trees            <dbl> 558, 560, 545, 556, 554, 598, 54…
## $ understory_omission_n_trees           <dbl> 214, 180, 196, 211, 227, 228, 22…
## $ overstory_true_positive_n_trees       <dbl> 185, 183, 198, 187, 189, 145, 19…
## $ understory_true_positive_n_trees      <dbl> 44, 78, 62, 47, 31, 30, 33, 40, …
## $ overstory_f_score                     <dbl> 0.3461179, 0.3315217, 0.3538874,…
## $ understory_f_score                    <dbl> 0.2634731, 0.4105263, 0.3492958,…
## $ overstory_tree_height_m_me            <dbl> 0.41693172, 0.44114110, 0.442167…
## $ understory_tree_height_m_me           <dbl> -0.34602886, -0.08612009, -0.102…
## $ overstory_tree_height_m_mpe           <dbl> 0.020790675, 0.024558478, 0.0241…
## $ understory_tree_height_m_mpe          <dbl> -0.075146232, -0.013158341, -0.0…
## $ overstory_tree_height_m_mae           <dbl> 0.8201433, 0.7820879, 0.7770369,…
## $ understory_tree_height_m_mae          <dbl> 0.6495266, 0.4693415, 0.4183269,…
## $ overstory_tree_height_m_mape          <dbl> 0.04662933, 0.04863237, 0.048708…
## $ understory_tree_height_m_mape         <dbl> 0.14874284, 0.11691842, 0.098369…
## $ overstory_tree_height_m_smape         <dbl> 0.04589942, 0.04776615, 0.047912…
## $ understory_tree_height_m_smape        <dbl> 0.15969736, 0.11676780, 0.100322…
## $ overstory_tree_height_m_mse           <dbl> 1.0623763, 1.0055835, 0.9739823,…
## $ understory_tree_height_m_mse          <dbl> 0.6557300, 0.4876080, 0.3533791,…
## $ overstory_tree_height_m_rmse          <dbl> 1.0307164, 1.0027878, 0.9869054,…
## $ understory_tree_height_m_rmse         <dbl> 0.8097715, 0.6982893, 0.5944570,…
## $ overstory_dbh_cm_me                   <dbl> 2.88225065, 2.37098111, 2.694675…
## $ understory_dbh_cm_me                  <dbl> -1.4225525, -1.3067712, -1.26448…
## $ overstory_dbh_cm_mpe                  <dbl> 0.11199444, 0.09928650, 0.110477…
## $ understory_dbh_cm_mpe                 <dbl> -0.06973931, -0.04424482, -0.035…
## $ overstory_dbh_cm_mae                  <dbl> 5.753010, 5.298094, 5.472454, 5.…
## $ understory_dbh_cm_mae                 <dbl> 2.309487, 2.212192, 2.125931, 2.…
## $ overstory_dbh_cm_mape                 <dbl> 0.1862021, 0.1848729, 0.1898205,…
## $ understory_dbh_cm_mape                <dbl> 0.2980235, 0.2977254, 0.2786439,…
## $ overstory_dbh_cm_smape                <dbl> 0.1686851, 0.1699578, 0.1735200,…
## $ understory_dbh_cm_smape               <dbl> 0.3141064, 0.2975874, 0.2789409,…
## $ overstory_dbh_cm_mse                  <dbl> 52.78250, 46.57941, 47.70797, 46…
## $ understory_dbh_cm_mse                 <dbl> 9.101103, 8.811704, 8.407077, 9.…
## $ overstory_dbh_cm_rmse                 <dbl> 7.265156, 6.824911, 6.907095, 6.…
## $ understory_dbh_cm_rmse                <dbl> 3.016803, 2.968451, 2.899496, 3.…
## $ overstory_uas_basal_area_m2           <dbl> 55.49096, 59.79139, 58.30184, 57…
## $ understory_uas_basal_area_m2          <dbl> 0.2618258, 0.4698415, 0.3720740,…
## $ overstory_field_basal_area_m2         <dbl> 67.50326, 67.50326, 67.50326, 67…
## $ understory_field_basal_area_m2        <dbl> 1.540832, 1.540832, 1.540832, 1.…
## $ overstory_uas_basal_area_m2_per_ha    <dbl> 31.82421, 34.29052, 33.43626, 32…
## $ understory_uas_basal_area_m2_per_ha   <dbl> 0.15015781, 0.26945534, 0.213385…
## $ overstory_field_basal_area_m2_per_ha  <dbl> 38.7133, 38.7133, 38.7133, 38.71…
## $ understory_field_basal_area_m2_per_ha <dbl> 0.883671, 0.883671, 0.883671, 0.…
## $ overstory_basal_area_m2_per_ha_error  <dbl> -6.889088, -4.422782, -5.277041,…
## $ understory_basal_area_m2_per_ha_error <dbl> -0.7335132, -0.6142157, -0.67028…
## $ overstory_basal_area_pct_error        <dbl> -0.17795146, -0.11424450, -0.136…
## $ understory_basal_area_pct_error       <dbl> -0.8300750, -0.6950728, -0.75852…
## $ overstory_basal_area_abs_pct_error    <dbl> 0.17795146, 0.11424450, 0.136310…
## $ understory_basal_area_abs_pct_error   <dbl> 0.8300750, 0.6950728, 0.7585239,…
## $ validation_file_full_path             <chr> "E:/SfM_Software_Comparison/Meta…
## $ overstory_ht_m                        <dbl> 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7,…
# a row is unique by...
identical(
  nrow(ptcld_validation_data)
  , ptcld_validation_data %>%
    dplyr::distinct(
      study_site, software
      , depth_maps_generation_quality
      , depth_maps_generation_filtering_mode
      , processing_attribute3 # need to align all by software so this will go away or be filled
    ) %>%
    nrow()
)
## [1] TRUE

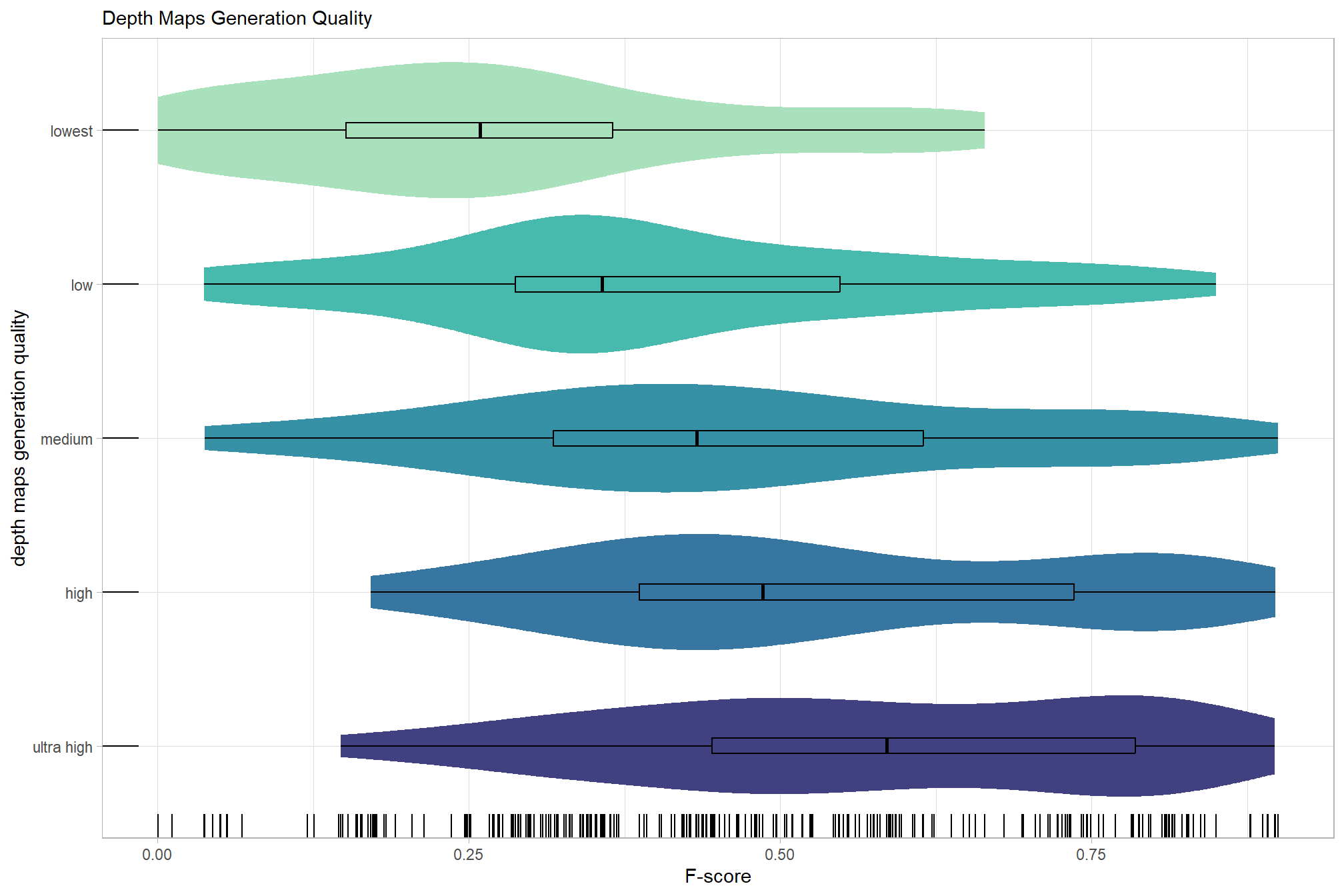

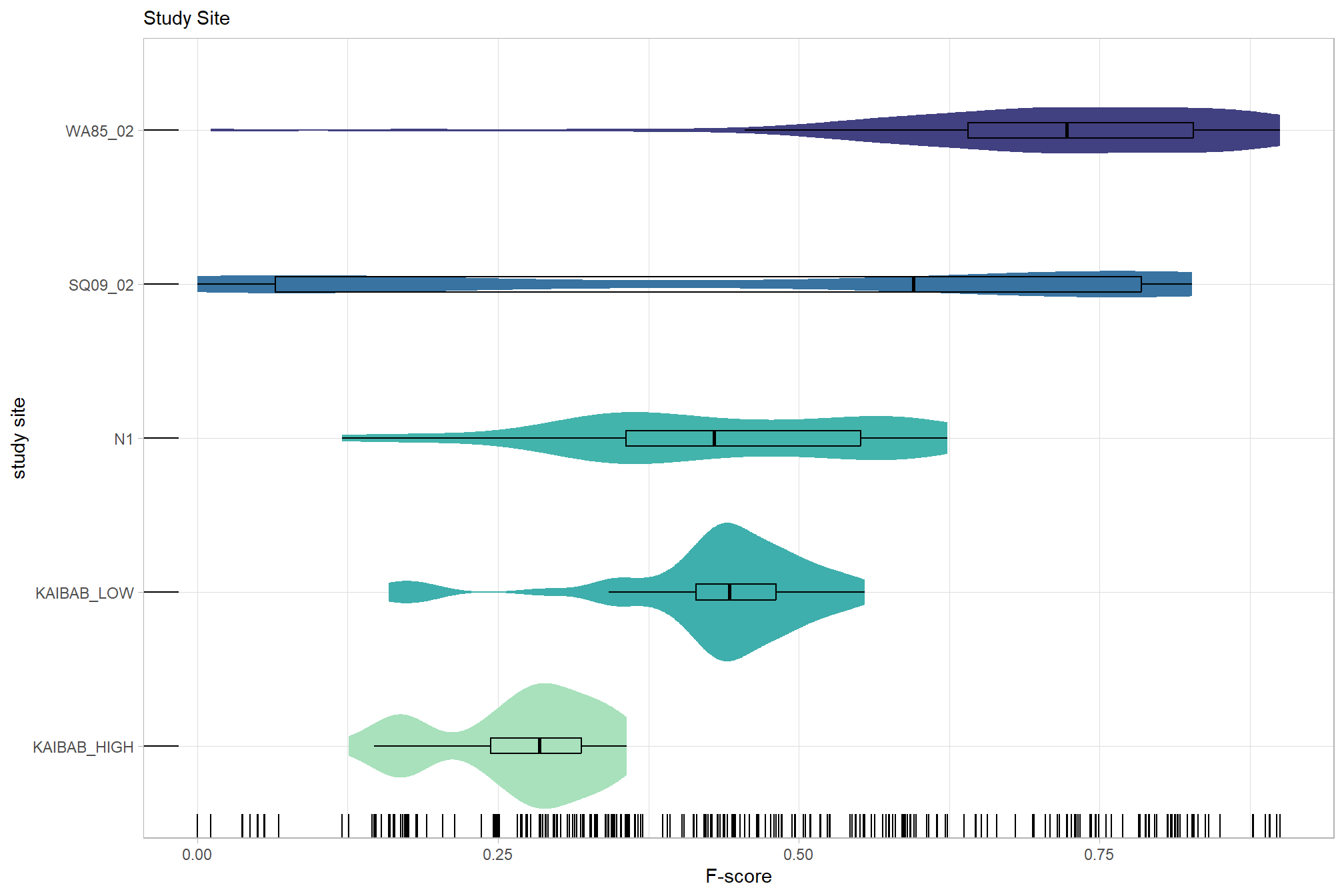

Summary by metrics of interest

sum_stats_dta = function(my_var){
  sum_fns = list(
    n = ~sum(ifelse(is.na(.x), 0, 1))
    , min = ~min(.x, na.rm = TRUE)
    , max = ~max(.x, na.rm = TRUE)
    , mean = ~mean(.x, na.rm = TRUE)
    , median = ~median(.x, na.rm = TRUE)
    , sd = ~sd(.x, na.rm = TRUE)
  )
  # plot
  (
    ggplot(
      data = ptcld_validation_data %>%
        dplyr::group_by(.data[[my_var]]) %>%

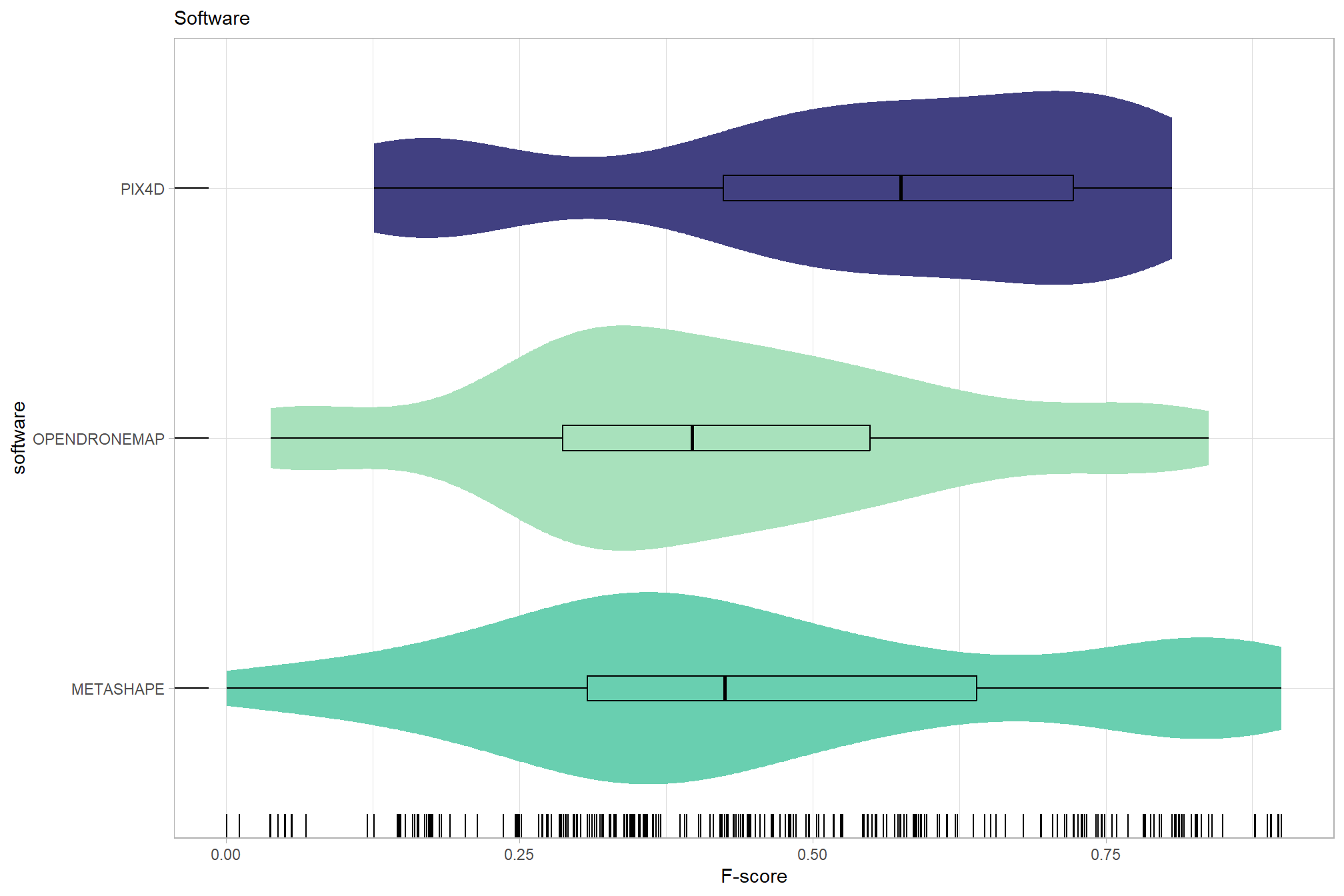

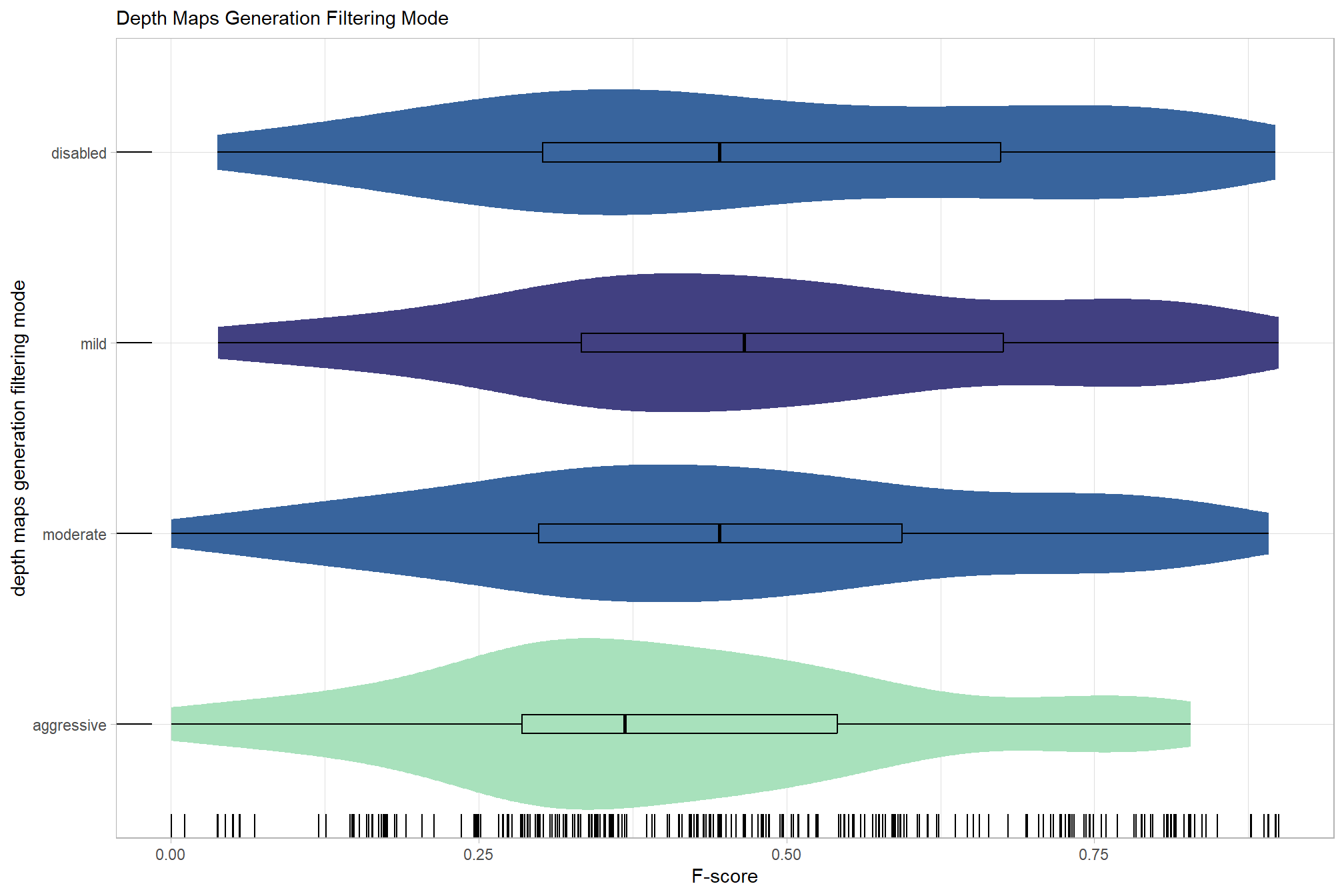

        dplyr::mutate(m = median(f_score))
      , mapping = aes(
        y = .data[[my_var]]
        , x = f_score, fill = m)
      ) +
      geom_violin(color = NA) +
      geom_boxplot(width = 0.1, outlier.shape = NA, fill = NA, color = "black") +
      geom_rug() +
      scale_fill_viridis_c(option = "mako", begin = 0.3, end = 0.9, direction = -1) +
      labs(
        x = "F-score"
        , y = stringr::str_replace_all(my_var, pattern = "_", replacement = " ")
        , subtitle = stringr::str_replace_all(my_var, pattern = "_", replacement = " ") %>%
          stringr::str_to_title()
      ) +
      theme_light() +
      theme(legend.position = "none")
  )
  # # summarize data
  # (
  # ptcld_validation_data %>%
  #   dplyr::group_by(dplyr::across(dplyr::all_of(my_var))) %>%
  #   dplyr::summarise(
  #     dplyr::across(f_score, sum_fns)
  #     , .groups = 'drop_last'
  #   ) %>%
  #   kableExtra::kbl() %>%
  #   kableExtra::kable_styling()
  # )
}
# sum_stats_dta("software")

summarize for all variables of interest

c("software", "study_site"
  , "depth_maps_generation_quality"
  , "depth_maps_generation_filtering_mode"
) %>%
  purrr::map(sum_stats_dta)
## [[1]]

##
## [[2]]

##
## [[3]]

##
## [[4]]

6.3 One Nominal Predictor

As an introduction, we’ll start by exploring the influence of the depth map generation quality parameter on the SfM-derived tree detection performance based on the F-score.

6.3.1 Summary Statistics

Summary statistics by group:

ptcld_validation_data %>%
  dplyr::group_by(depth_maps_generation_quality) %>%
  dplyr::summarise(
    mean_f_score = mean(f_score, na.rm = T)
    # , med_f_score = median(f_score, na.rm = T)
    , sd_f_score = sd(f_score, na.rm = T)
    , n = dplyr::n()
  ) %>%
  kableExtra::kbl(digits = 2, caption = "summary statistics: F-score by dense cloud quality") %>%
  kableExtra::kable_styling()
Table 6.1: summary statistics: F-score by dense cloud quality
depth_maps_generation_quality mean_f_score sd_f_score n
ultra high 0.58 0.21 55
high 0.54 0.21 55
medium 0.47 0.22 55
low 0.40 0.20 55
lowest 0.27 0.19 40

6.3.2 Bayesian

Kruschke (2015) notes:

The terminology, “analysis of variance,” comes from a decomposition of overall data variance into within-group variance and between-group variance (Fisher, 1925). Algebraically, the sum of squared deviations of the scores from their overall mean equals the sum of squared deviations of the scores from their respective group means plus the sum of squared deviations of the group means from the overall mean. In other words, the total variance can be partitioned into within-group variance plus between-group variance. Because one definition of the word “analysis” is separation into constituent parts, the term ANOVA accurately describes the underlying algebra in the traditional methods. That algebraic relation is not used in the hierarchical Bayesian approach presented here. The Bayesian method can estimate component variances, however. Therefore, the Bayesian approach is not ANOVA, but is analogous to ANOVA. (p. 556)

and see section 19 from Kurz’s ebook supplement

The metric predicted variable with one nominal predictor variable model has the form:

\[\begin{align*} y_{i} &\sim \operatorname{Normal} \bigl(\mu_{i}, \sigma_{y} \bigr) \\ \mu_{i} &= \beta_0 + \sum_{j=1}^{J} \beta_{1[j]} x_{1[j]} \bigl(i\bigr) \\ \beta_{0} &\sim \operatorname{Normal}(0,10) \\ \beta_{1[j]} &\sim \operatorname{Normal}(0,\sigma_{\beta_{1}}) \\ \sigma_{\beta_{1}} &\sim {\sf uniform} (0,100) \\ \sigma_{y} &\sim {\sf uniform} (0,100) \\ \end{align*}\]

, where \(j\) is the depth map generation quality setting corresponding to observation \(i\)

to start, we’ll use the default brms::brm prior settings which may not match those described in the model specification above

brms_f_mod1 = brms::brm(
  formula = f_score ~ 1 + (1 | depth_maps_generation_quality)
  , data = ptcld_validation_data
  , family = brms::brmsfamily(family = "gaussian")
  , iter = 4000, warmup = 2000, chains = 4
  , cores = round(parallel::detectCores()/2)
  , file = paste0(rootdir, "/fits/brms_f_mod1")
)

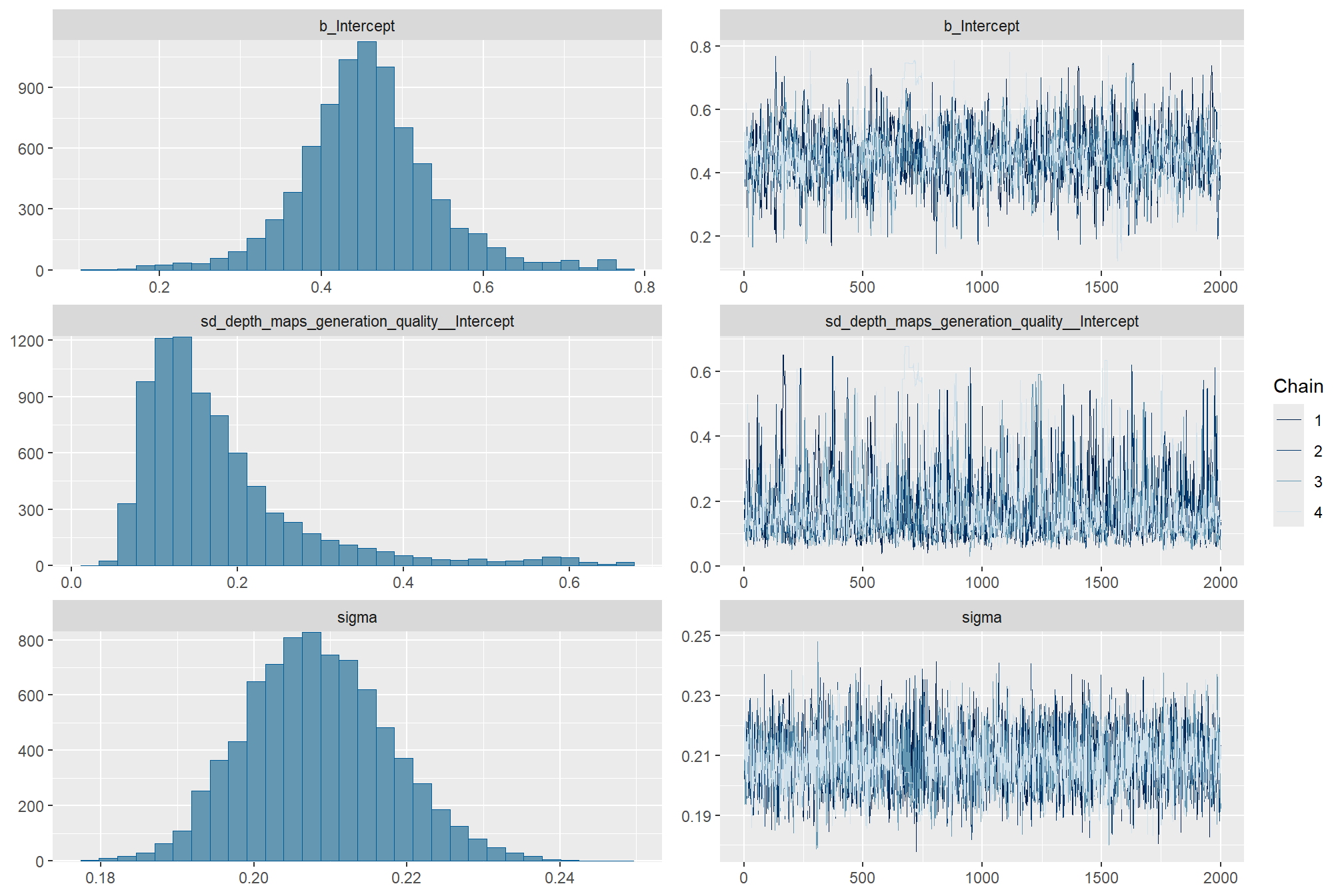

check the trace plots for problems with convergence of the Markov chains

plot(brms_f_mod1)

check the prior distributions

# check priors
brms::prior_summary(brms_f_mod1) %>%
  kableExtra::kbl() %>%
  kableExtra::kable_styling()
prior class coef group resp dpar nlpar lb ub source
student_t(3, 0.4, 2.5) Intercept default
student_t(3, 0, 2.5) sd 0 default
sd depth_maps_generation_quality default
sd Intercept depth_maps_generation_quality default
student_t(3, 0, 2.5) sigma 0 default

The brms::brm model summary

brms_f_mod1 %>%
  brms::posterior_summary() %>%
  as.data.frame() %>%
  tibble::rownames_to_column(var = "parameter") %>%
  dplyr::rename_with(tolower) %>%
  dplyr::filter(
    stringr::str_starts(parameter, "b_")
    | stringr::str_starts(parameter, "r_")
    | parameter == "sigma"
  ) %>%
  dplyr::mutate(
    parameter = parameter %>%
      stringr::str_remove_all("b_depth_maps_generation_quality") %>%
      stringr::str_remove_all("r_depth_maps_generation_quality")
  ) %>%
  kableExtra::kbl(digits = 2, caption = "Bayesian one nominal predictor: F-score by dense cloud quality") %>%
  kableExtra::kable_styling()
Table 6.2: Bayesian one nominal predictor: F-score by dense cloud quality
parameter estimate est.error q2.5 q97.5
b_Intercept 0.46 0.08 0.29 0.65
sigma 0.21 0.01 0.19 0.23
[ultra.high,Intercept] 0.11 0.09 -0.08 0.29
[high,Intercept] 0.08 0.09 -0.12 0.25
[medium,Intercept] 0.01 0.09 -0.19 0.18
[low,Intercept] -0.05 0.09 -0.25 0.12
[lowest,Intercept] -0.17 0.09 -0.37 0.00

With the stats::coef function, we can get the group-level summaries in a “non-deflection” metric. In the model, the group means represented by \(\beta_{1[j]}\) are deflections from overall baseline, such that the deflections sum to zero (see Kruschke (2015, p.554)). Summaries of the group-specific deflections are available via the brms::ranef function.

stats::coef(brms_f_mod1) %>%
  as.data.frame() %>%
  tibble::rownames_to_column(var = "group") %>%
  dplyr::rename_with(
    .cols = -c("group")
    , .fn = ~ stringr::str_remove_all(.x, "depth_maps_generation_quality.")
  ) %>%
  kableExtra::kbl(digits = 2, caption = "brms::brm model: F-score by dense cloud quality") %>%
  kableExtra::kable_styling()
Table 6.3: brms::brm model: F-score by dense cloud quality
group Estimate.Intercept Est.Error.Intercept Q2.5.Intercept Q97.5.Intercept
ultra high 0.57 0.03 0.51 0.62
high 0.53 0.03 0.48 0.59
medium 0.47 0.03 0.41 0.52
low 0.40 0.03 0.35 0.46
lowest 0.28 0.03 0.22 0.35

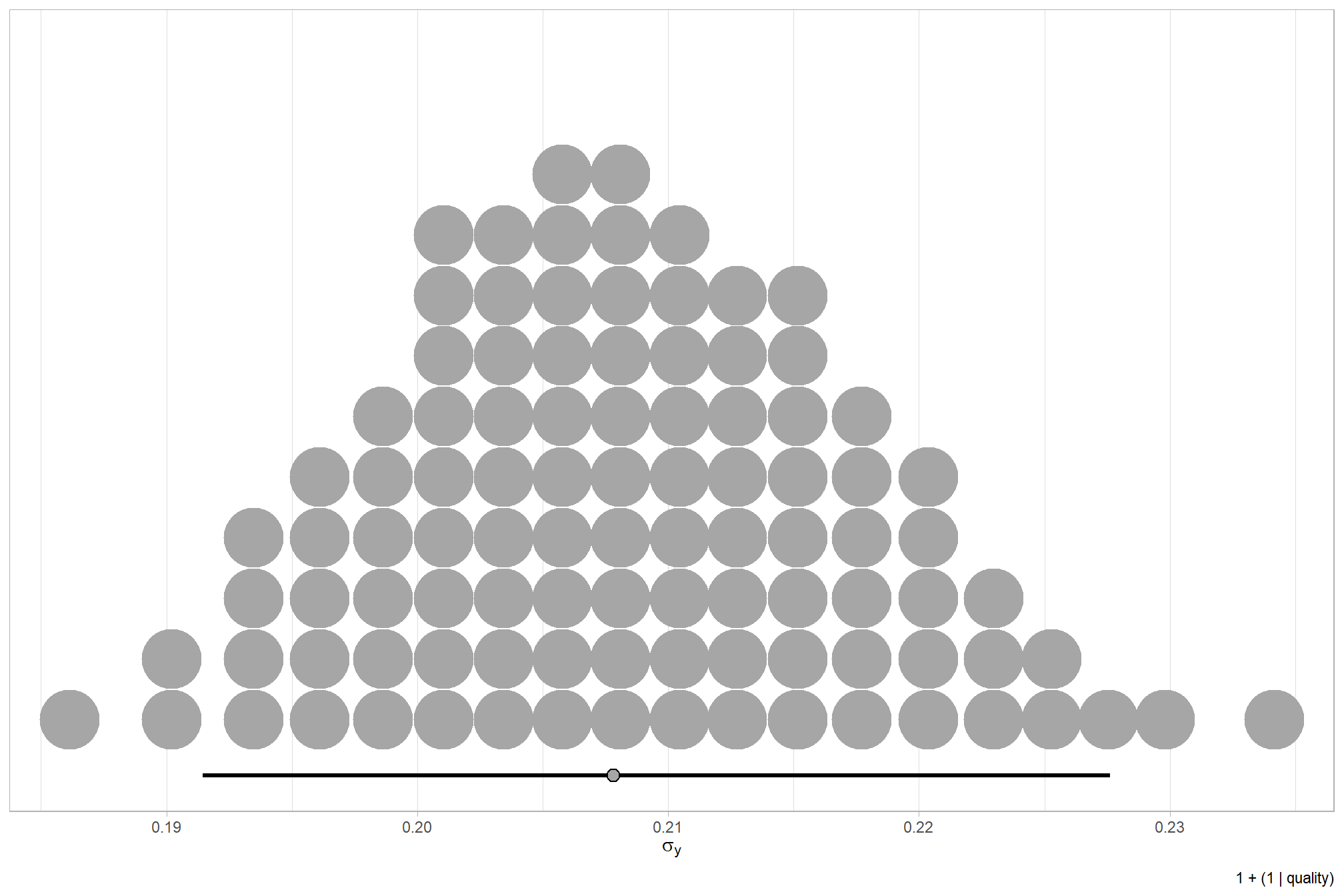

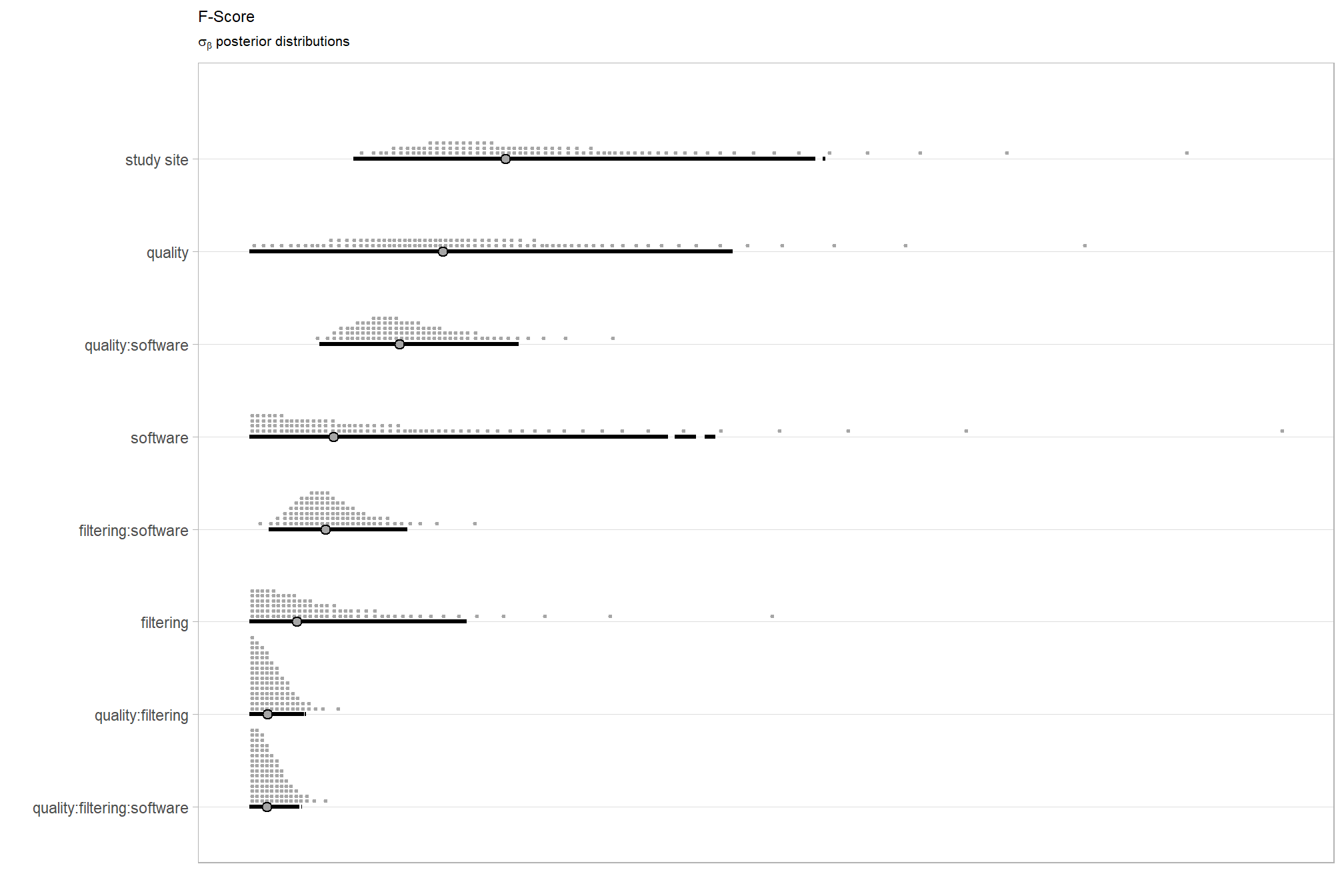

We can look at the model noise standard deviation \(\sigma_y\)

# get formula
form_temp = brms_f_mod1$formula$formula[3] %>%
  as.character() %>% get_frmla_text() %>%
  stringr::str_replace_all("depth_maps_generation_quality", "quality") %>%
  stringr::str_replace_all("depth_maps_generation_filtering_mode", "filtering")
# extract the posterior draws
brms::as_draws_df(brms_f_mod1) %>%
# plot
  ggplot(aes(x = sigma, y = 0)) +
  tidybayes::stat_dotsinterval(
    point_interval = median_hdi, .width = .95
    , justification = -0.04
    , shape = 21, point_size = 3
    , quantiles = 100
  ) +
  scale_y_continuous(NULL, breaks = NULL) +
  labs(
    x = latex2exp::TeX("$\\sigma_y$")
    , caption = form_temp
  ) +
  theme_light()

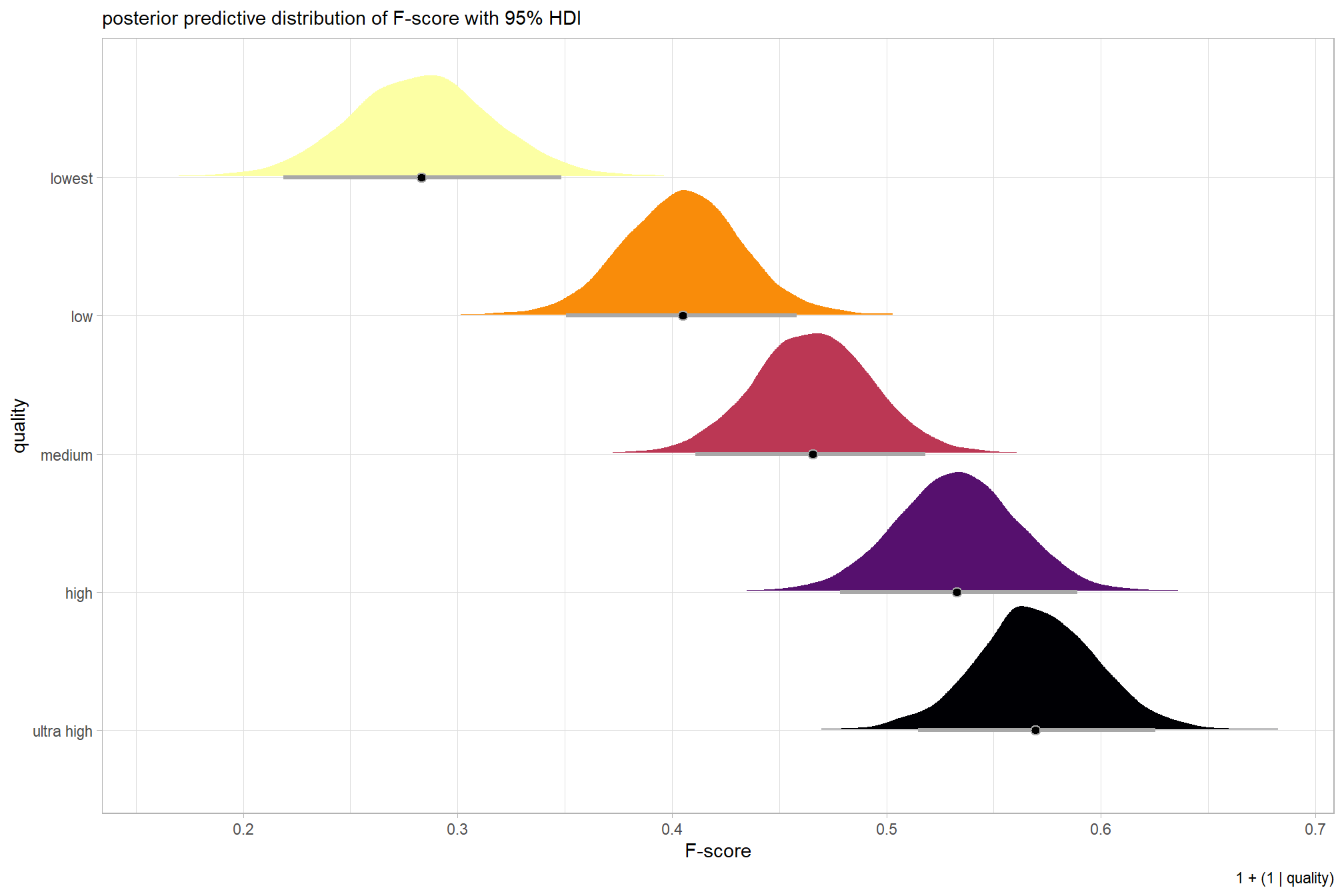

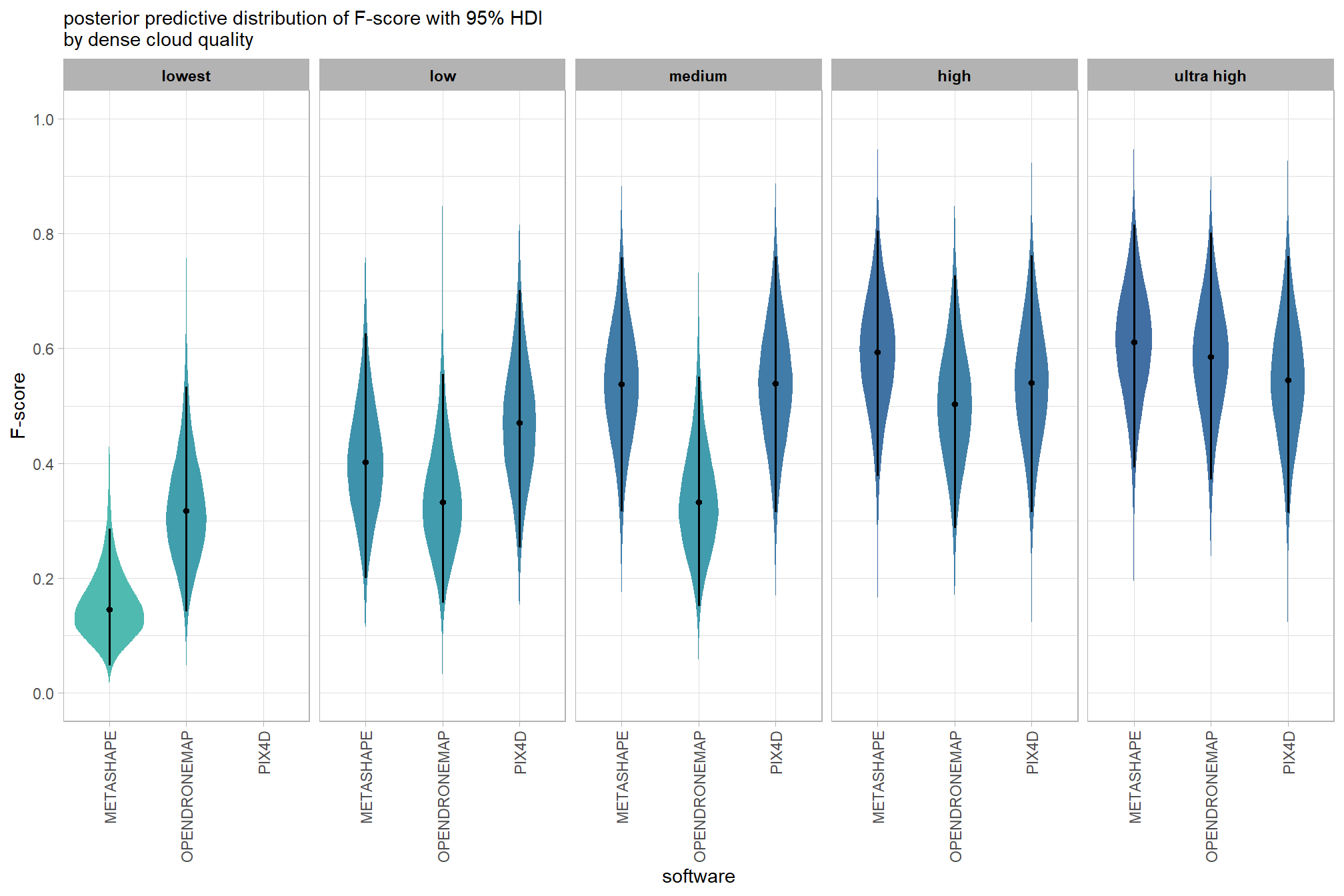

plot the posterior predictive distributions of the conditional means with the median F-score and the 95% highest posterior density interval (HDI)

ptcld_validation_data %>%
  dplyr::distinct(depth_maps_generation_quality) %>%
  tidybayes::add_epred_draws(brms_f_mod1) %>%
  dplyr::mutate(value = .epred) %>%
  # plot
  ggplot(
    mapping = aes(
      x = value, y = depth_maps_generation_quality
      , fill = depth_maps_generation_quality
    )
  ) +
    tidybayes::stat_halfeye(
      point_interval = median_hdi, .width = .95
      , interval_color = "gray66"
      , shape = 21, point_color = "gray66", point_fill = "black"
      , justification = -0.01
    ) +
    scale_fill_viridis_d(option = "inferno", drop = F) +
    scale_x_continuous(breaks = scales::extended_breaks(n=8)) +
    labs(
      y = "quality", x = "F-score"
      , subtitle = "posterior predictive distribution of F-score with 95% HDI"
      , caption = form_temp
    ) +
    theme_light() +
    theme(legend.position = "none")

we can also make pairwise comparisons

# first we need to define the contrasts to make
contrast_list =
  tidyr::crossing(
    x1 = unique(ptcld_validation_data$depth_maps_generation_quality)
    , x2 = unique(ptcld_validation_data$depth_maps_generation_quality)
  ) %>%
  dplyr::mutate(
    dplyr::across(
      dplyr::everything()
      , .fns = function(x){factor(
        x, ordered = T
        , levels = levels(ptcld_validation_data$depth_maps_generation_quality)
      )}
    )
  ) %>%
  dplyr::filter(x1<x2) %>%
  dplyr::arrange(x1,x2) %>%
  dplyr::mutate(dplyr::across(dplyr::everything(), as.character)) %>%
  purrr::transpose()

# contrast_list

# obtain posterior draws and calculate contrasts using tidybayes::compare_levels
brms_contrast_temp =
  brms_f_mod1 %>%
    tidybayes::spread_draws(r_depth_maps_generation_quality[depth_maps_generation_quality]) %>%
    dplyr::mutate(
      depth_maps_generation_quality = depth_maps_generation_quality %>%
        stringr::str_replace_all("\\.", " ") %>%
        factor(
          levels = levels(ptcld_validation_data$depth_maps_generation_quality)
          , ordered = T
        )
    ) %>%
    dplyr::rename(value = r_depth_maps_generation_quality) %>%
    tidybayes::compare_levels(
      value
      , by = depth_maps_generation_quality
      , comparison = contrast_list
        # tidybayes::emmeans_comparison("revpairwise")
        #"pairwise"
    )

# generate the contrast column for creating an ordered factor
brms_contrast_temp =
  brms_contrast_temp %>%
  dplyr::ungroup() %>%
  tidyr::separate_wider_delim(
    cols = depth_maps_generation_quality
    , delim = " - "
    , names = paste0(
        "sorter"
        , 1:(max(stringr::str_count(brms_contrast_temp$depth_maps_generation_quality, "-"))+1)
      )
    , too_few = "align_start"
    , cols_remove = F
  ) %>%
  dplyr::filter(sorter1!=sorter2) %>%
  dplyr::mutate(
    dplyr::across(
      tidyselect::starts_with("sorter")
      , .fns = function(x){factor(
        x, ordered = T
        , levels = levels(ptcld_validation_data$depth_maps_generation_quality)
      )}
    )
    , contrast = depth_maps_generation_quality %>% forcats::fct_reorder(
        paste0(as.numeric(sorter1), as.numeric(sorter2)) %>%
        as.numeric()
      )
  )

# median_hdi summary for coloring
brms_contrast_temp = brms_contrast_temp %>%
  dplyr::group_by(contrast) %>%
  dplyr::mutate(
    # get median_hdi
    median_hdi_est = tidybayes::median_hdi(value)$y
    , median_hdi_lower = tidybayes::median_hdi(value)$ymin
    , median_hdi_upper = tidybayes::median_hdi(value)$ymax
    # check probability of contrast
    , pr_gt_zero = mean(value > 0) %>%
        scales::percent(accuracy = 1)
    , pr_lt_zero = mean(value < 0) %>%
        scales::percent(accuracy = 1)
    # check probability that this direction is true
    , is_diff_dir = dplyr::case_when(
      median_hdi_est >= 0 ~ value > 0
      , median_hdi_est < 0 ~ value < 0
    )
    , pr_diff = mean(is_diff_dir)
    # make a label
    , pr_diff_lab = dplyr::case_when(
      median_hdi_est > 0 ~ paste0(
        "Pr("
        , stringr::word(contrast, 1, sep = fixed("-")) %>%
          stringr::str_squish()
        , ">"
        , stringr::word(contrast, 2, sep = fixed("-")) %>%
          stringr::str_squish()
        , ")="
        , pr_diff %>% scales::percent(accuracy = 1)
      )
      , median_hdi_est < 0 ~ paste0(
        "Pr("
        , stringr::word(contrast, 2, sep = fixed("-")) %>%
          stringr::str_squish()
        , ">"
        , stringr::word(contrast, 1, sep = fixed("-")) %>%
          stringr::str_squish()
        , ")="
        , pr_diff %>% scales::percent(accuracy = 1)
      )
    )
    # make a SMALLER label
    , pr_diff_lab_sm = dplyr::case_when(
      median_hdi_est >= 0 ~ paste0(
        "Pr(>0)="
        , pr_diff %>% scales::percent(accuracy = 1)
      )
      , median_hdi_est < 0 ~ paste0(
        "Pr(<0)="
        , pr_diff %>% scales::percent(accuracy = 1)
      )
    )
    , pr_diff_lab_pos = dplyr::case_when(
      median_hdi_est > 0 ~ median_hdi_upper
      , median_hdi_est < 0 ~ median_hdi_lower
    ) * 1.09
    , sig_level = dplyr::case_when(
      pr_diff > 0.99 ~ 0
      , pr_diff > 0.95 ~ 1
      , pr_diff > 0.9 ~ 2
      , pr_diff > 0.8 ~ 3
      , T ~ 4
    ) %>%
    factor(levels = c(0:4), labels = c(">99%","95%","90%","80%","<80%"), ordered = T)
  )
# what?
brms_contrast_temp %>%
  dplyr::ungroup() %>%
  dplyr::count(contrast, median_hdi_est, pr_diff_lab,pr_diff_lab_sm)
## # A tibble: 10 × 5
##    contrast            median_hdi_est pr_diff_lab           pr_diff_lab_sm     n
##    <fct>                        <dbl> <chr>                 <chr>          <int>
##  1 ultra high - high           0.0370 Pr(ultra high>high)=… Pr(>0)=83%      8000
##  2 ultra high - medium         0.105  Pr(ultra high>medium… Pr(>0)=100%     8000
##  3 ultra high - low            0.165  Pr(ultra high>low)=1… Pr(>0)=100%     8000
##  4 ultra high - lowest         0.287  Pr(ultra high>lowest… Pr(>0)=100%     8000
##  5 high - medium               0.0670 Pr(high>medium)=95%   Pr(>0)=95%      8000
##  6 high - low                  0.128  Pr(high>low)=100%     Pr(>0)=100%     8000
##  7 high - lowest               0.250  Pr(high>lowest)=100%  Pr(>0)=100%     8000
##  8 medium - low                0.0607 Pr(medium>low)=95%    Pr(>0)=95%      8000
##  9 medium - lowest             0.183  Pr(medium>lowest)=10… Pr(>0)=100%     8000
## 10 low - lowest                0.121  Pr(low>lowest)=100%   Pr(>0)=100%     8000

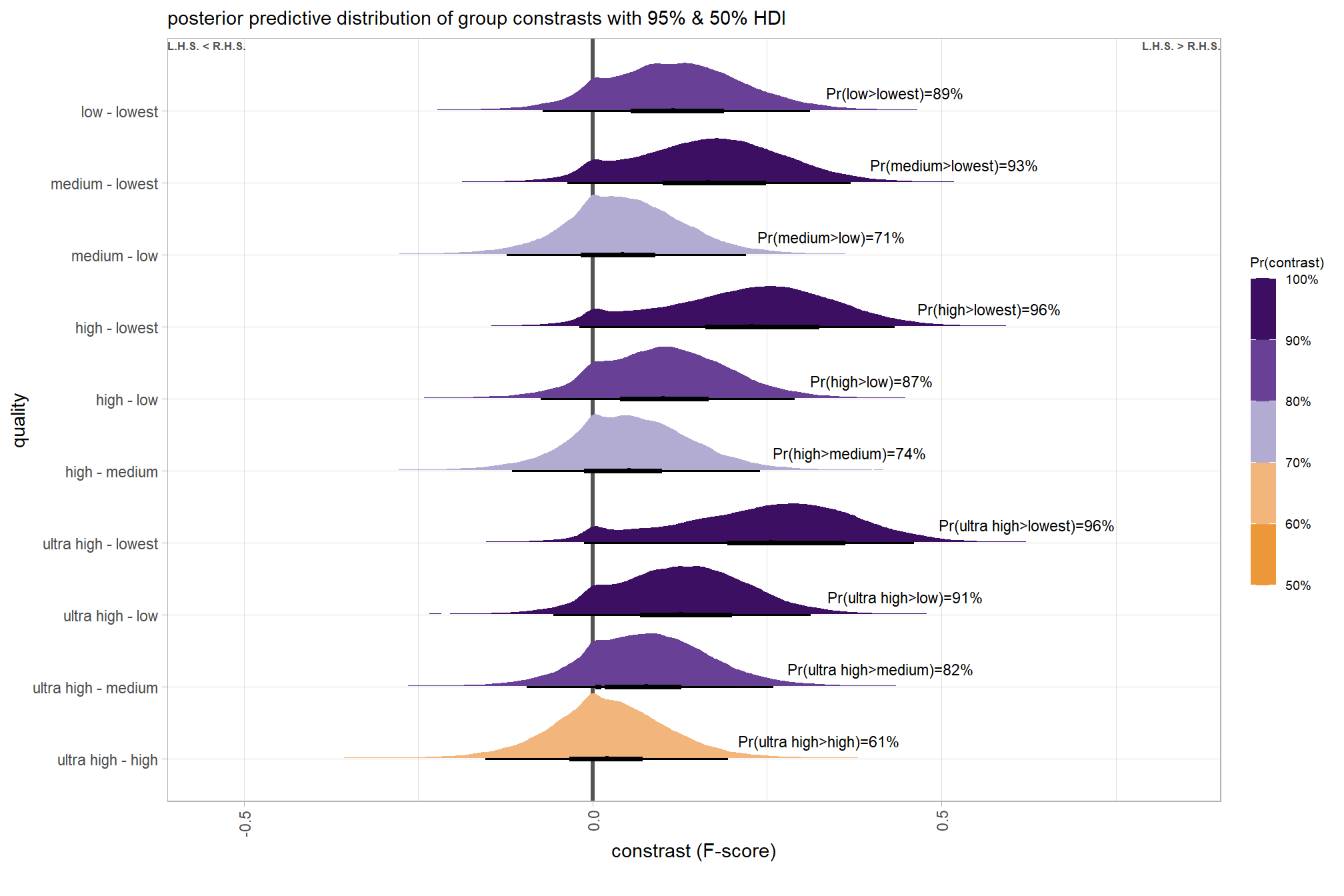

plot it

# plot, finally
brms_contrast_temp %>%
  ggplot(aes(x = value, y = contrast, fill = pr_diff)) +
    tidybayes::stat_halfeye(
      point_interval = median_hdi, .width = c(0.5,0.95)
      # , slab_fill = "gray22", slab_alpha = 1
      , interval_color = "black", point_color = "black", point_fill = "black"
      , justification = -0.01
    ) +
    geom_vline(xintercept = 0, linetype = "dashed", color = "gray44") +
    geom_text(
      data = brms_contrast_temp %>%
        dplyr::ungroup() %>%
        dplyr::count(contrast, pr_diff_lab, pr_diff_lab_pos, pr_diff)
      , mapping = aes(x = pr_diff_lab_pos, label = pr_diff_lab)
      , vjust = -1, hjust = 0, size = 2.5
    ) +
    scale_fill_fermenter(
      n.breaks = 10, palette = "PuOr"
      , direction = 1
      , limits = c(0,1)
      , labels = scales::percent
    ) +
    scale_x_continuous(breaks = scales::extended_breaks(n=8), expand = expansion(mult = c(0.1,0.2))) +
    labs(
      y = "quality"
      , x = "constrast (F-score)"
      , fill = "Pr(contrast)"
      , subtitle = "posterior predictive distribution of group constrasts with 95% & 50% HDI"
      , caption = form_temp
    ) +
    theme_light() +
    theme(
      legend.text = element_text(size = 7)
      , legend.title = element_text(size = 8)
    ) +
    guides(fill = guide_colorbar(theme = theme(
      legend.key.width  = unit(1, "lines"),
      legend.key.height = unit(12, "lines")
    )))

and summarize these contrasts

# # can also use the following as substitute for the "tidybayes::spread_draws" used above to get same result
brms_contrast_temp %>%
  dplyr::group_by(contrast) %>%
  tidybayes::median_hdi(value) %>%
  select(-c(.point,.interval, .width)) %>%
  dplyr::arrange(desc(contrast)) %>%

  kableExtra::kbl(
    digits = 2
    , caption = "brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts in F-score"
    , col.names = c(
      "quality contrast"
      , "difference (F-score)"
      , "HDI low", "HDI high"
    )
  ) %>%
  kableExtra::kable_styling()
Table 6.4: brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts in F-score
quality contrast difference (F-score) HDI low HDI high
low - lowest 0.12 0.04 0.21
medium - lowest 0.18 0.10 0.27
medium - low 0.06 -0.02 0.13
high - lowest 0.25 0.16 0.33
high - low 0.13 0.05 0.20
high - medium 0.07 -0.01 0.15
ultra high - lowest 0.29 0.20 0.37
ultra high - low 0.16 0.09 0.24
ultra high - medium 0.10 0.03 0.18
ultra high - high 0.04 -0.04 0.11

Before we move on to the next section, look above at how many arguments we fiddled with to configure our tidybayes::stat_halfeye() plot. Given how many more contrast plots we have looming in our not-too-distant future, we might go ahead and save these settings as a new function. We’ll call it plt_contrast().

plt_contrast <- function(
    my_data
    , x = "value"
    , y = "contrast"
    , fill = "pr_diff"
    , label = "pr_diff_lab"
    , label_pos = "pr_diff_lab_pos"
    , label_size = 3
    , x_expand = c(0.1, 0.1)
    , facet = NA
    , y_axis_title = ""
    , caption_text = "" # form_temp
    , annotate_size = 2.2
    ) {
  # df for annotation
  get_annotation_df <- function(
        my_text_list = c(
          "Bottom Left (h0,v0)","Top Left (h0,v1)"
          ,"Bottom Right h1,v0","Top Right h1,v1"
          )
        , hjust = c(0,0,1,1) # higher values = right, lower values = left
        , vjust = c(0,1.3,0,1.3) # higher values = down, lower values = up
    ){
      df = data.frame(
        xpos = c(-Inf,-Inf,Inf,Inf)
        , ypos =  c(-Inf, Inf,-Inf,Inf)
        , annotate_text = my_text_list
        , hjustvar = hjust
        , vjustvar = vjust
      )
      return(df)
  }
  # plot
  plt =
    my_data %>%
    ggplot(aes(x = .data[[x]], y = .data[[y]])) +
      geom_vline(xintercept = 0, linetype = "solid", color = "gray33", lwd = 1.1) +
      tidybayes::stat_halfeye(
        mapping = aes(fill = .data[[fill]])
        , point_interval = median_hdi, .width = c(0.5,0.95)
        # , slab_fill = "gray22", slab_alpha = 1
        , interval_color = "black", point_color = "black", point_fill = "black"
        , point_size = 0.9
        , justification = -0.01
      ) +
      geom_text(
        data = get_annotation_df(
          my_text_list = c(
          "","L.H.S. < R.H.S."
          ,"","L.H.S. > R.H.S."
          )
        )
        , mapping = aes(
          x = xpos, y = ypos
          , hjust = hjustvar, vjust = vjustvar
          , label = annotate_text
          , fontface = "bold"
        )
        , size = annotate_size
        , color = "gray30" # "#2d2a4d" #"#204445"
      ) +
      # scale_fill_fermenter(
      #   n.breaks = 5 # 10 use 10 if can go full range 0-1
      #   , palette = "PuOr" # "RdYlBu"
      #   , direction = 1
      #   , limits = c(0.5,1) # use c(0,1) if can go full range 0-1
      #   , labels = scales::percent
      # ) +
      scale_fill_stepsn(
        n.breaks = 5 # 10 use 10 if can go full range 0-1
        , colors = RColorBrewer::brewer.pal(11,"PuOr")[c(3,4,8,10,11)]
        , limits = c(0.5,1) # use c(0,1) if can go full range 0-1
        , labels = scales::percent
      ) +
      scale_x_continuous(expand = expansion(mult = x_expand)) +
      labs(
        y = y_axis_title
        , x = "constrast (F-score)"
        , fill = "Pr(contrast)"
        , subtitle = "posterior predictive distribution of group constrasts with 95% & 50% HDI"
        , caption = caption_text
      ) +
      theme_light() +
      theme(
        legend.text = element_text(size = 7)
        , legend.title = element_text(size = 8)
        , axis.text.x = element_text(angle = 90, vjust = 0.5, hjust = 1.05)
        , strip.text = element_text(color = "black", face = "bold")
      ) +
      guides(fill = guide_colorbar(theme = theme(
        legend.key.width  = unit(1, "lines"),
        legend.key.height = unit(12, "lines")
      )))
  # return facet or not
  if(max(is.na(facet))==0){
    return(
      plt +
        geom_text(
          data = my_data %>%
            dplyr::filter(pr_diff_lab_pos>=0) %>%
            dplyr::ungroup() %>%
            dplyr::select(tidyselect::all_of(c(
              y
              , fill
              , label
              , label_pos
              , facet
            ))) %>%
            dplyr::distinct()
          , mapping = aes(x = .data[[label_pos]], label = .data[[label]])
          , vjust = -1, hjust = 0, size = label_size
        ) +
        geom_text(
          data = my_data %>%
            dplyr::filter(pr_diff_lab_pos<0) %>%
            dplyr::ungroup() %>%
            dplyr::select(tidyselect::all_of(c(
              y
              , fill
              , label
              , label_pos
              , facet
            ))) %>%
            dplyr::distinct()
          , mapping = aes(x = .data[[label_pos]], label = .data[[label]])
          , vjust = -1, hjust = +1, size = label_size
        ) +
        facet_grid(cols = vars(.data[[facet]]))

    )
  }
  else{
    return(
      plt +
        geom_text(
          data = my_data %>%
            dplyr::filter(pr_diff_lab_pos>=0) %>%
            dplyr::ungroup() %>%
            dplyr::select(tidyselect::all_of(c(
              y
              , fill
              , label
              , label_pos
            ))) %>%
            dplyr::distinct()
          , mapping = aes(x = .data[[label_pos]], label = .data[[label]])
          , vjust = -1, hjust = 0, size = label_size
        )+
        geom_text(
          data = my_data %>%
            dplyr::filter(pr_diff_lab_pos<0) %>%
            dplyr::ungroup() %>%
            dplyr::select(tidyselect::all_of(c(
              y
              , fill
              , label
              , label_pos
            ))) %>%
            dplyr::distinct()
          , mapping = aes(x = .data[[label_pos]], label = .data[[label]])
          , vjust = -1, hjust = +1, size = label_size
        )
    )
  }
}
# plt_contrast(brms_contrast_temp, label = "pr_diff_lab_sm")

We’ll also create a function to create all of the probability labeling columns in the contrast data called make_contrast_vars()

Note, here we use tidybayes::median_hdci() to avoid potential for returning multiple rows by group if our data is grouped. See the documentation for the ggdist package which notes that “If the distribution is multimodal, hdi may return multiple intervals for each probability level (these will be spread over rows).”

make_contrast_vars = function(my_data){
  my_data %>%
    dplyr::mutate(
      # get median_hdi
      median_hdi_est = tidybayes::median_hdci(value)$y
      , median_hdi_lower = tidybayes::median_hdci(value)$ymin
      , median_hdi_upper = tidybayes::median_hdci(value)$ymax
      # check probability of contrast
      , pr_gt_zero = mean(value > 0) %>%
          scales::percent(accuracy = 1)
      , pr_lt_zero = mean(value < 0) %>%
          scales::percent(accuracy = 1)
      # check probability that this direction is true
      , is_diff_dir = dplyr::case_when(
        median_hdi_est >= 0 ~ value > 0
        , median_hdi_est < 0 ~ value < 0
      )
      , pr_diff = mean(is_diff_dir)
      # make a label
      , pr_diff_lab = dplyr::case_when(
          median_hdi_est > 0 ~ paste0(
            "Pr("
            , stringr::word(contrast, 1, sep = fixed("-")) %>%
              stringr::str_squish()
            , ">"
            , stringr::word(contrast, 2, sep = fixed("-")) %>%
              stringr::str_squish()
            , ")="
            , pr_diff %>% scales::percent(accuracy = 1)
          )
          , median_hdi_est < 0 ~ paste0(
            "Pr("
            , stringr::word(contrast, 2, sep = fixed("-")) %>%
              stringr::str_squish()
            , ">"
            , stringr::word(contrast, 1, sep = fixed("-")) %>%
              stringr::str_squish()
            , ")="
            , pr_diff %>% scales::percent(accuracy = 1)
          )
        ) %>%
        stringr::str_replace_all("OPENDRONEMAP", "ODM") %>%
        stringr::str_replace_all("METASHAPE", "MtaShp") %>%
        stringr::str_replace_all("PIX4D", "Pix4D")
      # make a SMALLER label
      , pr_diff_lab_sm = dplyr::case_when(
        median_hdi_est >= 0 ~ paste0(
          "Pr(>0)="
          , pr_diff %>% scales::percent(accuracy = 1)
        )
        , median_hdi_est < 0 ~ paste0(
          "Pr(<0)="
          , pr_diff %>% scales::percent(accuracy = 1)
        )
      )
      , pr_diff_lab_pos = dplyr::case_when(
        median_hdi_est > 0 ~ median_hdi_upper
        , median_hdi_est < 0 ~ median_hdi_lower
      ) * 1.075
      , sig_level = dplyr::case_when(
        pr_diff > 0.99 ~ 0
        , pr_diff > 0.95 ~ 1
        , pr_diff > 0.9 ~ 2
        , pr_diff > 0.8 ~ 3
        , T ~ 4
      ) %>%
      factor(levels = c(0:4), labels = c(">99%","95%","90%","80%","<80%"), ordered = T)
    )
}
# brms_contrast_temp %>% dplyr::group_by(contrast) %>% make_contrast_vars() %>% dplyr::glimpse()

6.4 The beta: Three Nominal Predictors + site effects

To this point, we have been modelling F-score presuming a Gaussian likelihood. However, the beta likelihood more accurately represents the F-score data which is continuous and restricted within the range of \((0,1)\).

We borrow here from the excellent series on causal inference by A. Solomon Kurz. We also utilize the guide to Bayesian beta models by Andrew Heiss while Nicole Knight posted about the Beta for ecological data.

6.4.1 Summary Statistics

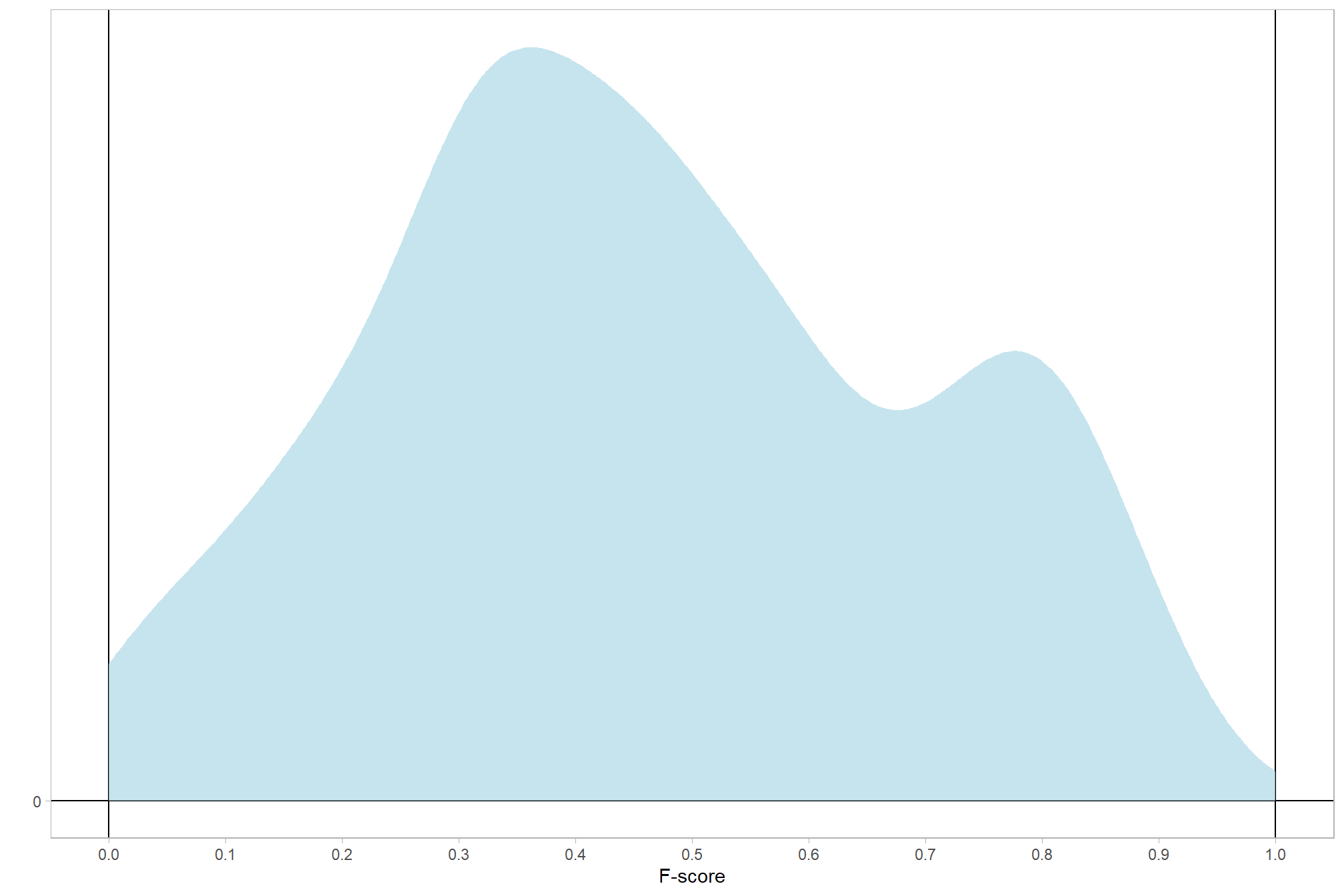

let’s check our underlying data for F-score (our dependent or \(y\) variable)

# distribution
ptcld_validation_data %>%
  ggplot(mapping = aes(x = f_score)) +
  geom_hline(yintercept = 0) +
  geom_vline(xintercept = c(0,1)) +
  geom_density(fill = "lightblue", alpha = 0.7, color = NA) +
  labs(y="",x="F-score") +
  scale_y_continuous(breaks = c(0)) +
  scale_x_continuous(breaks = scales::extended_breaks(10)) +
  theme_light() +
  theme(panel.grid = element_blank())

and the summary statistics

ptcld_validation_data %>%
  dplyr::ungroup() %>%
  dplyr::select(f_score) %>%
  dplyr::summarise(
    dplyr::across(
      dplyr::everything()
      , .fns = list(
        mean = ~ mean(.x,na.rm=T), median = ~ median(.x,na.rm=T), sd = ~ sd(.x,na.rm=T)
        , min = ~ min(.x,na.rm=T), max = ~ max(.x,na.rm=T)
        , q25 = ~ quantile(.x, 0.25, na.rm = T)
        , q75 = ~ quantile(.x, 0.75, na.rm = T)
      )
      , .names = "{.fn}"
    )
  ) %>%
  tidyr::pivot_longer(everything()) %>%
  kableExtra::kbl(caption = "summary: `f_score`", digits = 3, col.names = NULL) %>%
  kableExtra::kable_styling()
Table 6.5: summary: f_score
mean 0.461
median 0.442
sd 0.229
min 0.000
max 0.900
q25 0.298
q75 0.622

6.4.2 Bayesian

With the beta likelihood our model with three nominal predictor variables and subject-level effects the model becomes:

\[\begin{align*} y_{i} \sim & \operatorname{Beta} \bigl(\mu_{i}, \phi \bigr) \\ \operatorname{logit}(\mu_{i}) = & \beta_0 \\ & + \sum_{j=1}^{J=5} \beta_{1[j]} x_{1[j]} + \sum_{k=1}^{K=4} \beta_{2[k]} x_{2[k]} + \sum_{f=1}^{F=3} \beta_{3[f]} x_{3[f]} + \sum_{s=1}^{S=5} \beta_{4[s]} x_{4[s]} \\ & + \sum_{j,k} \beta_{1\times2[j,k]} x_{1\times2[j,k]} + \sum_{j,f} \beta_{1\times3[j,f]} x_{1\times3[j,f]} + \sum_{k,f} \beta_{2\times3[k,f]} x_{2\times3[k,f]} \\ & + \sum_{j,k,f} \beta_{1\times2\times3[j,k,f]} x_{1\times2\times3[j,k,f]} \\ \beta_{0} \sim & \operatorname{Normal}(0,1) \\ \beta_{1[j]} \sim & \operatorname{Normal}(0,\sigma_{\beta_{1}}) \\ \beta_{2[k]} \sim & \operatorname{Normal}(0,\sigma_{\beta_{2}}) \\ \beta_{3[f]} \sim & \operatorname{Normal}(0,\sigma_{\beta_{3}}) \\ \beta_{4[s]} \sim & \operatorname{Normal}(0,\sigma_{\beta_{4}}) \\ \beta_{1\times2[j,k]} \sim & \operatorname{Normal}(0,\sigma_{\beta_{1\times2}}) \\ \beta_{1\times3[j,f]} \sim & \operatorname{Normal}(0,\sigma_{\beta_{1\times3}}) \\ \beta_{2\times3[k,f]} \sim & \operatorname{Normal}(0,\sigma_{\beta_{2\times3}}) \\ \sigma_{\beta_{1}} \sim & \operatorname{Student T}(3,0,2.5) \\ \sigma_{\beta_{2}} \sim & \operatorname{Student T}(3,0,2.5) \\ \sigma_{\beta_{3}} \sim & \operatorname{Student T}(3,0,2.5) \\ \sigma_{\beta_{4}} \sim & \operatorname{Student T}(3,0,2.5) \\ \sigma_{\beta_{1\times2}} \sim & \operatorname{Student T}(3,0,2.5) \\ \sigma_{\beta_{1\times3}} \sim & \operatorname{Student T}(3,0,2.5) \\ \sigma_{\beta_{2\times3}} \sim & \operatorname{Student T}(3,0,2.5) \\ \phi \sim & \operatorname{Gamma}(0.1,0.1) \\ \end{align*}\]

, where \(j\) is the depth map generation quality setting corresponding to observation \(i\), \(k\) is the depth map filtering mode setting corresponding to observation \(i\), \(f\) is the processing software corresponding to observation \(i\), and \(s\) is the study site corresponding to observation \(i\)

Per brms, our \(y\) is \(\operatorname{Beta}\) distributed with the mean as \(\mu\) and the concentration as \(\phi\) which is sometimes called the concentration, sample size or precision. We can think of mean (\(\mu\)) and precision (\(\phi\)) just like with a normal distribution and its mean and standard deviation.

brms allows us to model the precision (\(\phi\)) but it is not required. If \(\phi\) is not modeled, you still get a precision component, but it is universal across all the different coefficients (it doesn’t vary across any variables in the model). Heiss explains that:

for whatever mathy reasons, when you don’t explicitly model the precision, the resulting coefficient in the table isn’t on the log scale—it’s a regular non-logged number, so there’s no need to exponentiate.

in thie brms community post it is similarly noted that:

If you don’t predict the parameters, you give priors for them on non-transformed scale. When you predict them, the predictors become linear coefficients as any other and work on the transformed scale - the transformations are specified by the link_XX parameters of the families (and you can change them if you need).

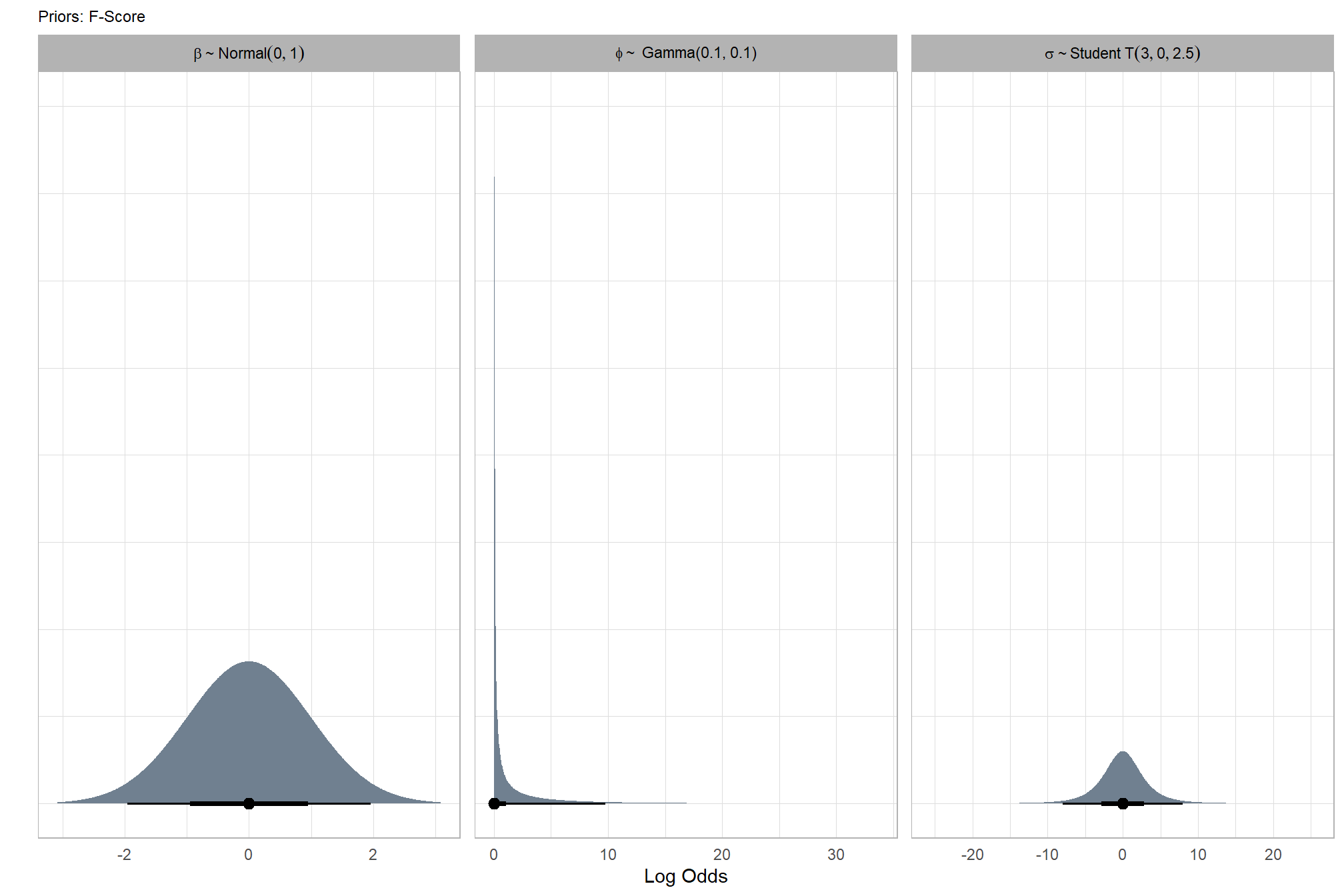

6.4.2.1 Prior distributions

#### setting priors
# required libraries: tidyverse, tidybayes, brms, palettetown, latex2exp
brms_f_mod5_priors_temp <- c(
    brms::prior(normal(0, 1), class = "Intercept")
    , brms::prior(student_t(3, 0, 2.5), class = "sd")
    , brms::prior(gamma(0.1, 0.1), class = phi)
  )
# plot
brms_f_mod5_priors_temp %>%
  tidybayes::parse_dist() %>%
  tidybayes::marginalize_lkjcorr(K = 2) %>%
  mutate(
    distrib = case_when(
      prior == "student_t(3, 0, 2.5)" ~ latex2exp::TeX(r'($\sigma \sim Student\,T(3, 0, 2.5)$)', output = "character"),
      prior == "normal(0, 1)" ~ latex2exp::TeX(r'($\beta \sim Normal(0, 1)$)',  output = "character"),
      prior == "gamma(0.1, 0.1)" ~ latex2exp::TeX(r'($\phi \sim$ Gamma(0.1, 0.1))',  output = "character")
  )) %>%
  ggplot(., aes(dist = .dist, args = .args)) +
  facet_wrap(vars(distrib), scales = "free", labeller = label_parsed) +
  ggdist::stat_halfeye(
    aes(fill = prior),
    n = 10e2,
    show.legend = F
    , fill = "slategray"
  ) +
  coord_flip() +
  theme_light() +
  theme(
    strip.text = element_text(face = "bold", color = "black"),
    axis.text.y = element_blank(),
    axis.ticks = element_blank()
    , plot.subtitle = element_text(size = 8)
    , plot.title = element_text(size = 9)
  )+
  labs(
    x = "",
    title = "Priors: F-Score",
    y = "Log Odds"
  )

6.4.2.2 Fit the model

Now fit the model.

brms_f_mod5 = brms::brm(
  formula = f_score ~
    # baseline
    1 +
    # main effects
    (1 | depth_maps_generation_quality) +
    (1 | depth_maps_generation_filtering_mode) +
    (1 | software) +
    (1 | study_site) + # only fitting main effects of site and not interactions
    # two-way interactions
    (1 | depth_maps_generation_quality:depth_maps_generation_filtering_mode) +
    (1 | depth_maps_generation_quality:software) +
    (1 | depth_maps_generation_filtering_mode:software) +
    # three-way interactions
    (1 | depth_maps_generation_quality:depth_maps_generation_filtering_mode:software)
  , data = ptcld_validation_data
  , family = Beta(link = "logit")
  # priors
  , prior = brms_f_mod5_priors_temp
  # mcmc
  , iter = 20000, warmup = 10000, chains = 4
  , control = list(adapt_delta = 0.999, max_treedepth = 13)
  , cores = round(parallel::detectCores()/2)
  , file = paste0(rootdir, "/fits/brms_f_mod5")
)
# brms::make_stancode(brms_f_mod5)
# brms::prior_summary(brms_f_mod5)
# print(brms_f_mod5)
# brms::neff_ratio(brms_f_mod5)
# brms::rhat(brms_f_mod5)
# brms::nuts_params(brms_f_mod5)

check the prior distributions

# check priors
brms::prior_summary(brms_f_mod5) %>%
  kableExtra::kbl() %>%
  kableExtra::kable_styling()
prior class coef group resp dpar nlpar lb ub source
normal(0, 1) Intercept user
gamma(0.1, 0.1) phi 0 user
student_t(3, 0, 2.5) sd 0 user
sd depth_maps_generation_filtering_mode default
sd Intercept depth_maps_generation_filtering_mode default
sd depth_maps_generation_filtering_mode:software default
sd Intercept depth_maps_generation_filtering_mode:software default
sd depth_maps_generation_quality default
sd Intercept depth_maps_generation_quality default
sd depth_maps_generation_quality:depth_maps_generation_filtering_mode default
sd Intercept depth_maps_generation_quality:depth_maps_generation_filtering_mode default
sd depth_maps_generation_quality:depth_maps_generation_filtering_mode:software default
sd Intercept depth_maps_generation_quality:depth_maps_generation_filtering_mode:software default
sd depth_maps_generation_quality:software default
sd Intercept depth_maps_generation_quality:software default
sd software default
sd Intercept software default
sd study_site default
sd Intercept study_site default

The brms::brm model summary

We won’t clutter the output here but this can be run if you are following along on your own

brms_f_mod5 %>%
  brms::posterior_summary() %>%
  as.data.frame() %>%
  tibble::rownames_to_column(var = "parameter") %>%
  dplyr::rename_with(tolower) %>%
  dplyr::filter(
    stringr::str_starts(parameter, "b_")
    | stringr::str_starts(parameter, "r_")
    | stringr::str_starts(parameter, "sd_")
    | parameter == "phi"
  ) %>%
  dplyr::mutate(
    parameter = parameter %>%
      stringr::str_replace_all("depth_maps_generation_quality", "quality") %>%
      stringr::str_replace_all("depth_maps_generation_filtering_mode", "filtering")
  ) %>%
  kableExtra::kbl(digits = 2, caption = "Bayesian final model for F-score") %>%
  kableExtra::kable_styling() %>%
  kableExtra::scroll_box(height = "8in")

6.4.2.3 Posterior Predictive Checks

Markov chain Monte Carlo (MCMC) simulations were conducted using the brms package (Bürkner 2017) to estimate posterior predictive distributions of the parameters of interest. We ran three chains of 100,000 iterations with the first 50,000 discarded as burn-in. Trace-plots were utilized to visually assess model convergence.

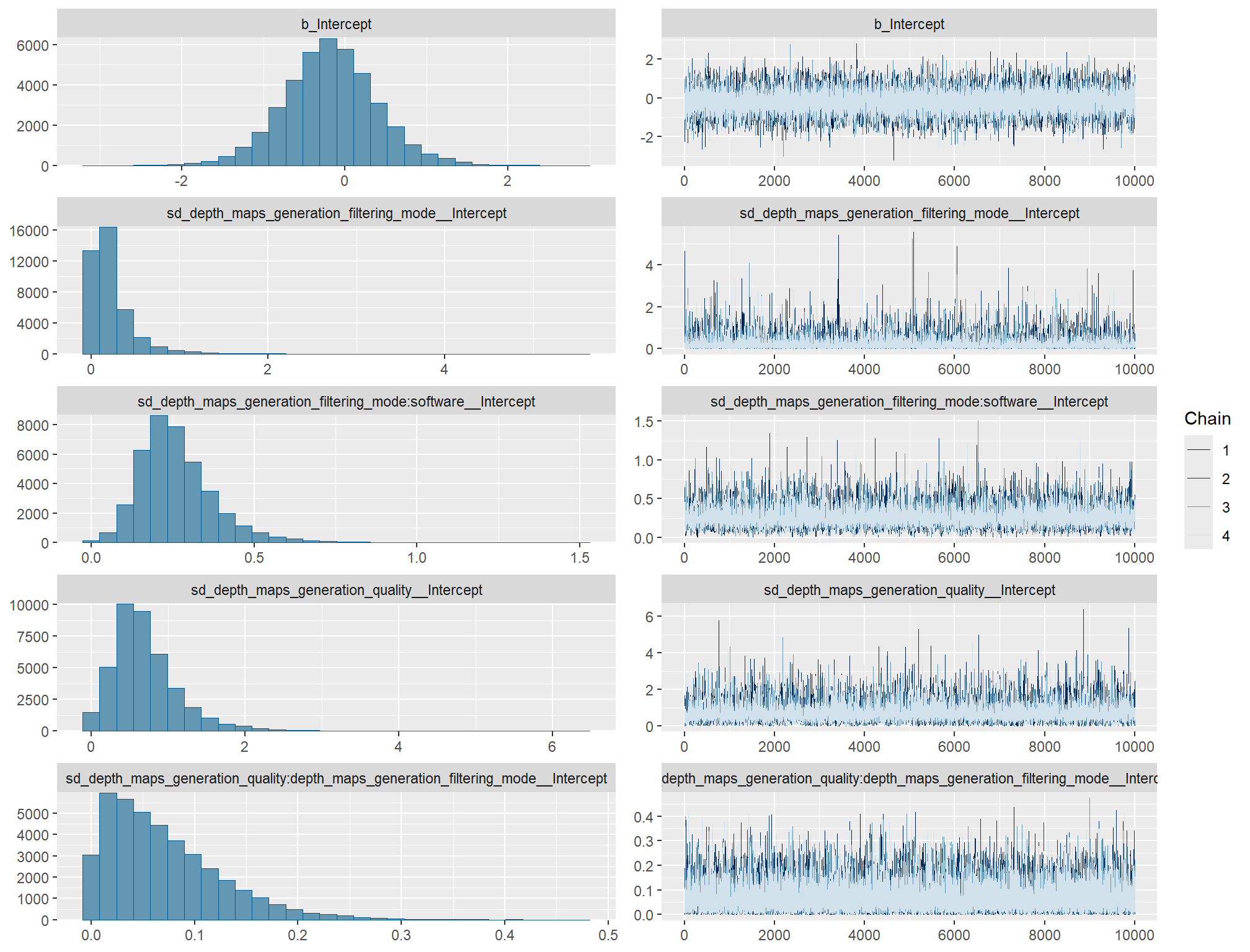

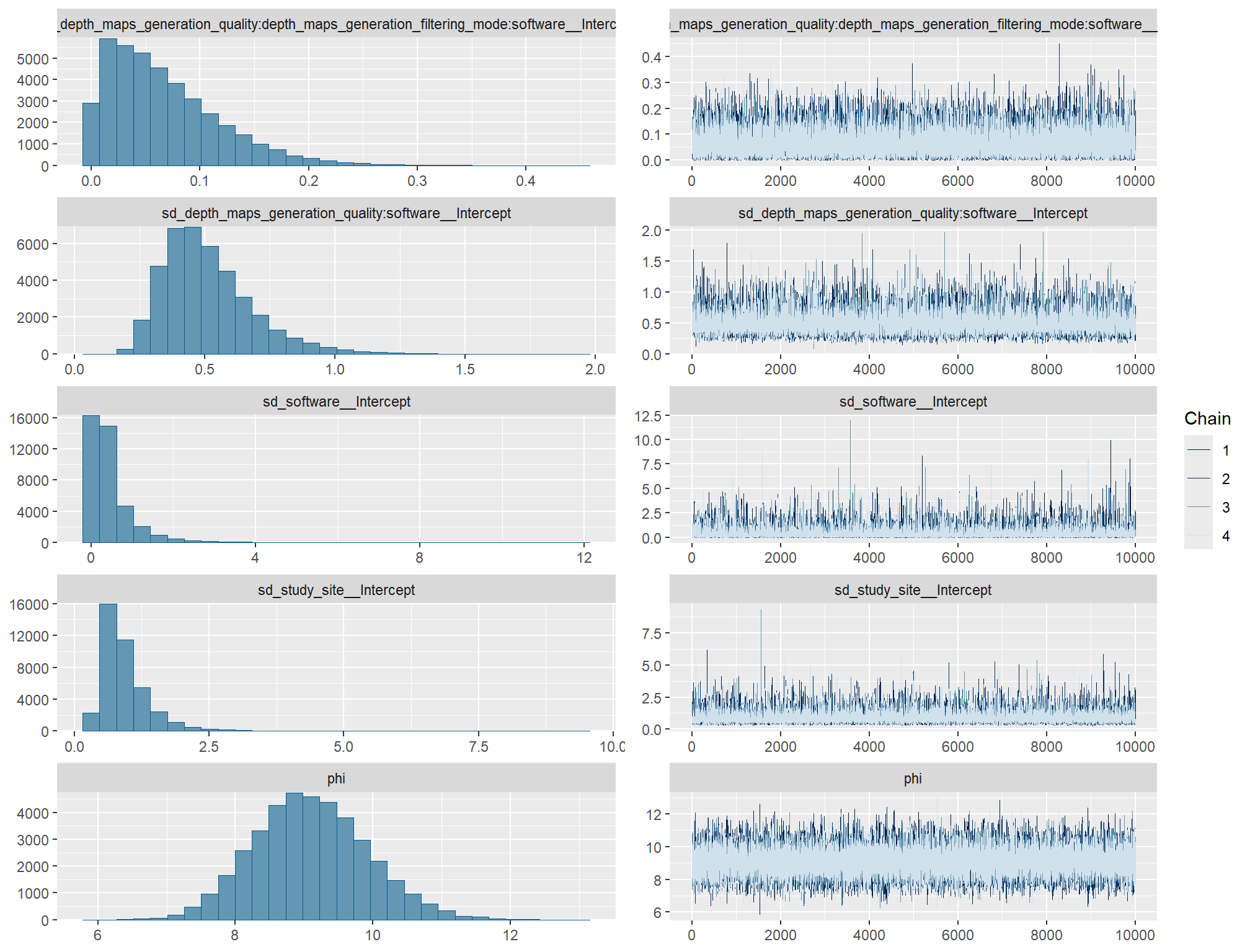

check the trace plots for problems with convergence of the Markov chains

plot(brms_f_mod5)

Sufficient convergence was checked with \(\hat{R}\) values near 1 (Brooks & Gelman, 1998).

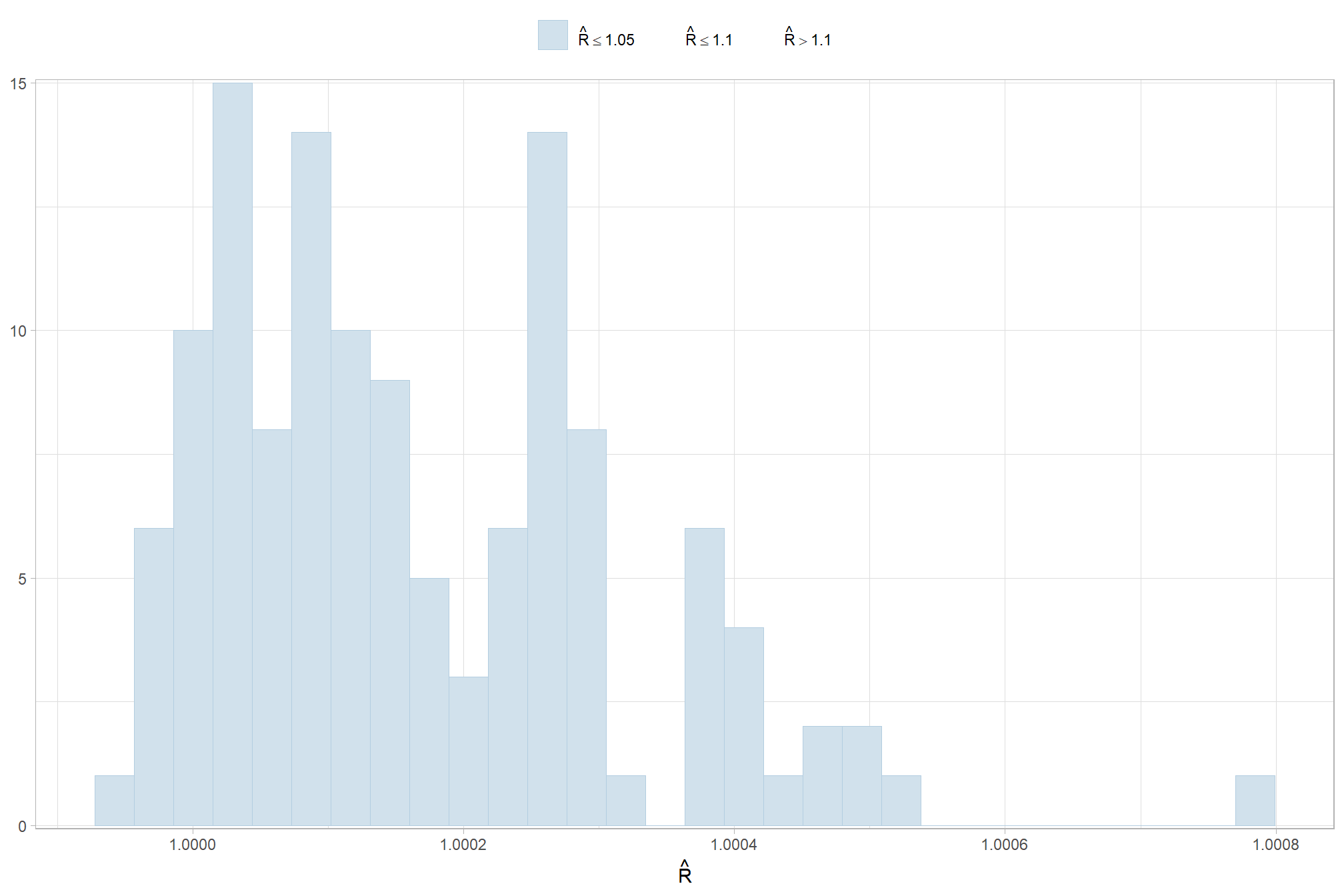

check our \(\hat{R}\) values

brms::mcmc_plot(brms_f_mod5, type = "rhat_hist") +
  theme_light() +
  theme(
    legend.position = "top", legend.direction = "horizontal"
  )

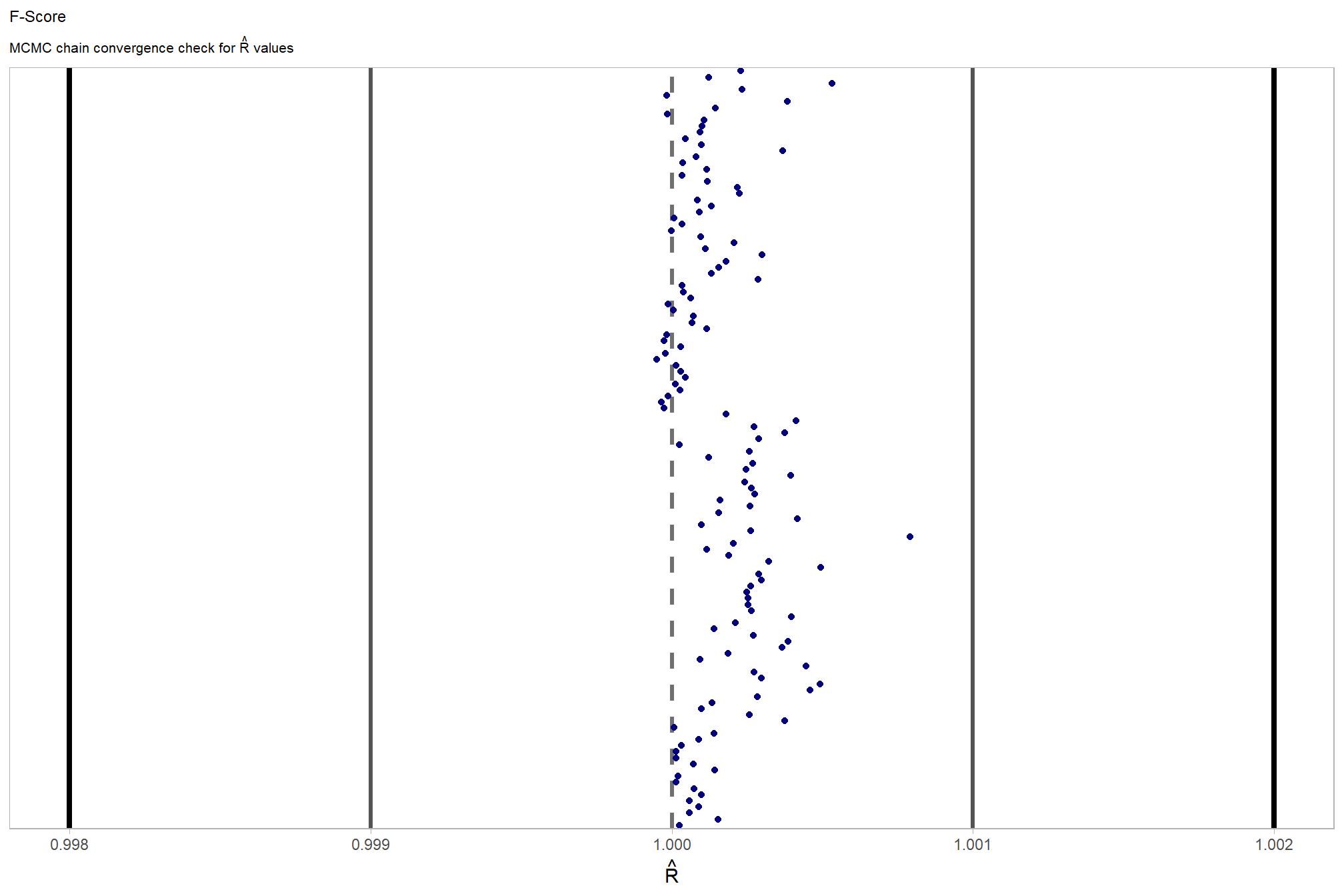

and another check of our \(\hat{R}\) values

brms_f_mod5 %>%
  brms::rhat() %>%
  as.data.frame() %>%
  tibble::rownames_to_column(var = "parameter") %>%
  dplyr::rename_with(tolower) %>%
  dplyr::rename(rhat = 2) %>%
  dplyr::filter(
    stringr::str_starts(parameter, "b_")
    | stringr::str_starts(parameter, "r_")
    | stringr::str_starts(parameter, "sd_")
    | parameter == "phi"
  ) %>%
  dplyr::mutate(
    parameter = parameter %>%
      stringr::str_replace_all("depth_maps_generation_quality", "quality") %>%
      stringr::str_replace_all("depth_maps_generation_filtering_mode", "filtering")
    , chk = (rhat <= 1*0.998 | rhat >= 1*1.002)
  ) %>%
  ggplot(aes(x = rhat, y = parameter, color = chk, fill = chk)) +
  geom_vline(xintercept = 1, linetype = "dashed", color = "gray44", lwd = 1.2) +
  geom_vline(xintercept = 1*0.998, lwd = 1.5) +
  geom_vline(xintercept = 1*1.002, lwd = 1.5) +
  geom_vline(xintercept = 1*0.999, lwd = 1.2, color = "gray33") +
  geom_vline(xintercept = 1*1.001, lwd = 1.2, color = "gray33") +
  geom_point() +
  scale_fill_manual(values = c("navy", "firebrick")) +
  scale_color_manual(values = c("navy", "firebrick")) +
  scale_y_discrete(NULL, breaks = NULL) +
  labs(
    x = latex2exp::TeX("$\\hat{R}$")
    , subtitle = latex2exp::TeX("MCMC chain convergence check for $\\hat{R}$ values")
    , title = "F-Score"
  ) +
  theme_light() +
  theme(
    legend.position = "none"
    , axis.text.y = element_text(size = 4)
    , panel.grid.major.x = element_blank()
    , panel.grid.minor.x = element_blank()
    , plot.subtitle = element_text(size = 8)
    , plot.title = element_text(size = 9)
  )

The effective length of an MCMC chain is indicated by the effective sample size (ESS), which refers to the sample size of the MCMC chain not to the sample size of the data Kruschke (2015) notes:

One simple guideline is this: For reasonably accurate and stable estimates of the limits of the 95% HDI, an ESS of 10,000 is recommended. This is merely a heuristic based on experience with practical applications, it is not a requirement. If accuracy of the HDI limits is not crucial for your application, then a smaller ESS may be sufficient. (p.184)

# get ess values from model summary
dplyr::bind_rows(
    summary(brms_f_mod5) %>%
      purrr::pluck("random") %>%
      purrr::flatten() %>%
      purrr::keep_at(~ .x == "Bulk_ESS") %>%
      unlist() %>%
      dplyr::as_tibble()
    , summary(brms_f_mod5) %>%
      purrr::pluck("fixed") %>%
      purrr::flatten() %>%
      purrr::keep_at(~ .x == "Bulk_ESS") %>%
      unlist() %>%
      dplyr::as_tibble()
  ) %>%
  dplyr::rename(ess = 1) %>%
  dplyr::mutate(parameter = dplyr::row_number(), chk = ess<10000) %>%
  ggplot(aes(x = ess, y = parameter, color = chk, fill = chk)) +
  geom_vline(xintercept = 10000, linetype = "dashed", color = "gray44", lwd = 1.2) +
  geom_segment( aes(x = 0, xend=ess, yend=parameter), color="black") +
  geom_point() +
  scale_fill_manual(values = c("blue4", "blue3")) +
  scale_color_manual(values = c("blue4", "blue3")) +
  scale_y_continuous(NULL, breaks = NULL) +
  scale_x_continuous(labels = scales::comma) +
  labs(
    x = "ESS"
    , subtitle = "MCMC chain resolution check for effective sample size (ESS) values"
    , y = ""
    , title = "F-Score"
  ) +
  theme_light() +
  theme(
    legend.position = "none"
    , axis.text.y = element_text(size = 4)
    , panel.grid.major.x = element_blank()
    , panel.grid.minor.x = element_blank()
    , plot.subtitle = element_text(size = 8)
    , plot.title = element_text(size = 9)
  )

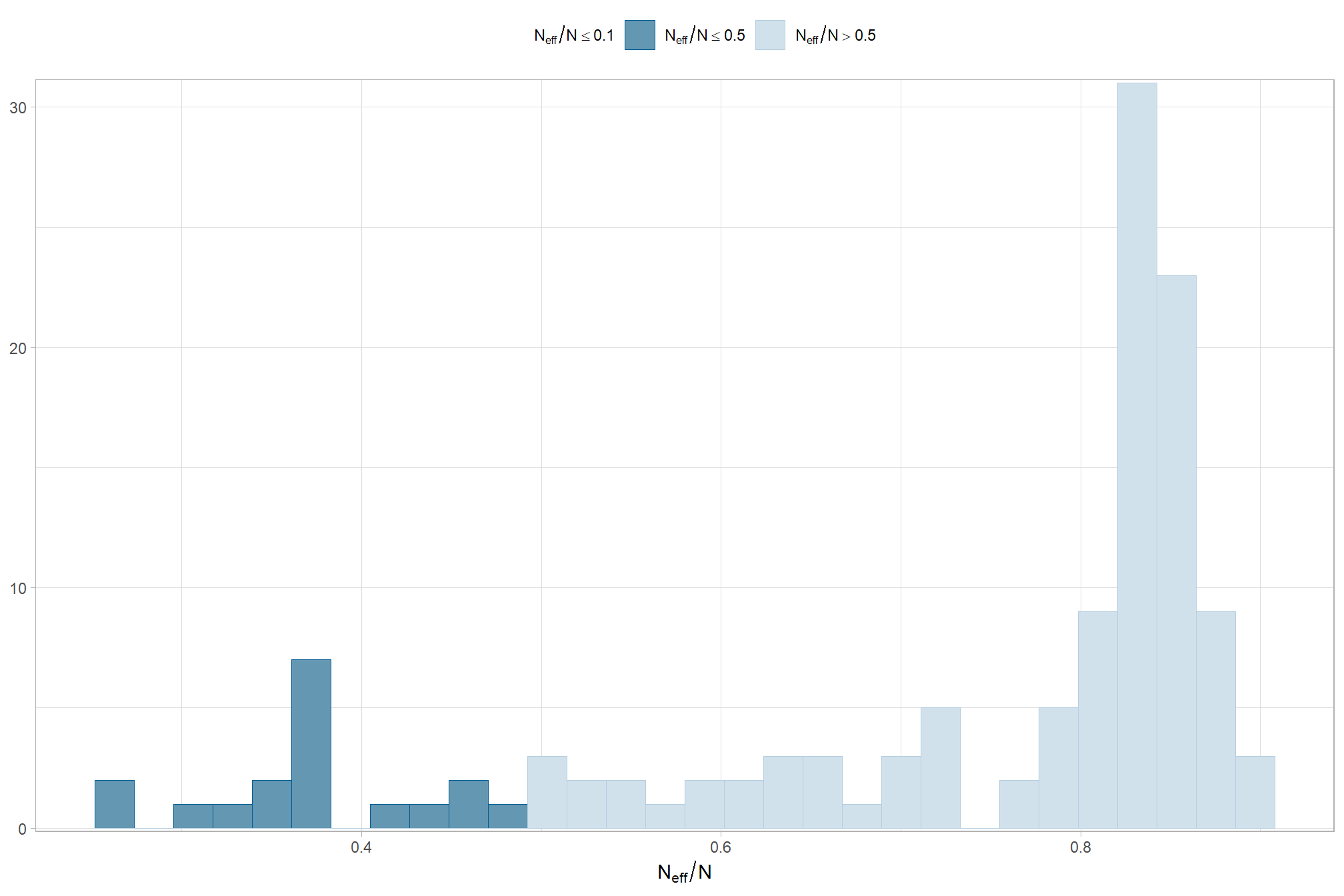

and another effective sample size check

brms::mcmc_plot(brms_f_mod5, type = "neff_hist") +
  theme_light() +
  theme(
    legend.position = "top", legend.direction = "horizontal"
  )

Posterior predictive checks were used to evaluate model goodness-of-fit by comparing data simulated from the model with the observed data used to estimate the model parameters (Hobbs & Hooten, 2015). Calculating the proportion of MCMC iterations in which the test statistic (i.e., mean and sum of squares) from the simulated data and observed data are more extreme than one another provides the Bayesian p-value. Lack of fit is indicated by a value close to 0 or 1 while a value of 0.5 indicates perfect fit (Hobbs & Hooten, 2015).

To learn more about this approach to posterior predictive checks, check out Gabry’s (2022) vignette, Graphical posterior predictive checks using the bayesplot package.

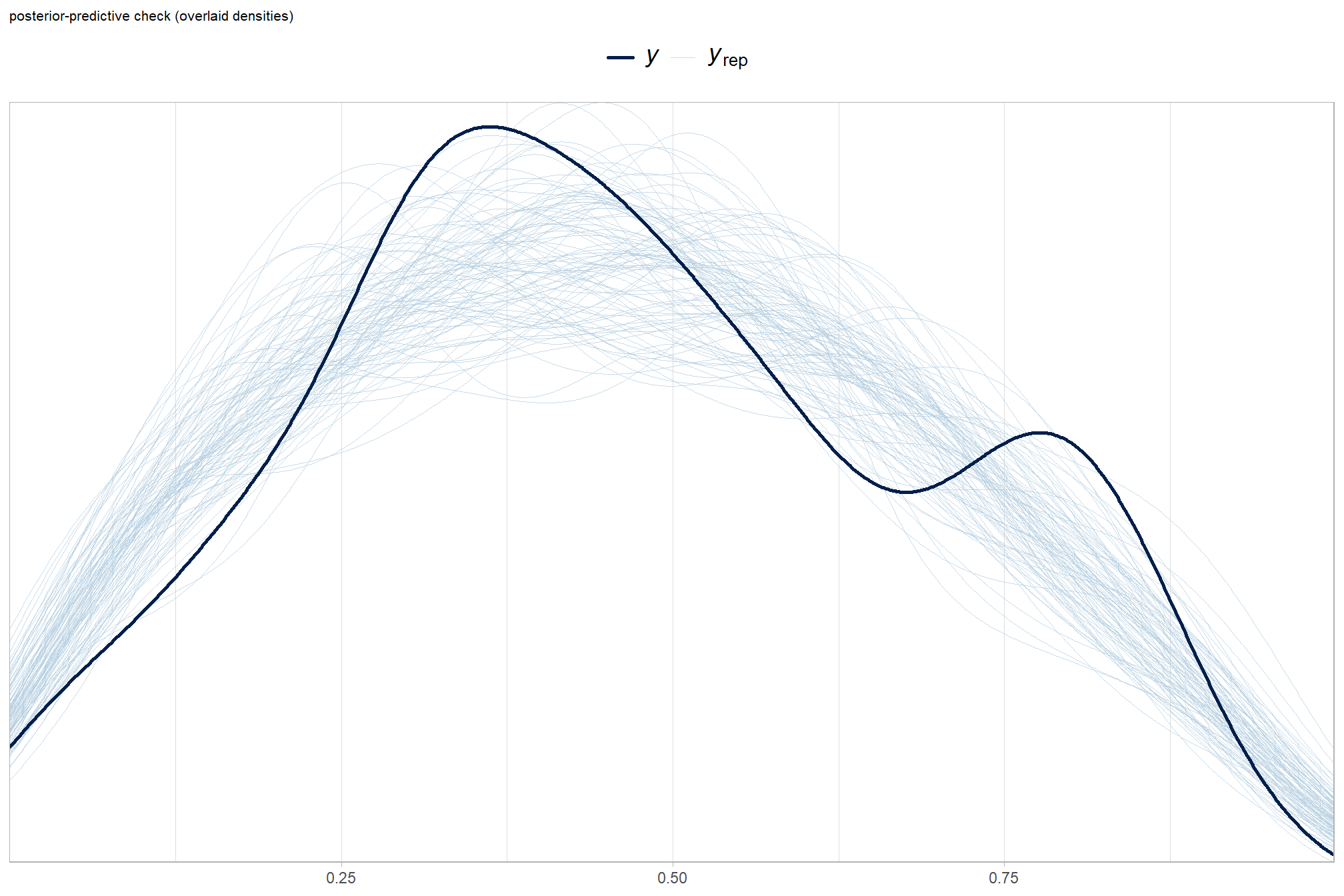

posterior-predictive check to make sure the model does an okay job simulating data that resemble the sample data

# posterior predictive check
brms::pp_check(
    brms_f_mod5
    , type = "dens_overlay"
    , ndraws = 100
  ) +
  labs(subtitle = "posterior-predictive check (overlaid densities)") +
  theme_light() +
  scale_y_continuous(NULL, breaks = NULL) +
  theme(
    legend.position = "top", legend.direction = "horizontal"
    , legend.text = element_text(size = 14)
    , plot.subtitle = element_text(size = 8)
    , plot.title = element_text(size = 9)
  )

ggplot2::ggsave("../data/ppchk_ovrll_mod5.png", height = 7, width = 10.5)

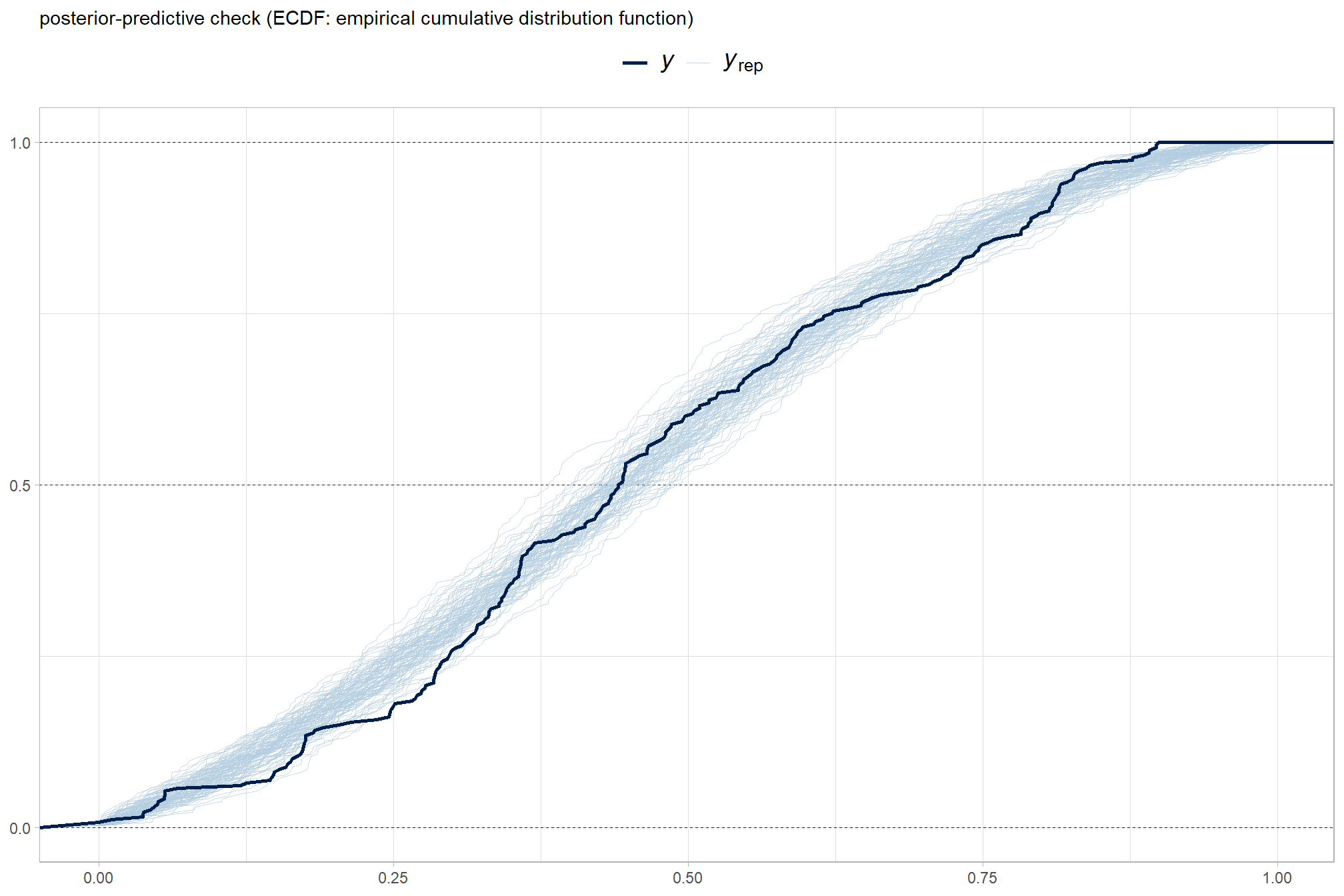

another way

brms::pp_check(brms_f_mod5, type = "ecdf_overlay", ndraws = 100) +
  labs(subtitle = "posterior-predictive check (ECDF: empirical cumulative distribution function)") +
  theme_light() +
  theme(
    legend.position = "top", legend.direction = "horizontal"
    , legend.text = element_text(size = 14)
  )

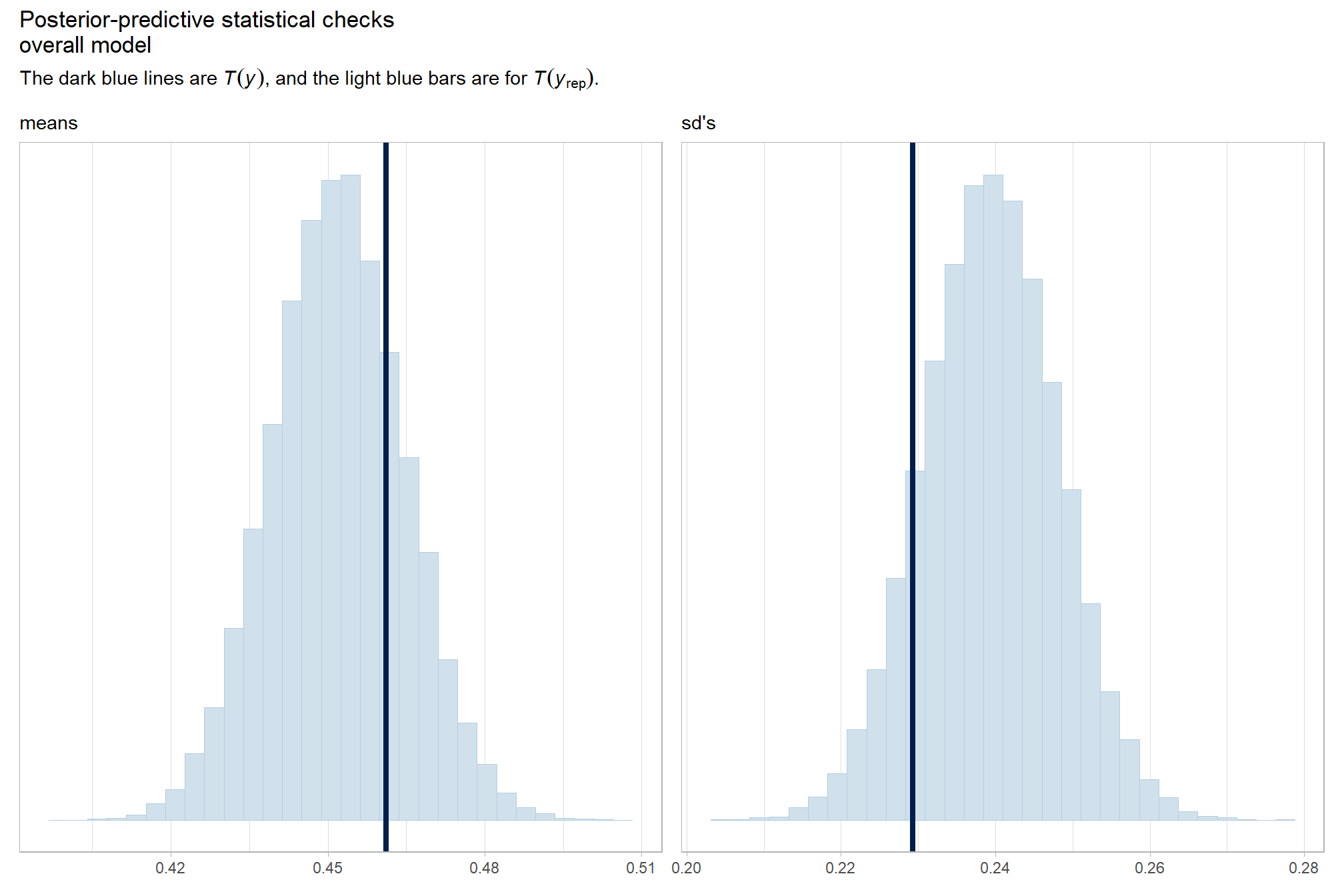

and another posterior predictive check for the overall model

# means
p1_temp = brms::pp_check(
    brms_f_mod5
    , type = "stat"
    , stat = "mean"
  ) +
  scale_y_continuous(NULL, breaks = c(NULL)) +
  labs(subtitle = "means") +
  theme_light()
# sds
p2_temp = brms::pp_check(
    brms_f_mod5
    , type = "stat"
    , stat = "sd"
  ) +
  scale_y_continuous(NULL, breaks = c(NULL)) +
  labs(subtitle = "sd's") +
  theme_light()

# combine
(p1_temp + p2_temp) &
  theme(legend.position = "none") &
  plot_annotation(
    title = "Posterior-predictive statistical checks\noverall model"
    , subtitle = expression(
      "The dark blue lines are "*italic(T(y))*", and the light blue bars are for "*italic(T)(italic(y)[rep])*".")
  )

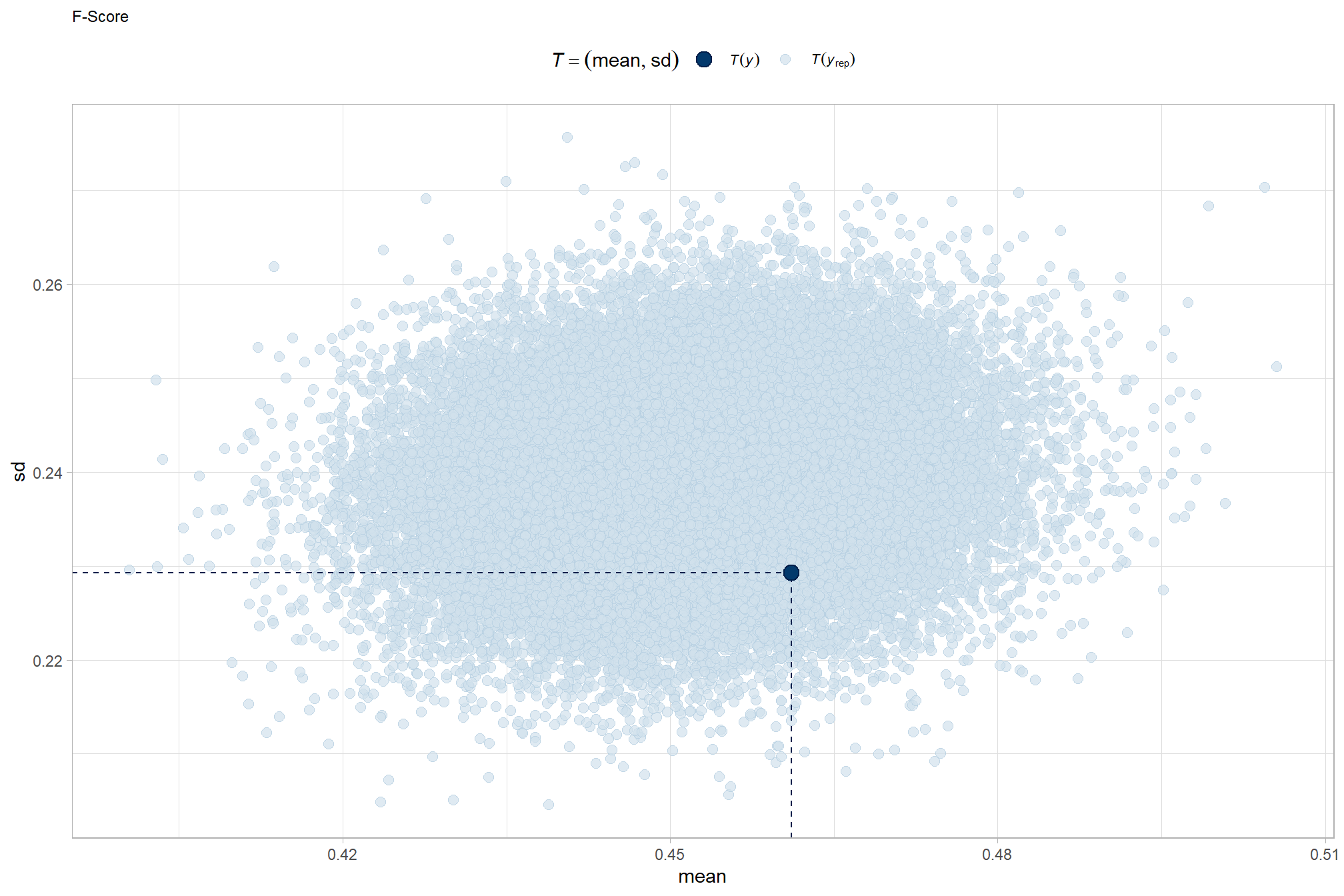

and another posterior predictive check for the overall model combining mean and sd

brms::pp_check(brms_f_mod5, type = "stat_2d") +
  theme_light() +
  labs(title = "F-Score") +
  theme(
    legend.position = "top", legend.direction = "horizontal"
    , legend.text = element_text(size = 8)
    , plot.title = element_text(size = 9)
  )

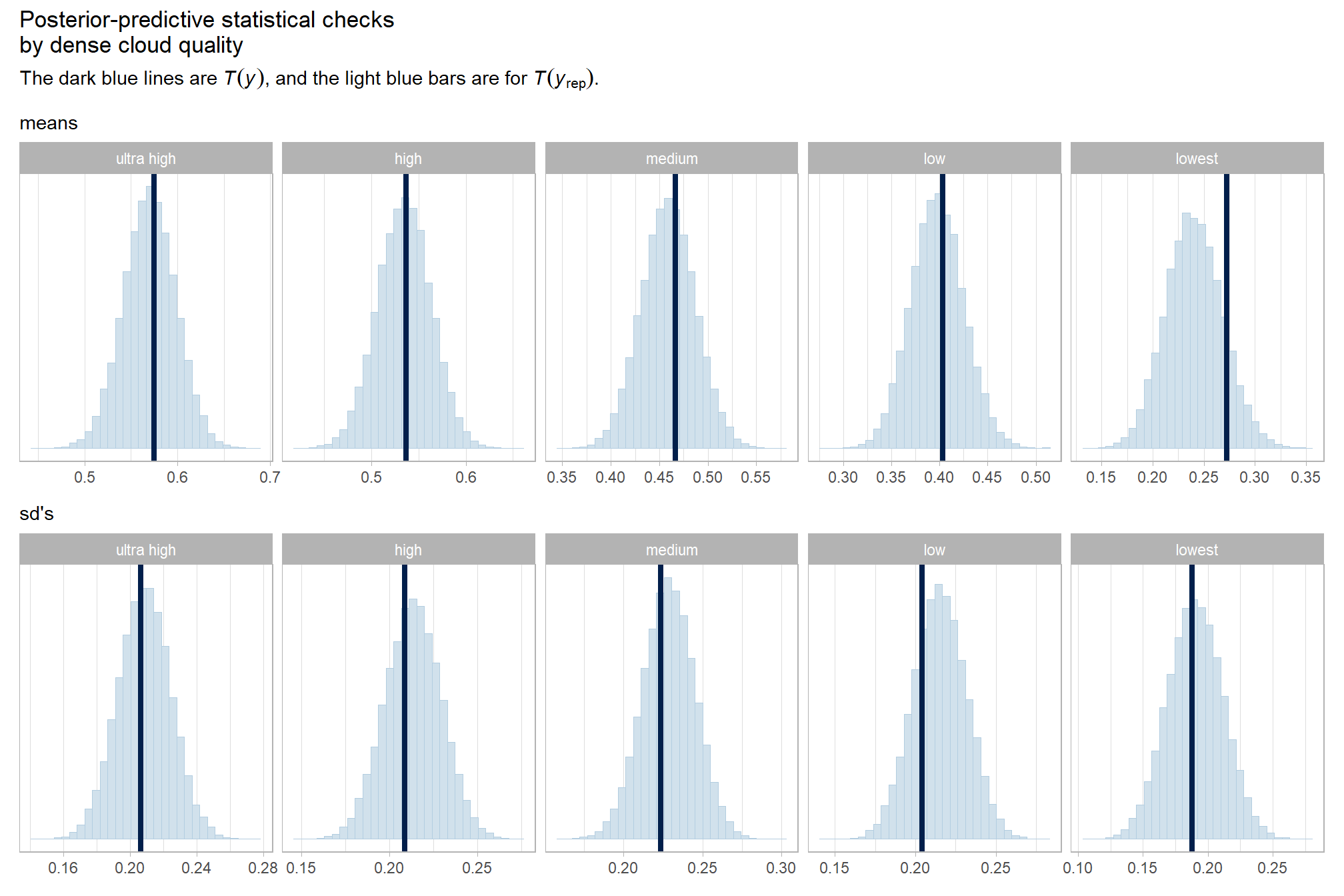

How’d we do capturing the conditional means and standard deviations by depth map generation quality?

# means
p1_temp = brms::pp_check(
    brms_f_mod5
    , type = "stat_grouped" # "dens_overlay_grouped"
    , stat = "mean"
    , group = "depth_maps_generation_quality"
  ) +
  scale_y_continuous(NULL, breaks = c(NULL)) +
  labs(subtitle = "means") +
  facet_grid(cols = vars(group), scales = "free") +
  theme_light()
# sds
p2_temp = brms::pp_check(
    brms_f_mod5
    , type = "stat_grouped" # "dens_overlay_grouped"
    , stat = "sd"
    , group = "depth_maps_generation_quality"
  ) +
  scale_y_continuous(NULL, breaks = c(NULL)) +
  labs(subtitle = "sd's") +
  facet_grid(cols = vars(group), scales = "free") +
  theme_light()
# combine
(p1_temp / p2_temp) &
  theme(legend.position = "none") &
  plot_annotation(
    title = "Posterior-predictive statistical checks\nby dense cloud quality"
    , subtitle = expression(
      "The dark blue lines are "*italic(T(y))*", and the light blue bars are for "*italic(T)(italic(y)[rep])*".")
  )

ggplot2::ggsave("../data/ppchk_qlty_mod5.png", height = 7, width = 10.5)

Both the means and sd’s of the F-score are well represented across the different levels of dense cloud quality

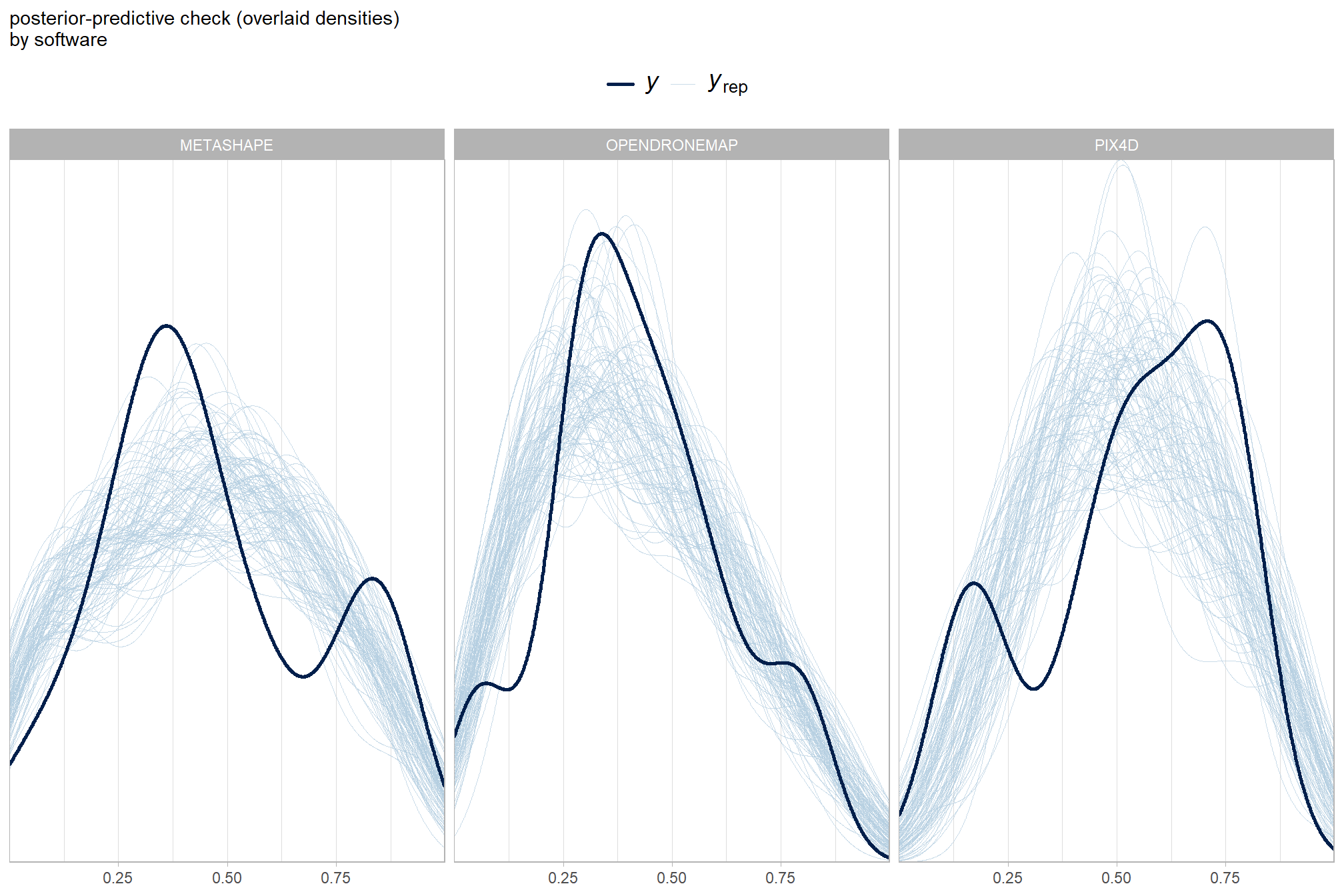

What about for the software?

pp_check(brms_f_mod5, "dens_overlay_grouped", group = "software", ndraws = 100) +
  labs(subtitle = "posterior-predictive check (overlaid densities)\nby software") +
  theme_light() +
  scale_y_continuous(NULL, breaks = NULL) +
  theme(
    legend.position = "top", legend.direction = "horizontal"
    , legend.text = element_text(size = 14)
  )

ggplot2::ggsave("../data/ppchk_sftwr_mod5.png", height = 7, width = 10.5)

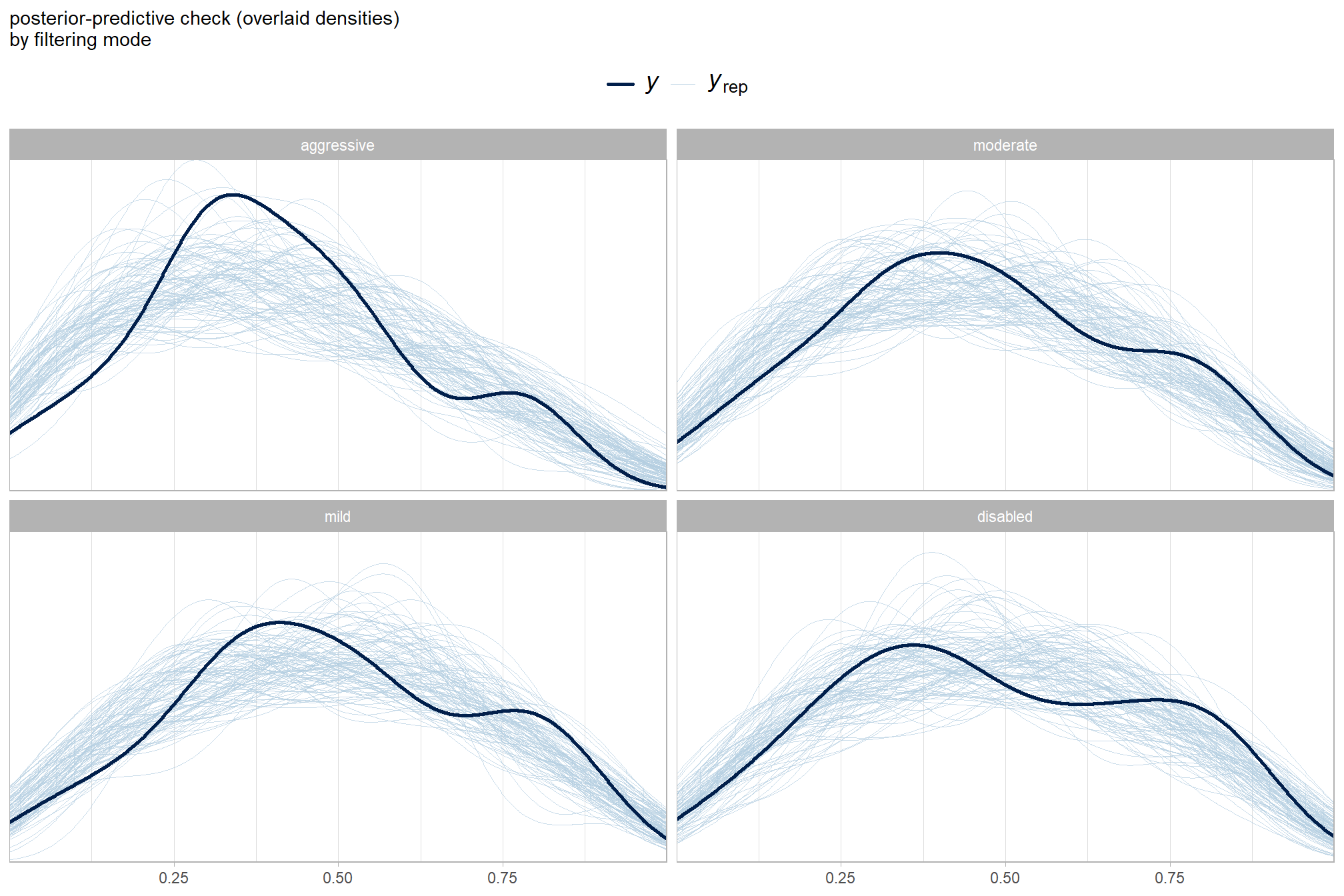

and what about for the filtering mode?

pp_check(brms_f_mod5, "dens_overlay_grouped", group = "depth_maps_generation_filtering_mode", ndraws = 100) +
  labs(subtitle = "posterior-predictive check (overlaid densities)\nby filtering mode") +
  theme_light() +
  scale_y_continuous(NULL, breaks = NULL) +
  theme(
    legend.position = "top", legend.direction = "horizontal"
    , legend.text = element_text(size = 14)
  )

It looks like our model is making predictions that are consistent with our original data, which is what we want.

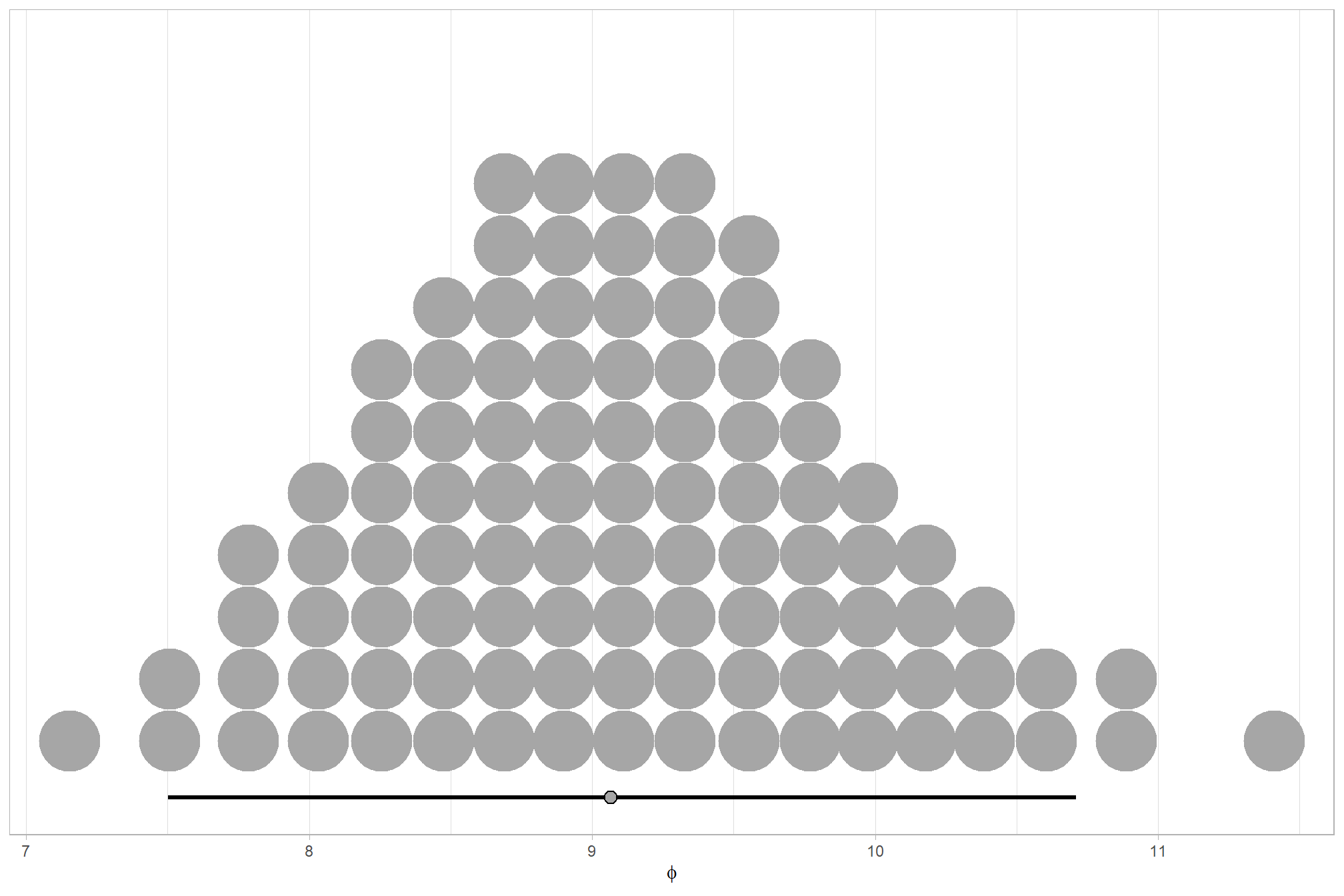

We can look at the model noise standard deviation (concentration) \(\phi\) and the intercept

We can think of mean (\(\mu\)) and precision (\(\phi\)) just like with a normal distribution and its mean and standard deviation.

# get formula
form_temp = brms_f_mod5$formula$formula[3] %>%
  as.character() %>% get_frmla_text() %>%
  stringr::str_replace_all("depth_maps_generation_quality", "quality") %>%
  stringr::str_replace_all("depth_maps_generation_filtering_mode", "filtering")
# extract the posterior draws
brms::as_draws_df(brms_f_mod5) %>%
# plot
  ggplot(aes(x = phi, y = 0)) +
  tidybayes::stat_dotsinterval(
    point_interval = median_hdi, .width = .95
    , justification = -0.04
    , shape = 21, point_size = 3
    , quantiles = 100
  ) +
  scale_y_continuous(NULL, breaks = NULL) +
  labs(
    x = latex2exp::TeX("$\\phi$")
    # , caption = form_temp
  ) +
  theme_light()

ggplot2::ggsave("../data/phi_posterior_mod5.png", height = 7, width = 10.5)

6.4.2.4 Quality:Filtering - interaction

Are there differences in F-score based on dense point cloud generation quality within each level of filtering mode?

Here, we collapse across the study site and software to compare the combined dense cloud quality and filtering mode effect.

In a hierarchical model structure, we have to make use of the re_formula argument within tidybayes::add_epred_draws

qlty_filter_draws_temp =
  ptcld_validation_data %>%
    dplyr::distinct(depth_maps_generation_quality, depth_maps_generation_filtering_mode) %>%
    tidybayes::add_epred_draws(
      brms_f_mod5, allow_new_levels = T
      # this part is crucial
      , re_formula = ~ (1 | depth_maps_generation_quality) +
        (1 | depth_maps_generation_filtering_mode) +
        (1 | depth_maps_generation_quality:depth_maps_generation_filtering_mode)
    ) %>%
    dplyr::rename(value = .epred) %>%
    dplyr::mutate(med = tidybayes::median_hdci(value)$y)
# plot
  qlty_filter_draws_temp %>%
    dplyr::mutate(depth_maps_generation_quality = depth_maps_generation_quality %>% forcats::fct_rev()) %>%
  # plot
  ggplot(
    mapping = aes(
      y = value, x = depth_maps_generation_filtering_mode
      # , fill = depth_maps_generation_filtering_mode
      , fill = med
    )
  ) +
    tidybayes::stat_eye(
      point_interval = median_hdi, .width = .95
      , slab_alpha = 0.95
      , interval_color = "black", linewidth = 1
      , point_color = "black", point_fill = "black", point_size = 1
    ) +
    # scale_fill_viridis_d(option = "plasma", drop = F) +
    scale_fill_viridis_c(option = "mako", direction=-1, begin = 0.2, end = 0.8, limits = c(0,1)) +
    scale_y_continuous(limits = c(0,1), breaks = scales::extended_breaks(n=8)) +
    facet_grid(cols = vars(depth_maps_generation_quality)) +
    labs(
      x = "filtering mode", y = "F-score"
      , subtitle = "posterior predictive distribution of F-score with 95% HDI\nby dense cloud quality"
      , fill = "Filtering Mode"
      # , caption = form_temp
    ) +
    theme_light() +
    theme(
      legend.position = "none"
      , legend.direction  = "horizontal"
      , axis.text.x = element_text(angle = 90, vjust = 0.5, hjust = 1)
      , strip.text = element_text(color = "black", face = "bold")
    )

ggplot2::ggsave(
  "../data/qlty_fltr_mod5.png"
  , plot = ggplot2::last_plot() + labs(subtitle = "")
  , height = 7, width = 10.5
)

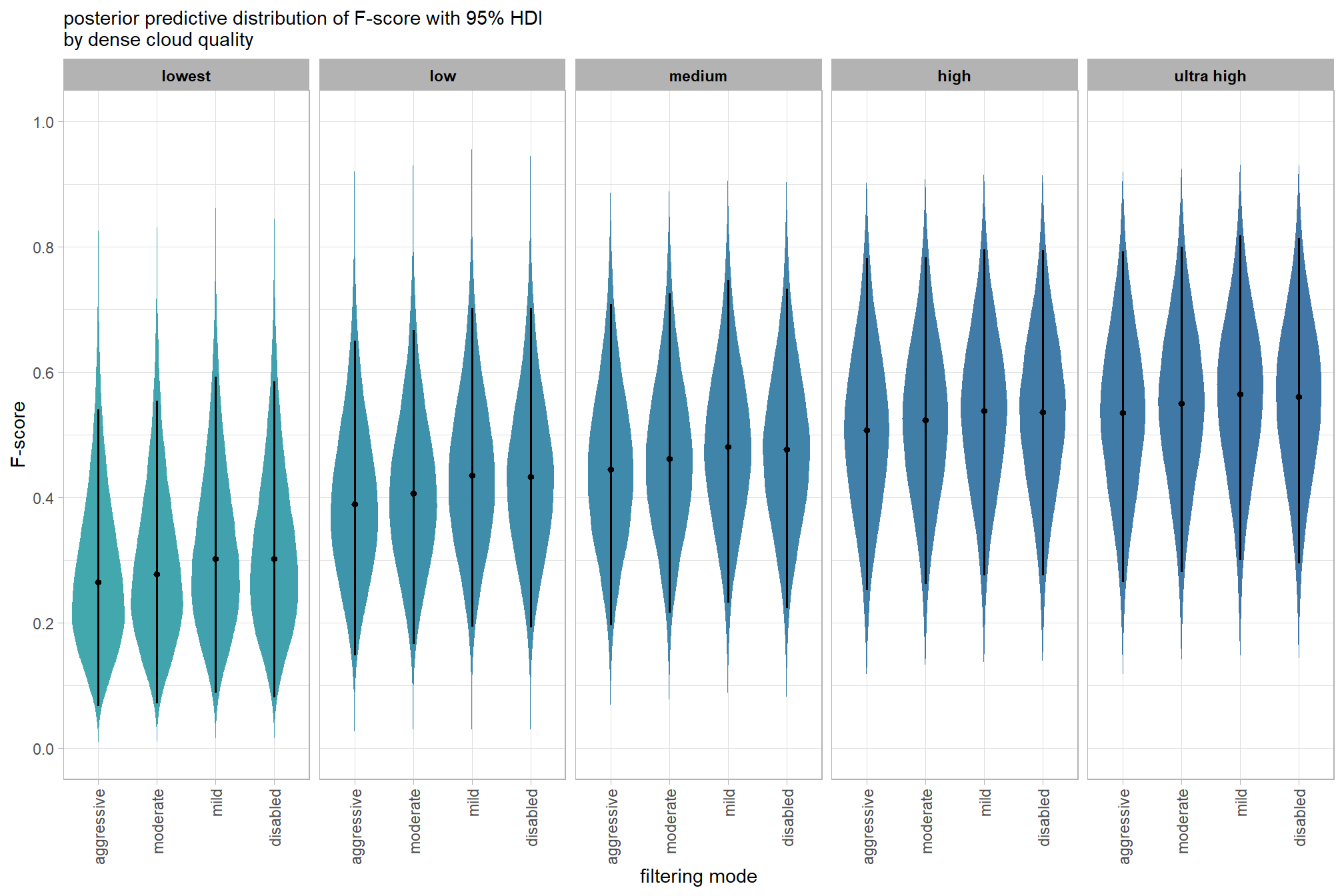

and a table of these 95% HDI values

table_temp =
  qlty_filter_draws_temp %>%
    tidybayes::median_hdi(value) %>%
    dplyr::select(-c(.point,.interval, .width,.row)) %>%
    dplyr::arrange(depth_maps_generation_quality, depth_maps_generation_filtering_mode)

table_temp %>%
  dplyr::select(-c(depth_maps_generation_quality)) %>%
  kableExtra::kbl(
    digits = 2
    , caption = "F-score<br>95% HDI of the posterior predictive distribution"
    , col.names = c(
      "filtering mode"
      , "F-score<br>median"
      , "HDI low", "HDI high"
    )
    , escape = F
  ) %>%
  kableExtra::kable_styling() %>%
  kableExtra::pack_rows(index = table(forcats::fct_inorder(table_temp$depth_maps_generation_quality))) %>%
  kableExtra::scroll_box(height = "8in")
Table 6.6: F-score
95% HDI of the posterior predictive distribution
filtering mode F-score
median 		HDI low HDI high
ultra high
aggressive 0.54 0.27 0.79
moderate 0.55 0.28 0.80
mild 0.57 0.30 0.82
disabled 0.56 0.29 0.81
high
aggressive 0.51 0.25 0.78
moderate 0.52 0.26 0.78
mild 0.54 0.28 0.80
disabled 0.54 0.28 0.80
medium
aggressive 0.44 0.20 0.71
moderate 0.46 0.22 0.73
mild 0.48 0.23 0.75
disabled 0.48 0.22 0.73
low
aggressive 0.39 0.15 0.65
moderate 0.41 0.17 0.67
mild 0.44 0.19 0.70
disabled 0.43 0.19 0.70
lowest
aggressive 0.26 0.07 0.54
moderate 0.28 0.07 0.55
mild 0.30 0.09 0.59
disabled 0.30 0.08 0.59

we can also make pairwise comparisons so long as we continue using tidybayes::add_epred_draws with the re_formula argument

brms_contrast_temp = qlty_filter_draws_temp %>%
    tidybayes::compare_levels(
      value
      , by = depth_maps_generation_quality
      , comparison =
        contrast_list
        # tidybayes::emmeans_comparison("revpairwise")
        #"pairwise"
    ) %>%
    dplyr::rename(contrast = depth_maps_generation_quality)

# separate contrast
brms_contrast_temp = brms_contrast_temp %>%
  dplyr::ungroup() %>%
  tidyr::separate_wider_delim(
    cols = contrast
    , delim = " - "
    , names = paste0(
        "sorter"
        , 1:(max(stringr::str_count(brms_contrast_temp$contrast, "-"))+1)
      )
    , too_few = "align_start"
    , cols_remove = F
  ) %>%
  dplyr::filter(sorter1!=sorter2) %>%
  dplyr::mutate(
    dplyr::across(
      tidyselect::starts_with("sorter")
      , .fns = function(x){factor(
        x, ordered = T
        , levels = levels(ptcld_validation_data$depth_maps_generation_quality)
      )}
    )
    , contrast = contrast %>%
      forcats::fct_reorder(
        paste0(as.numeric(sorter1), as.numeric(sorter2)) %>%
        as.numeric()
      )
    , depth_maps_generation_filtering_mode = depth_maps_generation_filtering_mode %>%
      factor(
        levels = levels(ptcld_validation_data$depth_maps_generation_filtering_mode)
        , ordered = T
      )
  ) %>%
  # median_hdi summary for coloring
  dplyr::group_by(contrast,depth_maps_generation_filtering_mode) %>%
  make_contrast_vars()

what is this contrast data?

# what?
brms_contrast_temp %>% dplyr::glimpse()
## Rows: 1,600,000
## Columns: 19
## Groups: contrast, depth_maps_generation_filtering_mode [40]
## $ depth_maps_generation_filtering_mode <ord> aggressive, aggressive, aggressiv…
## $ .chain                               <int> NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .iteration                           <int> NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .draw                                <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11…
## $ sorter1                              <ord> ultra high, ultra high, ultra hig…
## $ sorter2                              <ord> high, high, high, high, high, hig…
## $ contrast                             <fct> ultra high - high, ultra high - h…
## $ value                                <dbl> 0.083223039, -0.003290295, 0.0391…
## $ median_hdi_est                       <dbl> 0.02335122, 0.02335122, 0.0233512…
## $ median_hdi_lower                     <dbl> -0.1508205, -0.1508205, -0.150820…
## $ median_hdi_upper                     <dbl> 0.206113, 0.206113, 0.206113, 0.2…
## $ pr_gt_zero                           <chr> "62%", "62%", "62%", "62%", "62%"…
## $ pr_lt_zero                           <chr> "38%", "38%", "38%", "38%", "38%"…
## $ is_diff_dir                          <lgl> TRUE, FALSE, TRUE, FALSE, TRUE, T…
## $ pr_diff                              <dbl> 0.615375, 0.615375, 0.615375, 0.6…
## $ pr_diff_lab                          <chr> "Pr(ultra high>high)=62%", "Pr(ul…
## $ pr_diff_lab_sm                       <chr> "Pr(>0)=62%", "Pr(>0)=62%", "Pr(>…
## $ pr_diff_lab_pos                      <dbl> 0.2215714, 0.2215714, 0.2215714, …
## $ sig_level                            <ord> <80%, <80%, <80%, <80%, <80%, <80…

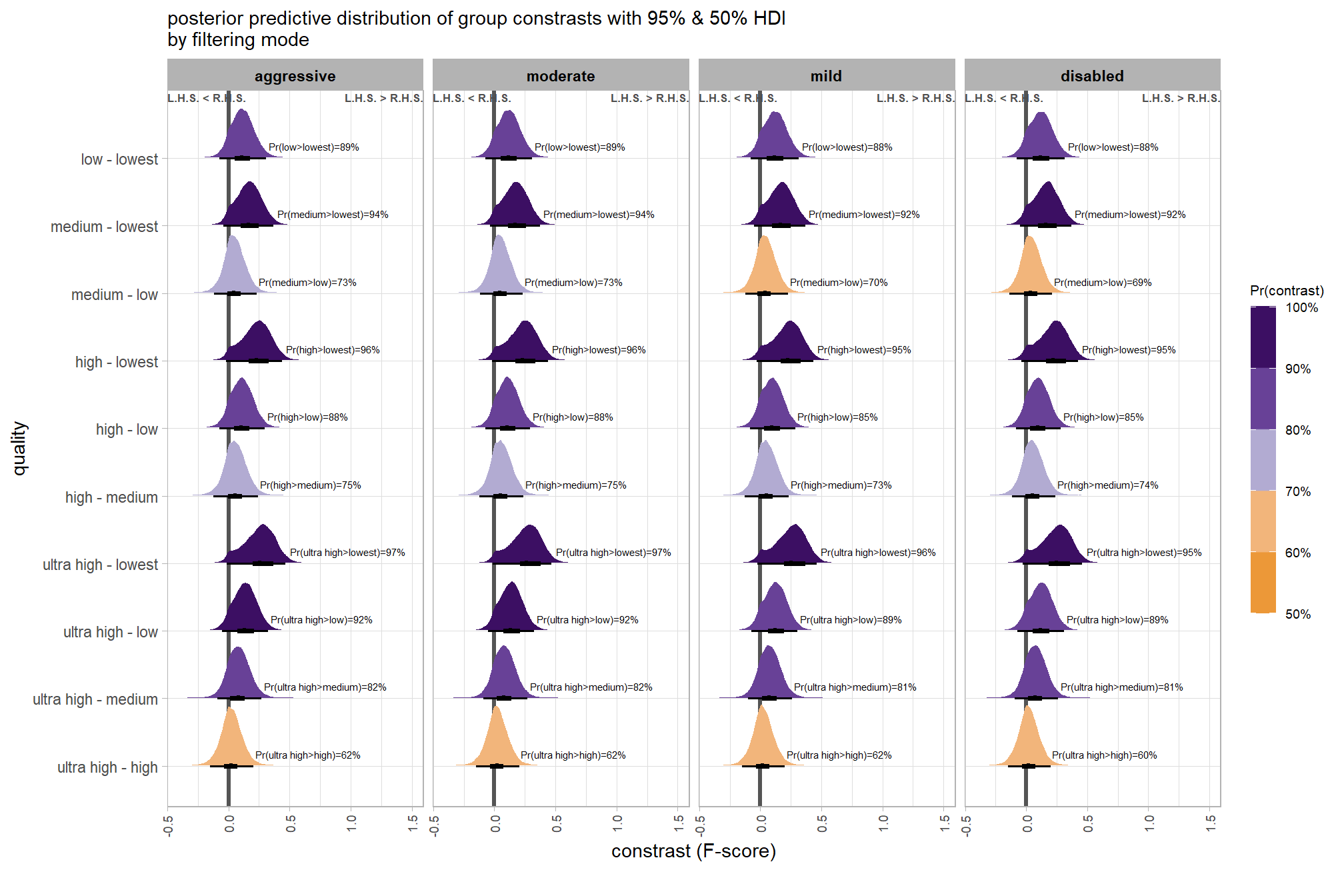

plot it

plt_contrast(
  brms_contrast_temp
  # , caption_text = form_temp
  , y_axis_title = "quality"
  , facet = "depth_maps_generation_filtering_mode"
  , label_size = 2.0
  , x_expand = c(0,0.6)
) +
  labs(
    subtitle = "posterior predictive distribution of group constrasts with 95% & 50% HDI\nby filtering mode"
  ) +
  theme(
    axis.text.x = element_text(size = 7)
  )

ggplot2::ggsave(
  "../data/qlty_fltr_comp_mod5.png"
  , plot = ggplot2::last_plot() + labs(subtitle = "")
  , height = 7, width = 10.5
)

and summarize these contrasts

table_temp =
  brms_contrast_temp %>%
  dplyr::group_by(contrast, depth_maps_generation_filtering_mode, pr_gt_zero) %>%
  tidybayes::median_hdi(value) %>%
  dplyr::arrange(contrast, depth_maps_generation_filtering_mode) %>%
  dplyr::select(contrast, depth_maps_generation_filtering_mode, value, .lower, .upper, pr_gt_zero) %>%
  dplyr::arrange(contrast, depth_maps_generation_filtering_mode)

table_temp %>%
  dplyr::select(-c(contrast)) %>%
kableExtra::kbl(
    digits = 2
    , caption = "brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts"
    , col.names = c(
      "filtering mode"
      , "median difference<br>F-score"
      , "HDI low", "HDI high"
      , "Pr(diff>0)"
    )
    , escape = F
  ) %>%
  kableExtra::kable_styling() %>%
  kableExtra::pack_rows(index = table(forcats::fct_inorder(table_temp$contrast))) %>%
  kableExtra::scroll_box(height = "8in")
Table 6.7: brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts
filtering mode median difference
F-score 		HDI low HDI high Pr(diff>0)
ultra high - high
aggressive 0.02 -0.15 0.21 62%
moderate 0.02 -0.15 0.20 62%
mild 0.02 -0.15 0.20 62%
disabled 0.02 -0.15 0.20 60%
ultra high - medium
aggressive 0.08 -0.09 0.27 82%
moderate 0.08 -0.09 0.27 82%
mild 0.08 -0.10 0.26 81%
disabled 0.08 -0.10 0.26 81%
ultra high - low
aggressive 0.13 -0.05 0.32 92%
moderate 0.14 -0.05 0.32 92%
mild 0.12 -0.07 0.30 89%
disabled 0.12 -0.07 0.31 89%
ultra high - lowest
aggressive 0.26 -0.01 0.47 97%
moderate 0.26 -0.01 0.47 97%
mild 0.25 -0.02 0.46 96%
disabled 0.25 -0.03 0.46 95%
high - medium
aggressive 0.06 -0.12 0.24 75%
moderate 0.05 -0.12 0.24 75%
mild 0.05 -0.13 0.23 73%
disabled 0.05 -0.12 0.24 74%
high - low
aggressive 0.11 -0.07 0.30 88%
moderate 0.11 -0.08 0.29 88%
mild 0.10 -0.08 0.28 85%
disabled 0.10 -0.09 0.28 85%
high - lowest
aggressive 0.23 -0.02 0.44 96%
moderate 0.23 -0.02 0.44 96%
mild 0.23 -0.03 0.43 95%
disabled 0.22 -0.04 0.43 95%
medium - low
aggressive 0.05 -0.12 0.23 73%
moderate 0.05 -0.12 0.23 73%
mild 0.04 -0.12 0.23 70%
disabled 0.04 -0.14 0.21 69%
medium - lowest
aggressive 0.17 -0.04 0.37 94%
moderate 0.17 -0.04 0.37 94%
mild 0.17 -0.05 0.37 92%
disabled 0.16 -0.05 0.37 92%
low - lowest
aggressive 0.11 -0.07 0.31 89%
moderate 0.12 -0.08 0.31 89%
mild 0.12 -0.08 0.32 88%
disabled 0.12 -0.08 0.32 88%

6.4.2.5 Software:Quality - interaction

It might be more important to understand the difference in F-score by dense cloud quality and software rather than filtering mode since filtering mode had such a small effect on the SfM predictive ability

Are there differences in F-score based on dense point cloud generation quality within each different processing software? We will also address the similar but slightly different question of “are there differences in F-score based on the processing software used at a given dense point cloud generation quality?”

Here, we collapse across the study site and filtering mode to compare the combined dense cloud quality and software effect.

In a hierarchical model structure, we have to make use of the re_formula argument within tidybayes::add_epred_draws

# get draws
qlty_sftwr_draws_temp =
  tidyr::crossing(
    depth_maps_generation_quality = unique(ptcld_validation_data$depth_maps_generation_quality)
    , software = unique(ptcld_validation_data$software)
  ) %>%
  tidybayes::add_epred_draws(
    brms_f_mod5, allow_new_levels = T
    # this part is crucial
    , re_formula = ~ (1 | depth_maps_generation_quality) +
      (1 | software) +
      (1 | depth_maps_generation_quality:software)
  ) %>%
  dplyr::rename(value = .epred) %>%
  dplyr::mutate(
    med = tidybayes::median_hdci(value)$y
  )

# plot
qlty_sftwr_draws_temp %>%
  # remove out-of-sample obs
  dplyr::inner_join(
    ptcld_validation_data %>% dplyr::distinct(depth_maps_generation_quality, software)
    , by = dplyr::join_by(depth_maps_generation_quality, software)
  ) %>%
  dplyr::mutate(
    depth_maps_generation_quality = depth_maps_generation_quality %>% forcats::fct_rev()
  ) %>%
  # plot
  ggplot(
    mapping = aes(
      y = value, x = software
      # , fill = software
      , fill = med
    )
  ) +
  tidybayes::stat_eye(
    point_interval = median_hdi, .width = .95
    , slab_alpha = 0.95
    , interval_color = "black", linewidth = 1
    , point_color = "black", point_fill = "black", point_size = 1
  ) +
  # scale_fill_viridis_d(option = "rocket", begin = 0.3, end = 0.9, drop = F) +
  scale_fill_viridis_c(option = "mako", direction=-1, begin = 0.2, end = 0.8, limits = c(0,1)) +
  scale_y_continuous(limits = c(0,1), breaks = scales::extended_breaks(n=8)) +
  facet_grid(cols = vars(depth_maps_generation_quality)) +
  labs(
    x = "software", y = "F-score"
    , subtitle = "posterior predictive distribution of F-score with 95% HDI\nby dense cloud quality"
    # , caption = form_temp
  ) +
  theme_light() +
  theme(
    legend.position = "none"
    , legend.direction  = "horizontal"
    , axis.text.x = element_text(angle = 90, vjust = 0.5, hjust = 1)
    , strip.text = element_text(color = "black", face = "bold")
  )

and a table of these 95% HDI values

table_temp =
  qlty_sftwr_draws_temp %>%
    tidybayes::median_hdi(value) %>%
    # remove out-of-sample obs
    dplyr::inner_join(
      ptcld_validation_data %>% dplyr::distinct(depth_maps_generation_quality, software)
      , by = dplyr::join_by(depth_maps_generation_quality, software)
    ) %>%
    dplyr::select(-c(.point,.interval, .width,.row)) %>%
    dplyr::arrange(software,depth_maps_generation_quality)

table_temp %>%
  dplyr::select(-c(software)) %>%
  kableExtra::kbl(
    digits = 2
    , caption = "F-score<br>95% HDI of the posterior predictive distribution"
    , col.names = c(
      "quality"
      , "F-score<br>median"
      , "HDI low", "HDI high"
    )
    , escape = F
  ) %>%
  kableExtra::kable_styling() %>%
  kableExtra::pack_rows(index = table(forcats::fct_inorder(table_temp$software))) %>%
  kableExtra::scroll_box(height = "8in")
Table 6.8: F-score
95% HDI of the posterior predictive distribution
quality F-score
median 		HDI low HDI high
METASHAPE
ultra high 0.61 0.39 0.81
high 0.59 0.38 0.80
medium 0.54 0.32 0.76
low 0.40 0.20 0.63
lowest 0.15 0.05 0.29
OPENDRONEMAP
ultra high 0.59 0.37 0.80
high 0.50 0.29 0.73
medium 0.33 0.15 0.55
low 0.33 0.16 0.56
lowest 0.32 0.14 0.53
PIX4D
ultra high 0.55 0.31 0.76
high 0.54 0.32 0.76
medium 0.54 0.31 0.76
low 0.47 0.25 0.70

we can also make pairwise comparisons so long as we continue using tidybayes::add_epred_draws with the re_formula argument

# calculate contrast
brms_contrast_temp = qlty_sftwr_draws_temp %>%
  tidybayes::compare_levels(
    value
    , by = depth_maps_generation_quality
    , comparison = contrast_list
  ) %>%
  dplyr::rename(contrast = depth_maps_generation_quality)

# separate contrast
brms_contrast_temp = brms_contrast_temp %>%
  dplyr::ungroup() %>%
  tidyr::separate_wider_delim(
    cols = contrast
    , delim = " - "
    , names = paste0(
      "sorter"
      , 1:(max(stringr::str_count(brms_contrast_temp$contrast, "-"))+1)
    )
    , too_few = "align_start"
    , cols_remove = F
  ) %>%
  dplyr::filter(sorter1!=sorter2) %>%
  dplyr::mutate(
    dplyr::across(
      tidyselect::starts_with("sorter")
      , .fns = function(x){factor(
        x, ordered = T
        , levels = levels(ptcld_validation_data$depth_maps_generation_quality)
      )}
    )
    , contrast = contrast %>%
      forcats::fct_reorder(
        paste0(as.numeric(sorter1), as.numeric(sorter2)) %>%
          as.numeric()
      )
  ) %>%
  # median_hdi summary for coloring
  dplyr::group_by(contrast, software) %>%
  make_contrast_vars()

# remove out-of-sample obs
brms_contrast_temp = brms_contrast_temp %>%
  dplyr::inner_join(
    ptcld_validation_data %>% dplyr::distinct(software, depth_maps_generation_quality)
    , by = dplyr::join_by(software, sorter1 == depth_maps_generation_quality)
  ) %>%
  dplyr::inner_join(
    ptcld_validation_data %>% dplyr::distinct(software, depth_maps_generation_quality)
    , by = dplyr::join_by(software, sorter2 == depth_maps_generation_quality)
  )

what is this contrast data?

# what?
brms_contrast_temp %>% dplyr::glimpse()
## Rows: 1,040,000
## Columns: 19
## Groups: contrast, software [26]
## $ software         <chr> "METASHAPE", "METASHAPE", "METASHAPE", "METASHAPE", "…
## $ .chain           <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .iteration       <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .draw            <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16…
## $ sorter1          <ord> ultra high, ultra high, ultra high, ultra high, ultra…
## $ sorter2          <ord> high, high, high, high, high, high, high, high, high,…
## $ contrast         <fct> ultra high - high, ultra high - high, ultra high - hi…
## $ value            <dbl> 0.041920792, -0.026803663, 0.071755845, -0.048138613,…
## $ median_hdi_est   <dbl> 0.016348, 0.016348, 0.016348, 0.016348, 0.016348, 0.0…
## $ median_hdi_lower <dbl> -0.07970382, -0.07970382, -0.07970382, -0.07970382, -…
## $ median_hdi_upper <dbl> 0.1179741, 0.1179741, 0.1179741, 0.1179741, 0.1179741…
## $ pr_gt_zero       <chr> "63%", "63%", "63%", "63%", "63%", "63%", "63%", "63%…
## $ pr_lt_zero       <chr> "37%", "37%", "37%", "37%", "37%", "37%", "37%", "37%…
## $ is_diff_dir      <lgl> TRUE, FALSE, TRUE, FALSE, TRUE, TRUE, TRUE, TRUE, TRU…
## $ pr_diff          <dbl> 0.63185, 0.63185, 0.63185, 0.63185, 0.63185, 0.63185,…
## $ pr_diff_lab      <chr> "Pr(ultra high>high)=63%", "Pr(ultra high>high)=63%",…
## $ pr_diff_lab_sm   <chr> "Pr(>0)=63%", "Pr(>0)=63%", "Pr(>0)=63%", "Pr(>0)=63%…
## $ pr_diff_lab_pos  <dbl> 0.1268222, 0.1268222, 0.1268222, 0.1268222, 0.1268222…
## $ sig_level        <ord> <80%, <80%, <80%, <80%, <80%, <80%, <80%, <80%, <80%,…

plot it

plt_contrast(
  brms_contrast_temp
  # , caption_text = form_temp
  , y_axis_title = "quality"
  , facet = "software"
  , label_size = 2.0
  , x_expand = c(0.56,0.9) # c(0,0.7)
) +
  labs(
    subtitle = "posterior predictive distribution of group constrasts with 95% & 50% HDI\nby software"
  )

ggplot2::ggsave(
  "../data/qlty_sftwr_comp_mod5.png"
  , plot = ggplot2::last_plot() + labs(subtitle = "")
  , height = 7, width = 10.5
)

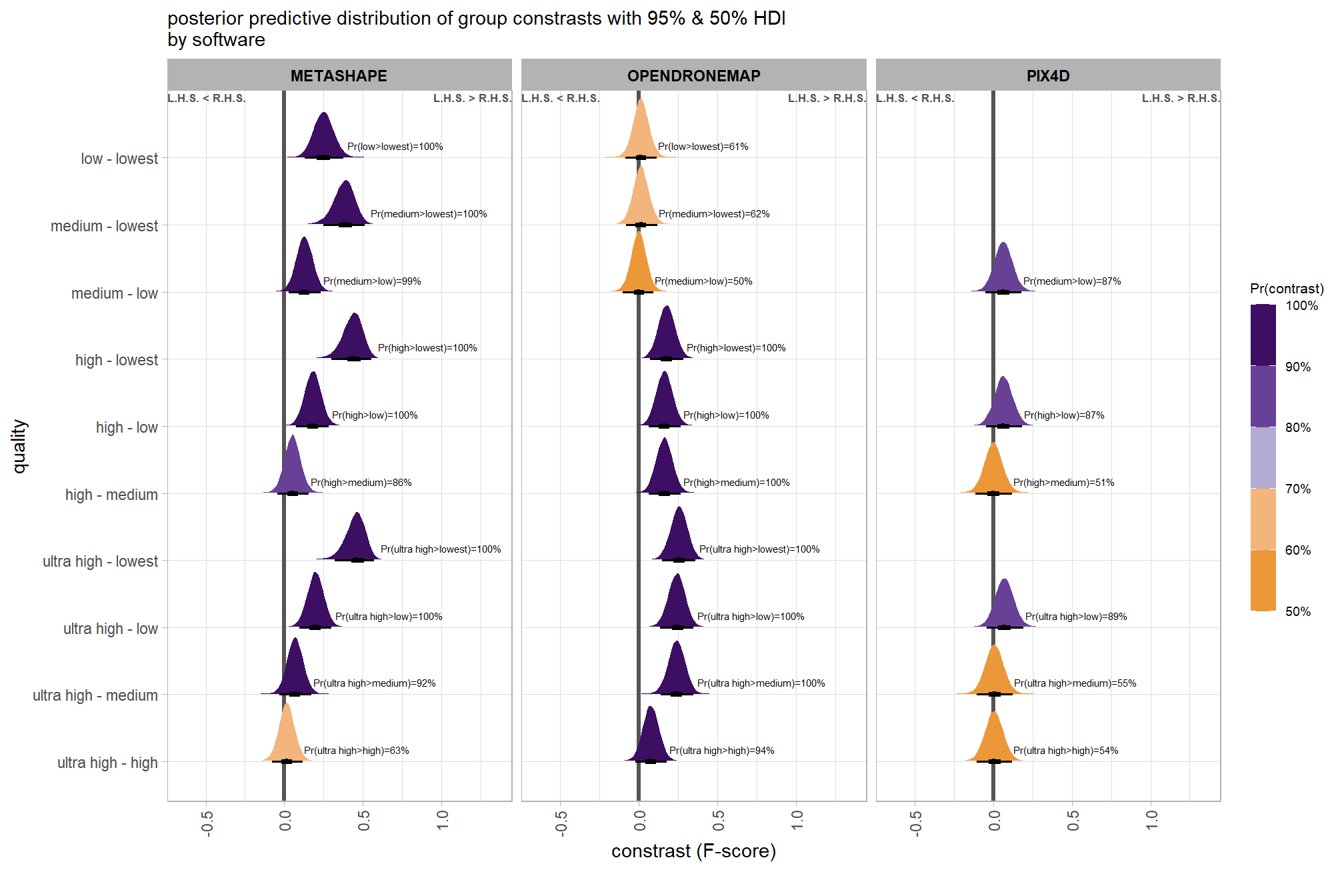

create plot for combining with other contrasts for publication

ptchwrk_qlty_sftwr_comp =
  plt_contrast(
    brms_contrast_temp
    , y_axis_title = "quality contrast"
    , facet = "software"
    , label_size = 1.35
    , label = "pr_diff_lab_sm"
    , annotate_size = 1.75
  ) +
    labs(
      subtitle = ""
      , x = "F-score contrast"
    ) +
    theme(
      legend.position="none"
      , axis.title.y = element_text(size = 10, face = "bold")
      , axis.title.x = element_text(size = 8)
    )
# ptchwrk_qlty_sftwr_comp

and summarize these contrasts

table_temp = brms_contrast_temp %>%
  dplyr::group_by(contrast, software, pr_gt_zero) %>%
  tidybayes::median_hdi(value) %>%
  dplyr::arrange(contrast, software) %>%
  dplyr::select(contrast, software, value, .lower, .upper, pr_gt_zero) %>%
  dplyr::arrange(software, contrast)

table_temp %>%
  dplyr::select(-c(software)) %>%
  kableExtra::kbl(
    digits = 2
    , caption = "brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts"
    , col.names = c(
      "quality contrast"
      , "median difference<br>F-score"
      , "HDI low", "HDI high"
      , "Pr(diff>0)"
    )
    , escape = F
  ) %>%
  kableExtra::kable_styling() %>%
  kableExtra::pack_rows(index = table(forcats::fct_inorder(table_temp$software))) %>%
  kableExtra::scroll_box(height = "8in")
Table 6.9: brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts
quality contrast median difference
F-score 		HDI low HDI high Pr(diff>0)
METASHAPE
ultra high - high 0.02 -0.08 0.12 63%
ultra high - medium 0.07 -0.03 0.17 92%
ultra high - low 0.20 0.10 0.30 100%
ultra high - lowest 0.46 0.32 0.57 100%
high - medium 0.05 -0.04 0.16 86%
high - low 0.18 0.08 0.28 100%
high - lowest 0.44 0.30 0.56 100%
medium - low 0.13 0.03 0.23 99%
medium - lowest 0.38 0.25 0.51 100%
low - lowest 0.25 0.13 0.38 100%
OPENDRONEMAP
ultra high - high 0.08 -0.02 0.18 94%
ultra high - medium 0.24 0.14 0.35 100%
ultra high - low 0.24 0.14 0.35 100%
ultra high - lowest 0.26 0.15 0.36 100%
high - medium 0.16 0.06 0.27 100%
high - low 0.16 0.06 0.27 100%
high - lowest 0.18 0.07 0.28 100%
medium - low 0.00 -0.10 0.09 50%
medium - lowest 0.01 -0.08 0.12 62%
low - lowest 0.01 -0.09 0.11 61%
PIX4D
ultra high - high 0.01 -0.11 0.12 54%
ultra high - medium 0.01 -0.11 0.12 55%
ultra high - low 0.07 -0.04 0.19 89%
high - medium 0.00 -0.11 0.12 51%
high - low 0.07 -0.05 0.18 87%
medium - low 0.06 -0.05 0.18 87%

The contrasts above address the question “are there differences in F-score based on dense point cloud generation quality within each software?”.

To address the different question of “are there differences in F-score based on the processing software used at a given dense point cloud generation quality?” we need to utilize a different formulation of the comparison parameter within our call to the tidybayes::compare_levels function and calculate the contrast by software instead

# calculate contrast
brms_contrast_temp = qlty_sftwr_draws_temp %>%
  tidybayes::compare_levels(
    value
    , by = software
    , comparison = "pairwise"
  ) %>%
  dplyr::rename(contrast = software) %>%
  # median_hdi summary for coloring
  dplyr::group_by(contrast, depth_maps_generation_quality) %>%
  make_contrast_vars()

# remove out-of-sample obs
brms_contrast_temp = brms_contrast_temp %>%
  tidyr::separate_wider_delim(
    cols = contrast
    , delim = " - "
    , names = paste0(
      "sorter"
      , 1:(max(stringr::str_count(brms_contrast_temp$contrast, "-"))+1)
    )
    , too_few = "align_start"
    , cols_remove = F
  ) %>%
  dplyr::filter(sorter1!=sorter2) %>%
  dplyr::inner_join(
    ptcld_validation_data %>% dplyr::distinct(software, depth_maps_generation_quality)
    , by = dplyr::join_by(sorter1 == software, depth_maps_generation_quality)
  ) %>%
  dplyr::inner_join(
    ptcld_validation_data %>% dplyr::distinct(software, depth_maps_generation_quality)
    , by = dplyr::join_by(sorter2 == software, depth_maps_generation_quality)
  )

what is this contrast data?

# what?
brms_contrast_temp %>% dplyr::glimpse()
## Rows: 520,000
## Columns: 19
## Groups: contrast, depth_maps_generation_quality [13]
## $ depth_maps_generation_quality <ord> ultra high, ultra high, ultra high, ultr…
## $ .chain                        <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, …
## $ .iteration                    <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, …
## $ .draw                         <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 1…
## $ sorter1                       <chr> "OPENDRONEMAP", "OPENDRONEMAP", "OPENDRO…
## $ sorter2                       <chr> "METASHAPE", "METASHAPE", "METASHAPE", "…
## $ contrast                      <chr> "OPENDRONEMAP - METASHAPE", "OPENDRONEMA…
## $ value                         <dbl> -0.142911054, -0.020900126, -0.056272385…
## $ median_hdi_est                <dbl> -0.0244408, -0.0244408, -0.0244408, -0.0…
## $ median_hdi_lower              <dbl> -0.1463941, -0.1463941, -0.1463941, -0.1…
## $ median_hdi_upper              <dbl> 0.1008942, 0.1008942, 0.1008942, 0.10089…
## $ pr_gt_zero                    <chr> "34%", "34%", "34%", "34%", "34%", "34%"…
## $ pr_lt_zero                    <chr> "66%", "66%", "66%", "66%", "66%", "66%"…
## $ is_diff_dir                   <lgl> TRUE, TRUE, TRUE, TRUE, FALSE, TRUE, FAL…
## $ pr_diff                       <dbl> 0.6613, 0.6613, 0.6613, 0.6613, 0.6613, …
## $ pr_diff_lab                   <chr> "Pr(MtaShp>ODM)=66%", "Pr(MtaShp>ODM)=66…
## $ pr_diff_lab_sm                <chr> "Pr(<0)=66%", "Pr(<0)=66%", "Pr(<0)=66%"…
## $ pr_diff_lab_pos               <dbl> -0.1573737, -0.1573737, -0.1573737, -0.1…
## $ sig_level                     <ord> <80%, <80%, <80%, <80%, <80%, <80%, <80%…

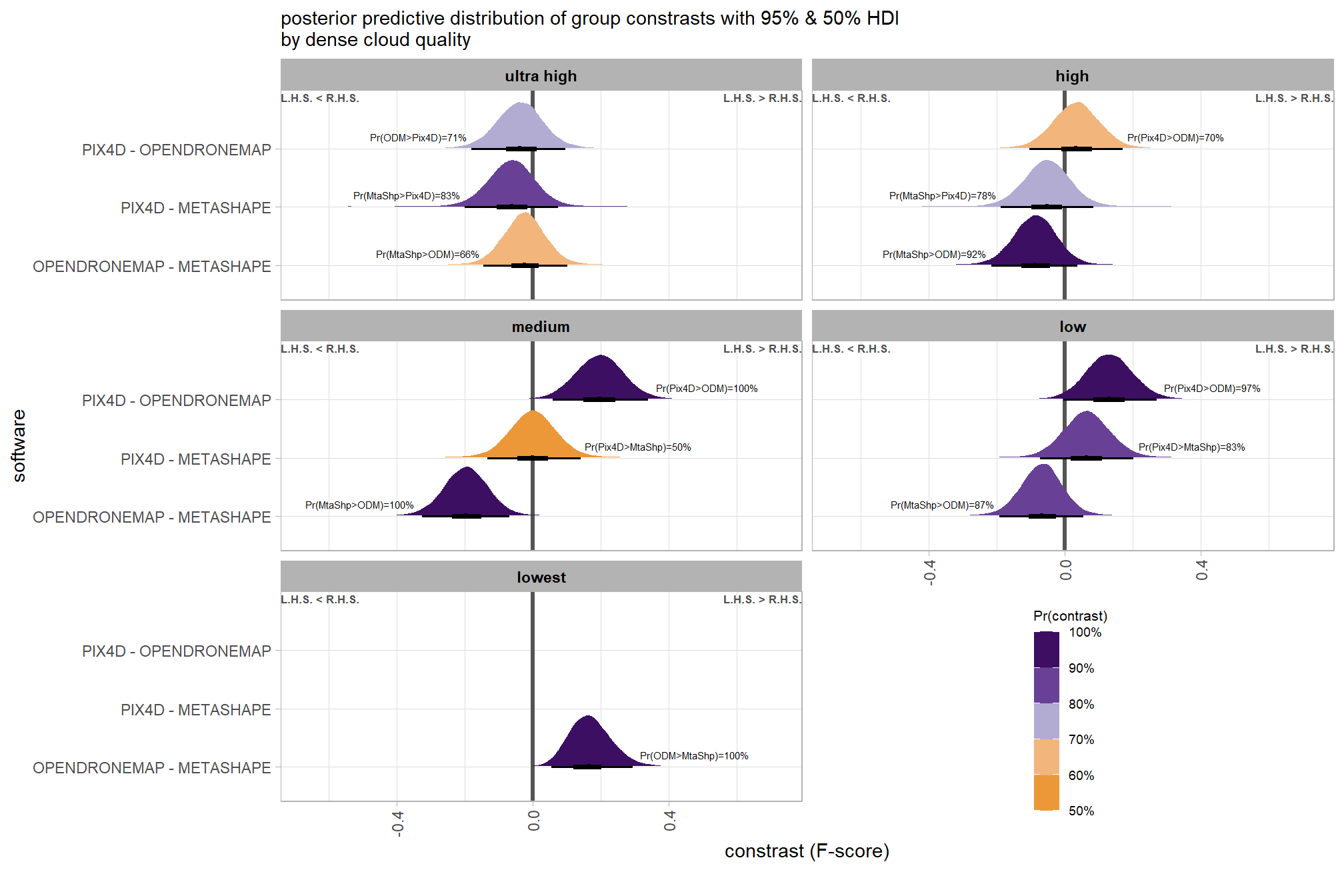

plot it

plt_contrast(
  brms_contrast_temp
  # , caption_text = form_temp
  , y_axis_title = "software"
  , facet = "depth_maps_generation_quality"
  , label_size = 2.0
  , x_expand = c(0.17,0.14)
) +
  facet_wrap(facets = vars(depth_maps_generation_quality), ncol = 2) +
  labs(
    subtitle = "posterior predictive distribution of group constrasts with 95% & 50% HDI\nby dense cloud quality"
  ) +
  theme(
    legend.position = c(.75, .13)
  ) +
  guides(fill = guide_colorbar(theme = theme(
    legend.key.width  = unit(1, "lines"),
    legend.key.height = unit(7, "lines")
  )))

ggplot2::ggsave(
  "../data/sftwr_qlty_comp_mod5.png"
  , plot = ggplot2::last_plot() + labs(subtitle = "")
  , height = 7, width = 10.5
)

create plot for combining with other contrasts for publication

ptchwrk_sftwr_qlty_comp =
  plt_contrast(
    brms_contrast_temp
    , y_axis_title = "software contrast"
    , facet = "depth_maps_generation_quality"
    , label_size = 1.7
    , label = "pr_diff_lab_sm"
    , annotate_size = 1.8
  ) +
    facet_wrap(facets = vars(depth_maps_generation_quality), ncol = 3) +
    labs(
      subtitle = ""
      , x = "F-score constrast"
    ) +
    theme(
      legend.position = "inside"
      , legend.position.inside = c(.8, .11)
      , axis.title.y = element_text(size = 10, face = "bold")
      , axis.title.x = element_text(size = 8)
    ) +
    guides(fill = guide_colorbar(theme = theme(
      legend.key.width  = unit(1, "lines"),
      legend.key.height = unit(7, "lines")
    )))
# ptchwrk_sftwr_qlty_comp

and summarize these contrasts

table_temp = brms_contrast_temp %>%
  dplyr::group_by(contrast, depth_maps_generation_quality, pr_gt_zero) %>%
  tidybayes::median_hdi(value) %>%
  dplyr::arrange(contrast, depth_maps_generation_quality) %>%
  dplyr::select(contrast, depth_maps_generation_quality, value, .lower, .upper, pr_gt_zero)

table_temp %>%
  dplyr::select(-c(contrast)) %>%
  kableExtra::kbl(
    digits = 2
    , caption = "brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts"
    , col.names = c(
      "quality"
      , "median difference<br>F-score"
      , "HDI low", "HDI high"
      , "Pr(diff>0)"
    )
    , escape = F
  ) %>%
  kableExtra::kable_styling() %>%
  kableExtra::pack_rows(index = table(forcats::fct_inorder(table_temp$contrast))) %>%
  kableExtra::scroll_box(height = "8in")
Table 6.10: brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts
quality median difference
F-score 		HDI low HDI high Pr(diff>0)
OPENDRONEMAP - METASHAPE
ultra high -0.02 -0.15 0.10 34%
high -0.09 -0.22 0.04 8%
medium -0.20 -0.33 -0.07 0%
low -0.07 -0.19 0.06 13%
lowest 0.17 0.05 0.29 100%
PIX4D - METASHAPE
ultra high -0.06 -0.20 0.07 17%
high -0.05 -0.19 0.08 22%
medium 0.00 -0.13 0.14 50%
low 0.07 -0.07 0.20 83%
PIX4D - OPENDRONEMAP
ultra high -0.04 -0.18 0.09 29%
high 0.03 -0.10 0.17 70%
medium 0.20 0.06 0.34 100%
low 0.13 0.00 0.27 97%

6.4.2.6 Software:Filtering - interaction

Are there differences in F-score based on dense point cloud filtering mode within each processing software?

Here, we collapse across the study site and depth map generation quality to compare the combined filtering mode and software effect.

In a hierarchical model structure, we have to make use of the re_formula argument within tidybayes::add_epred_draws

Even though filtering mode had a small effect on the SfM predictive ability when averaging across all softwares, there might still be differences in filtering mode within software when we average across all depth map generation quality settings. Let’s check the difference in F-score by depth map filtering mode and software.

# get draws
fltr_sftwr_draws_temp = ptcld_validation_data %>%
  dplyr::distinct(depth_maps_generation_filtering_mode, software) %>%
  tidybayes::add_epred_draws(
    brms_f_mod5, allow_new_levels = T
    # this part is crucial
    , re_formula = ~ (1 | depth_maps_generation_filtering_mode) +
      (1 | software) +
      (1 | depth_maps_generation_filtering_mode:software)
  ) %>%
  dplyr::rename(value = .epred) %>%
  dplyr::mutate(med = tidybayes::median_hdci(value)$y)

  # plot
fltr_sftwr_draws_temp %>%
  ggplot(
    mapping = aes(
      y = value, x = software
      # , fill = software
      , fill = med
    )
  ) +
  tidybayes::stat_eye(
    point_interval = median_hdi, .width = .95
    , slab_alpha = 0.95
    , interval_color = "black", linewidth = 1
    , point_color = "black", point_fill = "black", point_size = 1
  ) +
  # scale_fill_viridis_d(option = "rocket", begin = 0.3, end = 0.9, drop = F) +
  scale_fill_viridis_c(option = "mako", direction=-1, begin = 0.2, end = 0.8, limits = c(0,1)) +
  scale_y_continuous(limits = c(0,1), breaks = scales::extended_breaks(n=8)) +
  facet_grid(cols = vars(depth_maps_generation_filtering_mode)) +
  labs(
    x = "software", y = "F-score"
    , subtitle = "posterior predictive distribution of F-score with 95% HDI\nby filtering mode"
    # , caption = form_temp
  ) +
  theme_light() +
  theme(
    legend.position = "none"
    , legend.direction  = "horizontal"
    , axis.text.x = element_text(angle = 90, vjust = 0.5, hjust = 1)
    , strip.text = element_text(color = "black", face = "bold")
  )

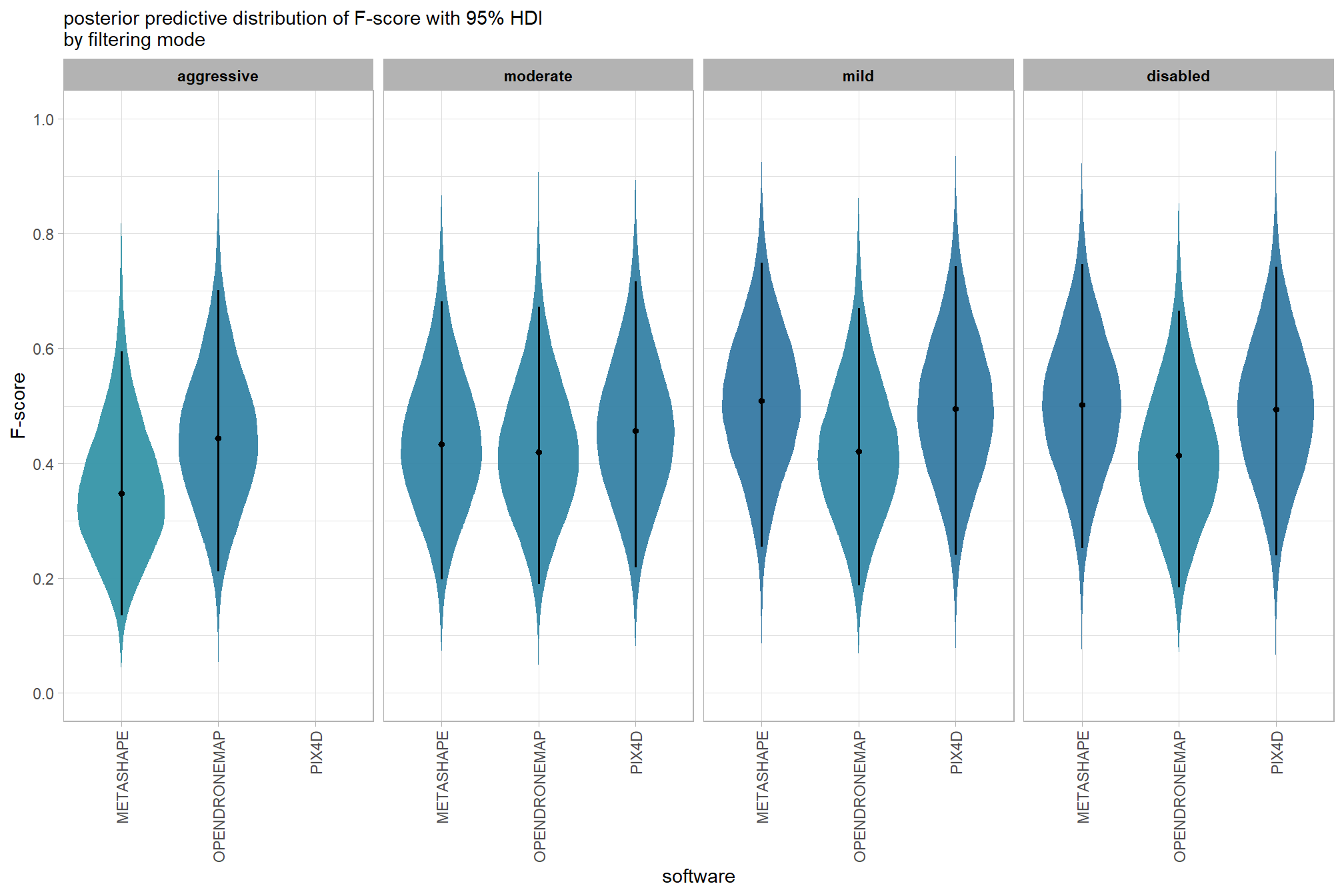

and a table of these 95% HDI values

table_temp =
  fltr_sftwr_draws_temp %>%
    tidybayes::median_hdi(value) %>%
    dplyr::select(-c(.point,.interval, .width,.row)) %>%
    dplyr::arrange(software,depth_maps_generation_filtering_mode)

table_temp %>%
  dplyr::select(-c(software)) %>%
  kableExtra::kbl(
    digits = 2
    , caption = "F-score<br>95% HDI of the posterior predictive distribution"
    , col.names = c(
      "filtering mode"
      , "F-score<br>median"
      , "HDI low", "HDI high"
    )
    , escape = F
  ) %>%
  kableExtra::kable_styling() %>%
  kableExtra::pack_rows(index = table(forcats::fct_inorder(table_temp$software))) %>%
  kableExtra::scroll_box(height = "8in")
Table 6.11: F-score
95% HDI of the posterior predictive distribution
filtering mode F-score
median 		HDI low HDI high
METASHAPE
aggressive 0.35 0.14 0.59
moderate 0.43 0.20 0.68
mild 0.51 0.25 0.75
disabled 0.50 0.25 0.75
OPENDRONEMAP
aggressive 0.44 0.21 0.70
moderate 0.42 0.19 0.67
mild 0.42 0.19 0.67
disabled 0.41 0.18 0.67
PIX4D
moderate 0.46 0.22 0.72
mild 0.49 0.24 0.74
disabled 0.49 0.24 0.74

we can also make pairwise comparisons so long as we continue using tidybayes::add_epred_draws with the re_formula argument

# calculate contrast
brms_contrast_temp = fltr_sftwr_draws_temp %>%
  tidybayes::compare_levels(
    value
    , by = depth_maps_generation_filtering_mode
    , comparison = "pairwise"
  ) %>%
  dplyr::rename(contrast = depth_maps_generation_filtering_mode)

# separate contrast
brms_contrast_temp = brms_contrast_temp %>%
  dplyr::ungroup() %>%
  tidyr::separate_wider_delim(
    cols = contrast
    , delim = " - "
    , names = paste0(
      "sorter"
      , 1:(max(stringr::str_count(brms_contrast_temp$contrast, "-"))+1)
    )
    , too_few = "align_start"
    , cols_remove = F
  ) %>%
  dplyr::filter(sorter1!=sorter2) %>%
  dplyr::mutate(
    dplyr::across(
      tidyselect::starts_with("sorter")
      , .fns = function(x){factor(
        x, ordered = T
        , levels = levels(ptcld_validation_data$depth_maps_generation_filtering_mode)
      )}
    )
    , contrast = contrast %>%
      forcats::fct_reorder(
        paste0(as.numeric(sorter1), as.numeric(sorter2)) %>%
          as.numeric()
      ) %>%
      # re order for filtering mode
      forcats::fct_rev()
  ) %>%
  # median_hdi summary for coloring
  dplyr::group_by(contrast, software) %>%
  make_contrast_vars()

what is this constrast data?

# what?
brms_contrast_temp %>% dplyr::glimpse()
## Rows: 600,000
## Columns: 19
## Groups: contrast, software [15]
## $ software         <chr> "METASHAPE", "METASHAPE", "METASHAPE", "METASHAPE", "…
## $ .chain           <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .iteration       <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .draw            <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16…
## $ sorter1          <ord> moderate, moderate, moderate, moderate, moderate, mod…
## $ sorter2          <ord> aggressive, aggressive, aggressive, aggressive, aggre…
## $ contrast         <fct> moderate - aggressive, moderate - aggressive, moderat…
## $ value            <dbl> 0.132672033, 0.139348910, 0.084762144, 0.105346391, 0…
## $ median_hdi_est   <dbl> 0.07968804, 0.07968804, 0.07968804, 0.07968804, 0.079…
## $ median_hdi_lower <dbl> -0.004604482, -0.004604482, -0.004604482, -0.00460448…
## $ median_hdi_upper <dbl> 0.1688837, 0.1688837, 0.1688837, 0.1688837, 0.1688837…
## $ pr_gt_zero       <chr> "97%", "97%", "97%", "97%", "97%", "97%", "97%", "97%…
## $ pr_lt_zero       <chr> "3%", "3%", "3%", "3%", "3%", "3%", "3%", "3%", "3%",…
## $ is_diff_dir      <lgl> TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE,…
## $ pr_diff          <dbl> 0.97215, 0.97215, 0.97215, 0.97215, 0.97215, 0.97215,…
## $ pr_diff_lab      <chr> "Pr(moderate>aggressive)=97%", "Pr(moderate>aggressiv…
## $ pr_diff_lab_sm   <chr> "Pr(>0)=97%", "Pr(>0)=97%", "Pr(>0)=97%", "Pr(>0)=97%…
## $ pr_diff_lab_pos  <dbl> 0.18155, 0.18155, 0.18155, 0.18155, 0.18155, 0.18155,…
## $ sig_level        <ord> 95%, 95%, 95%, 95%, 95%, 95%, 95%, 95%, 95%, 95%, 95%…

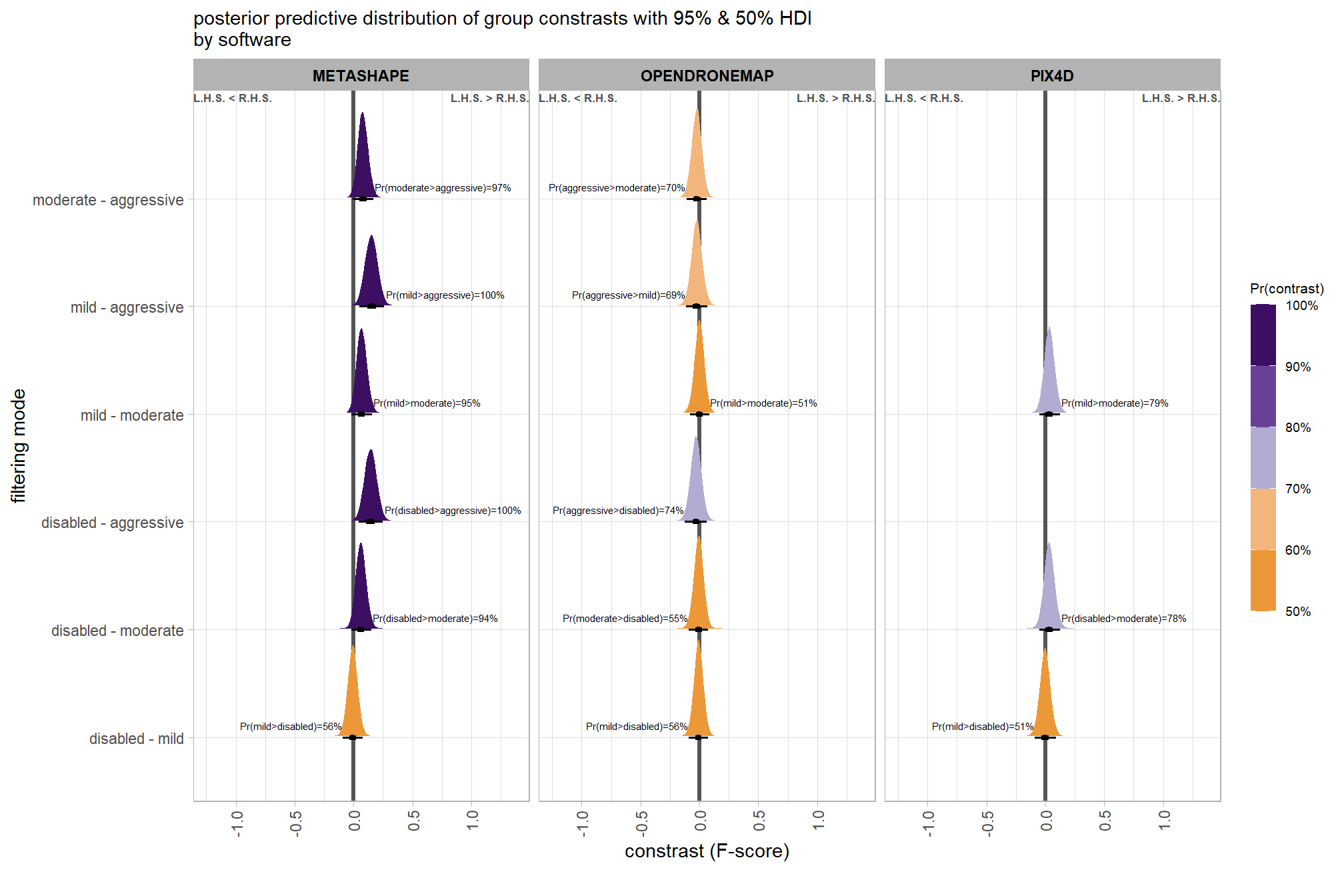

plot it

plt_contrast(
  brms_contrast_temp
  # , caption_text = form_temp
  , y_axis_title = "filtering mode"
  , facet = "software"
  , label_size = 2.0
  , x_expand = c(1.8,1.8) # c(1,1.4)
) +
  labs(
    subtitle = "posterior predictive distribution of group constrasts with 95% & 50% HDI\nby software"
  )

ggplot2::ggsave(
  "../data/fltr_sftwr_comp_mod5.png"
  , plot = ggplot2::last_plot() + labs(subtitle = "")
  , height = 7, width = 10.5
)

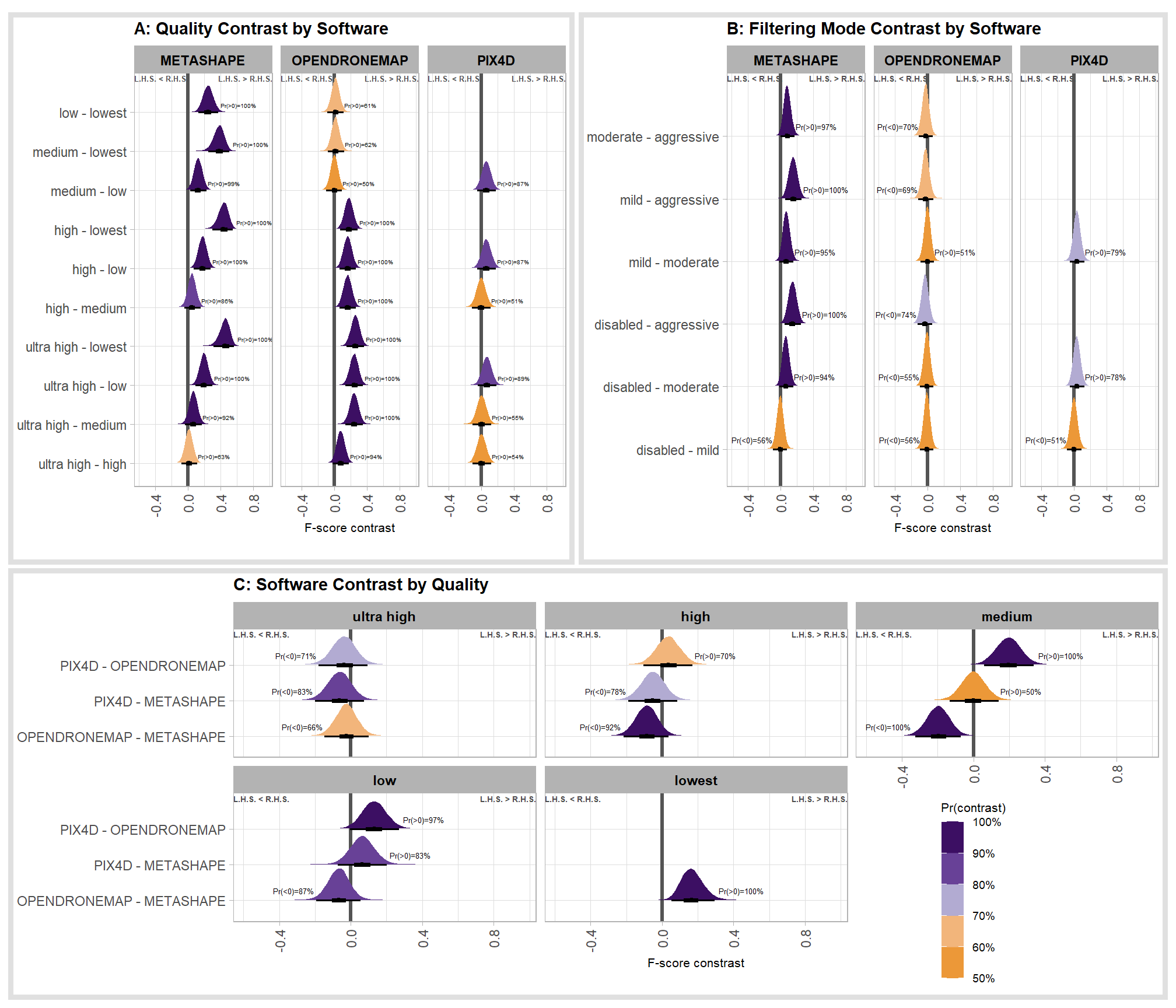

create plot for combining with other RMSE contrasts for publication

ptchwrk_fltr_sftwr_comp =
  plt_contrast(
    brms_contrast_temp
    , y_axis_title = "filtering mode contrast"
    , facet = "software"
    , label_size = 1.7
    , label = "pr_diff_lab_sm"
    , annotate_size = 1.8
  ) +
    labs(
      subtitle = "" # "constrast Height RMSE (m)"
      , x = "F-score constrast"
    ) +
    theme(
      legend.position="none"
      , axis.title.y = element_text(size = 10, face = "bold")
      , axis.title.x = element_text(size = 8)
    )
# ptchwrk_fltr_sftwr_comp

and summarize these contrasts

table_temp = brms_contrast_temp %>%
  dplyr::group_by(contrast, software, pr_gt_zero) %>%
  tidybayes::median_hdi(value) %>%
  dplyr::arrange(contrast, software) %>%
  dplyr::select(contrast, software, value, .lower, .upper, pr_gt_zero) %>%
  dplyr::arrange(software, contrast)

table_temp %>%
  dplyr::select(-c(software)) %>%
  kableExtra::kbl(
    digits = 2
    , caption = "brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts"
    , col.names = c(
      "filtering contrast"
      , "median difference<br>F-score"
      , "HDI low", "HDI high"
      , "Pr(diff>0)"
    )
    , escape = F
  ) %>%
  kableExtra::kable_styling() %>%
  kableExtra::pack_rows(index = table(forcats::fct_inorder(table_temp$software))) %>%
  kableExtra::scroll_box(height = "8in")
Table 6.12: brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts
filtering contrast median difference
F-score 		HDI low HDI high Pr(diff>0)
METASHAPE
disabled - mild -0.01 -0.09 0.08 44%
disabled - moderate 0.06 -0.02 0.15 94%
disabled - aggressive 0.15 0.05 0.25 100%
mild - moderate 0.07 -0.02 0.16 95%
mild - aggressive 0.15 0.05 0.26 100%
moderate - aggressive 0.08 0.00 0.17 97%
OPENDRONEMAP
disabled - mild -0.01 -0.09 0.07 44%
disabled - moderate -0.01 -0.09 0.08 45%
disabled - aggressive -0.03 -0.12 0.06 26%
mild - moderate 0.00 -0.08 0.08 51%
mild - aggressive -0.02 -0.11 0.07 31%
moderate - aggressive -0.02 -0.11 0.06 30%
PIX4D
disabled - mild 0.00 -0.09 0.09 49%
disabled - moderate 0.03 -0.05 0.13 78%
mild - moderate 0.04 -0.05 0.13 79%

6.4.2.7 Software:Quality:Filtering - interaction

The contrasts immediately above address the question “are there differences in F-score based on dense point cloud filtering mode within each software?”. Although the impact of filtering mode is small, it is highly probable when averaging across all quality settings. What if we don’t average out the impact of quality and instead get the full, three-way interaction between software, quality, and filtering mode?

Let’s get the model’s answer to the question “For each software, are there differences in F-score based on dense point cloud filtering mode within each point cloud generation quality?”.

Here, we collapse across the study site to compare the dense cloud quality, filtering mode, and software effect.

In a hierarchical model structure, we have to make use of the re_formula argument within tidybayes::add_epred_draws

# get draws
fltr_sftwr_draws_temp =
  tidyr::crossing(
    depth_maps_generation_quality = unique(ptcld_validation_data$depth_maps_generation_quality)
    , depth_maps_generation_filtering_mode = unique(ptcld_validation_data$depth_maps_generation_filtering_mode)
    , software = unique(ptcld_validation_data$software)
  ) %>%
  tidybayes::add_epred_draws(
    brms_f_mod5, allow_new_levels = T
    # this part is crucial
    , re_formula = ~ (1 | depth_maps_generation_quality) + # main effects
    (1 | depth_maps_generation_quality) +
    (1 | depth_maps_generation_filtering_mode) +
    (1 | software) +
    # two-way interactions
    (1 | depth_maps_generation_quality:depth_maps_generation_filtering_mode) +
    (1 | depth_maps_generation_quality:software) +
    (1 | depth_maps_generation_filtering_mode:software) +
    # three-way interactions
    (1 | depth_maps_generation_quality:depth_maps_generation_filtering_mode:software)
  ) %>%
  dplyr::rename(value = .epred) %>%
  dplyr::mutate(med = tidybayes::median_hdci(value)$y)
# let's add the grand mean to the plot for reference
grand_mean_temp = brms::posterior_summary(brms_f_mod5) %>%
  as.data.frame() %>%
  tibble::rownames_to_column(var = "parameter") %>%
  dplyr::rename_with(tolower) %>%
  dplyr::filter(
    parameter == "Intercept"
  ) %>%
  dplyr::mutate(dplyr::across(-c(parameter), ~plogis(.))) %>%
  dplyr::pull(estimate)
# plot
fltr_sftwr_draws_temp %>%
  dplyr::inner_join(
    ptcld_validation_data %>% dplyr::distinct(software, depth_maps_generation_quality, depth_maps_generation_filtering_mode)
    , by = dplyr::join_by(software, depth_maps_generation_quality, depth_maps_generation_filtering_mode)
  ) %>%
  dplyr::mutate(depth_maps_generation_quality = depth_maps_generation_quality %>% forcats::fct_rev()) %>%
  ggplot(
    mapping = aes(
      y = value
      , x = depth_maps_generation_filtering_mode
      # , fill = depth_maps_generation_filtering_mode
      , fill = med
    )
  ) +
  geom_hline(yintercept = grand_mean_temp, color = "gray33") +
  tidybayes::stat_eye(
    point_interval = median_hdi, .width = .95
    , slab_alpha = 0.95
    , interval_color = "black", linewidth = 1
    , point_color = "black", point_fill = "black", point_size = 1
  ) +
  # scale_fill_viridis_d(option = "plasma", drop = F) +
  scale_fill_viridis_c(option = "mako", direction=-1, begin = 0.2, end = 0.8, limits = c(0,1)) +
  scale_y_continuous(limits = c(0,1), breaks = scales::extended_breaks(n=8)) +
  facet_grid(
    rows = vars(software)
    , cols = vars(depth_maps_generation_quality)
    # , switch = "y"
  ) +
  labs(
    fill = ""
    , x = "filtering mode", y = "F-score"
    # , subtitle = "posterior predictive distribution of F-score with 95% HDI\nby dense cloud quality and software"
    , subtitle = "quality"
    # , caption = form_temp
  ) +
  theme_light() +
  theme(
    legend.position = "none"
    , legend.direction  = "horizontal"
    , axis.text.x = element_text(angle = 90, vjust = 0.5, hjust = 1)
    , strip.text = element_text(color = "black", face = "bold")
    , plot.subtitle = element_text(hjust = 0.5)
    , panel.grid = element_blank()
    # , strip.placement = "outside"
  ) +
  guides(
    fill = guide_legend(override.aes = list(shape = NA, size = 6, alpha = 0.9, lwd = NA))
  )

ggplot2::ggsave(
  "../data/qlty_fltr_sftwr_mod5.png"
  , plot = ggplot2::last_plot() + labs(subtitle = "")
  , height = 7, width = 10.5
)

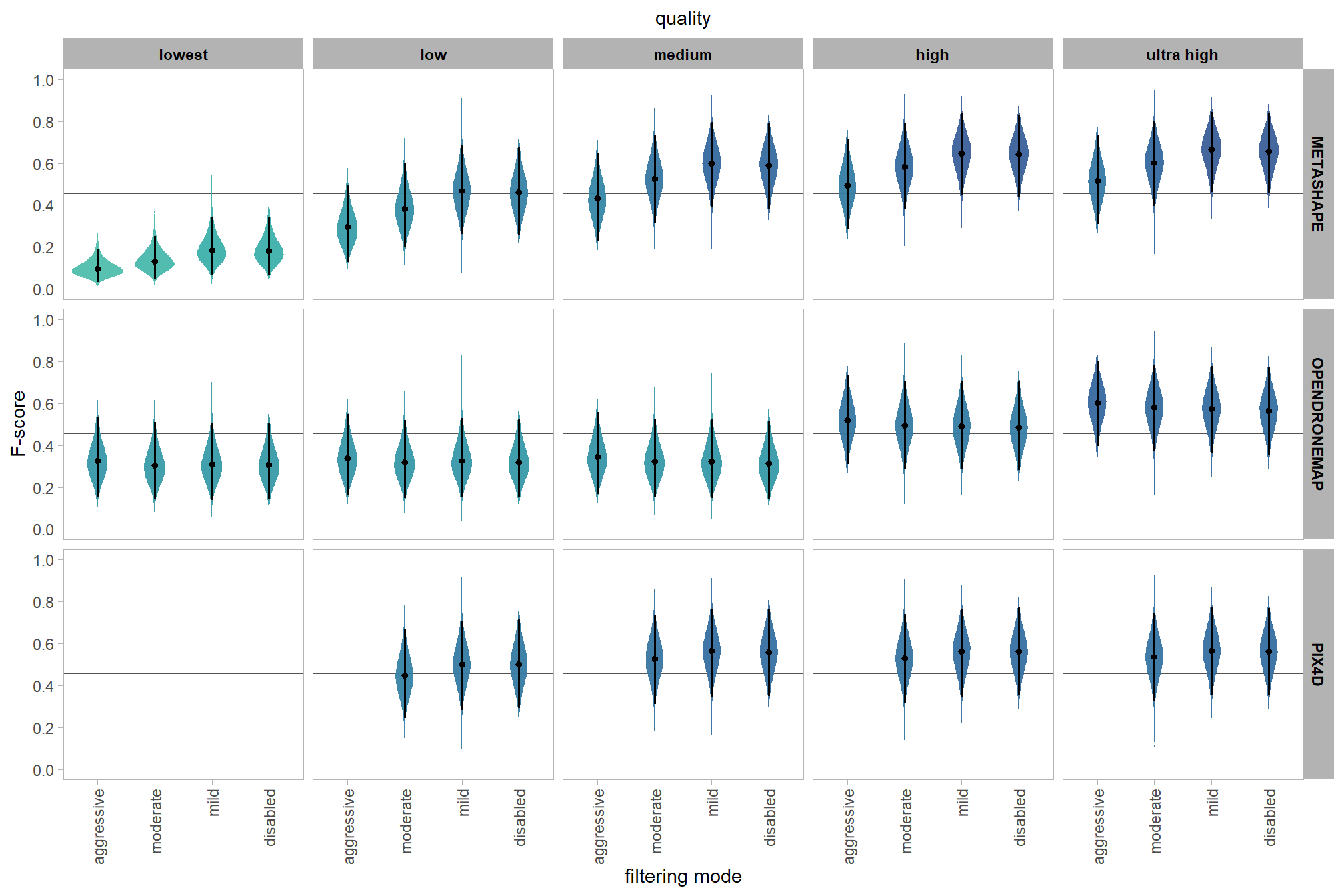

let’s add a table of the results

table_temp =
  fltr_sftwr_draws_temp %>%
  tidybayes::median_hdi(value) %>%
  dplyr::inner_join(
    ptcld_validation_data %>% dplyr::distinct(software, depth_maps_generation_quality, depth_maps_generation_filtering_mode)
    , by = dplyr::join_by(software, depth_maps_generation_quality, depth_maps_generation_filtering_mode)
  ) %>%
  dplyr::mutate(depth_maps_generation_quality = depth_maps_generation_quality %>% forcats::fct_rev()) %>%
  dplyr::select(c(
    software, depth_maps_generation_quality, depth_maps_generation_filtering_mode
    , value, .lower, .upper
  )) %>%
  dplyr::ungroup() %>%
  dplyr::arrange(software, depth_maps_generation_quality, depth_maps_generation_filtering_mode)

table_temp %>%
  # dplyr::select(-c(software)) %>%
  kableExtra::kbl(
    digits = 2
    , caption = "brms::brm model: 95% HDI of the posterior predictive distribution"
    , col.names = c(
      "software", "quality", "filtering mode"
      , "F-score<br>median"
      , "HDI low", "HDI high"
    )
    , escape = F
  ) %>%
  kableExtra::kable_styling() %>%
  # kableExtra::pack_rows(index = table(forcats::fct_inorder(table_temp$software))) %>%
  kableExtra::collapse_rows(columns = 1:2, valign = "top") %>%
  kableExtra::scroll_box(height = "8in")
Table 6.13: brms::brm model: 95% HDI of the posterior predictive distribution
software quality filtering mode F-score
median 		HDI low HDI high
METASHAPE lowest aggressive 0.09 0.03 0.19
moderate 0.13 0.04 0.25
mild 0.18 0.07 0.34
disabled 0.18 0.07 0.34
low aggressive 0.30 0.13 0.49
moderate 0.38 0.20 0.60
mild 0.47 0.26 0.68
disabled 0.46 0.25 0.68
medium aggressive 0.43 0.23 0.65
moderate 0.52 0.31 0.73
mild 0.60 0.39 0.80
disabled 0.59 0.38 0.79
high aggressive 0.49 0.28 0.71
moderate 0.58 0.38 0.79
mild 0.65 0.45 0.84
disabled 0.64 0.44 0.83
ultra high aggressive 0.52 0.31 0.74
moderate 0.60 0.39 0.80
mild 0.66 0.46 0.84
disabled 0.66 0.45 0.84
OPENDRONEMAP lowest aggressive 0.32 0.15 0.53
moderate 0.30 0.14 0.51
mild 0.31 0.14 0.51
disabled 0.31 0.14 0.51
low aggressive 0.34 0.16 0.55
moderate 0.32 0.15 0.52
mild 0.33 0.15 0.53
disabled 0.32 0.15 0.52
medium aggressive 0.34 0.17 0.56
moderate 0.32 0.15 0.53
mild 0.32 0.15 0.52
disabled 0.31 0.14 0.52
high aggressive 0.52 0.31 0.73
moderate 0.49 0.28 0.71
mild 0.49 0.28 0.70
disabled 0.48 0.28 0.70
ultra high aggressive 0.60 0.40 0.80
moderate 0.58 0.37 0.78
mild 0.57 0.36 0.78
disabled 0.56 0.35 0.77
PIX4D low moderate 0.45 0.24 0.67
mild 0.50 0.28 0.71
disabled 0.50 0.29 0.72
medium moderate 0.53 0.31 0.74
mild 0.56 0.35 0.77
disabled 0.56 0.35 0.77
high moderate 0.53 0.32 0.74
mild 0.56 0.35 0.77
disabled 0.56 0.36 0.78
ultra high moderate 0.54 0.32 0.75
mild 0.57 0.36 0.77
disabled 0.56 0.35 0.77

we can also make pairwise comparisons so long as we continue using tidybayes::add_epred_draws with the re_formula argument

# calculate contrast
brms_contrast_temp = fltr_sftwr_draws_temp %>%
  tidybayes::compare_levels(
    value
    , by = depth_maps_generation_filtering_mode
    , comparison = "pairwise"
  ) %>%
  dplyr::rename(contrast = depth_maps_generation_filtering_mode)

# separate contrast
brms_contrast_temp = brms_contrast_temp %>%
  dplyr::ungroup() %>%
  tidyr::separate_wider_delim(
    cols = contrast
    , delim = " - "
    , names = paste0(
      "sorter"
      , 1:(max(stringr::str_count(brms_contrast_temp$contrast, "-"))+1)
    )
    , too_few = "align_start"
    , cols_remove = F
  ) %>%
  dplyr::filter(sorter1!=sorter2) %>%
  dplyr::mutate(
    dplyr::across(
      tidyselect::starts_with("sorter")
      , .fns = function(x){factor(
        x, ordered = T
        , levels = levels(ptcld_validation_data$depth_maps_generation_filtering_mode)
      )}
    )
    , contrast = contrast %>%
      forcats::fct_reorder(
        paste0(as.numeric(sorter1), as.numeric(sorter2)) %>%
          as.numeric()
      ) %>%
      # re order for filtering mode
      forcats::fct_rev()
  ) %>%
  # median_hdi summary for coloring
  dplyr::group_by(contrast, software, depth_maps_generation_quality) %>%
  make_contrast_vars()

# remove out-of-sample obs
brms_contrast_temp = brms_contrast_temp %>%
  dplyr::inner_join(
    ptcld_validation_data %>% dplyr::distinct(software, depth_maps_generation_quality, depth_maps_generation_filtering_mode)
    , by = dplyr::join_by(software, depth_maps_generation_quality, sorter1==depth_maps_generation_filtering_mode)
  ) %>%
  dplyr::inner_join(
    ptcld_validation_data %>% dplyr::distinct(software, depth_maps_generation_quality, depth_maps_generation_filtering_mode)
    , by = dplyr::join_by(software, depth_maps_generation_quality, sorter2==depth_maps_generation_filtering_mode)
  ) %>%
  dplyr::mutate(depth_maps_generation_quality = depth_maps_generation_quality %>% forcats::fct_rev())

# what?
brms_contrast_temp %>% dplyr::glimpse()
## Rows: 2,880,000
## Columns: 20
## Groups: contrast, software, depth_maps_generation_quality [72]
## $ depth_maps_generation_quality <ord> ultra high, ultra high, ultra high, ultr…
## $ software                      <chr> "METASHAPE", "METASHAPE", "METASHAPE", "…
## $ .chain                        <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, …
## $ .iteration                    <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, …
## $ .draw                         <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 1…
## $ sorter1                       <ord> moderate, moderate, moderate, moderate, …
## $ sorter2                       <ord> aggressive, aggressive, aggressive, aggr…
## $ contrast                      <fct> moderate - aggressive, moderate - aggres…
## $ value                         <dbl> -0.002393165, 0.133903077, 0.109068878, …
## $ median_hdi_est                <dbl> 0.08350163, 0.08350163, 0.08350163, 0.08…
## $ median_hdi_lower              <dbl> -0.01846083, -0.01846083, -0.01846083, -…
## $ median_hdi_upper              <dbl> 0.1871318, 0.1871318, 0.1871318, 0.18713…
## $ pr_gt_zero                    <chr> "95%", "95%", "95%", "95%", "95%", "95%"…
## $ pr_lt_zero                    <chr> "5%", "5%", "5%", "5%", "5%", "5%", "5%"…
## $ is_diff_dir                   <lgl> FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRU…
## $ pr_diff                       <dbl> 0.946275, 0.946275, 0.946275, 0.946275, …
## $ pr_diff_lab                   <chr> "Pr(moderate>aggressive)=95%", "Pr(moder…
## $ pr_diff_lab_sm                <chr> "Pr(>0)=95%", "Pr(>0)=95%", "Pr(>0)=95%"…
## $ pr_diff_lab_pos               <dbl> 0.2011667, 0.2011667, 0.2011667, 0.20116…
## $ sig_level                     <ord> 90%, 90%, 90%, 90%, 90%, 90%, 90%, 90%, …

plot it

brms_contrast_temp %>%
  plt_contrast(
    facet = c("depth_maps_generation_quality", "software")
    , y_axis_title = "filtering mode"
    , label_size = 0
    , x_expand = c(-0.1,-0.1)
  ) +
  facet_grid(
    rows = vars(software)
    , cols = vars(depth_maps_generation_quality)
  ) +
  labs(
    subtitle = "posterior predictive distribution of group constrasts with 95% & 50% HDI\nby dense cloud quality and software"
  )

ggplot2::ggsave(
  "../data/qlty_fltr_sftwr_comp_mod5.png"
  , plot = ggplot2::last_plot() + labs(subtitle = "")
  , height = 7, width = 10.5
)

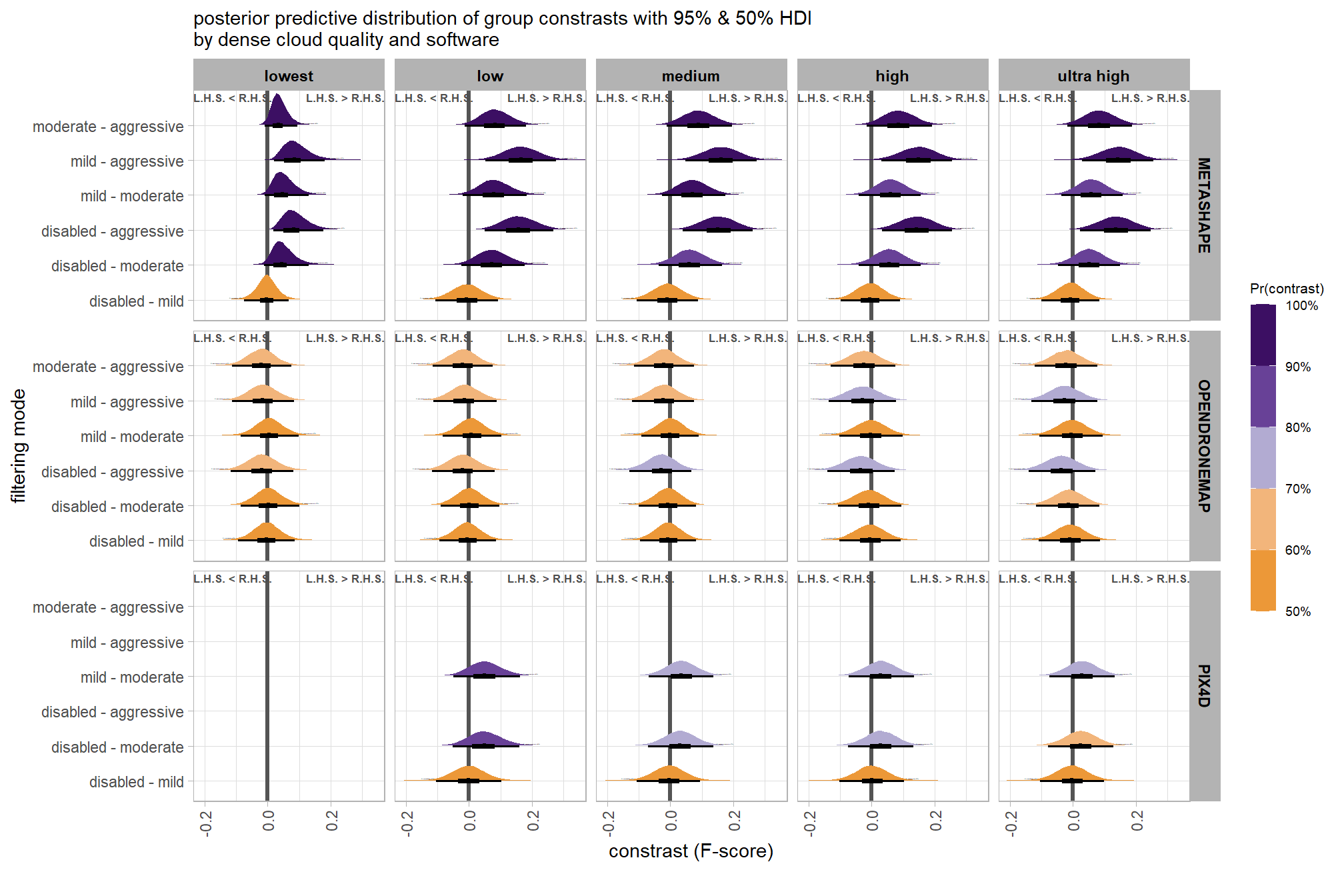

6.4.2.8 Quality - main effect

let’s collapse across the filtering mode, software, and study site to compare the dense cloud quality setting effect. In a hierarchical model structure, we have to make use of the re_formula argument within tidybayes::add_epred_draws

ptcld_validation_data %>%
  dplyr::distinct(depth_maps_generation_quality) %>%
  tidybayes::add_epred_draws(
    brms_f_mod5
    # this part is crucial
    , re_formula = ~ (1 | depth_maps_generation_quality)
  ) %>%
  dplyr::rename(value = .epred) %>%
  dplyr::mutate(med = tidybayes::median_hdci(value)$y) %>%
  # plot
  ggplot(
    mapping = aes(
      x = value, y = depth_maps_generation_quality
      # , fill = depth_maps_generation_quality
      , fill = med
    )
  ) +
    tidybayes::stat_halfeye(
      point_interval = median_hdi, .width = .95
      , interval_color = "gray66"
      , shape = 21, point_color = "gray66", point_fill = "black"
      , justification = -0.01
    ) +
    # scale_fill_viridis_d(option = "inferno", drop = F) +
    scale_fill_viridis_c(option = "mako", direction=-1, begin = 0.2, end = 0.8, limits = c(0,1)) +
    scale_x_continuous(limits = c(0,1), breaks = scales::extended_breaks(n=8)) +
    # scale_x_continuous(breaks = scales::extended_breaks(n=8)) +
    labs(
      y = "quality", x = "F-score"
      , subtitle = "posterior predictive distribution of F-score with 95% HDI"
      # , caption = form_temp
    ) +
    theme_light() +
    theme(legend.position = "none")

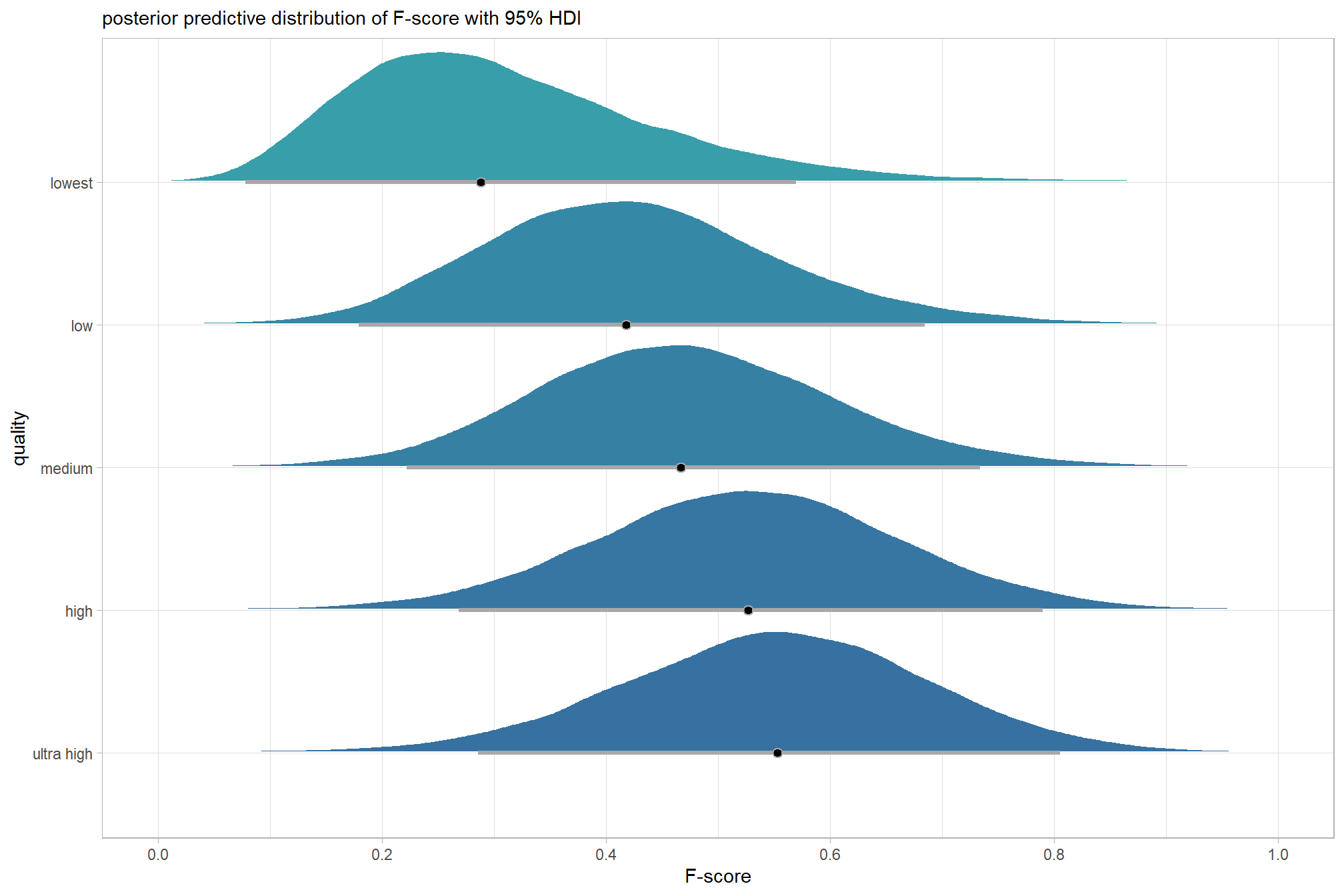

we can also perform pairwise comparisons after collapsing across the filtering mode, software, and study site to compare the dense cloud quality setting effect

brms_contrast_temp =
  ptcld_validation_data %>%
    dplyr::distinct(depth_maps_generation_quality) %>%
    tidybayes::add_epred_draws(
      brms_f_mod5, allow_new_levels = T
      # this part is crucial
      , re_formula = ~ (1 | depth_maps_generation_quality)
    ) %>%
    dplyr::rename(value = .epred) %>%
    tidybayes::compare_levels(
      value
      , by = depth_maps_generation_quality
      , comparison =
        contrast_list
        # tidybayes::emmeans_comparison("revpairwise")
        #"pairwise"
    ) %>%
    dplyr::rename(contrast = depth_maps_generation_quality)

# separate contrast
brms_contrast_temp = brms_contrast_temp %>%
  dplyr::ungroup() %>%
  tidyr::separate_wider_delim(
    cols = contrast
    , delim = " - "
    , names = paste0(
        "sorter"
        , 1:(max(stringr::str_count(brms_contrast_temp$contrast, "-"))+1)
      )
    , too_few = "align_start"
    , cols_remove = F
  ) %>%
  dplyr::filter(sorter1!=sorter2) %>%
  dplyr::mutate(
    dplyr::across(
      tidyselect::starts_with("sorter")
      , .fns = function(x){factor(
        x, ordered = T
        , levels = levels(ptcld_validation_data$depth_maps_generation_quality)
      )}
    )
    , contrast = contrast %>%
      forcats::fct_reorder(
        paste0(as.numeric(sorter1), as.numeric(sorter2)) %>%
        as.numeric()
      )
  ) %>%
  # median_hdi summary for coloring
  dplyr::group_by(contrast) %>%
  make_contrast_vars()

# what?
brms_contrast_temp %>% dplyr::glimpse()
## Rows: 400,000
## Columns: 18
## Groups: contrast [10]
## $ .chain           <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .iteration       <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .draw            <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16…
## $ sorter1          <ord> ultra high, ultra high, ultra high, ultra high, ultra…
## $ sorter2          <ord> high, high, high, high, high, high, high, high, high,…
## $ contrast         <fct> ultra high - high, ultra high - high, ultra high - hi…
## $ value            <dbl> 0.068046752, -0.006442012, 0.044209582, -0.020760847,…
## $ median_hdi_est   <dbl> 0.02135537, 0.02135537, 0.02135537, 0.02135537, 0.021…
## $ median_hdi_lower <dbl> -0.153334, -0.153334, -0.153334, -0.153334, -0.153334…
## $ median_hdi_upper <dbl> 0.1938218, 0.1938218, 0.1938218, 0.1938218, 0.1938218…
## $ pr_gt_zero       <chr> "61%", "61%", "61%", "61%", "61%", "61%", "61%", "61%…
## $ pr_lt_zero       <chr> "39%", "39%", "39%", "39%", "39%", "39%", "39%", "39%…
## $ is_diff_dir      <lgl> TRUE, FALSE, TRUE, FALSE, TRUE, TRUE, TRUE, TRUE, TRU…
## $ pr_diff          <dbl> 0.612875, 0.612875, 0.612875, 0.612875, 0.612875, 0.6…
## $ pr_diff_lab      <chr> "Pr(ultra high>high)=61%", "Pr(ultra high>high)=61%",…
## $ pr_diff_lab_sm   <chr> "Pr(>0)=61%", "Pr(>0)=61%", "Pr(>0)=61%", "Pr(>0)=61%…
## $ pr_diff_lab_pos  <dbl> 0.2083584, 0.2083584, 0.2083584, 0.2083584, 0.2083584…
## $ sig_level        <ord> <80%, <80%, <80%, <80%, <80%, <80%, <80%, <80%, <80%,…

plot it

plt_contrast(
  brms_contrast_temp
  # , caption_text = form_temp
  , y_axis_title = "quality"
)

and summarize these contrasts

brms_contrast_temp %>%
  dplyr::group_by(contrast, pr_gt_zero) %>%
  tidybayes::median_hdi(value) %>%
  dplyr::arrange(contrast) %>%
  dplyr::select(contrast, value, .lower, .upper, pr_gt_zero) %>%

kableExtra::kbl(
    digits = 2
    , caption = "brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts"
    , col.names = c(
      "quality contrast"
      , "difference (F-score)"
      , "HDI low", "HDI high"
      , "Pr(diff>0)"
    )
  ) %>%
  kableExtra::kable_styling()
Table 6.14: brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts
quality contrast difference (F-score) HDI low HDI high Pr(diff>0)
ultra high - high 0.02 -0.15 0.19 61%
ultra high - medium 0.08 -0.09 0.26 82%
ultra high - low 0.13 -0.06 0.31 91%
ultra high - lowest 0.26 -0.01 0.46 96%
high - medium 0.05 -0.12 0.24 74%
high - low 0.10 -0.07 0.29 87%
high - lowest 0.23 -0.02 0.43 96%
medium - low 0.04 -0.12 0.22 71%
medium - lowest 0.17 -0.04 0.37 93%
low - lowest 0.12 -0.07 0.31 89%

6.4.2.9 Filtering - main effect

let’s collapse across the dense cloud quality, software, and study site to compare the dense cloud quality setting effect. In a hierarchical model structure, we have to make use of the re_formula argument within tidybayes::add_epred_draws

ptcld_validation_data %>%
  dplyr::distinct(depth_maps_generation_filtering_mode) %>%
  tidybayes::add_epred_draws(
    brms_f_mod5
    # this part is crucial
    , re_formula = ~ (1 | depth_maps_generation_filtering_mode)
  ) %>%
  dplyr::rename(value = .epred) %>%
  dplyr::mutate(med = tidybayes::median_hdci(value)$y) %>%
  # plot
  ggplot(
    mapping = aes(
      x = value, y = depth_maps_generation_filtering_mode
      # , fill = depth_maps_generation_filtering_mode
      , fill = med
    )
  ) +
    tidybayes::stat_halfeye(
      point_interval = median_hdi, .width = .95
      , interval_color = "gray66"
      , shape = 21, point_color = "gray66", point_fill = "black"
      , justification = -0.01
    ) +
    # scale_fill_viridis_d(option = "plasma", drop = F) +
    scale_fill_viridis_c(option = "mako", direction=-1, begin = 0.2, end = 0.8, limits = c(0,1)) +
    scale_x_continuous(limits = c(0,1), breaks = scales::extended_breaks(n=8)) +
    labs(
      y = "filtering mode", x = "F-score"
      , subtitle = "posterior predictive distribution of F-score with 95% HDI"
      # , caption = form_temp
    ) +
    theme_light() +
    theme(legend.position = "none")

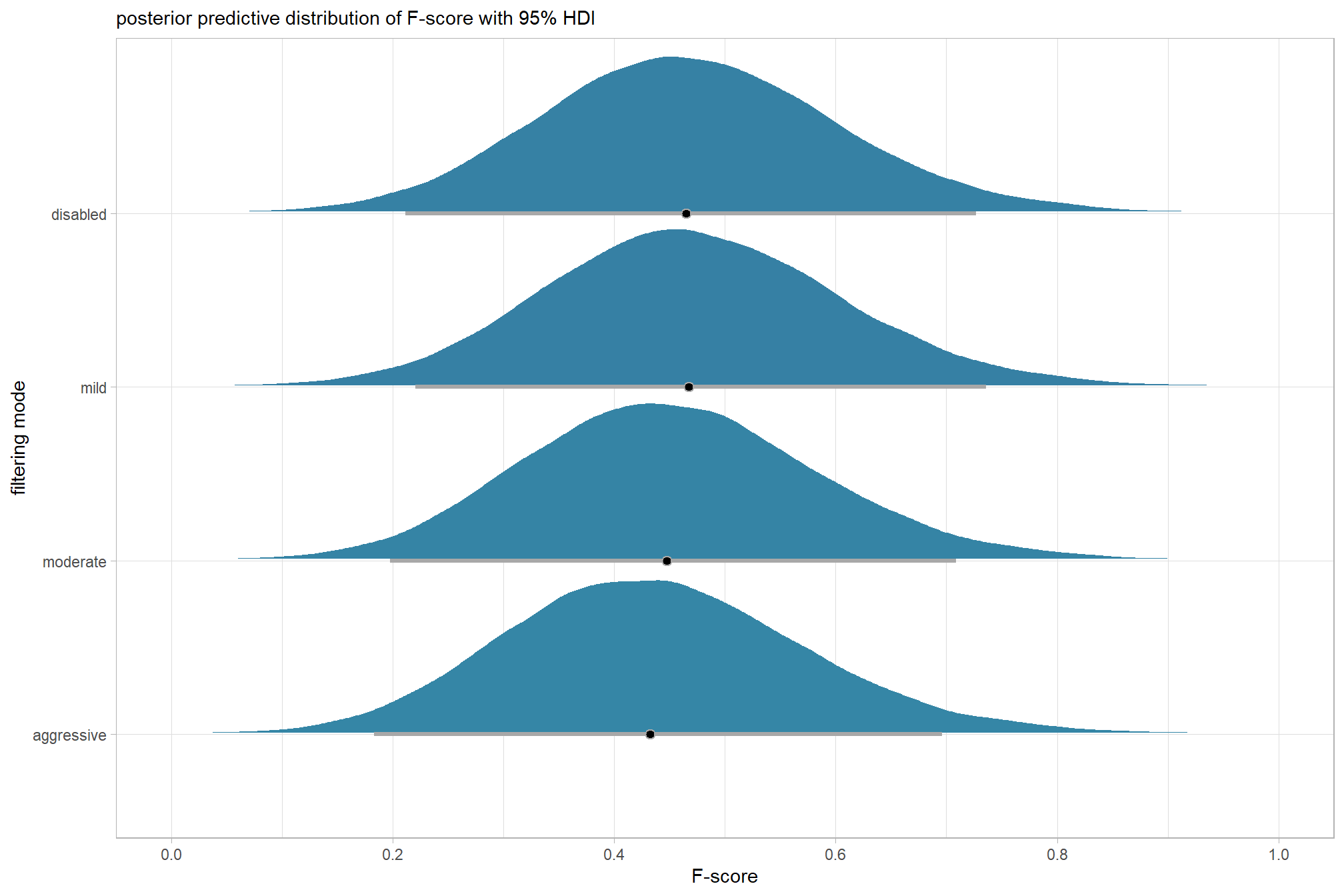

we can also perform pairwise comparisons after collapsing across the dense cloud quality, software, and study site to compare the filtering mode setting effect.

brms_contrast_temp =
  ptcld_validation_data %>%
    dplyr::distinct(depth_maps_generation_filtering_mode) %>%
    tidybayes::add_epred_draws(
      brms_f_mod5, allow_new_levels = T
      # this part is crucial
      , re_formula = ~ (1 | depth_maps_generation_filtering_mode)
    ) %>%
    dplyr::rename(value = .epred) %>%
    tidybayes::compare_levels(
      value
      , by = depth_maps_generation_filtering_mode
      , comparison = "pairwise"
    ) %>%
    dplyr::rename(contrast = depth_maps_generation_filtering_mode)

# separate contrast
brms_contrast_temp = brms_contrast_temp %>%
  dplyr::ungroup() %>%
  tidyr::separate_wider_delim(
    cols = contrast
    , delim = " - "
    , names = paste0(
        "sorter"
        , 1:(max(stringr::str_count(brms_contrast_temp$contrast, "-"))+1)
      )
    , too_few = "align_start"
    , cols_remove = F
  ) %>%
  dplyr::filter(sorter1!=sorter2) %>%
  dplyr::mutate(
    dplyr::across(
      tidyselect::starts_with("sorter")
      , .fns = function(x){factor(
        x, ordered = T
        , levels = levels(ptcld_validation_data$depth_maps_generation_filtering_mode)
      )}
    )
    , contrast = contrast %>%
      forcats::fct_reorder(
        paste0(as.numeric(sorter1), as.numeric(sorter2)) %>%
        as.numeric()
      ) %>%
      # re order for filtering mode
      forcats::fct_rev()
  ) %>%
  # median_hdi summary for coloring
  dplyr::group_by(contrast) %>%
  make_contrast_vars()

# what?
brms_contrast_temp %>% dplyr::glimpse()
## Rows: 240,000
## Columns: 18
## Groups: contrast [6]
## $ .chain           <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .iteration       <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .draw            <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16…
## $ sorter1          <ord> moderate, moderate, moderate, moderate, moderate, mod…
## $ sorter2          <ord> aggressive, aggressive, aggressive, aggressive, aggre…
## $ contrast         <fct> moderate - aggressive, moderate - aggressive, moderat…
## $ value            <dbl> 0.0394275712, 0.0706529336, -0.0512250680, 0.00390565…
## $ median_hdi_est   <dbl> 0.007269812, 0.007269812, 0.007269812, 0.007269812, 0…
## $ median_hdi_lower <dbl> -0.07146747, -0.07146747, -0.07146747, -0.07146747, -…
## $ median_hdi_upper <dbl> 0.1126929, 0.1126929, 0.1126929, 0.1126929, 0.1126929…
## $ pr_gt_zero       <chr> "62%", "62%", "62%", "62%", "62%", "62%", "62%", "62%…
## $ pr_lt_zero       <chr> "38%", "38%", "38%", "38%", "38%", "38%", "38%", "38%…
## $ is_diff_dir      <lgl> TRUE, TRUE, FALSE, TRUE, TRUE, TRUE, TRUE, TRUE, TRUE…
## $ pr_diff          <dbl> 0.62465, 0.62465, 0.62465, 0.62465, 0.62465, 0.62465,…
## $ pr_diff_lab      <chr> "Pr(moderate>aggressive)=62%", "Pr(moderate>aggressiv…
## $ pr_diff_lab_sm   <chr> "Pr(>0)=62%", "Pr(>0)=62%", "Pr(>0)=62%", "Pr(>0)=62%…
## $ pr_diff_lab_pos  <dbl> 0.1211449, 0.1211449, 0.1211449, 0.1211449, 0.1211449…
## $ sig_level        <ord> <80%, <80%, <80%, <80%, <80%, <80%, <80%, <80%, <80%,…

plot it

plt_contrast(
  brms_contrast_temp
  # , caption_text = form_temp
  , y_axis_title = "filtering mode"
)

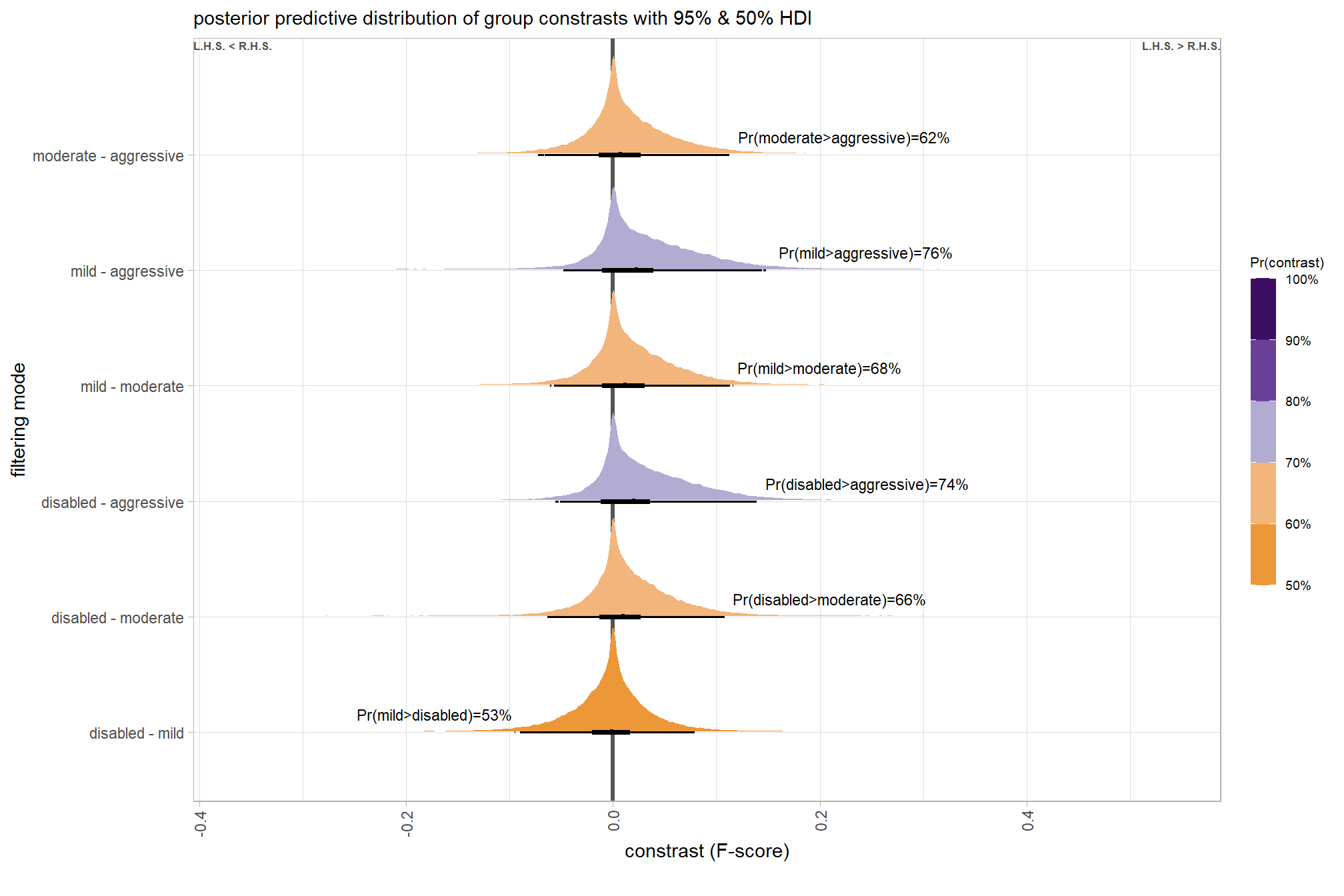

and summarize these contrasts

brms_contrast_temp %>%
  dplyr::group_by(contrast, pr_gt_zero) %>%
  tidybayes::median_hdi(value) %>%
  dplyr::arrange(contrast) %>%
  dplyr::select(contrast, value, .lower, .upper, pr_gt_zero) %>%

kableExtra::kbl(
    digits = 2
    , caption = "brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts"
    , col.names = c(
      "filtering mode contrast"
      , "difference (F-score)"
      , "HDI low", "HDI high"
      , "Pr(diff>0)"
    )
  ) %>%
  kableExtra::kable_styling()
Table 6.15: brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts
filtering mode contrast difference (F-score) HDI low HDI high Pr(diff>0)
disabled - mild 0.00 -0.10 -0.09 47%
disabled - mild 0.00 -0.09 0.08 47%
disabled - moderate 0.01 -0.06 0.11 66%
disabled - aggressive 0.02 -0.06 -0.05 74%
disabled - aggressive 0.02 -0.05 0.14 74%
mild - moderate 0.01 -0.06 -0.06 68%
mild - moderate 0.01 -0.06 0.11 68%
mild - moderate 0.01 0.12 0.12 68%
mild - aggressive 0.02 -0.05 0.14 76%
mild - aggressive 0.02 0.15 0.15 76%
moderate - aggressive 0.01 -0.07 -0.07 62%
moderate - aggressive 0.01 -0.07 0.11 62%

6.4.2.10 Software - main effect

to address one of our main questions, let’s also collapse across the study site, dense cloud quality, and filtering mode setting to compare the software effect. In a hierarchical model structure, we have to make use of the re_formula argument within tidybayes::add_epred_draws

ptcld_validation_data %>%
  dplyr::distinct(software) %>%
  tidybayes::add_epred_draws(
    brms_f_mod5
    # this part is crucial
    , re_formula = ~ (1 | software)
  ) %>%
  dplyr::rename(value = .epred) %>%
  dplyr::mutate(med = tidybayes::median_hdci(value)$y) %>%
  # plot
  ggplot(
    mapping = aes(
      x = value, y = software
      # , fill = software
      , fill = med
    )
  ) +
    tidybayes::stat_halfeye(
      point_interval = median_hdi, .width = .95
      , interval_color = "gray66"
      , shape = 21, point_color = "gray66", point_fill = "black"
      , justification = -0.01
    ) +
    # scale_fill_viridis_d(option = "rocket", begin = 0.3, end = 0.9, drop = F) +
    scale_fill_viridis_c(option = "mako", direction=-1, begin = 0.2, end = 0.8, limits = c(0,1)) +
    scale_x_continuous(limits = c(0,1), breaks = scales::extended_breaks(n=8)) +
    labs(
      y = "software", x = "F-score"
      , subtitle = "posterior predictive distribution of F-score with 95% HDI"
      # , caption = form_temp
    ) +
    theme_light() +
    theme(legend.position = "none")

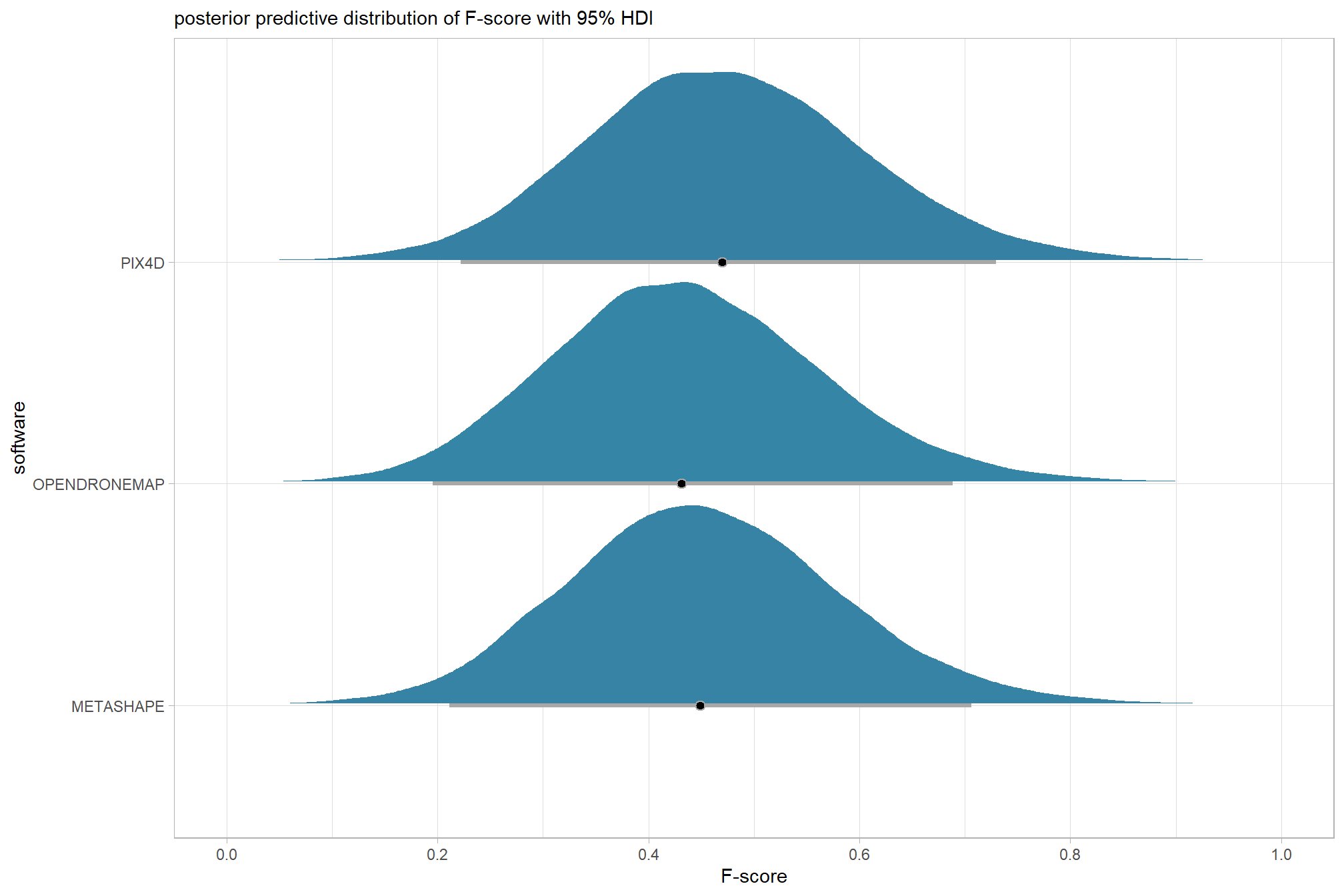

we can also perform pairwise comparisons after collapsing across the filtering mode, dense cloud quality setting, and study site to compare the software main effect

brms_contrast_temp =
  ptcld_validation_data %>%
    dplyr::distinct(software) %>%
    tidybayes::add_epred_draws(
      brms_f_mod5, allow_new_levels = T
      # this part is crucial
      , re_formula = ~ (1 | software)
    ) %>%
    dplyr::rename(value = .epred) %>%
    tidybayes::compare_levels(
      value
      , by = software
      , comparison = "pairwise"
    ) %>%
    dplyr::rename(contrast = software) %>%
  # median_hdi summary for coloring
  dplyr::group_by(contrast) %>%
  make_contrast_vars()

# what?
brms_contrast_temp %>% dplyr::glimpse()
## Rows: 120,000
## Columns: 16
## Groups: contrast [3]
## $ .chain           <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .iteration       <int> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
## $ .draw            <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16…
## $ contrast         <chr> "OPENDRONEMAP - METASHAPE", "OPENDRONEMAP - METASHAPE…
## $ value            <dbl> 3.895523e-02, -1.090878e-01, -2.264508e-02, 4.896502e…
## $ median_hdi_est   <dbl> -0.008625779, -0.008625779, -0.008625779, -0.00862577…
## $ median_hdi_lower <dbl> -0.1641601, -0.1641601, -0.1641601, -0.1641601, -0.16…
## $ median_hdi_upper <dbl> 0.1155234, 0.1155234, 0.1155234, 0.1155234, 0.1155234…
## $ pr_gt_zero       <chr> "40%", "40%", "40%", "40%", "40%", "40%", "40%", "40%…
## $ pr_lt_zero       <chr> "60%", "60%", "60%", "60%", "60%", "60%", "60%", "60%…
## $ is_diff_dir      <lgl> FALSE, TRUE, TRUE, FALSE, FALSE, TRUE, TRUE, TRUE, TR…
## $ pr_diff          <dbl> 0.598325, 0.598325, 0.598325, 0.598325, 0.598325, 0.5…
## $ pr_diff_lab      <chr> "Pr(MtaShp>ODM)=60%", "Pr(MtaShp>ODM)=60%", "Pr(MtaSh…
## $ pr_diff_lab_sm   <chr> "Pr(<0)=60%", "Pr(<0)=60%", "Pr(<0)=60%", "Pr(<0)=60%…
## $ pr_diff_lab_pos  <dbl> -0.1764721, -0.1764721, -0.1764721, -0.1764721, -0.17…
## $ sig_level        <ord> <80%, <80%, <80%, <80%, <80%, <80%, <80%, <80%, <80%,…

plot it

plt_contrast(
  brms_contrast_temp
  # , caption_text = form_temp
  , y_axis_title = "software"
)

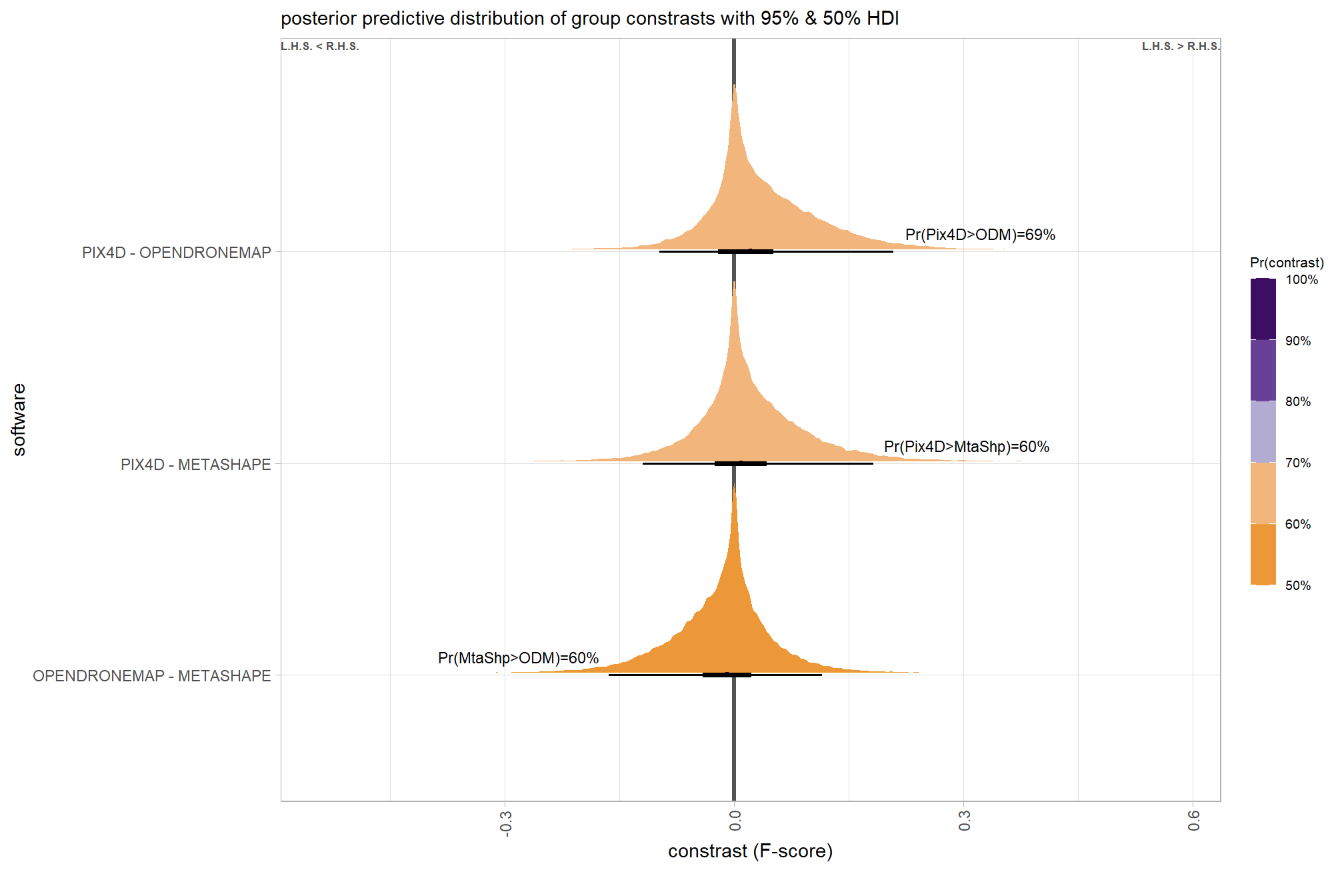

and summarize these contrasts

brms_contrast_temp %>%
  dplyr::group_by(contrast, pr_gt_zero) %>%
  tidybayes::median_hdi(value) %>%
  dplyr::arrange(contrast) %>%
  dplyr::select(contrast, value, .lower, .upper, pr_gt_zero) %>%

  kableExtra::kbl(
    digits = 2
    , caption = "brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts"
    , col.names = c(
      "software contrast"
      , "difference (F-score)"
      , "HDI low", "HDI high"
      , "Pr(diff>0)"
    )
  ) %>%
  kableExtra::kable_styling()
Table 6.16: brms::brm model: 95% HDI of the posterior predictive distribution of group constrasts
software contrast difference (F-score) HDI low HDI high Pr(diff>0)
OPENDRONEMAP - METASHAPE -0.01 -0.16 0.12 40%
PIX4D - METASHAPE 0.01 -0.12 0.18 60%
PIX4D - OPENDRONEMAP 0.02 -0.10 0.21 69%

6.4.2.11 \(\sigma\) posteriors

Finally, we can quantify the variation in F-score by comparing the \(\sigma\) (sd) posteriors

unsure about the scale of the \(\sigma\) parameters are on in the beta model. Here, we invert the logit sd values from the model using plogis() which converts the parameter values to a probability/proportion (e.g.; 0-1) because they are parameters of the intercept and interaction effects so must be on the transformed (link = "logit") scale…double check

For a phenomenally excellent overview of binary logistic regression and how to interpret coefficients, see Steven Miller’s most excellent lab script here

# tidybayes::get_variables(brms_f_mod5)
# extract the posterior draws
# extract the posterior draws
  brms::as_draws_df(brms_f_mod5) %>%
    dplyr::select(c(tidyselect::starts_with("sd_"))) %>%
    tidyr::pivot_longer(dplyr::everything()) %>%
    # dplyr::group_by(name) %>%
    # tidybayes::median_hdi(value) %>%
    dplyr::mutate(
      name = name %>%
        stringr::str_replace_all("depth_maps_generation_quality", "quality") %>%
        stringr::str_replace_all("depth_maps_generation_filtering_mode", "filtering") %>%
        stringr::str_remove_all("sd_") %>%
        stringr::str_remove_all("__Intercept") %>%
        stringr::str_replace_all("_", " ") %>%
        forcats::fct_reorder(value)
    ) %>%
  # plot
    ggplot(aes(x = value, y = name)) +
    tidybayes::stat_dotsinterval(
      point_interval = median_hdi, .width = .95
      , justification = -0.04
      , shape = 21 #, point_size = 3
      , quantiles = 100
    ) +
    scale_x_continuous(breaks = NULL) +
    labs(x = "", y = ""
      , subtitle = latex2exp::TeX("$\\sigma_\\beta$ posterior distributions")
      , title = "F-Score"
    ) +
    theme_light() +
    theme(
      plot.subtitle = element_text(size = 8)
      , plot.title = element_text(size = 9)
    )

Variance of study site is stronger than variance of depth map generation quality, but the posterior predictive distributions overlap a good deal. The study site (the “subjects” in our study) seems to have the overall strongest effect, but this comes with high uncertainty. Taken alone, the influence of quality, filtering, and software comes with huge uncertainty. This makes sense as the influence of software largely depends on the depth map generation quality, of which we are fairly certain. Filtering mode has the overall weakest effect on tree detection and this comes with relatively high certainty, especially conditional on the depth map generation quality.

6.4.2.12 Additional Plots for Export

patchwork of F-score contrasts

layout_temp = c(
    # area(t, l, b, r)
    patchwork::area(2, 1, 2, 1)
    , patchwork::area(2, 3, 2, 3)
    , patchwork::area(4, 1, 4, 3)
  )
  # check the layout
  # plot(layout_temp)
############################
# patchwork for height
############################
  ptchwrk_qlty_sftwr_comp +
    labs(subtitle = "A: Quality Contrast by Software") +
    theme(plot.background = element_rect(colour = "gray88", fill=NA, size=3)) +
  ptchwrk_fltr_sftwr_comp +
    labs(subtitle = "B: Filtering Mode Contrast by Software") +
    theme(plot.background = element_rect(colour = "gray88", fill=NA, size=3)) +
  patchwork::free(
    ptchwrk_sftwr_qlty_comp +
    labs(subtitle = "C: Software Contrast by Quality") +
    theme(plot.background = element_rect(colour = "gray88", fill=NA, size=3)) ) +
  # plot_annotation(tag_levels = list(c('#', '&'), '1')) +
  patchwork::plot_layout(
    design = layout_temp
    , widths = c(1,0.01,1)
    , heights = c(0.01,1,0.01,1,0.01)
  ) &
  scale_x_continuous(
    limits = c(-0.58,0.96)
    , breaks = seq(-0.8,0.8,0.4)
    , labels = seq(-0.8,0.8,0.4) %>% scales::number(accuracy = 0.1)
  ) &
  theme(
    axis.title.y = element_blank()
    , plot.subtitle = element_text(face = "bold", hjust = 0.0)
    # , plot.background = element_rect(colour = "gray88", fill=NA, size=3)
  )

ggplot2::ggsave(
    filename = paste0("../data/all_fscore_contrasts.jpeg")
    , plot = ggplot2::last_plot()
    , width = 11
    , height = 8.5
    , units = "in"
    , dpi = "print"
  )

6.5 Bayesian p-value

The Bayesian p-value is the probability that a test statistic in the reference distribution exceeds its value in the data. The Bayesian p-value is calculated from the posterior predictive distribution of the new data and the distribution of the observed data. We estimate the probability that the test statistic calculated from “new” data arising from our model (\(y_{new}\)) is more extreme than the test statistic calculated from the observed data (\(y\)): \(\text{P-value}(y) = Pr(T(y_{new}) > T(y))\) where the test statistic \(T(y)\) describes the distribution of the data as a summary of the data; it could be the mean, variance, the coefficient of variation, the kurtosis, the maximum, or the minimum of the observed data set, or it might be an “omnibus” statistic like a squared discrepancy or a chi-square value Hobbs and Hooten (2015, p. 188)

Bayesian P values for mean and standard deviation test statistics The P values for the mean (P mean) give the probability that the mean of the data of new, out-of-sample observations simulated from the model exceeds the mean of the observed data. The P values for the standard deviation (P SD) give the probability that the standard deviation of new, out-of-sample observations simulated from the model exceeds the standard deviation of the observed data. Large (\(\gtrapprox 0.90\)) or small (\(\lessapprox 0.10\)) values indicate lack of fit. Hobbs and Hooten (2015);Hobbs et al. (2024, Appendix S2 p. 8)

Check the Bayesian p-values between the models

# bayesian p-value
get_mod_p_val = function(my_mod, ndraws = 1000){
  # get draws from the posterior predictive distribution
  brms::posterior_predict(my_mod, ndraws = ndraws) %>%
    dplyr::as_tibble() %>%
    dplyr::mutate(draw = dplyr::row_number()) %>%
    tidyr::pivot_longer(cols = -draw, values_to = "y_rep") %>%
    dplyr::mutate(y_n = readr::parse_number(name)) %>%
    dplyr::select(-c(y_n)) %>%
    dplyr::group_by(draw) %>%
    # make test statistic
    dplyr::summarise(
      # test statistics y_sim
      mean_y_rep = mean(y_rep)
      , sd_y_rep = sd(y_rep)
    ) %>%
    # # observed data test statistics
    dplyr::mutate(
    # test statistics y
      mean_y = mean(my_mod$data[,1])
      , sd_y = sd(my_mod$data[,1])
    ) %>%
    # p-values
    dplyr::ungroup() %>%
    dplyr::mutate(
      p_val_mean = as.numeric(mean_y_rep > mean_y)
      , p_val_sd = as.numeric(sd_y_rep > sd_y)
    ) %>%
    # summarize p-vals
    dplyr::summarise(
      P.mean = mean(p_val_mean)
      , P.sd = mean(p_val_sd)
    )
}
# get the model p-values
set.seed(16) # replicate results
dplyr::bind_rows(
    get_mod_p_val(brms_f_mod5, ndraws = 5000) %>%
      dplyr::mutate(model = "brms_f_mod5")
  ) %>%
  dplyr::relocate(model) %>%
  kableExtra::kbl(digits = 3) %>%
  kableExtra::kable_styling()
model P.mean P.sd
brms_f_mod5 0.228 0.878
